BODY FRAME ASSEMBLY (0200) | 02-0200-01
BODY FRAME ASSEMBLY (0200) | 02-0200-01 — BODY (02), SHERP N (PRO XT). Includes 35 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 35 parts
| 1 | Bumper | 10200-90000-N0А | 090-1548 | 2 | $237 CAD | |
| 2 | Bolt | 11501-09300-XXА | 24 | |||
| 3 | Cap | 10300-72500-XXА | 090-0180 | 2 | $12.5 CAD | |
| 4 | Drain plug assembly | 11503-10000-XXA | 02.0452, 090-1235, 02.0452-S | 4 | $49 CAD | |
| 4 | Drain plug (screw-in piece) | 11503-10000-XXA-S | 02.0452, 090-1235, 02.0452-S | 4 | $9 CAD | |
| 5 | Washer | 11504-08400-XXA | 09.0392 | 4 | Price on request | |

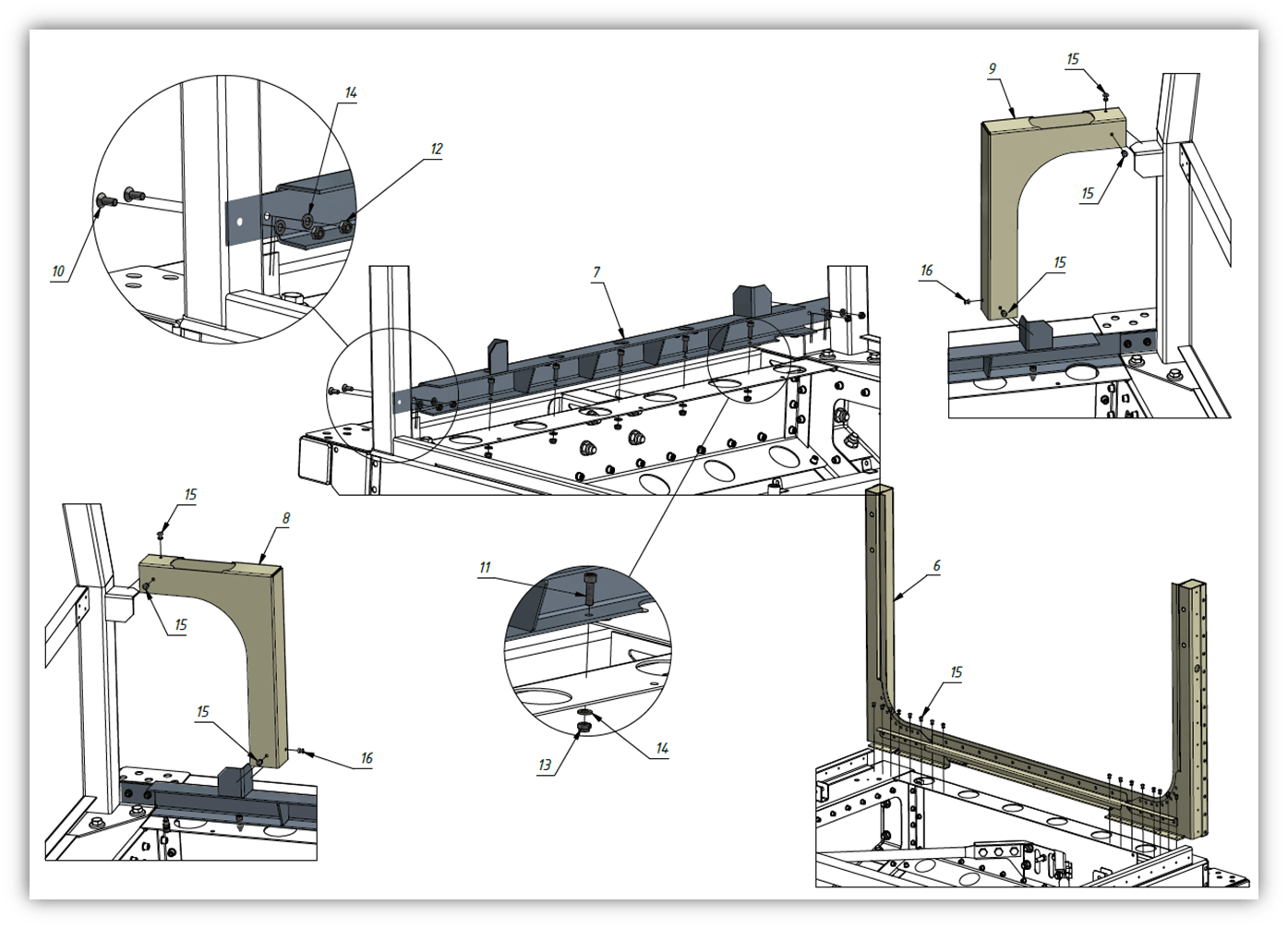

| 6 | Frame | 10200-03400-N0А | 1 | |||
| 7 | Crossbar | 10200-03500-N0А | 1 | |||
| 8 | Bracket | 10200-03600-N0А | 1 | |||
| 9 | Bracket | 10200-03700-N0А | 1 | |||
| 10 | Screw | 11502-09800-XXА | 1 | |||
| 11 | Screw | 11502-00100-XXА | 04.0038 | 1 | Price on request | |
| 12 | Nut | 11503-00600-XXА | 03.0447, 090-1194 | 1 | $0.5 CAD | |
| 13 | Nut | 11503-06300-XXА | 05.0044 | 1 | Price on request | |
| 14 | Washer | 11504-02500-XXА | 03.0450 | 1 | Price on request | |
| 15 | Rivet | 11507-03900-XXА | 1 | |||
| 16 | LockBolt | 11501-10200-N0А | 4 | |||

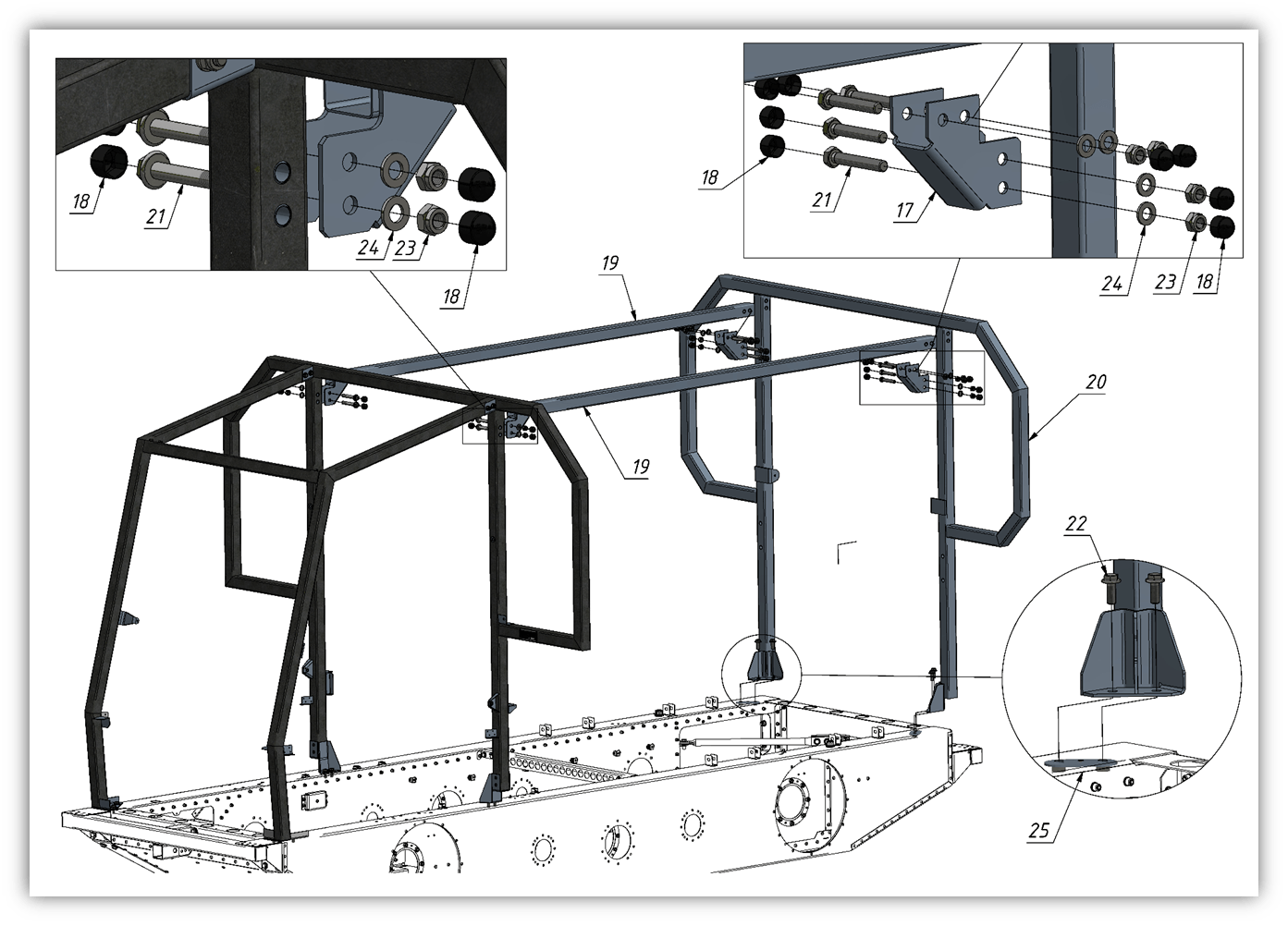

| 17 | Bracket | 10200-05000-N0А | 2 | |||
| 18 | Screw plug black M12 | 10200-90200-N0А | 32 | |||
| 19 | Top beam | 10200-04800-N0А | 2 | |||
| 20 | ROPS (rollover protection structure) | 10200-04900-N0А | 1 | |||
| 21 | Bolt | 11501-10700-N0А | 12 | |||
| 22 | Bolt | 11501-09200-XXА | 4 | |||
| 23 | Nut | 11503-00300-XXА | 03.0448 | 12 | Price on request | |
| 24 | Washer | 11504-05800-XXА | 09.0292 | 12 | Price on request | |
| 25 | Insert plate | 10200-05100-N0А | 2 | |||
| 26 | Bolt | 11501-09300-XXА | 8 | |||

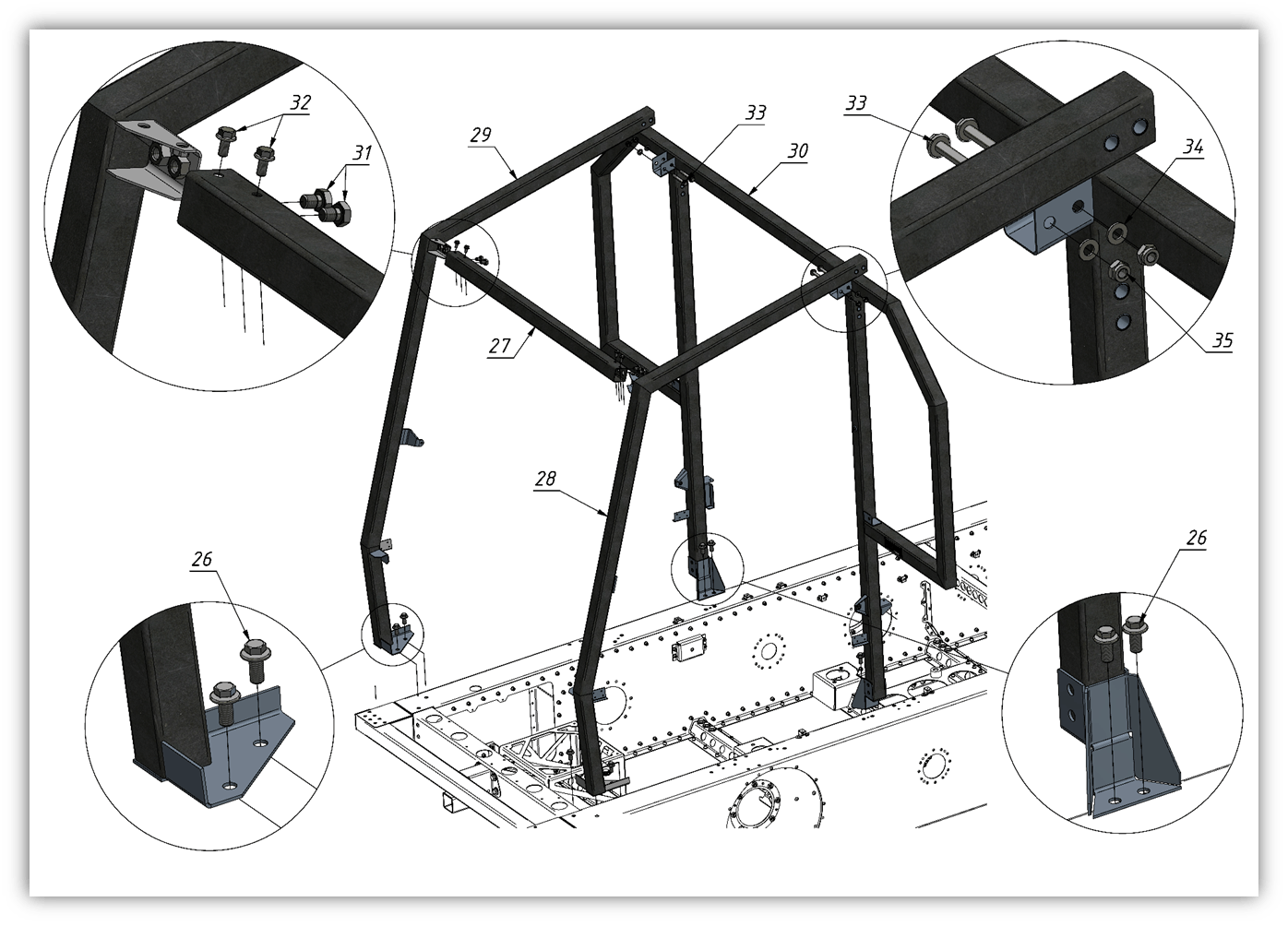

| 27 | Tubes | 10200-05200-N0А | 1 | |||
| 28 | Frame | 10200-10600-N0А | 1 | |||
| 29 | Frame | 10200-10700-N0А | 1 | |||
| 30 | Frame | 10200-10800-N0А | 1 | |||
| 31 | Bolt | 11501-00300-XXА | 4 | |||
| 32 | Bolt | 11501-09000-XXА | 4 | |||
| 33 | Bolt | 11501-10700-N0А | 4 | |||
| 34 | Washer | 11504-05800-XXА | 09.0292 | 4 | Price on request | |
| 35 | Nut | 11503-00300-XXA | 03.0448 | 4 | Price on request |
1Viewing
2
3
4
