LEFT SIDE ASSEMBLY (0200-02)

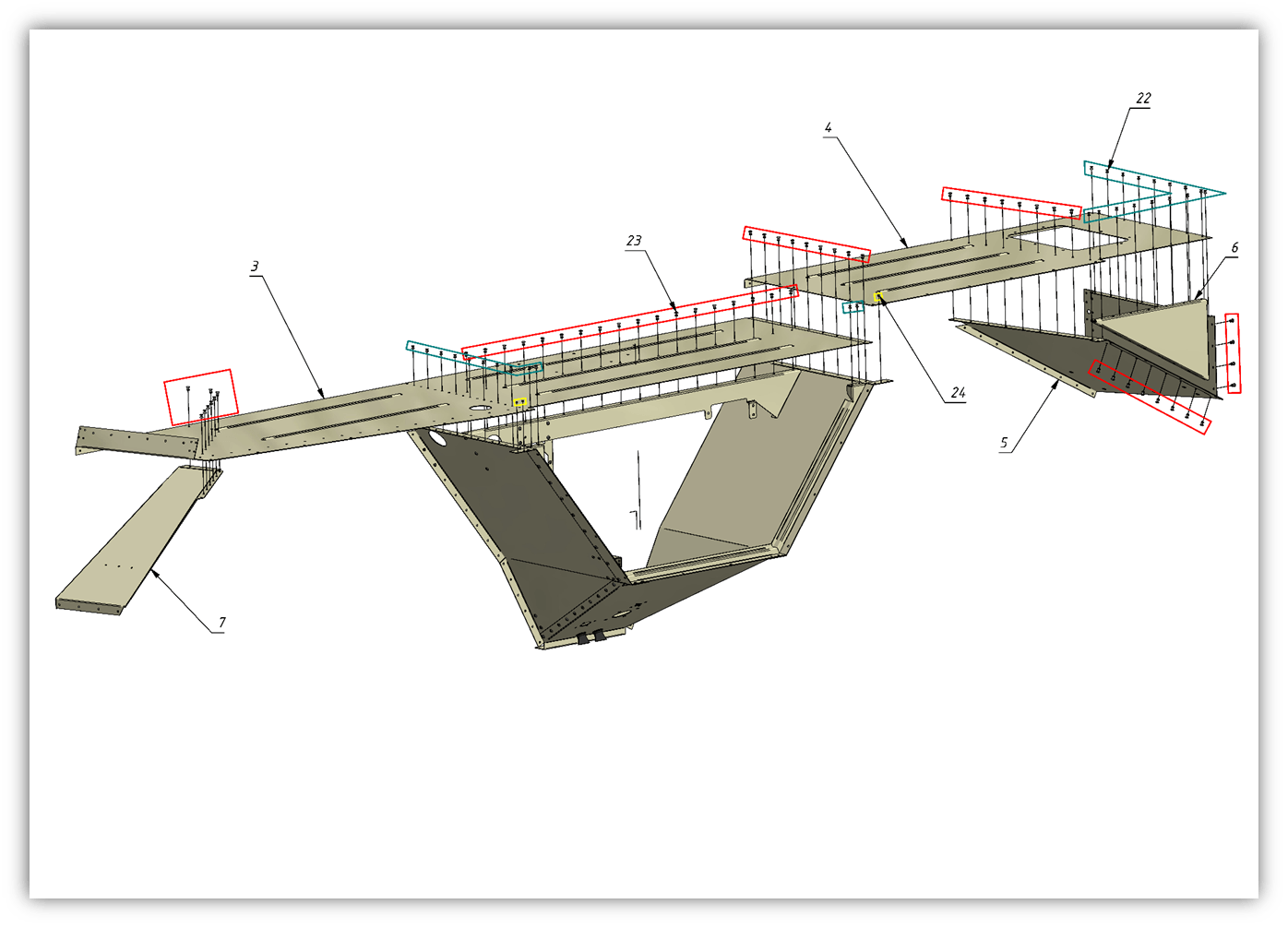

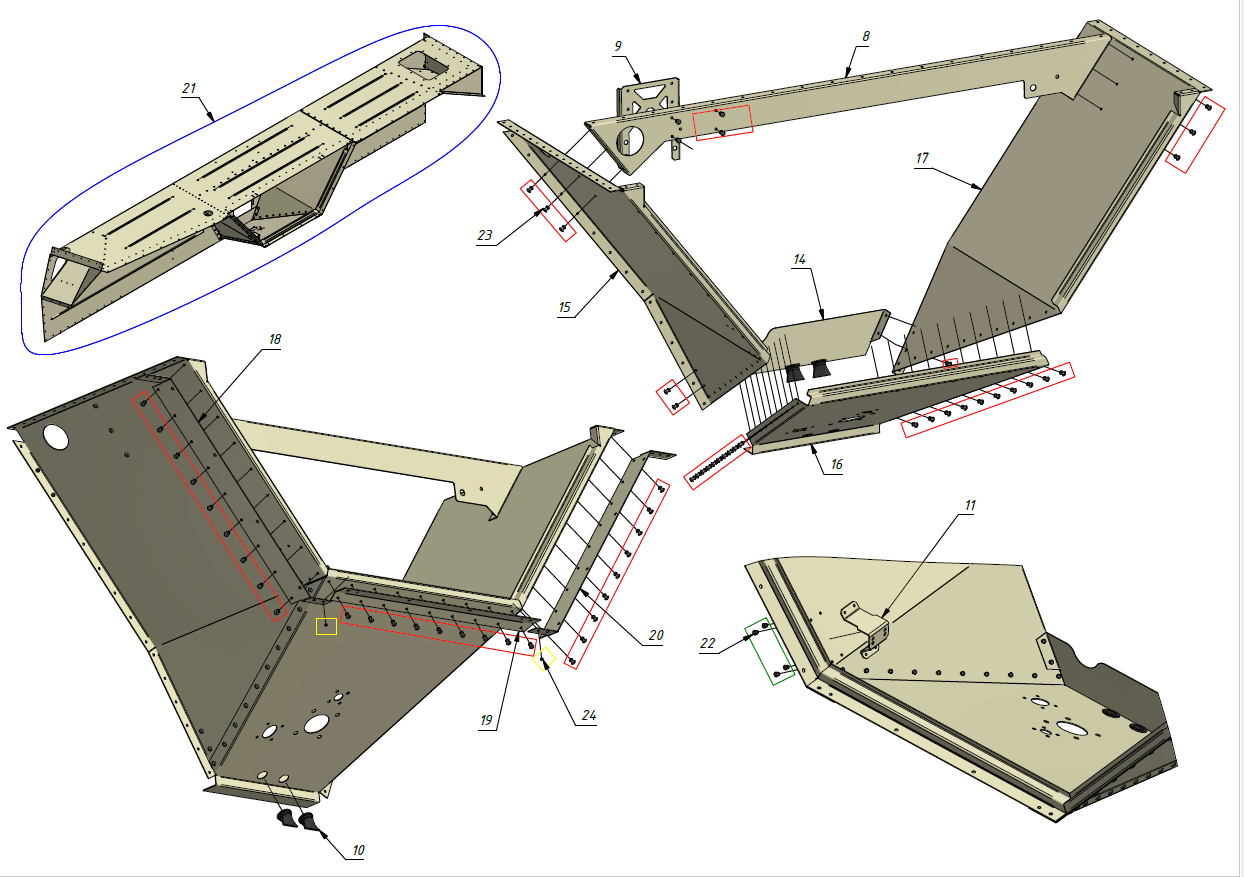

LEFT SIDE ASSEMBLY (0200-02) — BODY (02), SHERP N (PRO XT). Includes 24 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 24 parts
| 1 | Rear wing | 10200-10900-N0A-4 | 1 | |||
| 2 | Front wing | 10200-11000-N0A-3 | 1 | |||
| 3 | Top panel | 10200-11100-N0A-3 | 1 | |||
| 4 | Top panel | 10200-11200-N0A-4 | 1 | |||
| 5 | Wall of the body | 10200-11300-N0A | 1 | |||
| 6 | Wall of the body | 10200-11400-N0A | 1 | |||
| 7 | Wall of the body | 10200-11500-N0A | 1 | |||
| 8 | Plate | 10200-11600-N0A | 1 | |||
| 9 | Bracket | 10200-11700-N0A | 1 | |||
| 10 | Valve | 10200-13900-XXA | 2 | |||
| 11 | Bracket | 10200-11900-N0A | 1 | |||
| 12 | Bracket | 10200-12000-N0A | 1 | |||
| 13 | Bracket | 10200-12100-N0A | 1 | |||
| 14 | Panel | 10200-12200-N0A | 1 | |||
| 15 | Panel | 10200-12300-N0A | 1 | |||
| 16 | Panel | 10200-12400-N0A | 1 | |||
| 17 | Panel | 10200-13400-N0A | 1 | |||
| 18 | Bracket | 10200-13500-N0A | 1 | |||
| 19 | Bracket | 10200-13600-N0A | 1 | |||
| 20 | Bracket | 10200-13700-N0A | 1 | |||
| 21 | Left side assembly | 10200-14000-N0A-1 | 1 | |||
| 22 | Rivet | 11507-01600-XXA | 02.0224 | 34 | Price on request | |
| 23 | Rivet | 11507-03900-XXA | 218 | |||
| 24 | Rivet | 11507-02200-XXA | 5 |
