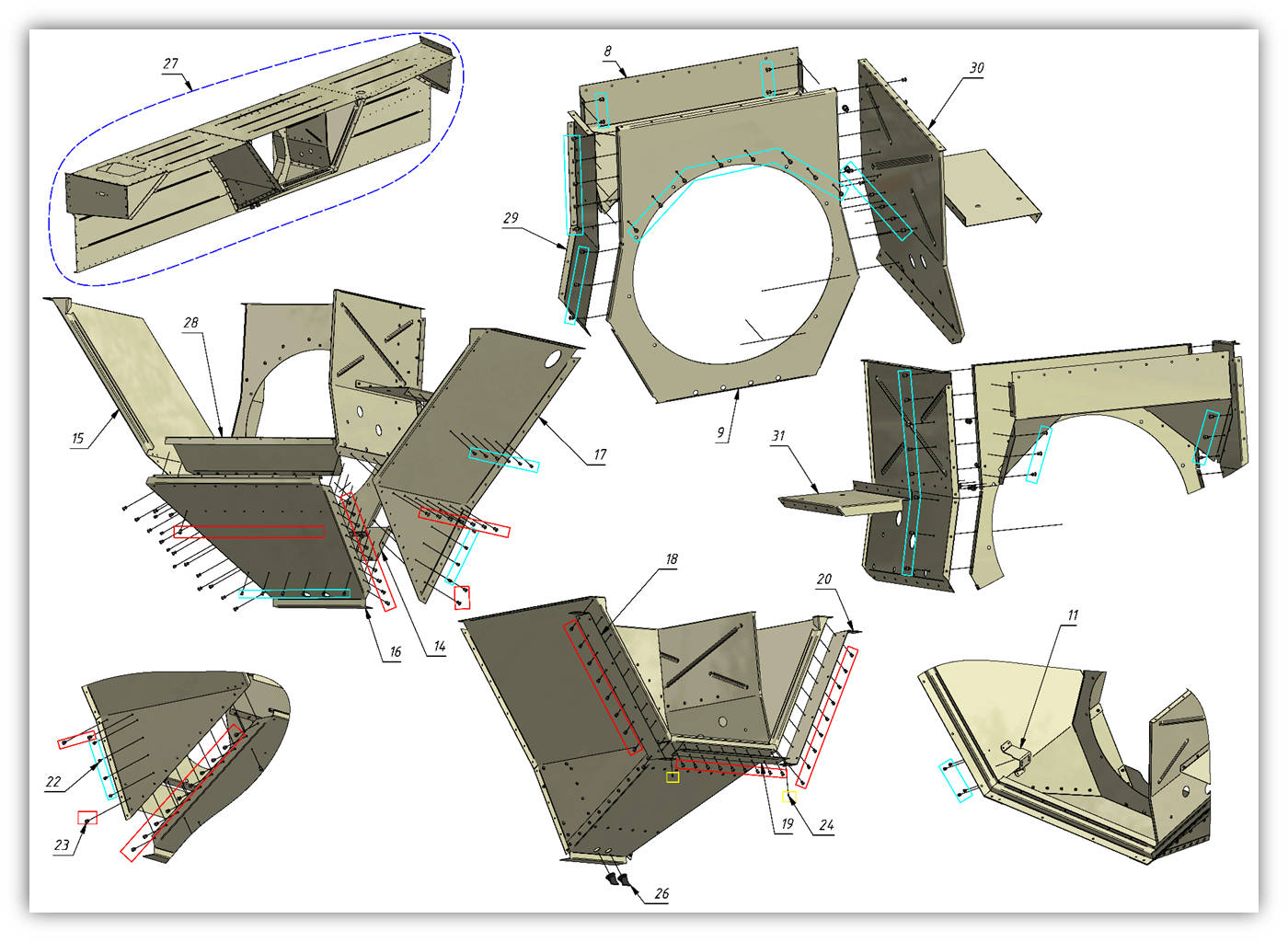

RIGHT SIDE ASSEMBLY (0200-03)
RIGHT SIDE ASSEMBLY (0200-03) — BODY (02), SHERP N (PRO XT). Includes 32 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 32 parts
| 1 | Front wing | 10200-14300-N0A-4 | 1 | |||
| 2 | Real wing | 10200-14400-N0A-3 | 1 | |||
| 3 | Top panel | 10200-14700-N0A | 1 | |||
| 4 | Top panel | 10200-14700-N0A | 1 | |||
| 5 | Wall of the body | 10200-14800-N0A | 1 | |||
| 6 | Wall of the body | 10200-14900-N0A | 1 | |||
| 7 | Wall of the body | 10200-15100-N0A | 1 | |||
| 8 | Panel | 10200-15200-N0A | 1 | |||
| 9 | Panel | 10200-15300-N0A | 1 | |||
| 10 | Bracket | 10200-15400-N0A | 1 | |||
| 11 | Bracket | 10200-11900-N0A | 1 | |||
| 12 | Bracket | 10200-15500-N0A | 1 | |||
| 13 | Bracket | 10200-15600-N0A | 1 | |||
| 14 | Panel | 10200-12200-N0A | 1 | |||
| 15 | Panel | 10200-15800-N0A | 1 | |||
| 16 | Panel | 10200-30200-N0A | 1 | |||
| 17 | Panel | 10200-15900-N0A | 1 | |||
| 18 | Bracket | 10200-30300-N0A | 1 | |||
| 19 | Bracket | 10200-30400-N0A | 1 | |||
| 20 | Bracket | 10200-30500-N0A | 1 | |||
| 21 | Screw | 11502-09100-XXA | 4 | |||
| 22 | Rivet | 11507-01600-XXA | 02.0224 | 34 | Price on request | |
| 23 | Rivet | 11507-03900-XXA | 218 | |||
| 24 | Rivet | 11507-02200-XXA | 5 | |||
| 25 | Washer | 11504-02500-XXA | 03.0450 | 4 | Price on request | |
| 26 | Valve | 10200-13900-XXA | 2 | |||
| 27 | Right side assembly | 10200-30600-N0A-2 | 1 | |||
| 28 | Panel | 10200-30700-N0A | 1 | |||
| 29 | Panel | 10200-30800-N0A | 1 | |||
| 30 | Panel | 10200-31000-N0A | 1 | |||
| 31 | Bracket | 10200-30900-N0A | 1 | |||
| 32 | Nut | 11503-00600-XXA | 03.0447, 090-1194 | 4 | $0.5 CAD |
