INTERIOR FACING (CORDURA) (0500) | 05-0500-03

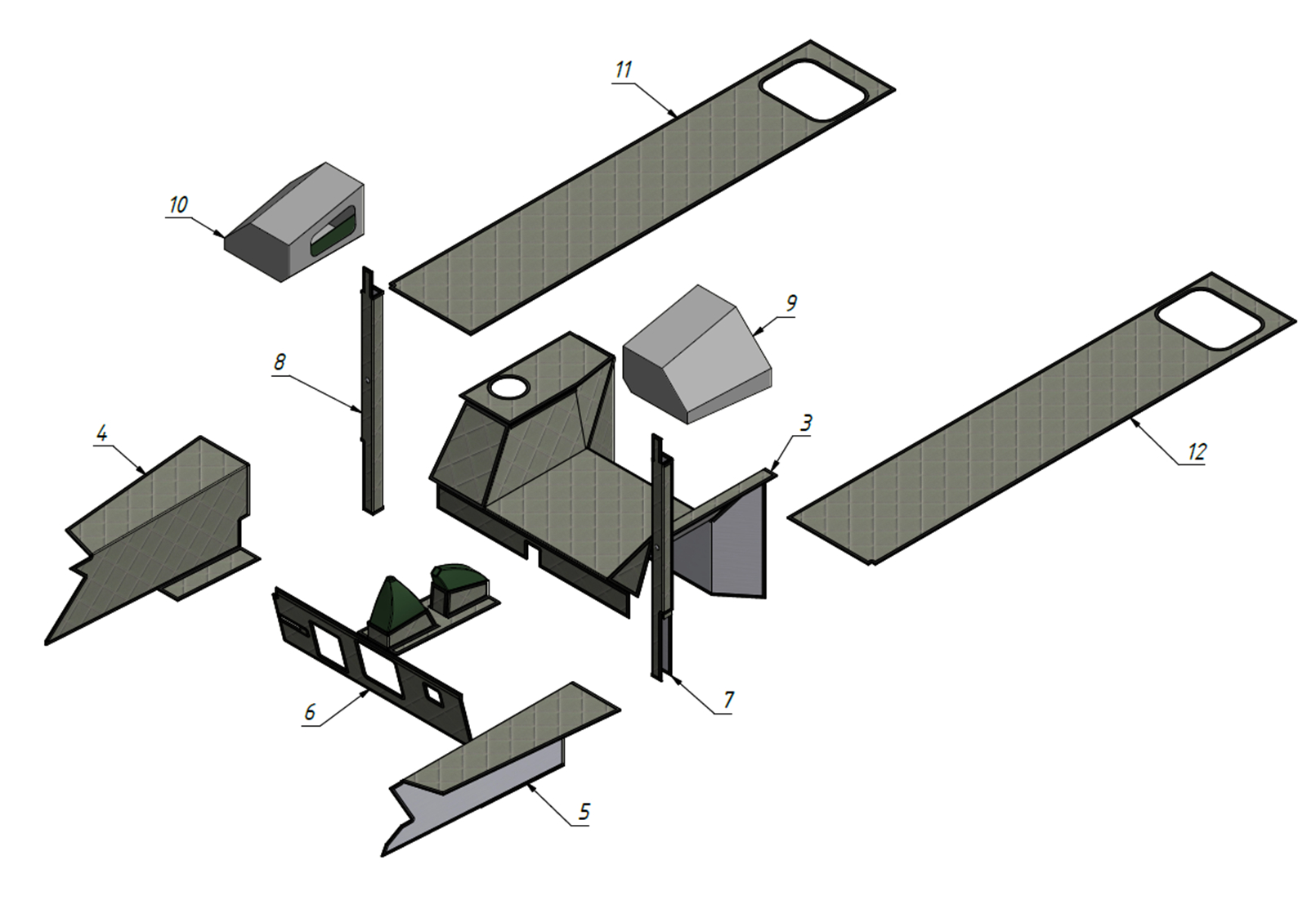

INTERIOR FACING (CORDURA) (0500) | 05-0500-03 — BODY ELEMENTS (05), SHERP N (PRO XT). Includes 12 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 12 parts
| 1 | Cordura right | 10503-02100-N0A | 1 | |||
| 2 | Cordura left | 10503-02200-N0A | 1 | |||
| 3 | Cordura hood | 10503-02300-N0A | 1 | |||
| 4 | Cordura right | 10503-02400-N0A | 1 | |||
| 5 | Cordura left | 10503-02500-N0A | 1 | |||
| 6 | Middle cordura | 10503-02600-N0A | 1 | |||
| 7 | Cordura strut left | 10503-02700-N0A | 1 | |||
| 8 | Cordura strut right | 10503-02800-N0A | 1 | |||
| 9 | Right glove compartment | 10503-00700-N0A-2 | 1 | |||
| 10 | Left glove compartment | 10503-00600-N0A-1 | 1 | |||
| 11 | Cordura right | 10503-02900-N0A | 1 | |||
| 12 | Cordura left | 10503-03000-N0A | 1 |
