INTERIOR TRIM (0500) | 05-0500-04
INTERIOR TRIM (0500) | 05-0500-04 — BODY ELEMENTS (05), SHERP N (PRO XT). Includes 23 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 23 parts

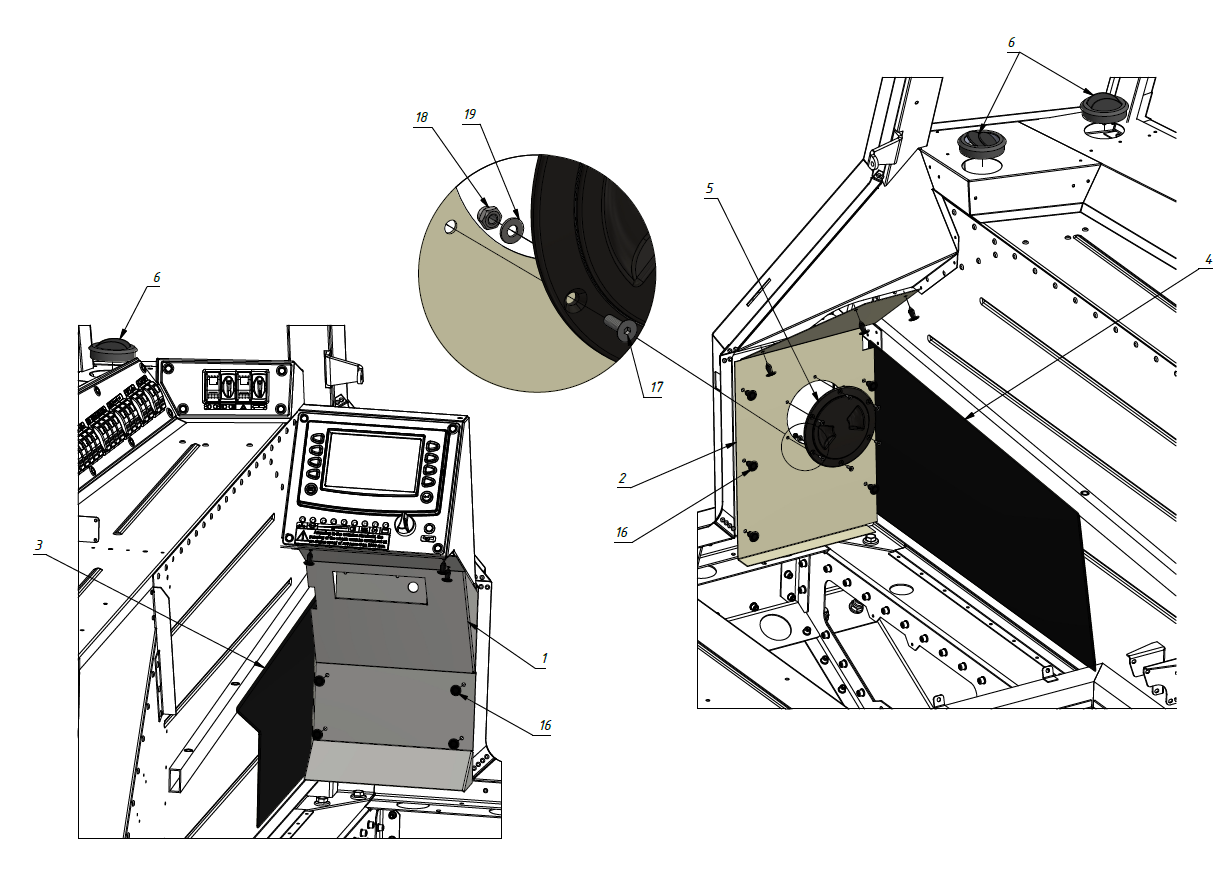

| 1 | Panel | 10500-01500-N0A | 1 | |||
| 2 | Panel | 10500-01300-N0A | 1 | |||
| 3 | Panel | 10504-01700-N0A | 1 | |||
| 4 | Panel | 10504-01800-N0A | 1 | |||
| 5 | Hatch for inspection | 10504-01900-XXA | 1 | $34 CAD | ||
| 6 | Deflector | 11702-00300-XXA | 3 | |||

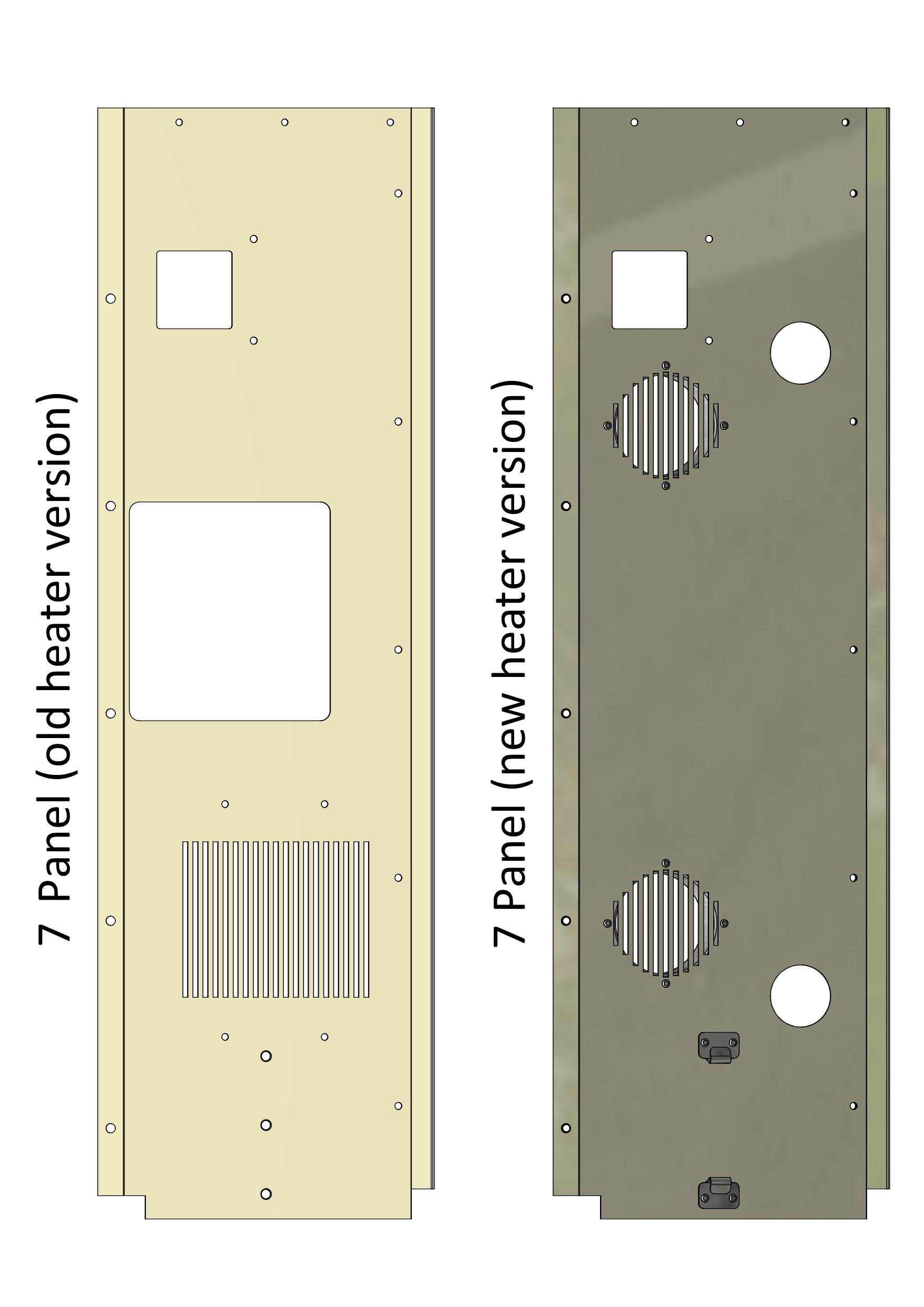

| 7 | Panel (new heater version) | 10504-00300-N0A | 1 | |||
| 7 | Panel (old heater version) | 10504-02000-N0A | 1 | |||
| 8 | Panel | 10504-00400-N0A | 1 | |||
| 9 | Panel | 10504-00500-N0A | 1 | |||
| 10 | Panel | 10504-00600-N0A | 1 | |||
| 11 | Panel | 10504-00700-N0A | 2 | |||
| 12 | Housing | 10504-00800-N0A | 1 | |||
| 13 | Brush | 10504-02600-N0A | 2 | |||
| 14 | Rivet | 11507-01600-XXA | 02.0224 | 15 | Price on request | |
| 15 | Bracket | 10504-02700-N0A | 1 | |||
| 16 | Clip | 10504-02800-N0A | 15 | $0.7 CAD | ||
| 17 | Screw | 11502-09900-XXA | 6 | |||
| 18 | Nut | 11503-10300-XXA | 6 | |||
| 19 | Washer | 11504-10500-XXA | 6 | |||
| 20 | Screw | 11502-08300-N0A | 6 | |||
| 21 | Screw | 11502-01800-XXA | 05.0787 | 22 | Price on request | |
| 22 | Nut | 11504-06400-XXA | 10.0602 | 11 | Price on request |
