REFLECTORS, HEADLIGHT GLASS (0500) | 05-0500-01
REFLECTORS, HEADLIGHT GLASS (0500) | 05-0500-01 — BODY ELEMENTS (05), SHERP N (PRO XT). Includes 8 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 8 parts

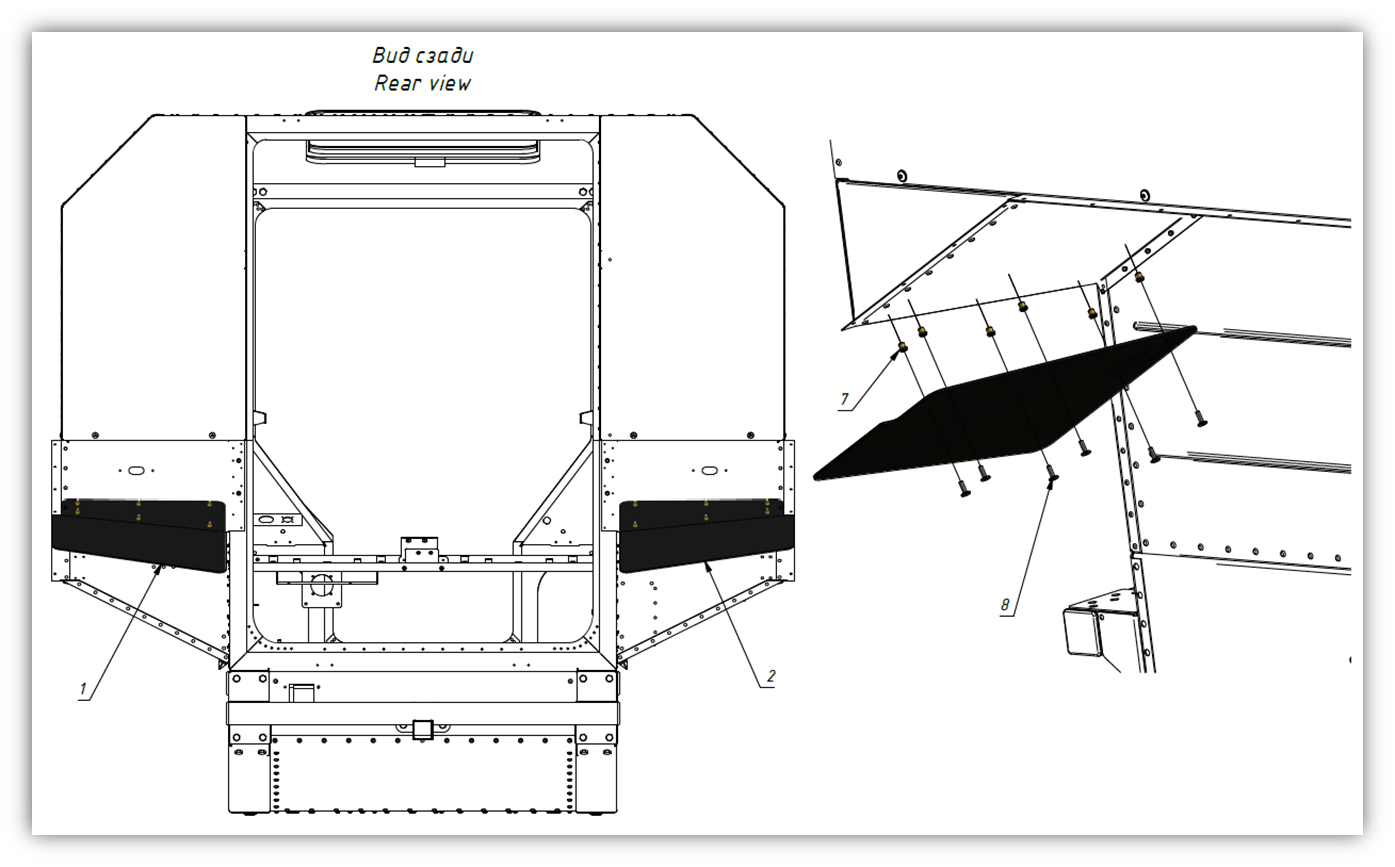

| 1 | Reflector | 10500-03700-N0А | 1 | |||
| 2 | Reflector | 10500-03800-N0А | 1 | |||

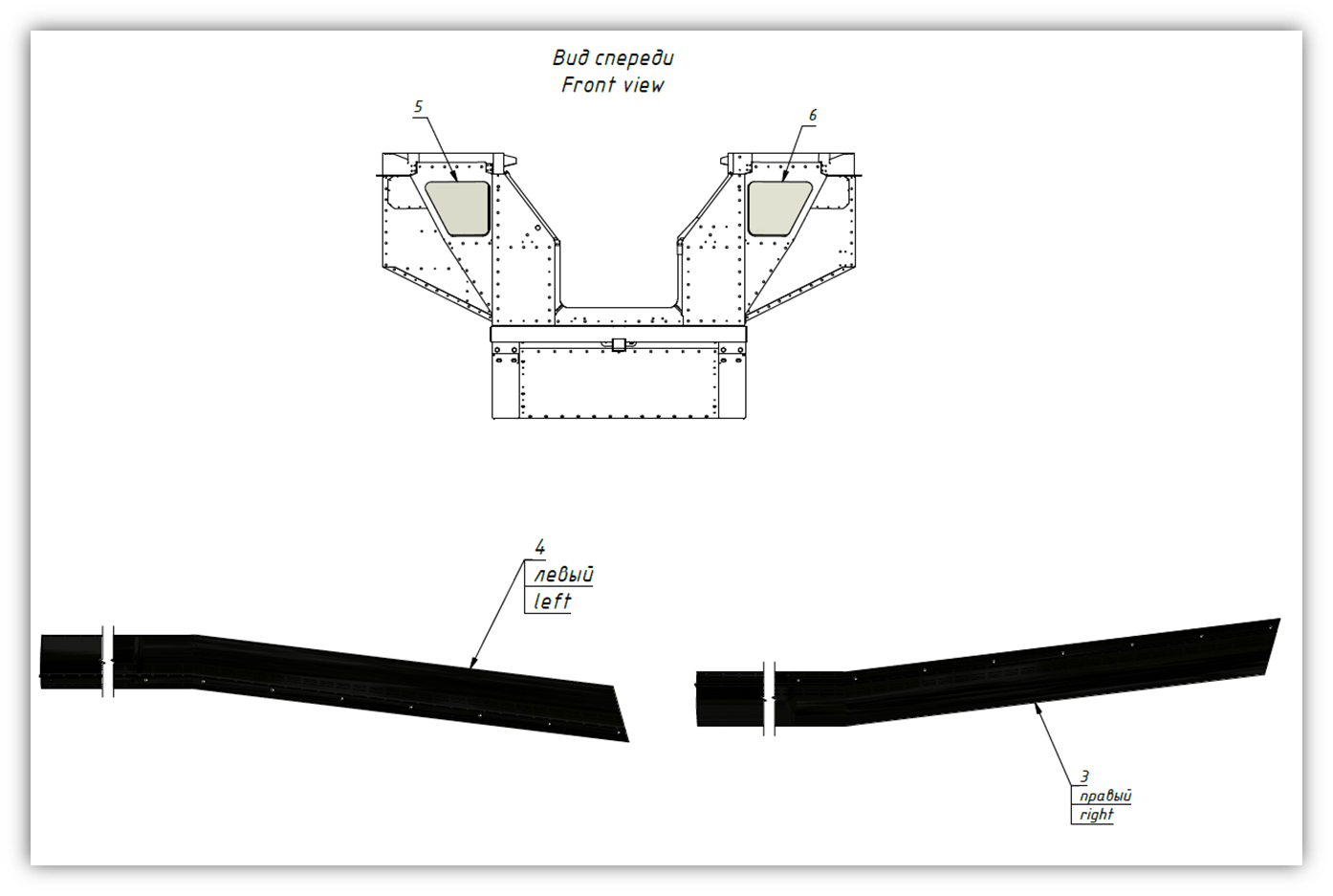

| 3 | Arch extensions | 10500-04200-B0А | 1 | |||
| 4 | Arch extensions | 10500-08100-B0A | 1 | |||
| 5 | Headlight glass right | 10500-04100-N0А | 1 | |||
| 6 | Headlight glass left | 10500-04000-N0А | 1 | |||
| 7 | Riveting nut | 11503-08100-XXА | 02.0225 | 12 | Price on request | |
| 8 | Screw | 11502-01800-XXА | 05.0787 | 12 | Price on request |
