ManualELECTRICAL DIAGRAM (1100)
ELECTRICAL DIAGRAM (1100) — ELECTRIC EQUIPMENT (11), SHERP N (PRO XT). Includes 1 part with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.
1 partOpen manual
ELECTRIC EQUIPMENT (11)
ELECTRIC EQUIPMENT (11) — SHERP N (PRO XT) parts manuals. Explore 10 manuals with part numbers, quantities, and linked products.
Manual

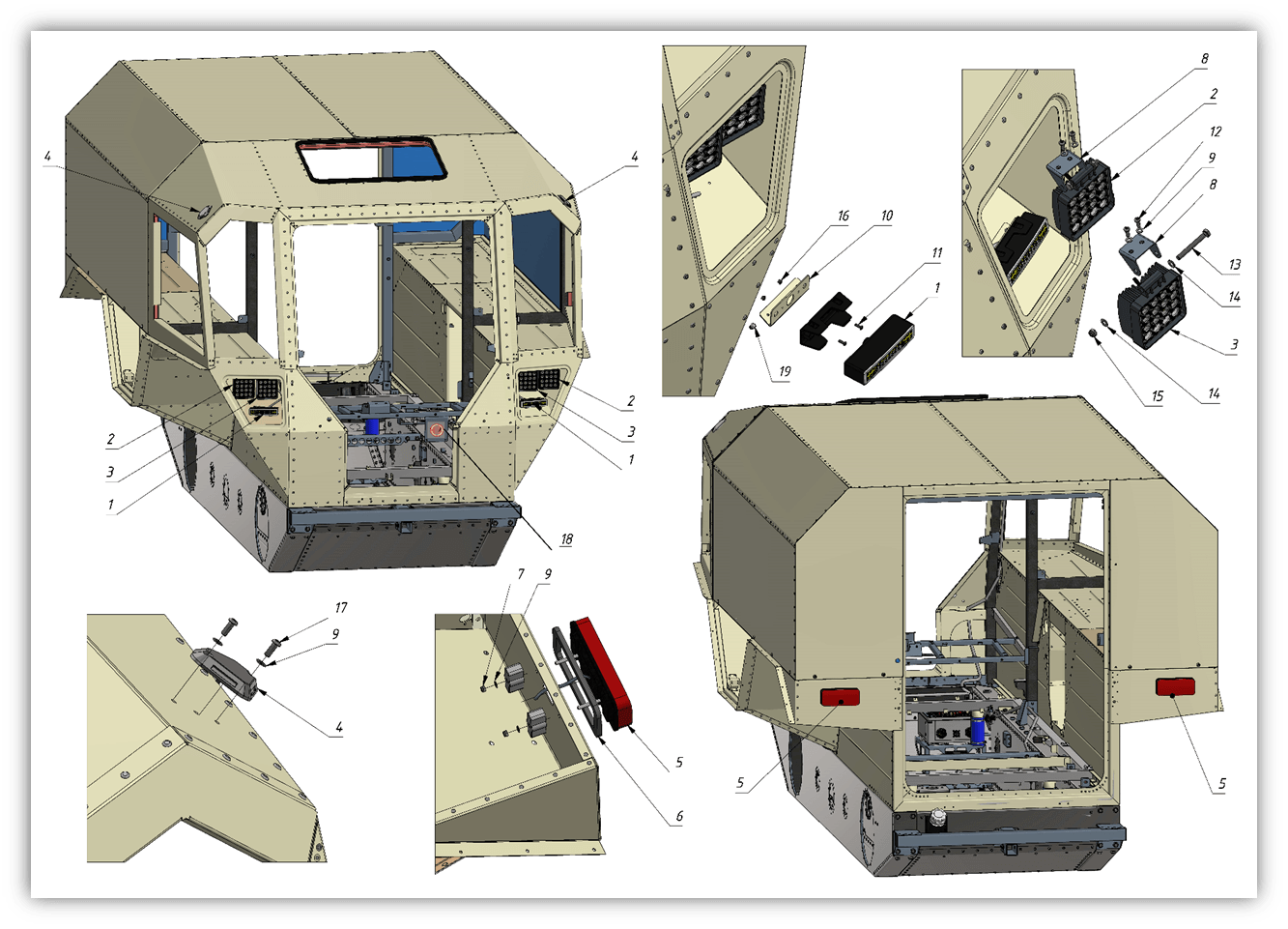

ManualLIGHTING (1100-01)
LIGHTING (1100-01) — ELECTRIC EQUIPMENT (11), SHERP N (PRO XT). Includes 19 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.
19 partsOpen manual

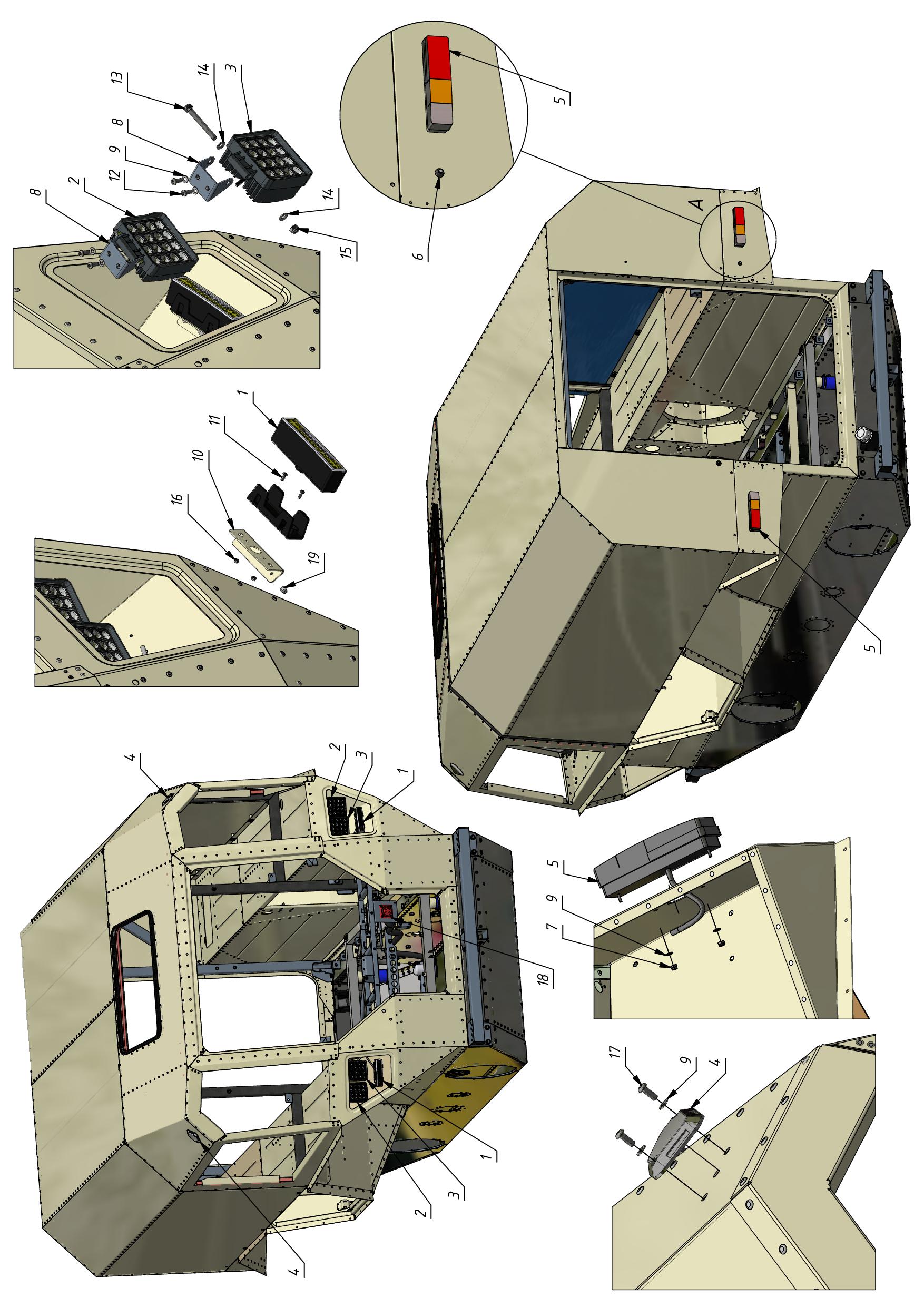

ManualLIGHTING ver. II | 1100-01(2)
LIGHTING ver. II | 1100-01(2) — ELECTRIC EQUIPMENT (11), SHERP N (PRO XT). Click hotspots on the manual to find the right SHERP part.

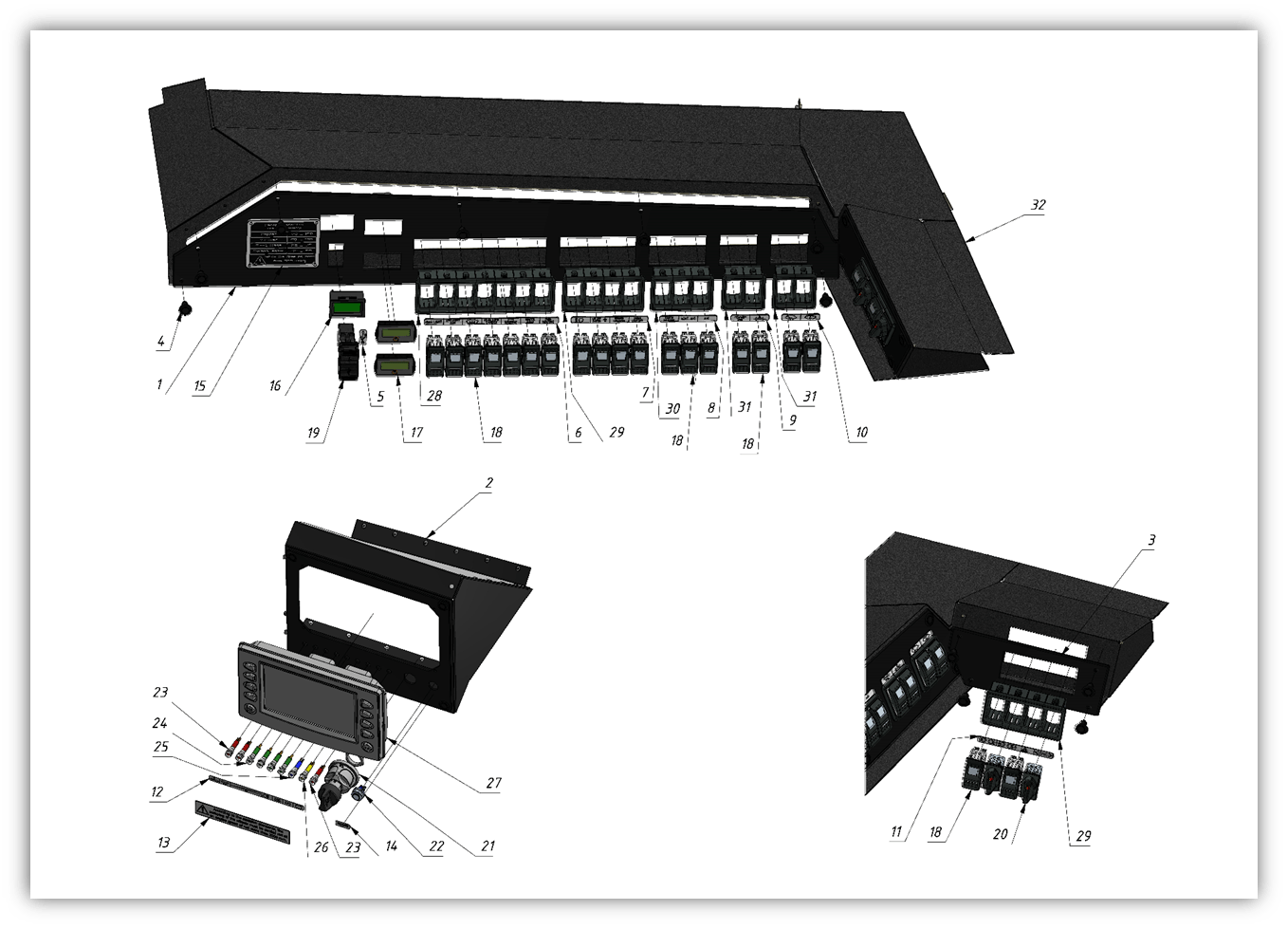

ManualINSTRUMENT PANEL AND SWITCHES (1100-02)
INSTRUMENT PANEL AND SWITCHES (1100-02) — ELECTRIC EQUIPMENT (11), SHERP N (PRO XT). Includes 43 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.
43 partsOpen manual

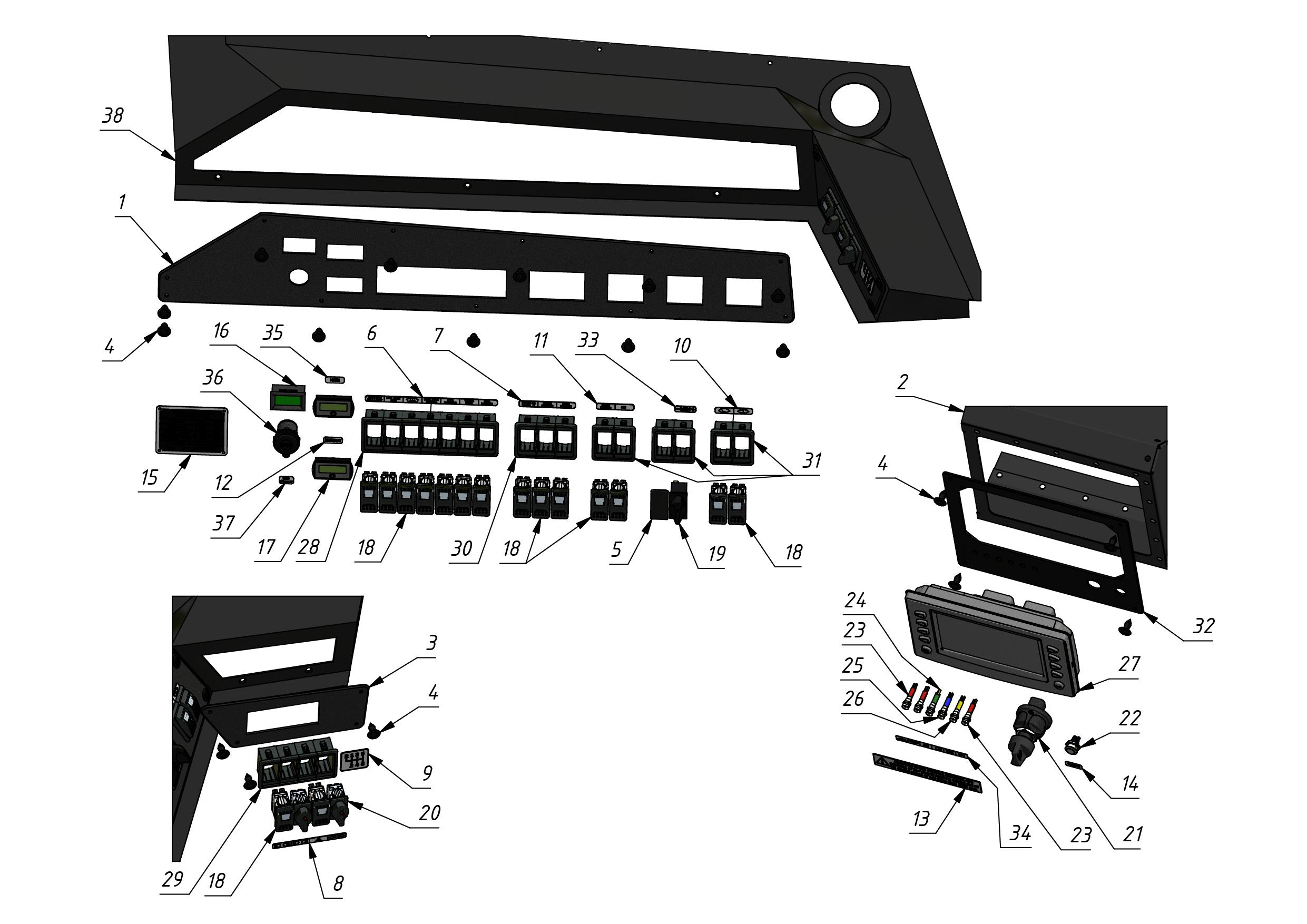

ManualINSTRUMENT PANEL AND SWITCHES ver.II | 1100-02(2)
INSTRUMENT PANEL AND SWITCHES ver.II | 1100-02(2) — ELECTRIC EQUIPMENT (11), SHERP N (PRO XT). Click hotspots on the manual to find the right SHERP part.

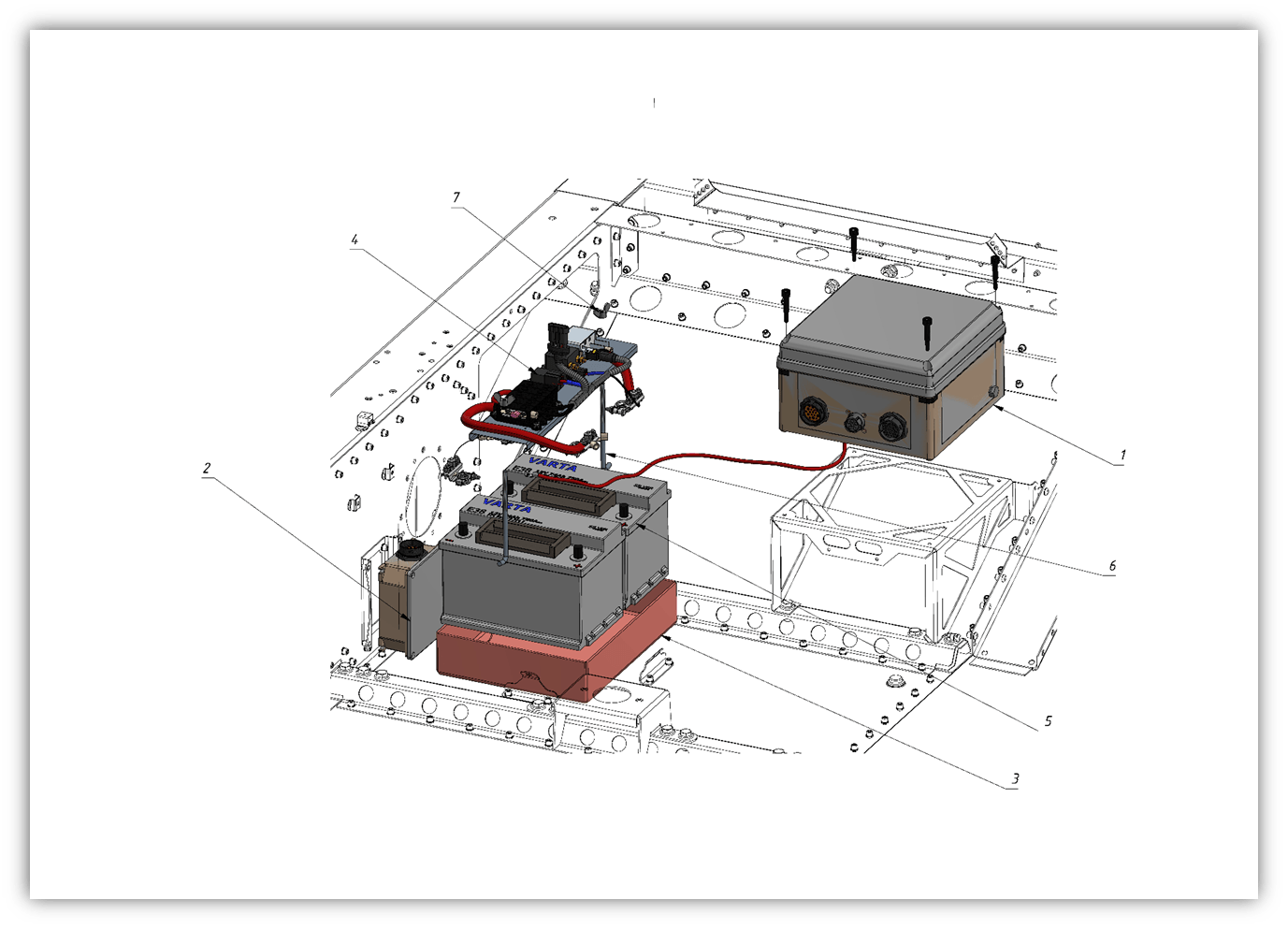

ManualMOUNTING BLOCK, ECU BLOCK, POWER MOUNTING BLOCK, BATTERY (1100-03)
MOUNTING BLOCK, ECU BLOCK, POWER MOUNTING BLOCK, BATTERY (1100-03) — ELECTRIC EQUIPMENT (11), SHERP N (PRO XT). Includes 7 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.
7 partsOpen manual

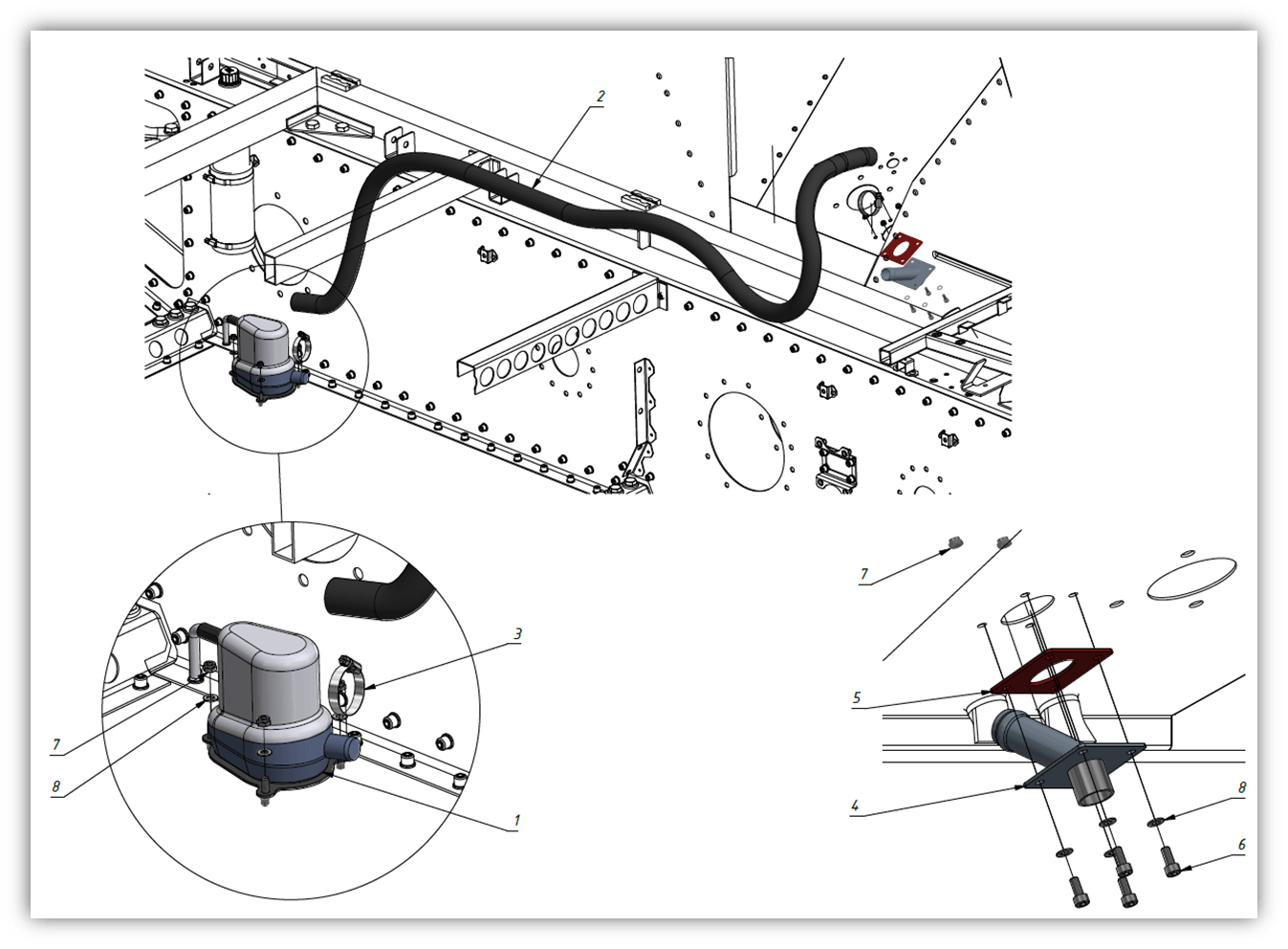

ManualWATER PUMP (1100-04)
WATER PUMP (1100-04) — ELECTRIC EQUIPMENT (11), SHERP N (PRO XT). Includes 8 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.
8 partsOpen manual

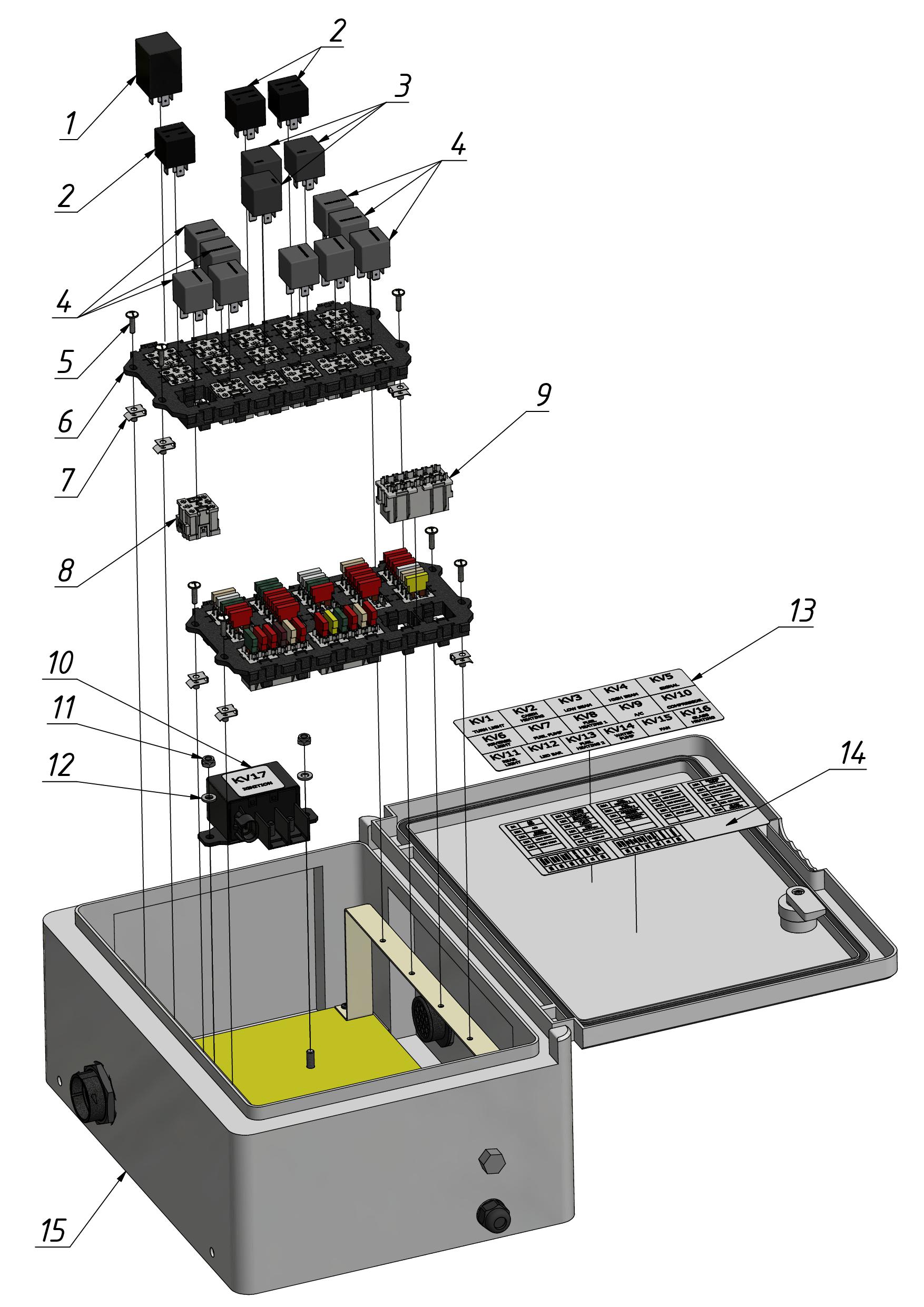

ManualCIRUIT BREAKERS AND RELAY ver.I | 1100-05
CIRUIT BREAKERS AND RELAY ver.I | 1100-05 — ELECTRIC EQUIPMENT (11), SHERP N (PRO XT). Includes 34 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.
34 partsOpen manual

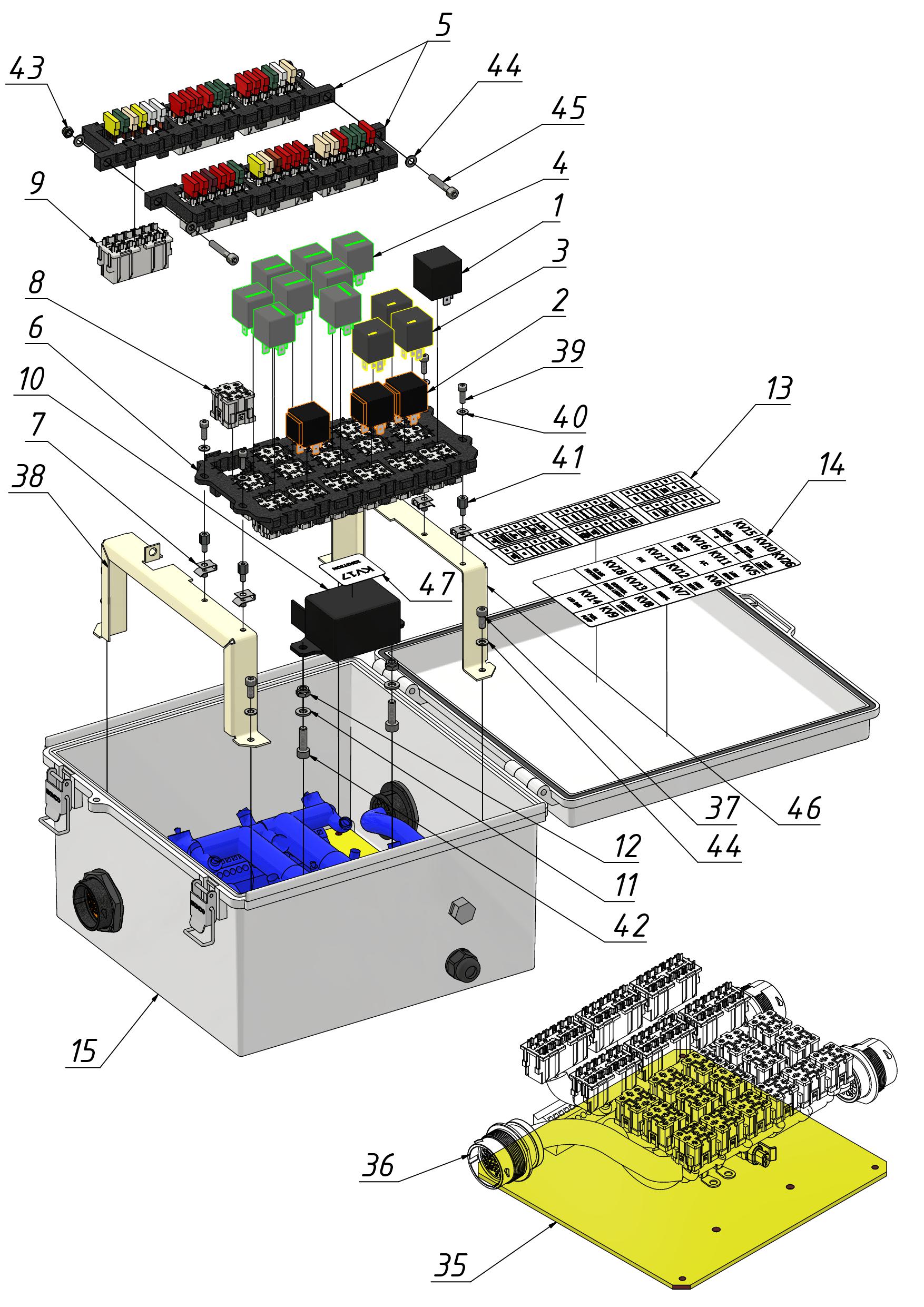

ManualCIRUIT BREAKERS AND RELAY ver.II | 1100-05(2)
CIRUIT BREAKERS AND RELAY ver.II | 1100-05(2) — ELECTRIC EQUIPMENT (11), SHERP N (PRO XT). Click hotspots on the manual to find the right SHERP part.

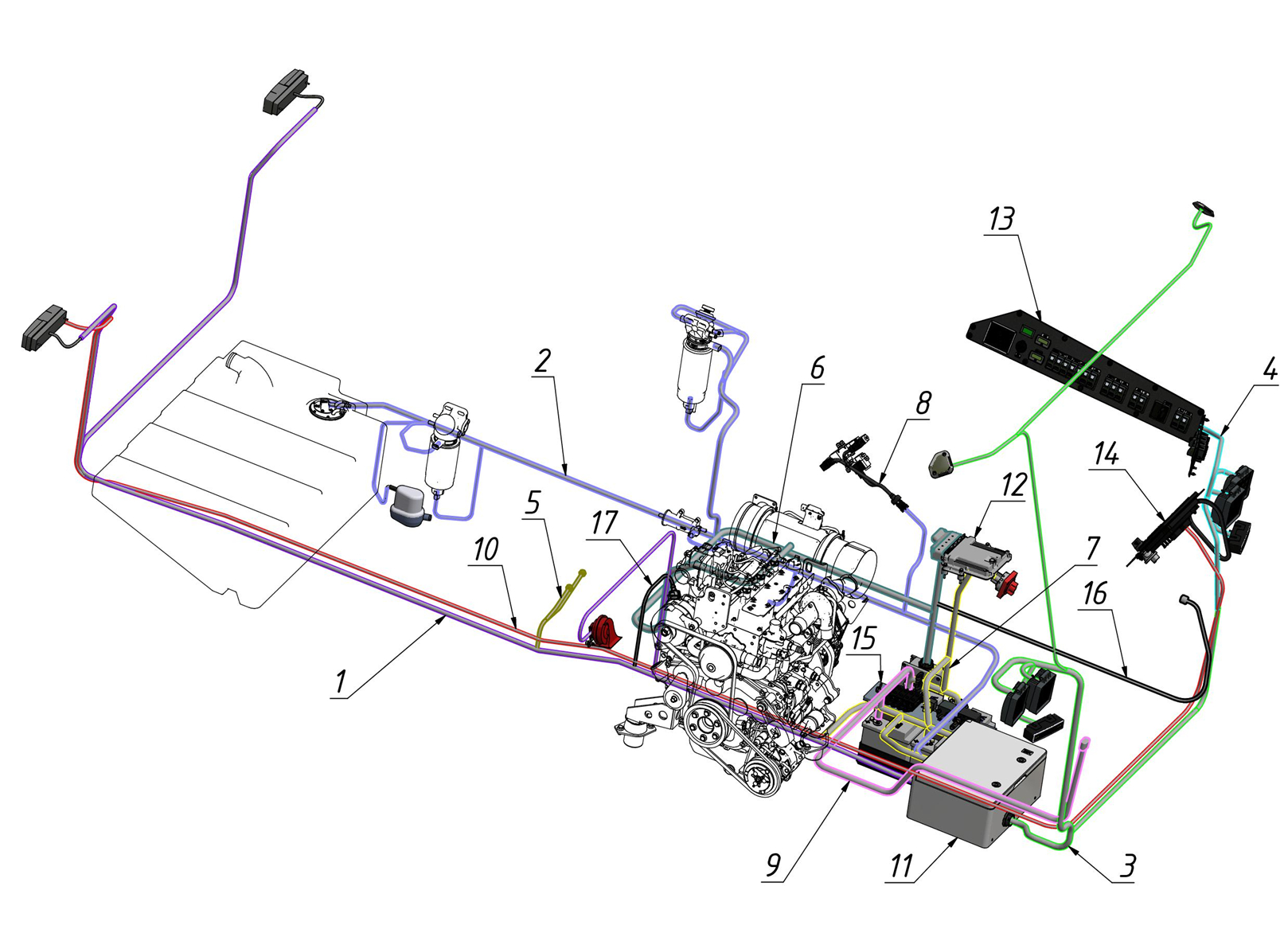

ManualWIRING HARNESS (1100-06)
WIRING HARNESS (1100-06) — ELECTRIC EQUIPMENT (11), SHERP N (PRO XT). Includes 17 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.
17 partsOpen manual
