CABIN SEATS (0600) | 06-0600-01

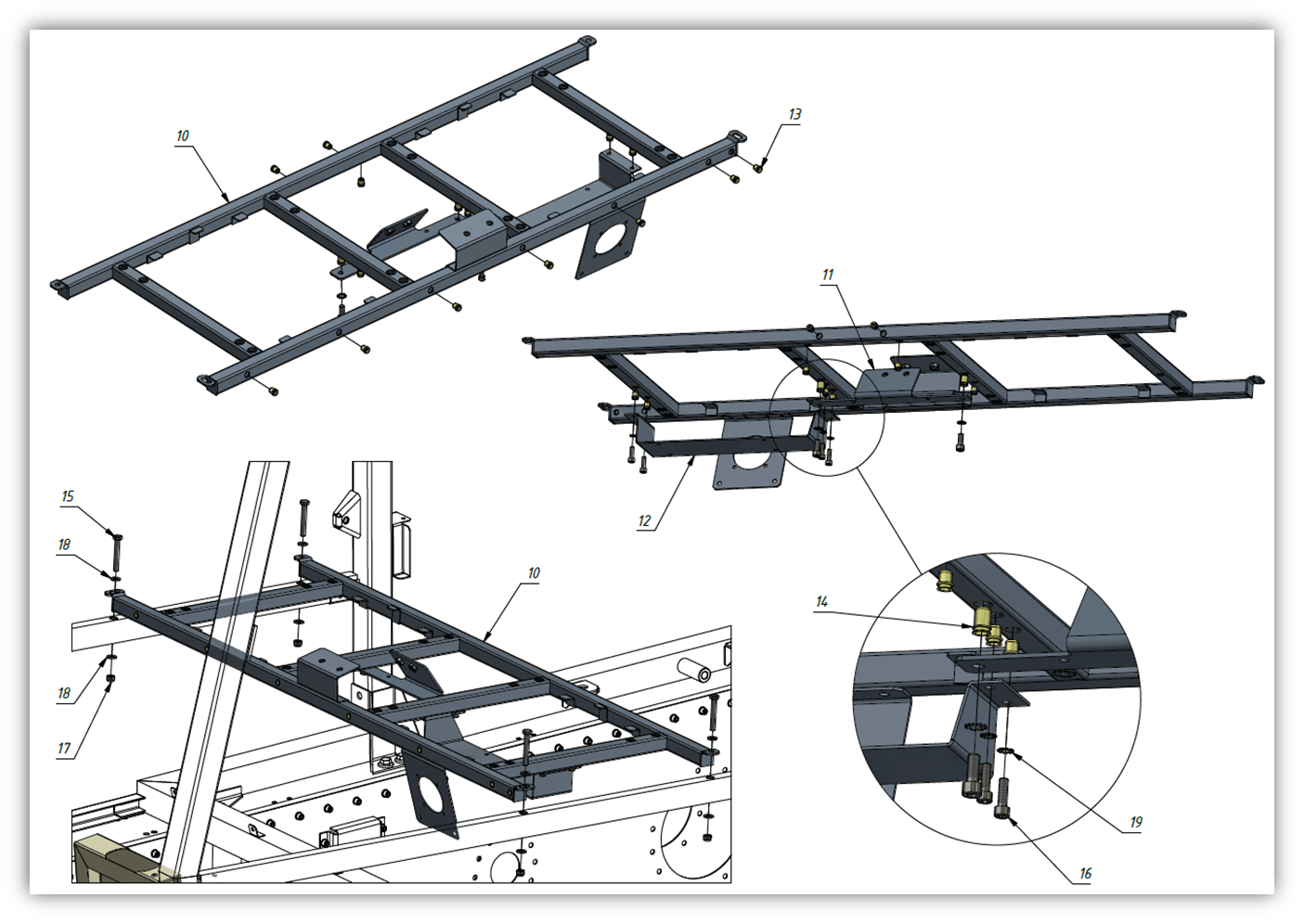

CABIN SEATS (0600) | 06-0600-01 — INSTALLING SEATS (06), SHERP N (PRO XT). Includes 19 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 19 parts
| 1 | Seat | 10601-00800-N0А | 2 | |||
| 2 | Seat belt | 10601-04500-XXA | 2 | |||
| 3 | Screw | 11501-14100-XXA | 2 | |||
| 4 | Bush | 10601-04400-N0A | 2 | |||
| 5 | Screw | 11502-03800-XXА | 8 | |||
| 6 | Bolt | 11501-09600-XXA | 2 | |||
| 7 | Washer | 11504-12500-E0A | 2 | |||
| 8 | Nut | 11503-04200-XXA | 2 | |||
| 9 | Bolt | 11501-13900-XXA | 4 | |||
| 10 | Seats frame | 10601-00900-N0А | 1 | |||
| 11 | Bracket | 10601-00600-N0А | 1 | |||
| 12 | Bracket | 10601-01100-N0А | 1 | |||
| 13 | Riveting nut | 11503-08100-XXА | 02.0225 | 14 | Price on request | |
| 14 | Riveting nut | 11503-08100-XXА | 02.0225 | 5 | Price on request | |
| 15 | Bolt | 11501-02200-XXА | 4 | |||
| 16 | Screw | 11502-00100-XXА | 04.0038 | 6 | Price on request | |
| 17 | Nut | 11503-00800-XXА | 09.0417 | 4 | Price on request | |
| 18 | Washer | 11504-09900-N0А | 8 | |||
| 19 | Washer | 11504-10300-XXА | 6 |
