AUTONOMOUS HEATER EBERSPACHER (1200) | 12-1200-08

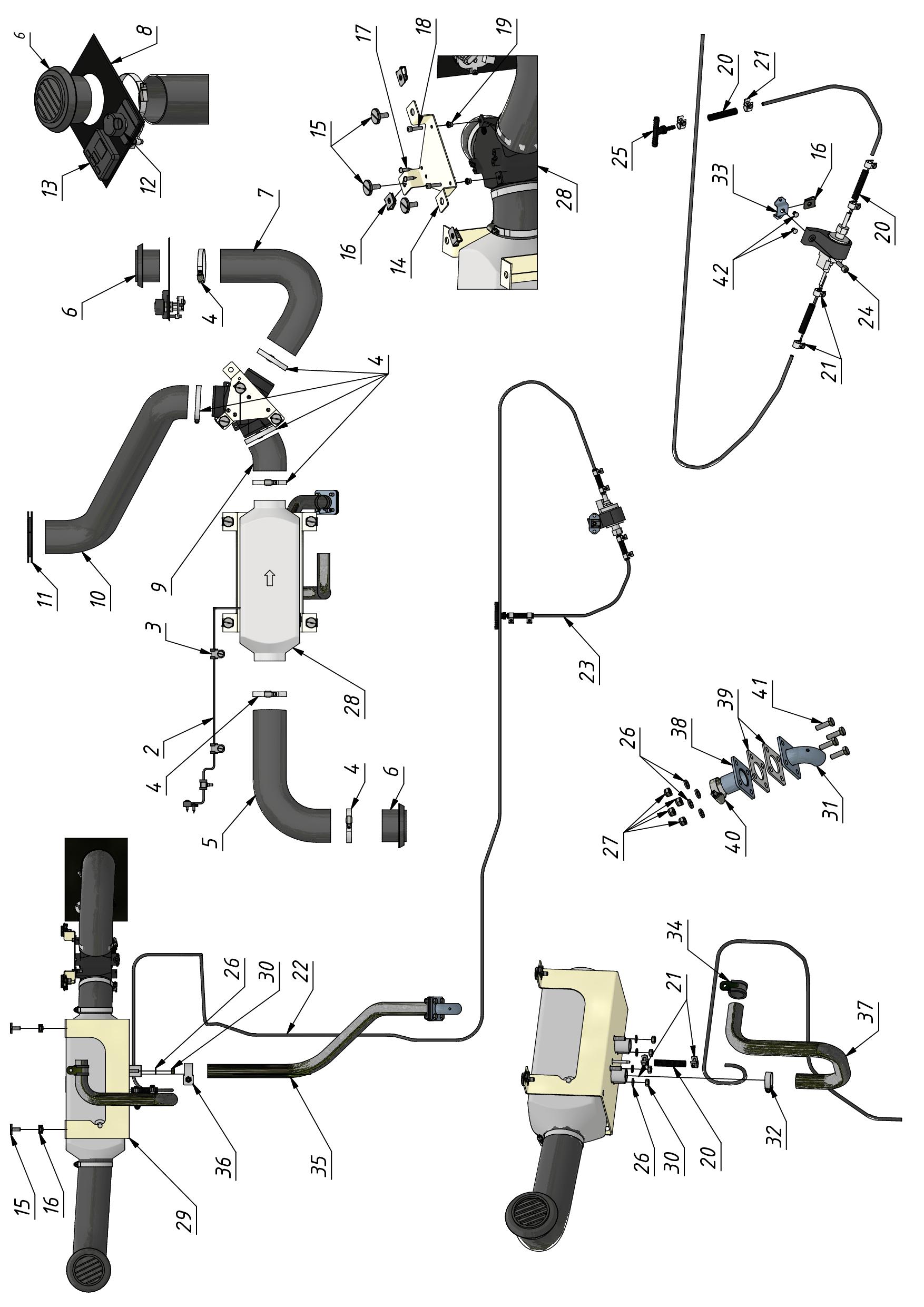

AUTONOMOUS HEATER EBERSPACHER (1200) | 12-1200-08 — OPTIONAL EQUIPMENT (12), SHERP N (PRO XT). Includes 44 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 44 parts
| 1 | Parts kit | 11210-00200-N0A | 1 | |||
| 2 | Sensor | on request | 1 | |||
| 3 | Clamp | 11506-03200-XXA | 12.0056 | 7 | Price on request | |
| 4 | Clamp | 11506-02600-XXA | 10.0434 | 7 | Price on request | |
| 5 | Tube | 11210-03200-N0A | 1 | |||
| 6 | Deflector | 11702-00300-XXA | 2 | |||
| 7 | Tube | 11210-03300-N0A | 1 | |||
| 8 | Plate | 11210-03700-N0A | 1 | |||
| 9 | Tube | 11210-03800-N0A | 1 | |||
| 10 | Tube | 11210-03900-N0A | 1 | |||
| 11 | Sealant | 10400-00200-XXA | 244 | |||
| 12 | Switch | 11210-05400-N0A | 1 | |||
| 13 | Control panel | 11210-03400-N0A | 1 | |||
| 14 | Bracket | 11210-04000-N0A | 1 | |||
| 15 | Screw | 11501-08200-XXA | 7 | |||
| 16 | Insert plate | 11504-06400-XXA | 10.0602 | 8 | Price on request | |
| 17 | Screw | 11502-01600-XXA | 2 | |||
| 18 | Screw | 11502-02600-XXA | 3 | |||
| 19 | Nut | 11503-01000-XXA | 02.0707 | 5 | Price on request | |
| 20 | Sleeve | on request | 4 | |||
| 21 | Clamp | on request | 8 | |||
| 22 | Sleeve | 11210-05100-N0A | 1 | |||
| 23 | Sleeve | 11210-05200-N0A | 1 | |||
| 24 | Screw | 11502-00100-N0A | 1 | |||
| 25 | T-connector | on request | 1 | |||
| 26 | Washer | 11502-07200-XXA | 10 | |||
| 27 | Nut | 11503-04400-XXA | 4 | |||
| 28 | Heater | 11210-03000-N0A | 1 | |||
| 29 | Bracket | 11200-16400-N0A | 1 | |||
| 30 | Nut | 11503-01300-XXA | 02.0630 | 5 | Price on request | |
| 31 | Sleeve | 11702-00900-XXA | 1 | |||
| 32 | Clamp | 11506-01800-XXA | 1 | |||
| 33 | Bracket | 10207-00100-N0A | 1 | |||
| 34 | Clamp | 11506-00700-XXA | 09.0199 | 1 | Price on request | |
| 35 | Tube | on request | 1 | |||
| 36 | Clamp | on request | 1 | |||
| 37 | Tube | on request | 1 | |||
| 38 | Sleeve | 11210-04100-N0A | 1 | |||
| 39 | Gasket | 11702-00800-XXA | 2 | |||
| 40 | Clamp | 11506-01800-XXA | 1 | |||
| 41 | Screw | 11501-01400-XXA | 11.0138 | 4 | Price on request | |
| 42 | Rivvet | 11507-00800-XXA | 2 | |||
| 43 | Fuel pump | 11210-04800-N0A | 1 | |||
| 44 | Vibration support | on request | 1 |
