SEAT, REAR FOLDABLE SET OF 3, RIGHT SIDE (1200) | 12-1200-16
SEAT, REAR FOLDABLE SET OF 3, RIGHT SIDE (1200) | 12-1200-16 — OPTIONAL EQUIPMENT (12), SHERP N (PRO XT). Includes 12 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 12 parts

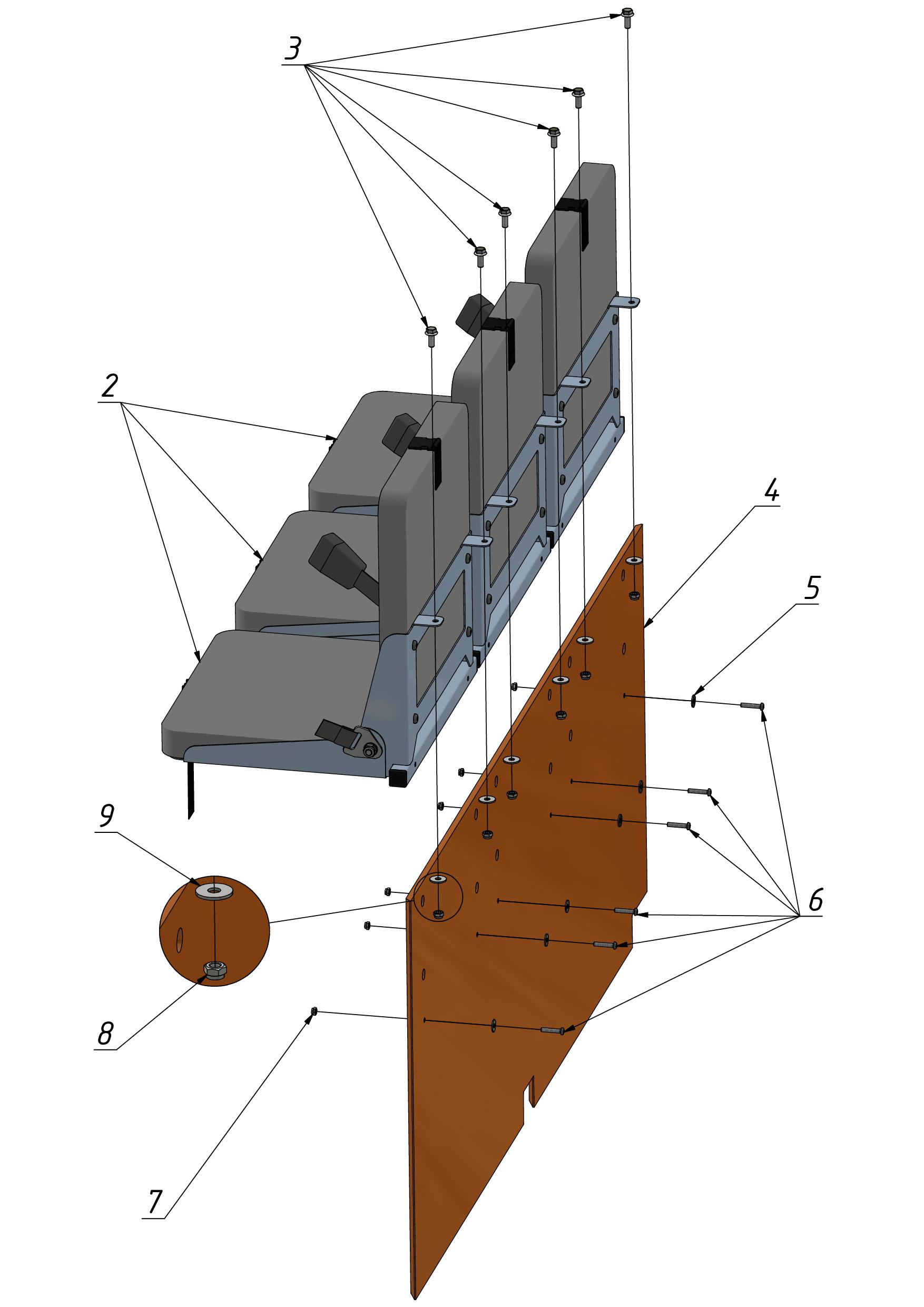

| 1 | Seats | 10602-00900-N0A | 1 | |||
| 2 | Seat | 10600-00700-N0A | 3 | $519 CAD | ||
| 3 | Bolt | 11501-07200-XXA | 6 | |||
| 4 | Seat back | 10600-00500-N0A | 1 | |||
| 5 | Washer | 11504-06600-XXA | 11.0153 | 6 | Price on request | |
| 6 | Screw | 11502-01200-XXA | 04.0411 | 6 | Price on request | |
| 7 | Nut | 11503-00600-XXA | 03.0447, 090-1194 | 6 | $0.5 CAD | |
| 8 | Nut | 11503-00800-XXA | 09.0417 | 6 | Price on request | |
| 9 | Washer | 11504-11500-N0A | 6 | |||
| 10 | Screw | 11502-11400-N0A | 6 | |||
| 11 | Handrail | 10400-01200-XXA | 6 | |||
| 12 | Nut | 11503-10400-XXA | 6 |
