SEAT, REAR W/ SEATBELTS SET OF 2 (1200) | 12-1200-13
SEAT, REAR W/ SEATBELTS SET OF 2 (1200) | 12-1200-13 — OPTIONAL EQUIPMENT (12), SHERP N (PRO XT). Includes 11 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 11 parts

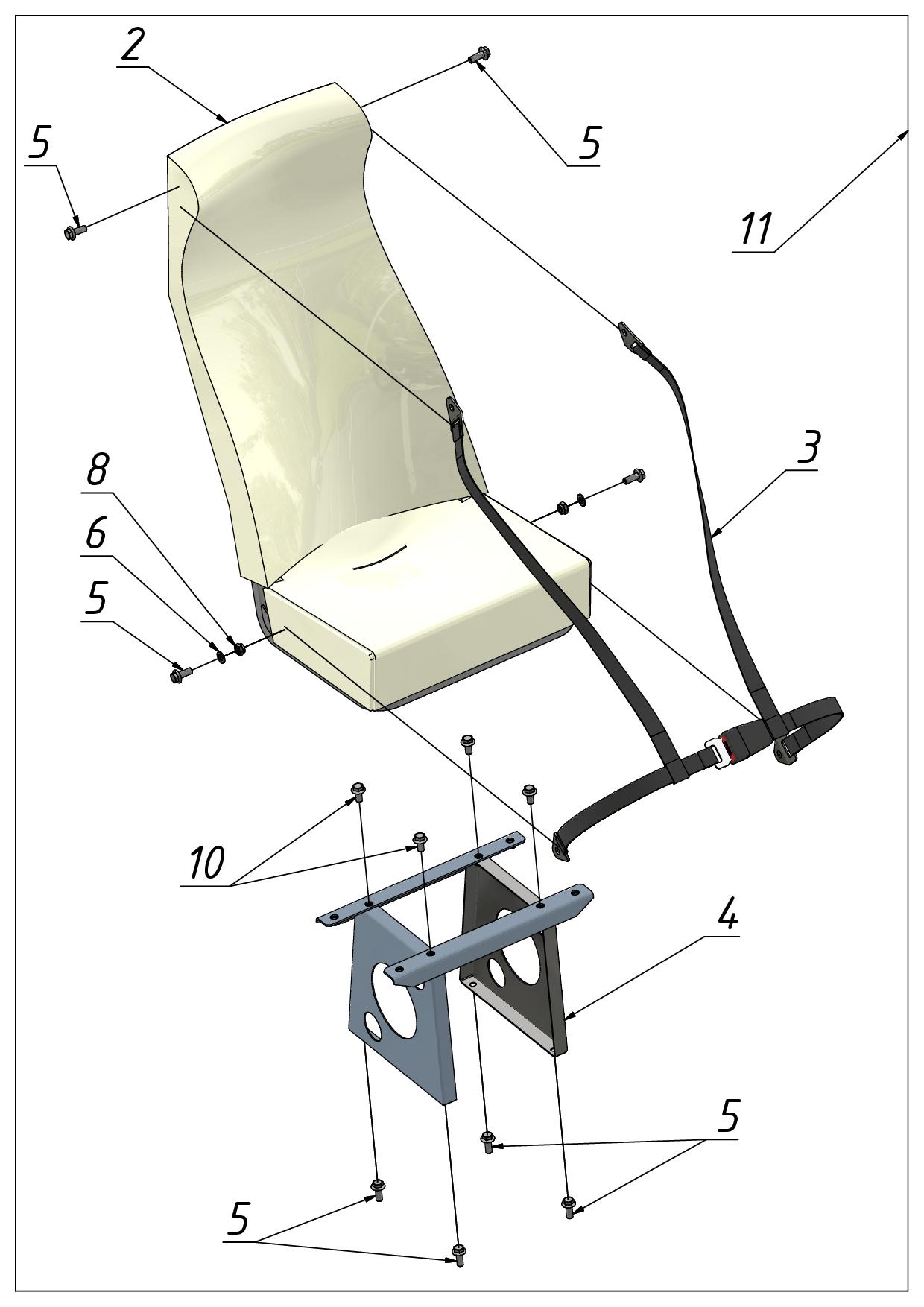

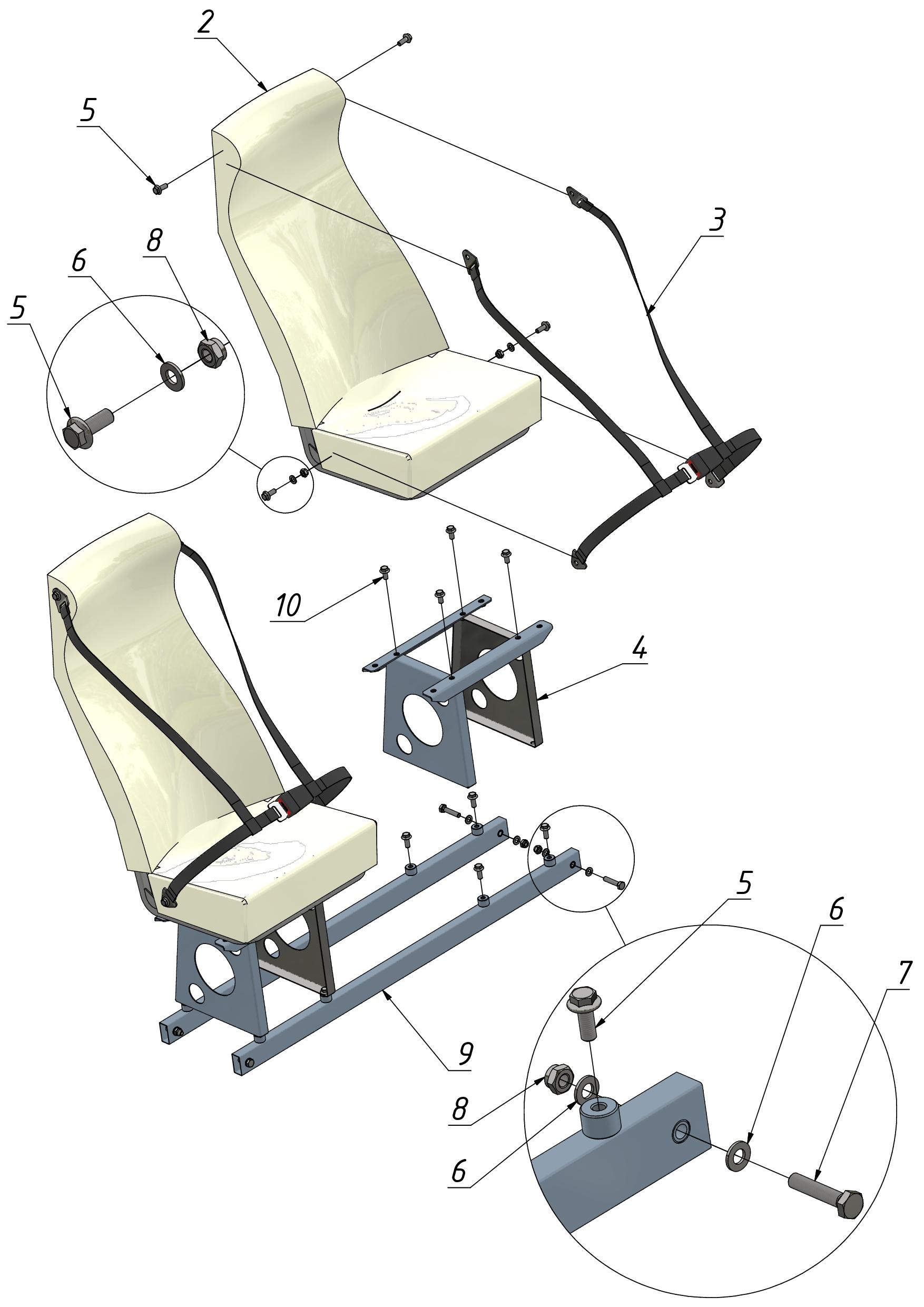

| 1 | Seats | 11202-00400-N0A | 1 | |||
| 2 | Seat | 10602-00500-N0A | 2 | |||
| 3 | Seat belt | 10602-00700-XXA | 2 | |||
| 4 | Bracket | 10601-00100-N0A | 2 | |||
| 5 | Bolt | 11501-09600-XXA | 16 | |||
| 6 | Washer | 11504-04200-XXA | 03.0515 | 12 | $0.5 CAD | |
| 7 | Bolt | 11501-13800-XXA | 4 | |||
| 8 | Nut | 11503-04200-XXA | 8 | |||
| 9 | Support | 10601-00500-N0A | 2 | |||
| 10 | Bolt | 11501-13900-XXA | 8 | |||
| 11 | Parts kit 1pcs | 11200-17100-N0A | 1 |
