COOLING SYSTEM (1000-05)
COOLING SYSTEM (1000-05) — POWER UNIT (10), SHERP N (PRO XT). Includes 60 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 60 parts
| 1 | Radiator (assembly) | 11004-04100-N0A | 1 | |||
| 2 | Impeller (winter assembly) | 11004-04200-N0A | 1 | |||
| 2 | Impeller (summer assembly) | 11004-00500-N0A | 1 | |||
| 3 | Expansion tank | 11004-06300-N0A | 1 | |||
| 4 | Plate | 11004-04300-N0A | 1 | |||
| 5 | Bracket | 11004-04400-N0A | 2 | |||
| 6 | Bracket | 11004-04500-N0A | 1 | |||
| 7 | Bracket | 11004-04600-N0A | 1 | |||
| 8 | Branch pipe | 11004-06400-N0A | 1 | |||
| 9 | Branch pipe | 11004-04700-N0A | 1 | |||
| 10 | Branch pipe | 11004-06400-N0A | 1 | |||
| 11 | Branch pipe | 11004-04800-N0A | 1 | |||
| 12 | Branch pipe | 11004-06500-N0A | 1 | |||
| 13 | Branch pipe | 11004-06500-N0A | 1 | |||
| 14 | Branch pipe | 11004-04900-N0A | 1 | |||
| 15 | Pipe set | 11005-03600-N0A | 1 | |||
| 16 | Pipe set | 11005-03600-N0A | 1 | |||
| 17 | Branch pipe | 11004-05000-N0A | 1 | |||
| 18 | Branch pipe | 11004-06400-N0A | 2 | |||
| 19 | T-connector | 11004-06700-N0A | 1 | |||
| 20 | Branch pipe | 11004-06800-N0A | 1 | |||
| 21 | Branch pipe | 11004-05100-N0A | 1 | |||
| 22 | Branch pipe | 11005-03300-N0A | 2 | |||
| 23 | Branch pipe | 10901-10700-N0A | 1 | |||
| 24 | Fitting | 11004-06900-N0A | 2 | |||
| 25 | Clamp | 11004-05200-N0A | 5 | |||
| 26 | Clamp | 11004-05300-N0A | 6 | |||
| 27 | Clamp | 11005-01700-N0A | 4 | |||
| 28 | Clamp | 11004-05300-N0A | 6 | |||
| 29 | Bush | 11004-05400-XXA | 2 | |||
| 30 | Bush | 11004-07000-N0A | 2 | |||
| 31 | Screw | 11502-10400-XXA | 2 | |||
| 32 | Screw | 11502-10500-XXA | 4 | |||
| 33 | Nut | 11503-06300-XXA | 05.0044 | 6 | Price on request | |
| 34 | Washer | 11504-09900-N0A | 2 | |||
| 35 | Washer | 11504-05400-XXA | 09.0105 | 2 | Price on request | |
| 36 | Spring clamp | 11506-00500-XXA | 09.0189 | 2 | Price on request | |

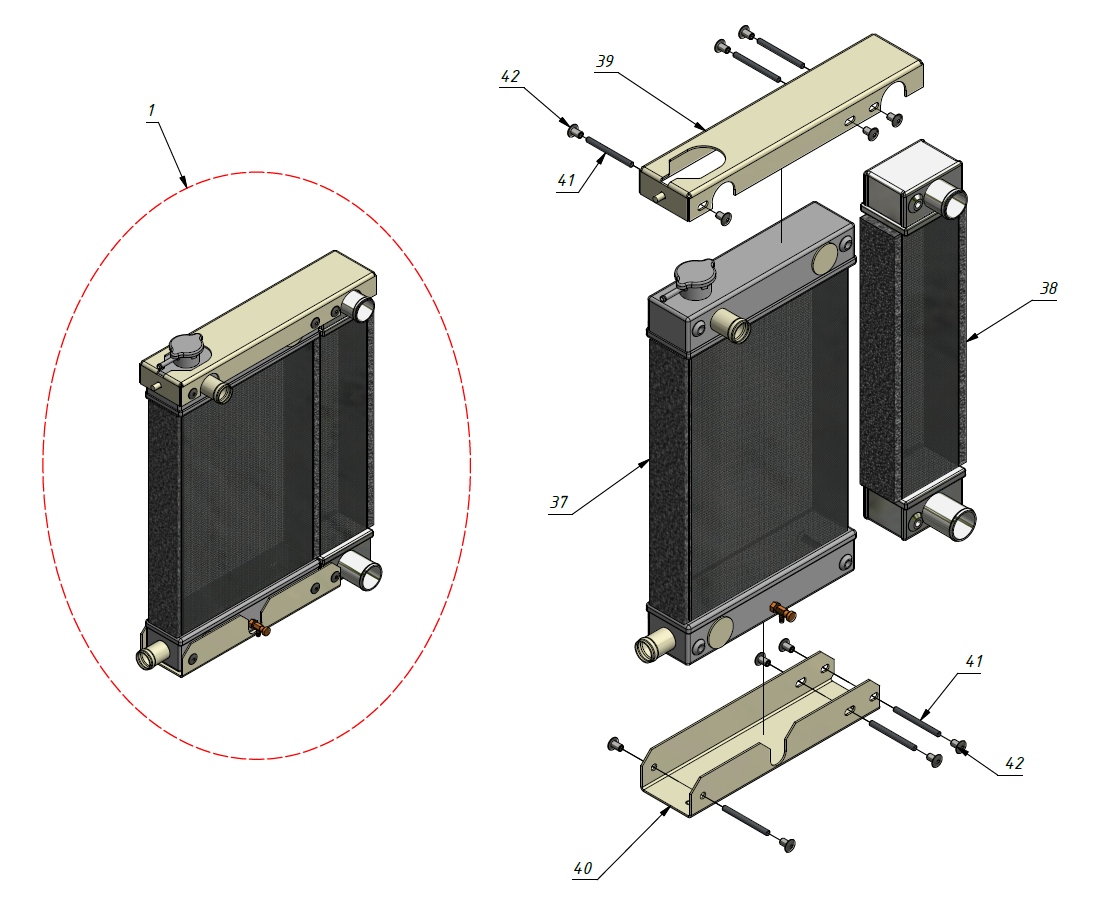

| 37 | Radiator | 11004-05500-N0A | 090-0881 | 1 | $1298 CAD | |
| 38 | Intercooler | 11004-05600-N0A | 1 | |||
| 39 | Plate | 11004-05700-N0A | 1 | |||
| 40 | Plate | 11004-05800-N0A | 1 | |||
| 41 | Stud | 11501-10500-XXA | 6 | |||
| 42 | Erickson nut | 11503-06200-XXA | 12 | |||
| 43 | Shell | 11004-05900-XXA | 1 | |||
| 44 | Axis | 11000-65300-N0A | 1 | |||
| 45 | Hydraulic motor | 11004-06100-N0A | 1 | $715 CAD | ||
| 46 | Flange | 11004-07100-N0A | 1 | |||
| 47 | Flange | 11004-07200-N0A | 1 | |||

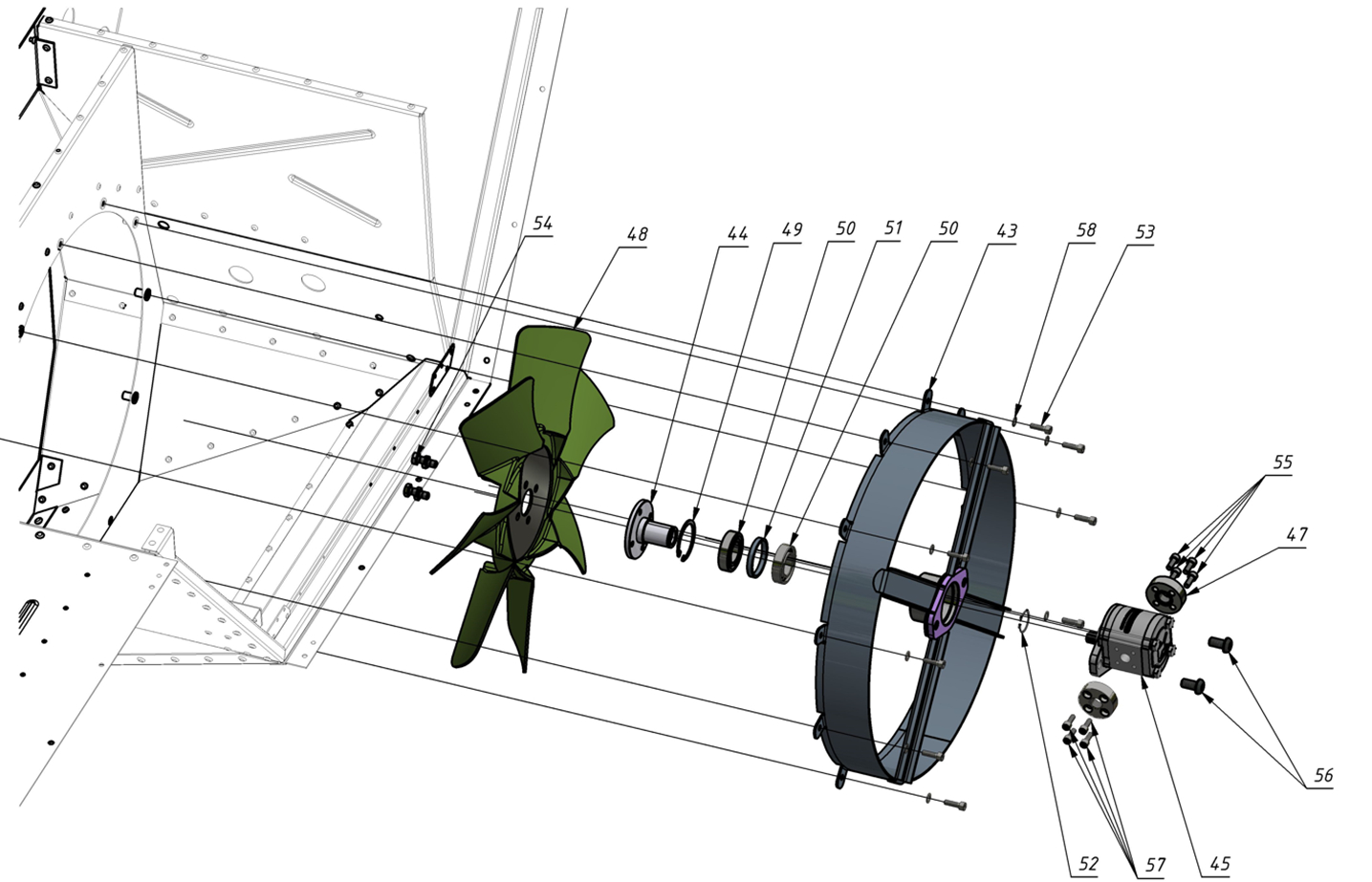

| 48 | Impeller "blow in" | 11004-06200-N0A | 090-0888 | 1 | $256 CAD | |
| 49 | Ring | 11505-05000-N0A | 1 | |||
| 50 | Bearing | 10300-01200-XXA | 03.0315, 090-0155 | 2 | $7 CAD | |
| 51 | Bush | 11505-02100-B0A | 10.0588 | 1 | Price on request | |
| 52 | Ring | 11505-00600-XXA | 03.0316, 090-1312 | 1 | $2.8 CAD | |
| 53 | Screw | 11502-00100-XXA | 04.0038 | 9 | Price on request | |
| 54 | Bolt | 11501-10400-XXA | 4 | |||
| 55 | Screw | 11502-04300-XXA | 04.0127 | 4 | Price on request | |
| 56 | Bolt | 11501-10300-XXA | 2 | |||
| 57 | Screw | 11502-03200-XXA | 4 | |||
| 58 | Washer | 11504-04700-XXA | 05.0045 | 9 | Price on request | |

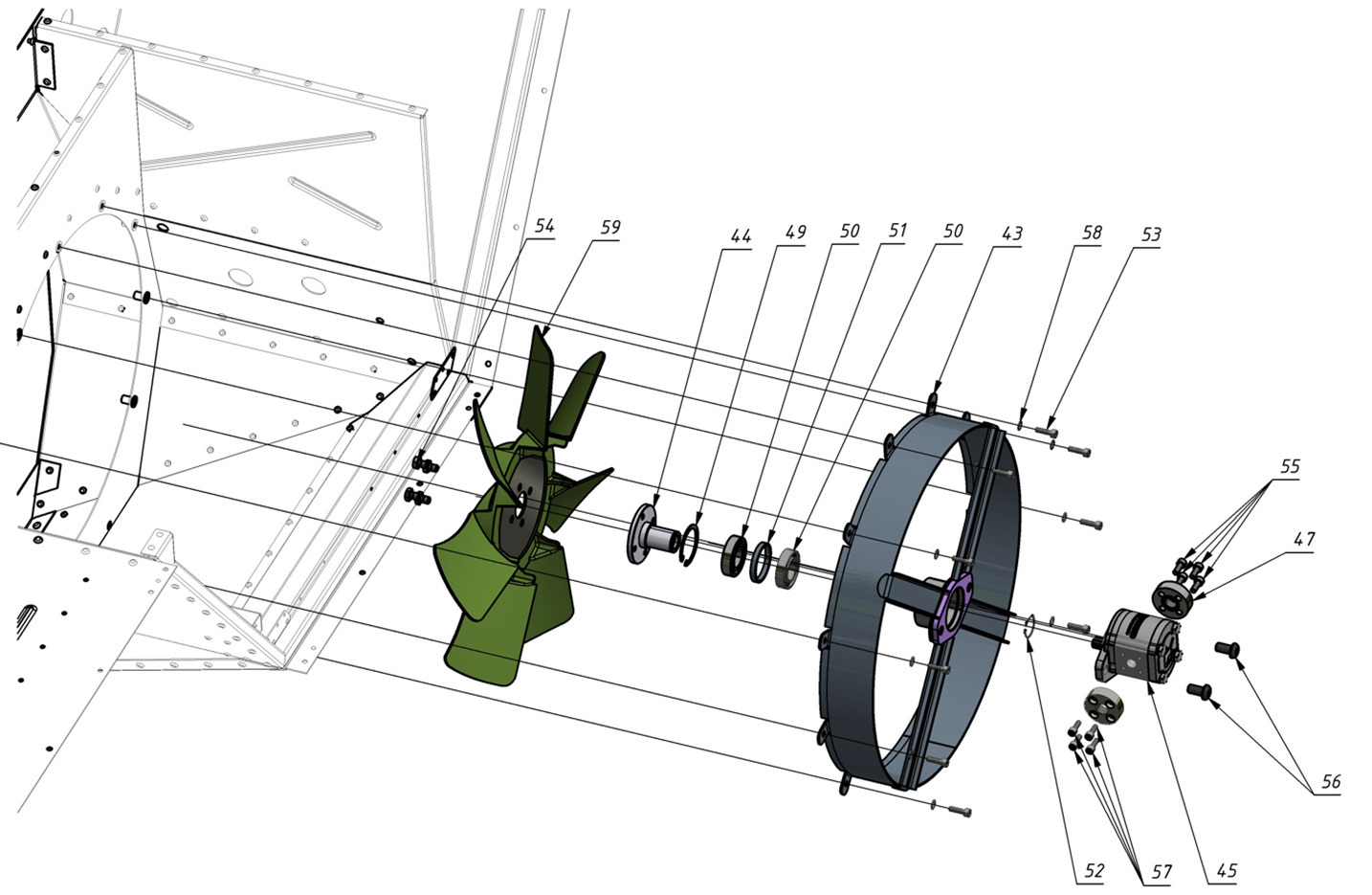

| 59 | Impeller "blow-out" | 11004-07300-N0A | 090-0899 | 1 | $256 CAD |
