ENGINE ASSEMBLY (1000-02)

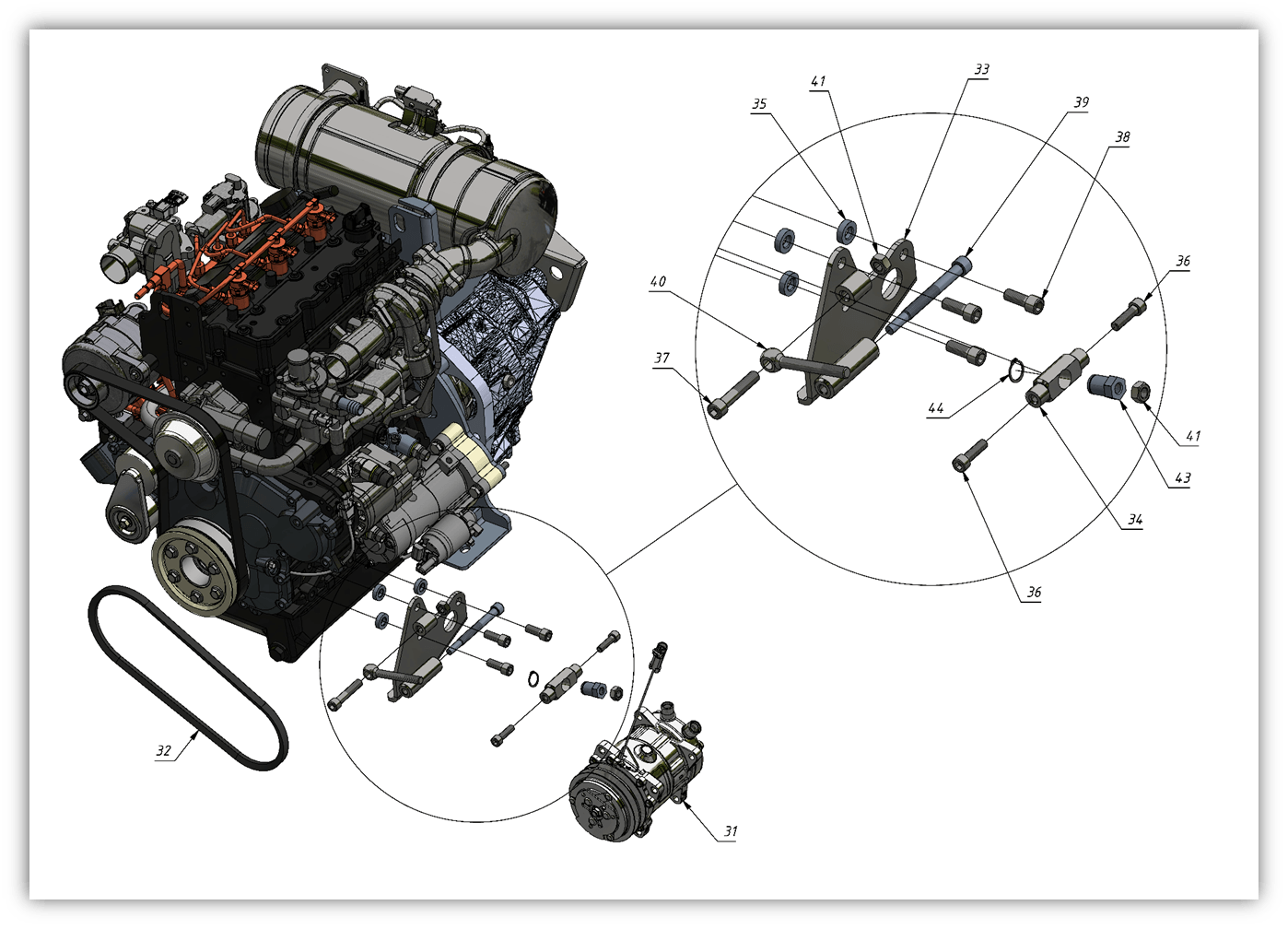

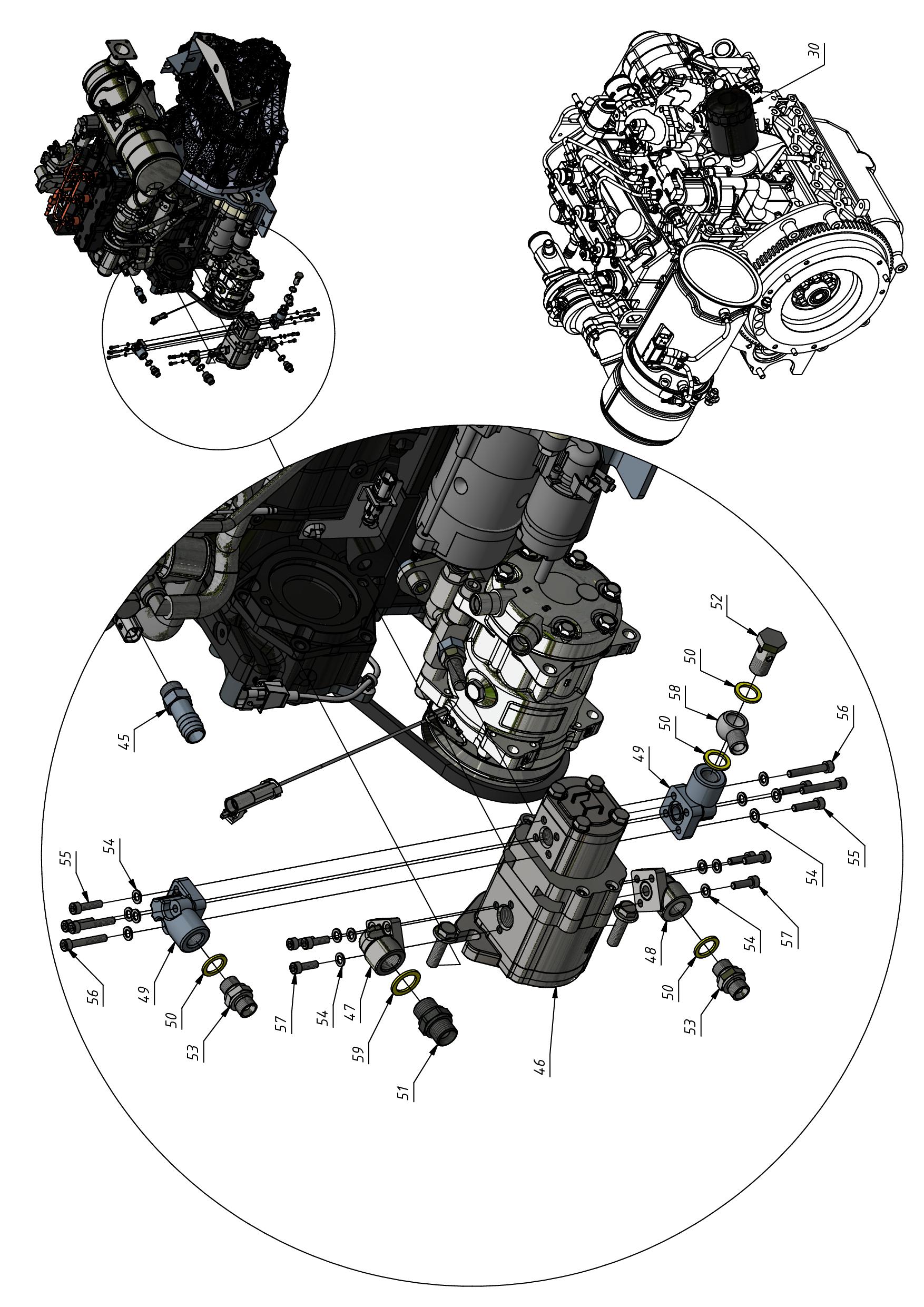

ENGINE ASSEMBLY (1000-02) — POWER UNIT (10), SHERP N (PRO XT). Includes 59 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 59 parts
| 1 | Gear box | 11002-03800-N0A | 1 | |||
| 2 | Transitional plate | 11001-01100-N0A | 1 | |||
| 3 | Flywheel | 11001-01200-N0A | 1 | |||
| 4 | Clutch disc | 11001-04500-N0A | 090-1608 | 1 | $704 CAD | |
| 5 | Release bearing case | 11001-07700-N0A | 1 | |||
| 6 | Bearing | 11001-04200-N0A | 1 | |||
| 7 | Bracket | 11001-01500-N0A | 090-0786 | 1 | $53.5 CAD | |
| 8 | Bracket | 11001-01600-N0A | 1 | |||
| 9 | Bracket | 11001-01700-N0A | 1 | |||
| 10 | Bracket | 11001-01800-N0A | 1 | |||
| 11 | Spacer | 11001-01900-N0A | 1 | |||
| 12 | Starter | 11001-04300-N0A | 1 | |||
| 13 | Cover | 11001-02000-N0A | 1 | |||
| 14 | Bolt | 11501-00700-XXA | 09.0173 | 9 | Price on request | |
| 15 | Bolt | 11501-09800-XXA | 8 | |||
| 16 | Bolt | 11501-02700-XXA | 10.0112 | 6 | Price on request | |
| 17 | Bolt | 11501-12300-XXA | 3 | |||
| 18 | Bolt | 11501-09900-XXA | 2 | |||
| 19 | Bolt | 11501-02600-XXA | 2 | |||
| 20 | Bolt | 11501-09800-XXA | 2 | |||
| 21 | Bolt | 11501-02000-XXA | 4 | |||
| 22 | Bolt | 11501-01100-XXA | 10.0123 | 1 | Price on request | |
| 23 | Bolt | 11501-05700-XXA | 09.0100 | 2 | Price on request | |
| 24 | Nut | 11503-10700-XXA | 2 | |||
| 25 | Washer | 11504-05800-XXA | 09.0292 | 2 | Price on request | |
| 26 | Washer | 11504-06100-XXA | 10.0110 | 4 | Price on request | |
| 27 | Washer | 11504-09900-N0A | 2 | |||
| 28 | Washer | 11504-05800-XXA | 09.0292 | 2 | Price on request | |
| 29 | Washer | 11504-06100-XXA | 10.0110 | 2 | Price on request | |
| 30 | Oil filter | 11000-63300-E0B | 090-1856 | 1 | $71 CAD | |
| 31 | Compressor | 11703-02300-N0A | 090-1618 | 1 | $907 CAD | |
| 32 | Belt | 11703-01800-N0A | 090-1397 | 1 | $12.5 CAD | |
| 33 | Bracket | 11001-01000-N0A | 1 | $59 CAD | ||
| 34 | Bush | 11503-11000-N0A | 1 | |||
| 35 | Ring | 11703-00300-N0A | 3 | |||
| 36 | Screw | 11502-09500-N0A | 2 | |||
| 37 | Screw | 11502-09700-N0A | 1 | |||
| 38 | Screw | 11502-09600-N0A | 3 | |||
| 39 | Screw | 11703-00200-N0A | 1 | $21.5 CAD | ||
| 40 | Screw | 11001-00900-N0A | 1 | |||
| 41 | Nut | 11503-01100-XXA | 2 | |||
| 42 | Corner | 11000-64200-N0A | 2 | |||
| 43 | Bonnet | 11000-64300-N0A | 1 | |||
| 44 | Retaining rings | 11505-02900-XXA | 10.0580 | 1 | Price on request | |
| 45 | Connector | 11000-64400-N0A | 1 | |||
| 46 | Pump | 11000-70500-N0A | 1 | $2288 CAD | ||
| 47 | Flange | 11000-64600-N0A | 1 | |||
| 48 | Flange | 11000-64700-N0A | 1 | |||
| 49 | Flange | 11000-64800-N0A | 2 | |||
| 50 | Seal | 11000-64900-N0A | 5 | |||
| 51 | Adapter | 11000-65000-N0A | 1 | |||
| 52 | Banjo bolt | 11501-00800-XXA | 09.0196 | 1 | $5.5 CAD | |
| 53 | Adapter | 10901-07900-N0A | 2 | |||
| 54 | Spring washer | 11504-10000-N0A | 14 | |||
| 55 | Screw | 11502-02300-XXA | 09.0433 | 4 | Price on request | |
| 56 | Screw | 11502-11100-N0A | 4 | |||
| 57 | Screw | 11502-08500-N0A | 6 | |||
| 58 | Banjo adapter threaded | 11000-65100-N0A | 1 | |||
| 59 | O-ring | 11505-01400-XXA | 09.0203 | 1 | $2.5 CAD |
