FUEL SUPPLY (1000-07)
FUEL SUPPLY (1000-07) — POWER UNIT (10), SHERP N (PRO XT). Includes 39 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 39 parts
| 1 | Tank | 11005-02000-N0A | 1 | $390 CAD | ||
| 2 | Tank clamp | 11000-65400-N0A | 1 | |||
| 3 | Tank clamp | 11005-01900-N0A | 1 | |||
| 4 | Pipe set | 11005-02100-N0A | 1 | |||

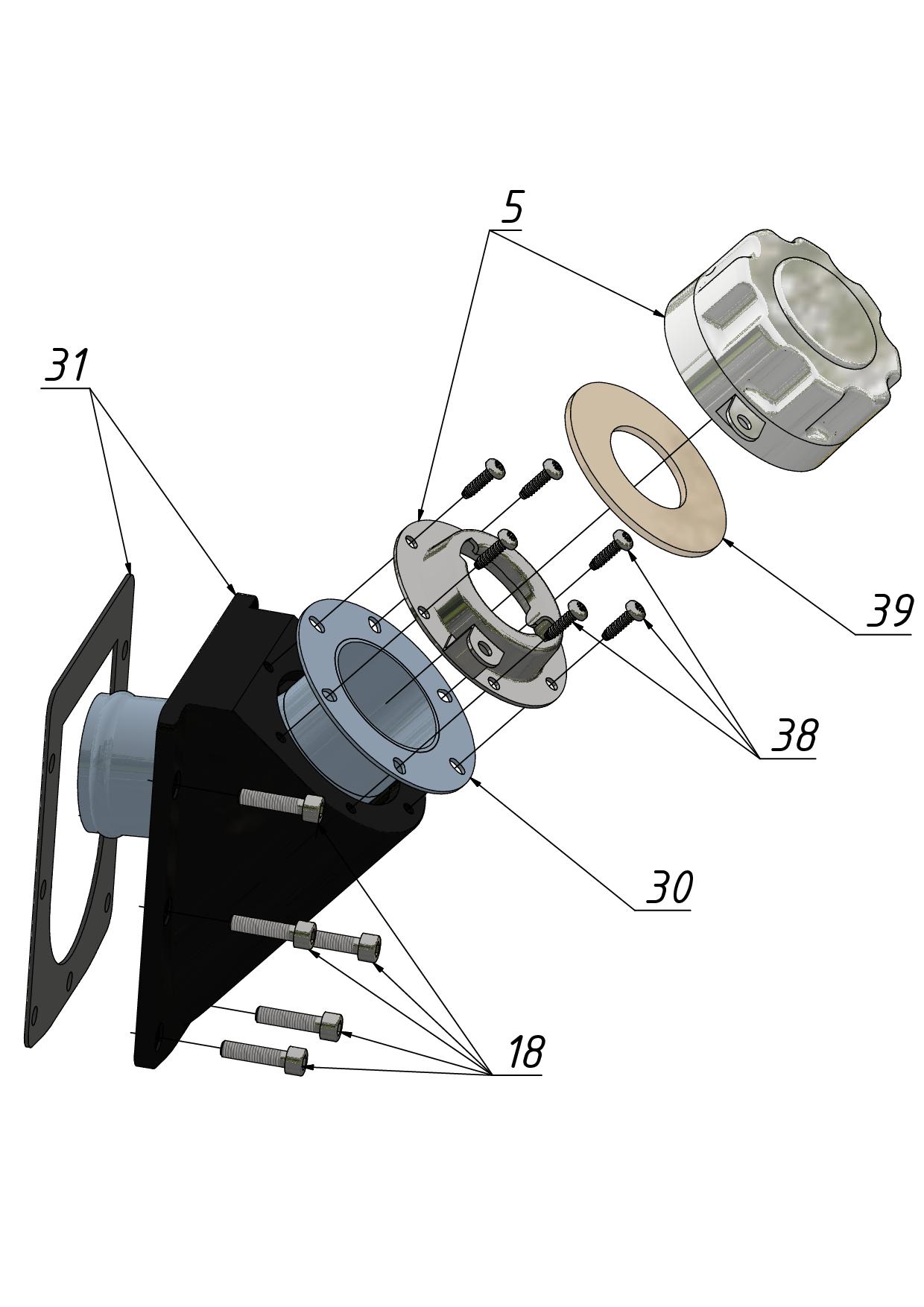

| 5 | Filler neck | 11005-03400-N0A | 090-0927 | 1 | $131.5 CAD | |
| 6 | Flange | 11005-02200-N0A | 1 | |||
| 7 | Filter | 11400-01000-XXA | 090-1679 | 1 | $9.5 CAD | |

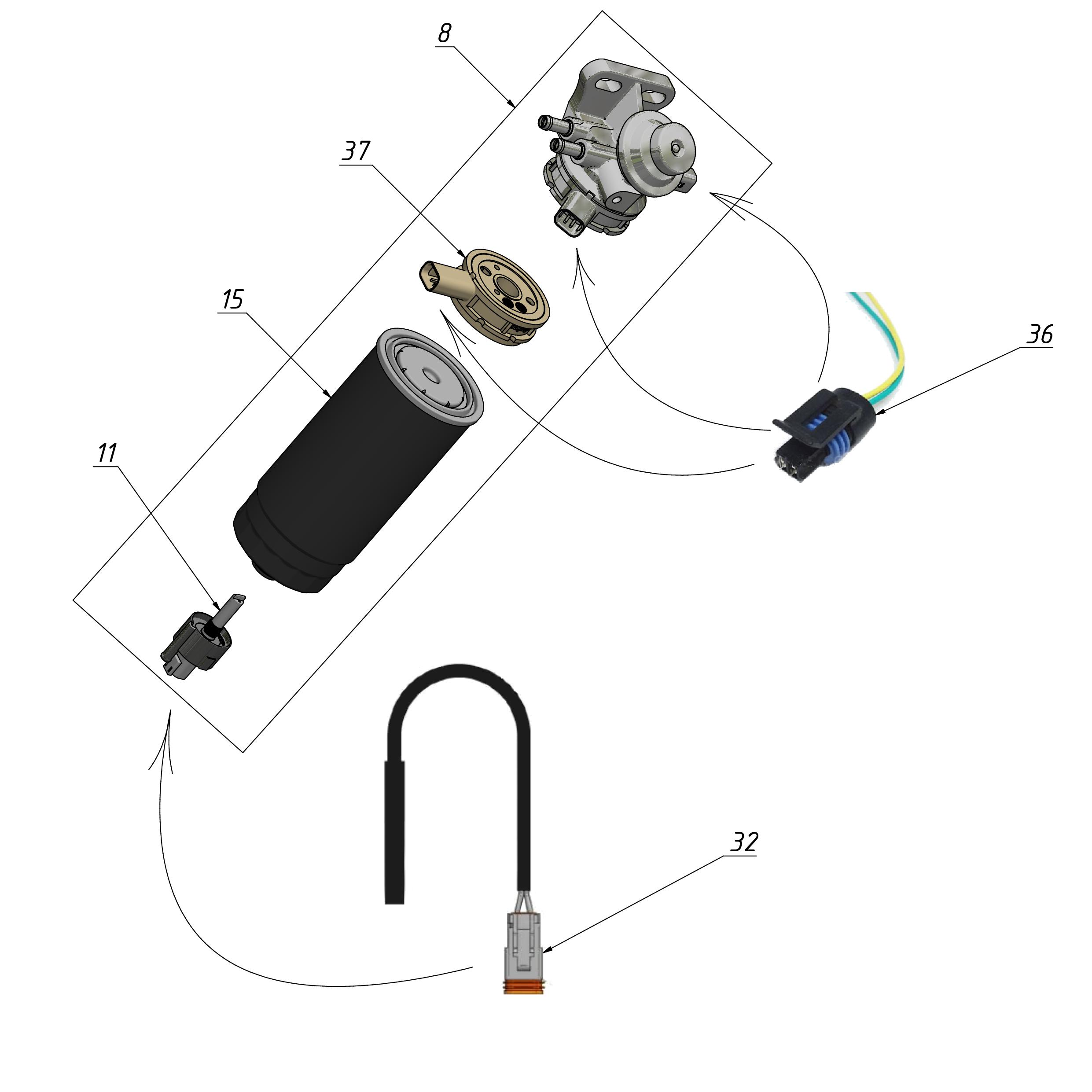

| 8 | Fuel Filter - Main | 11403-00700-N0A | 090-0924 | 1 | $198.5 CAD | |
| 9 | Expansion tank | 11005-02400-N0A | 1 | |||
| 10 | Ventilation filter | 11005-03800-N0A | 1 | |||
| 11 | Drain valve | 11403-00200-N0A | 1 | $273.5 CAD | ||
| 12 | T-connector | 10903-02600-N0A | 1 | |||

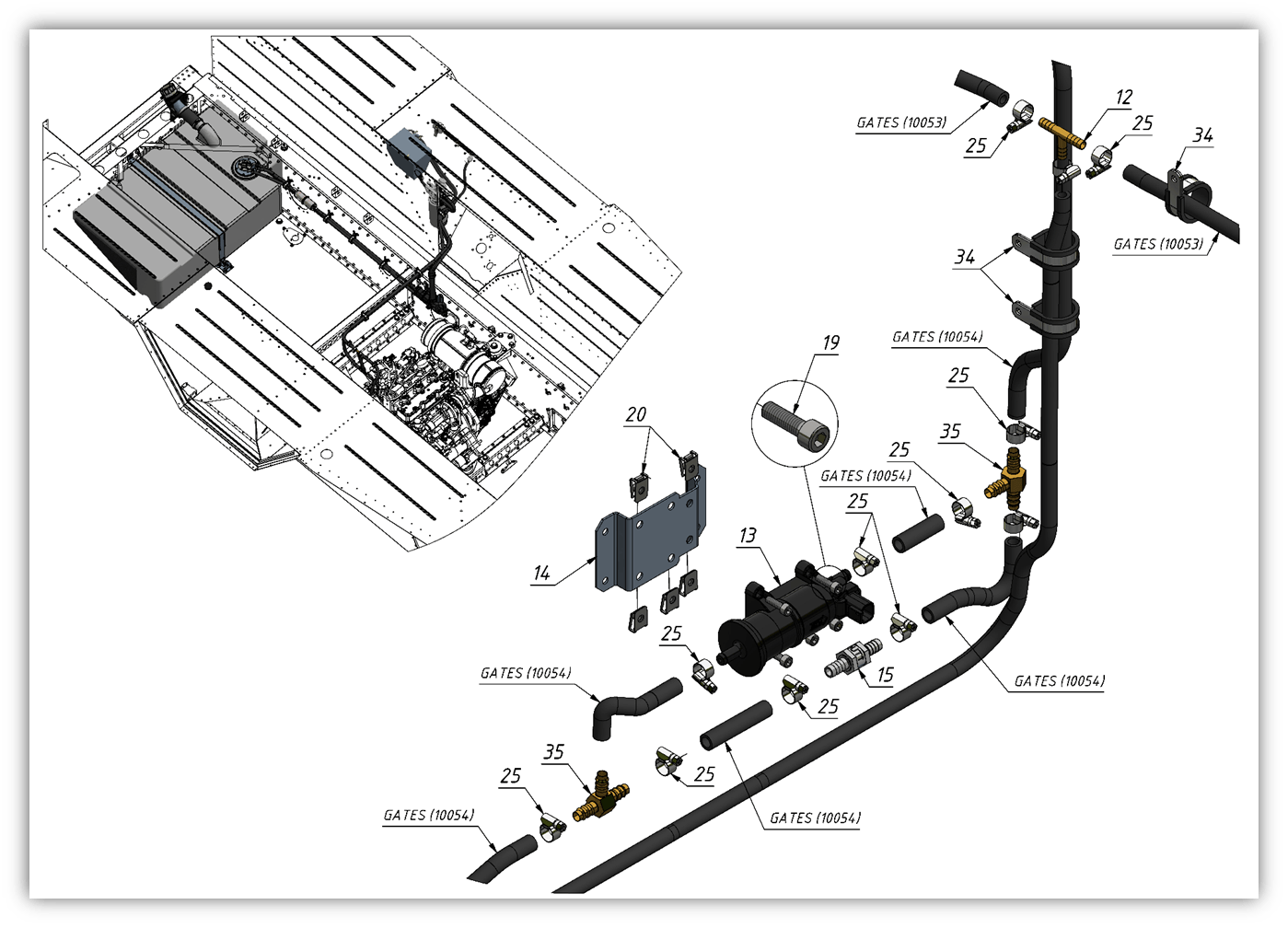

| 13 | Pump | 11005-03000-N0A | 090-0923 | 1 | $1529 CAD | |
| 14 | Bracket | 11005-03900-N0A | 1 | |||
| 15 | Valve | 11005-03200-N0A | 090-0924 | 1 | ||
| 16 | LockBolt | 11501-10200-N0A | 4 | |||
| 17 | Fuel level sensor | 11100-00900-N0A | 1 | |||
| 18 | Screw | 11502-06000-XXA | 05.0767 | 6 | Price on request | |
| 19 | Screw | 11502-08500-N0A | 2 | |||
| 20 | Nut | 11504-06400-XXA | 10.0602 | 6 | Price on request | |
| 21 | Gas tank valve | 11005-03200-N0A | 1 | |||
| 22 | Washer | 11504-04400-XXA | 04.0131 | 5 | Price on request | |
| 23 | Nut | 11503-04400-XXA | 6 | |||
| 24 | Screw | 11502-00900-XXA | 04.0075 | 11 | Price on request | |
| 25 | Clamp | 11506-03100-XXA | 37 | |||
| 26 | Clamp | 11506-02600-XXA | 10.0434 | 2 | Price on request | |
| 27 | Nut | 11503-00700-XXA | 09.0416, 090-1195 | 2 | $0.9 CAD | |
| 28 | Washer | 11504-10800-XXA | 2 | |||
| 29 | Overflow valve | 11000-65500-N0A | 1 | |||
| 30 | Fuel filler neck | 11000-65600-N0A | 1 | |||
| 31 | Flange | 11000-65700-N0A | 1 | |||
| 32 | Connector | 11106-00100-XXA | 2 | |||
| 33 | Screw | 11502-04300-XXA | 04.0127 | 7 | Price on request | |
| 34 | Clamp | 11000-65900-N0A | 8 | |||
| 35 | T-connector | 11000-66000-N0A | 2 | |||
| 36 | Connector | 11106-00200-XXA | 3 | |||
| 37 | Fuel heater | 11403-00100-N0A | 1 | |||
| 38 | Screw | 11502-01600-XXA | 6 | |||
| 39 | Gasket | 11007-00200-N0A | 1 |
