TRANSMISSION ASSEMBLY (0300-01)

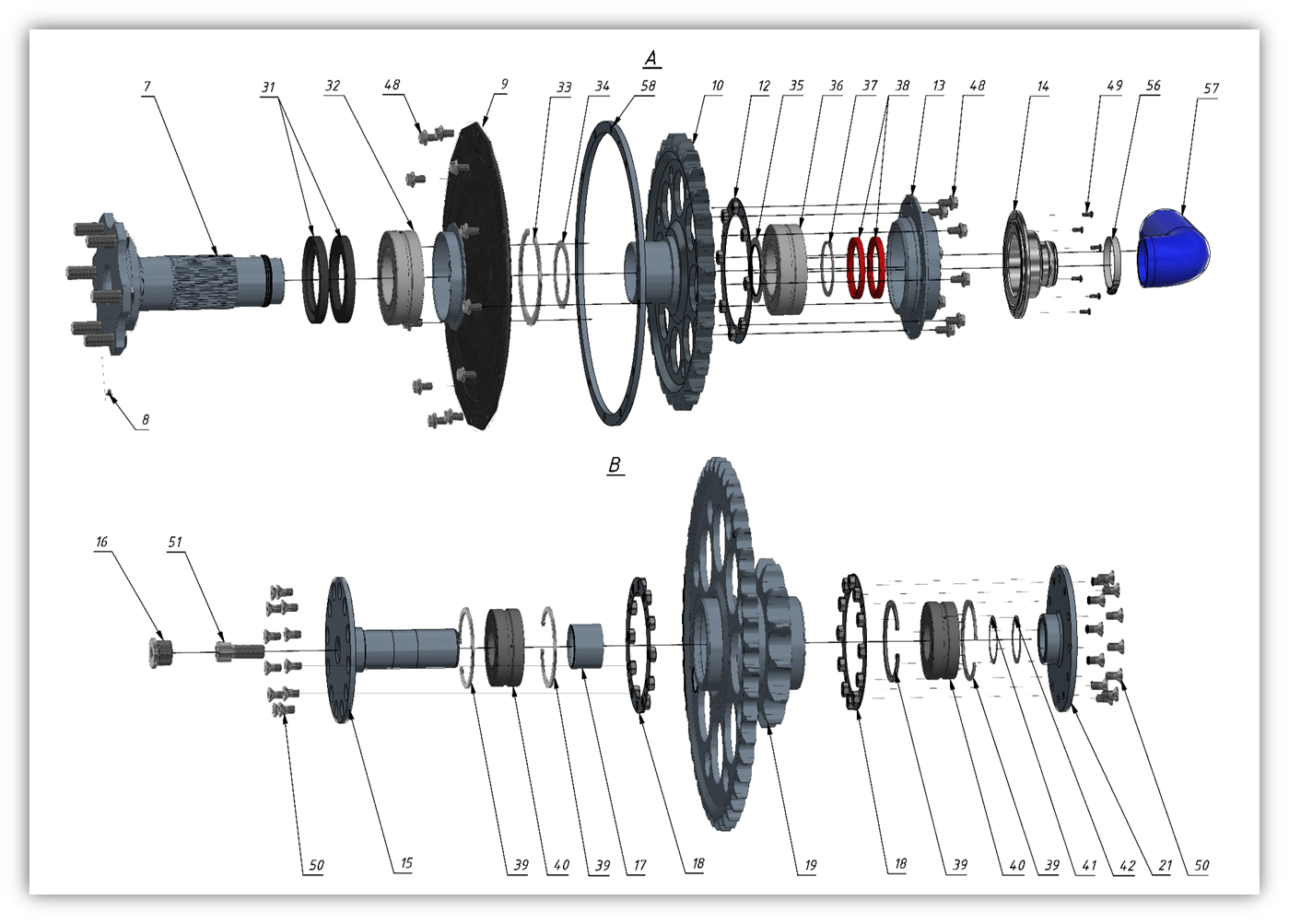

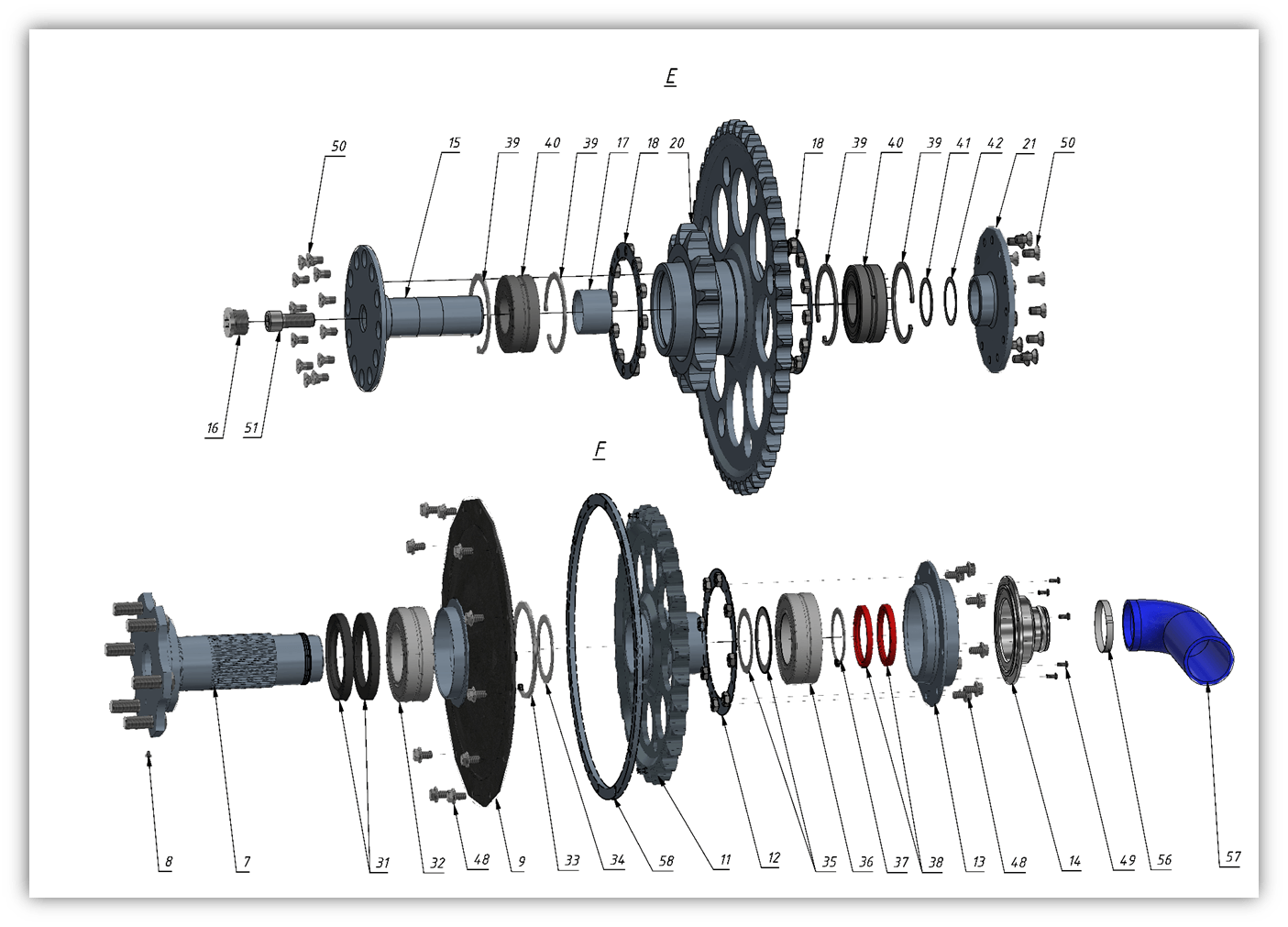

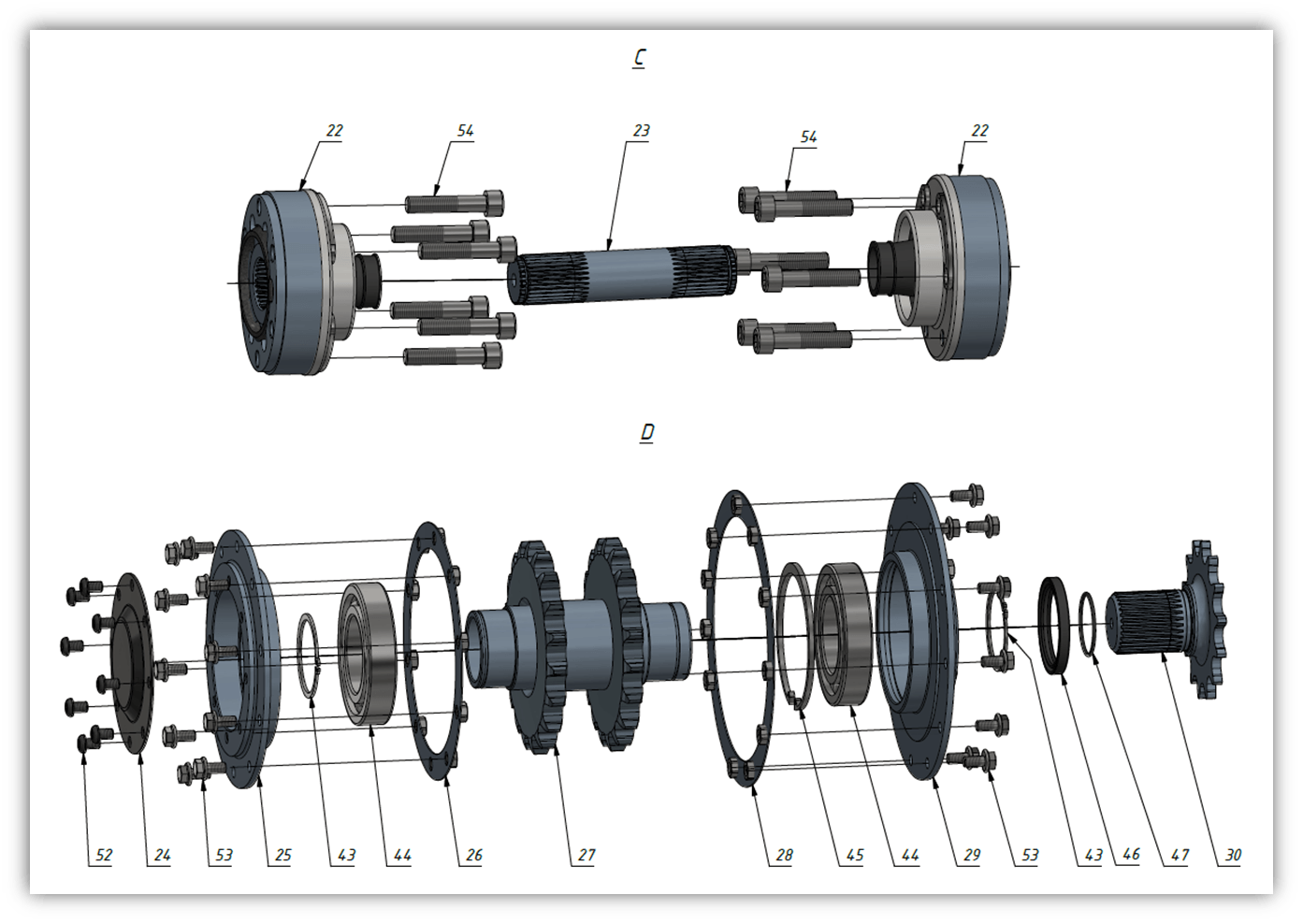

TRANSMISSION ASSEMBLY (0300-01) — TRANSMISSION (03), SHERP N (PRO XT). Includes 58 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 58 parts
| 1 | Spacers | 10300-70800-N0A | 090-0177 | 1 | $86.5 CAD | |
| 2 | Chain clutch | 10304-00900-XXA | 03.0462 | 3 | $52 CAD | |
| 3 | Chain 16B-1 | 10300-72700-N0A | 4 | |||
| 4 | Chain 24B-1 | 10300-72800-N0A | 4 | |||
| 5 | Chain lock (for single-row chain) | 10304-00100-XXA | 03.0245, 090-0269, 03.0245-R | 7 | $8 CAD | |
| 5 | Premium Chain Lock | 10304-00100-XXA-R | 03.0245, 090-0269, 03.0245-R | 7 | Price on request | |
| 6 | Link connector 24B-1 | 10304-01700-N0A | 4 | |||
| 7 | Hub | 10300-70500-N0A | 090-0174 | 4 | $665.5 CAD | |
| 8 | Oiler | 10300-01100-XXA | 4 | |||
| 9 | Cap | 10300-72900-N0A | 4 | |||
| 10 | Sprocket Z=30 | 10300-71100-N0A | 2 | |||
| 11 | Sprocket Z=30 | 10300-71000-N0A | 2 | |||
| 12 | Ring | 10300-73000-N0A | 4 | |||
| 13 | Bearing holder | 10300-73100-N0A | 4 | $329.5 CAD | ||
| 14 | Flange | 10300-82300-N0A | 4 | |||
| 15 | Shaft | 10300-70600-N0A | 4 | |||
| 16 | Bung | 10300-73300-N0A | 4 | |||
| 17 | Bush | 10300-73400-N0A | 4 | |||
| 18 | Ring | 10300-73500-N0A | 8 | |||
| 19 | Sprocket Z=46/Z=13 | 10300-73600-N0A | 2 | |||
| 20 | Sprocket Z=46/Z=13 | 10300-73700-N0A | 2 | |||
| 21 | Cap | 10300-73800-N0A | 4 | |||
| 22 | CV joint | 10300-73900-N0A | 2 | |||
| 23 | Shaft | 10302-01100-N0A | 090-0262 | 1 | $146.5 CAD | |
| 24 | Cap | 10300-74700-XXA | 2 | |||
| 25 | Cap | 10300-74000-N0A | 2 | |||
| 26 | Ring | 11505-04500-N0A | 2 | |||
| 27 | Shaft | 10300-75000-N0A | 090-2104 | 2 | $589.5 CAD | |
| 28 | Ring | 11501-09100-N0A | 2 | |||
| 29 | Cap | 10300-74100-N0A | 2 | |||
| 30 | Shaft | 10300-75800-N0A | 090-2115 | 2 | $209 CAD | |
| 31 | Cuff | 10300-74300-N0A | 090-0198 | 8 | $9.8 CAD | |
| 32 | Bearing | 10300-70100-N0A | 4 | $441 CAD | ||
| 33 | Ring | 11505-04600-XXA | 090-1336 | 4 | $7.5 CAD | |
| 34 | Gasket | 10300-64200-XXA | 03.0455 | 4 | Price on request | |
| 35 | Gasket | 10300-23400-XXA | 4 | |||
| 36 | Bearing | 10300-70200-N0A | 4 | $421.5 CAD | ||
| 37 | Ring | 11505-04700-XXA | 090-1337 | 4 | $2.5 CAD | |
| 38 | Oil seal | 11505-02500-XXA | 8 | $7.5 CAD | ||
| 39 | Ring | 11505-00300-XXA | 03.0084 | 16 | Price on request | |
| 40 | Bearing | 10300-74400-XXA | 090-0199 | 8 | $209 CAD | |
| 41 | Gasket | 11504-10100-XXA | 4 | |||
| 42 | Gasket | 11504-10200-XXA | 4 | |||
| 43 | Ring | 11505-04800-N0A | 090-1338 | 4 | $4 CAD | |
| 44 | Bearing | 10300-74500-N0A | 090-0200 | 4 | $74 CAD | |
| 45 | Ring | 11505-04200-XXA | 2 | |||
| 46 | Cuff | 10300-74600-N0A | 090-0201 | 2 | $6 CAD | |
| 47 | Ring 046-050-25 | 11505-04900-XXA | 090-1339 | 2 | $1.5 CAD | |
| 48 | Bolt | 11501-08900-XXA | 80 | |||
| 49 | Screw | 11502-02700-XXA | 11.0374 | 24 | Price on request | |
| 50 | Screw | 11502-09000-XXA | 96 | |||
| 51 | Screw | 11502-08700-N0A | 4 | |||
| 52 | Screw | 11502-08800-XXA | 16 | |||
| 53 | Bolt | 11501-09000-XXA | 42 | |||
| 54 | Screw | 11502-11800-XXA | 12 | |||
| 55 | Adapter | 10200-03900-N0A | 4 | |||
| 56 | Clamp | 11506-01300-XXA | 10.0167 | 8 | Price on request | |
| 57 | Pipe | 10300-75900-N0A | 090-1880 | 4 | $77.5 CAD | |
| 58 | Ring | 10300-76000-N0A | 4 |
