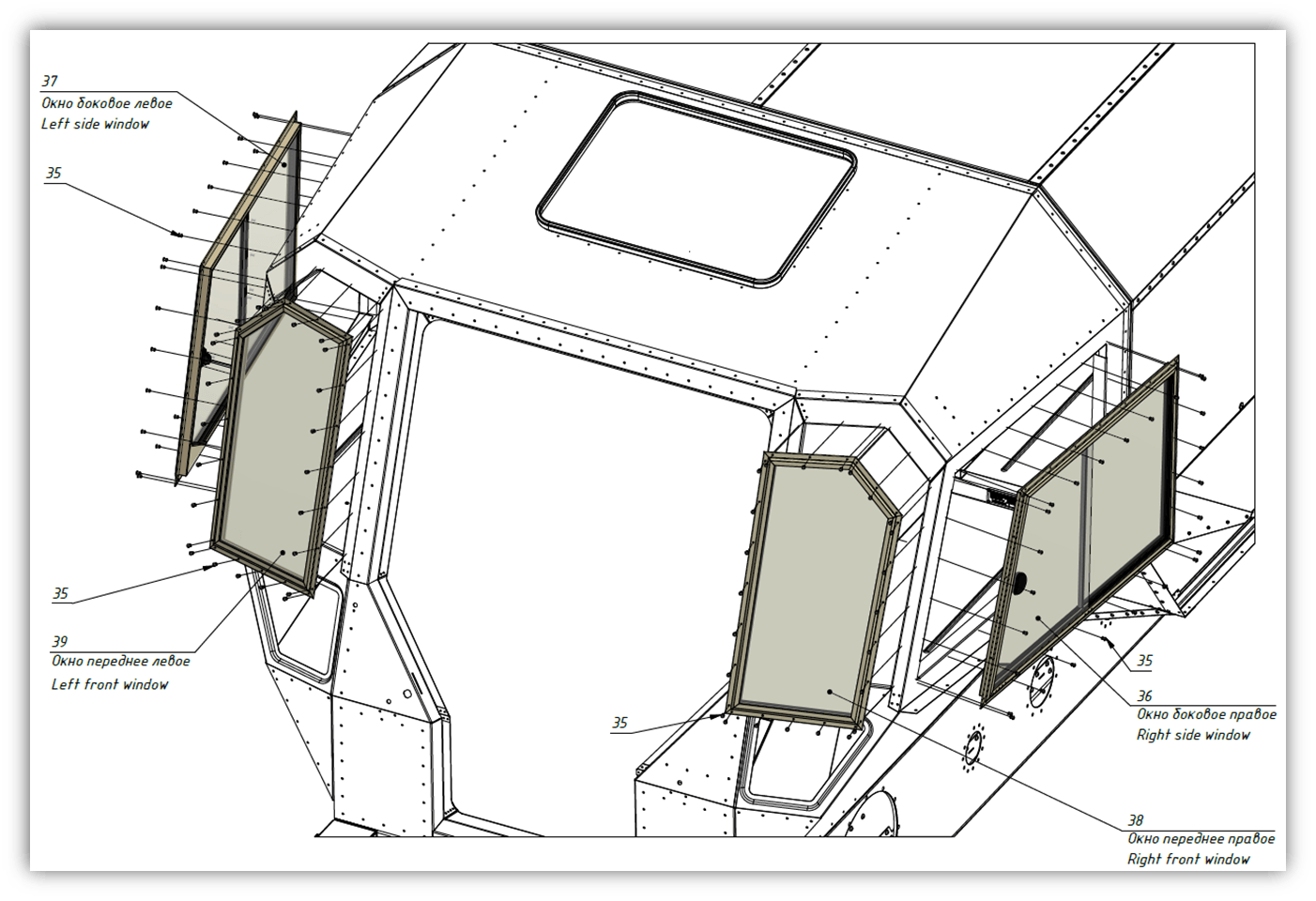

WINDOWS CABINS SIDE, BLINDS (0400) | 04-0400-06 — WINDOWS AND DOORS, BLINDS (04), SHERP N (PRO XT). Includes 39 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 39 parts
| 1 | Frame | 10406-01000-N0А | 1 | |||
| 2 | Glass | 10406-01100-N0А | 1 | |||
| 3 | Glass | 10406-01200-N0А | 1 | |||
| 4 | Frame | 10406-01300-N0А | 1 | |||
| 5 | Glass | 10406-01400-N0А | 1 | |||
| 6 | Glass | 10406-01500-N0А | 1 | |||
| 7 | Clamp | 10406-00700-XXА | 12.0300 | 2 | $7.5 CAD | |
| 8 | Jumper | 10406-01600-N0А | 2 | |||
| 9 | Frame | 10406-01700-N0А | 1 | |||
| 10 | Glass | 10406-01800-N0А | 1 | |||
| 11 | Frame | 10406-01900-N0А | 1 | |||
| 12 | Glass | 10406-02000-N0А | 1 | |||
| 13 | Mesh left | 10406-03500-N0А | 090-2179 | 1 | $340 CAD | |
| 14 | Mesh right | 10406-03400-N0А | 090-2180 | 1 | $352 CAD | |
| 15 | Hinge | 10406-06400-N0A | 4 | |||
| 16 | Substrate | 10406-02400-N0А | 4 | |||
| 17 | Gaslift | 10406-03600-N0А | 090-1721 | 2 | $36.5 CAD | |
| 18 | Rod end | 10406-02600-N0А | 4 | |||
| 19 | Nut | 11503-06300-XXА | 05.0044 | 4 | Price on request | |
| 20 | Washer | 11502-07200-XXА | 4 | |||
| 21 | Screw | 11502-10100-XXА | 16 | |||
| 22 | Screw | 11501-07000-XXА | 10.0608 | 8 | Price on request | |
| 23 | Screw | 11502-10200-XXА | 8 | |||
| 24 | Nut | 11503-01200-XXА | 04.0076 | 16 | Price on request | |
| 25 | Nut | 11503-10300-XXА | 16 | |||
| 26 | Washer | 11504-04400-XXА | 04.0131 | 32 | Price on request | |
| 27 | Handrail | 10406-02700-N0А | 1 | $59.5 CAD | ||
| 28 | Нandle | 10406-02800-N0А-3 | 2 | $54 CAD | ||
| 29 | Plate | 10406-02900-N0А | 2 | |||
| 30 | Screw | 11502-03800-XXА | 5 | |||
| 31 | Screw | 11502-03800-XXА | 1 | |||
| 32 | Riveting nut | 11503-10400-XXА | 4 | |||
| 33 | Rivet | 11507-03900-XXА | 4 | |||
| 34 | Screw | 11503-06200-XXА | 2 | |||
| 35 | Rivet | 11507-01400-XXА | 02.0122 | 100 | Price on request | |
| 36 | Side window | 10406-03000-N0А-1 | 1 | |||
| 37 | Side window | 10406-03100-N0А-2 | 1 | |||
| 38 | Front window | 10406-05900-N0A | 1 | |||
| 39 | Front window | 10406-05800-N0A | 1 |
