BODY ASSEMBLY (0200-01)

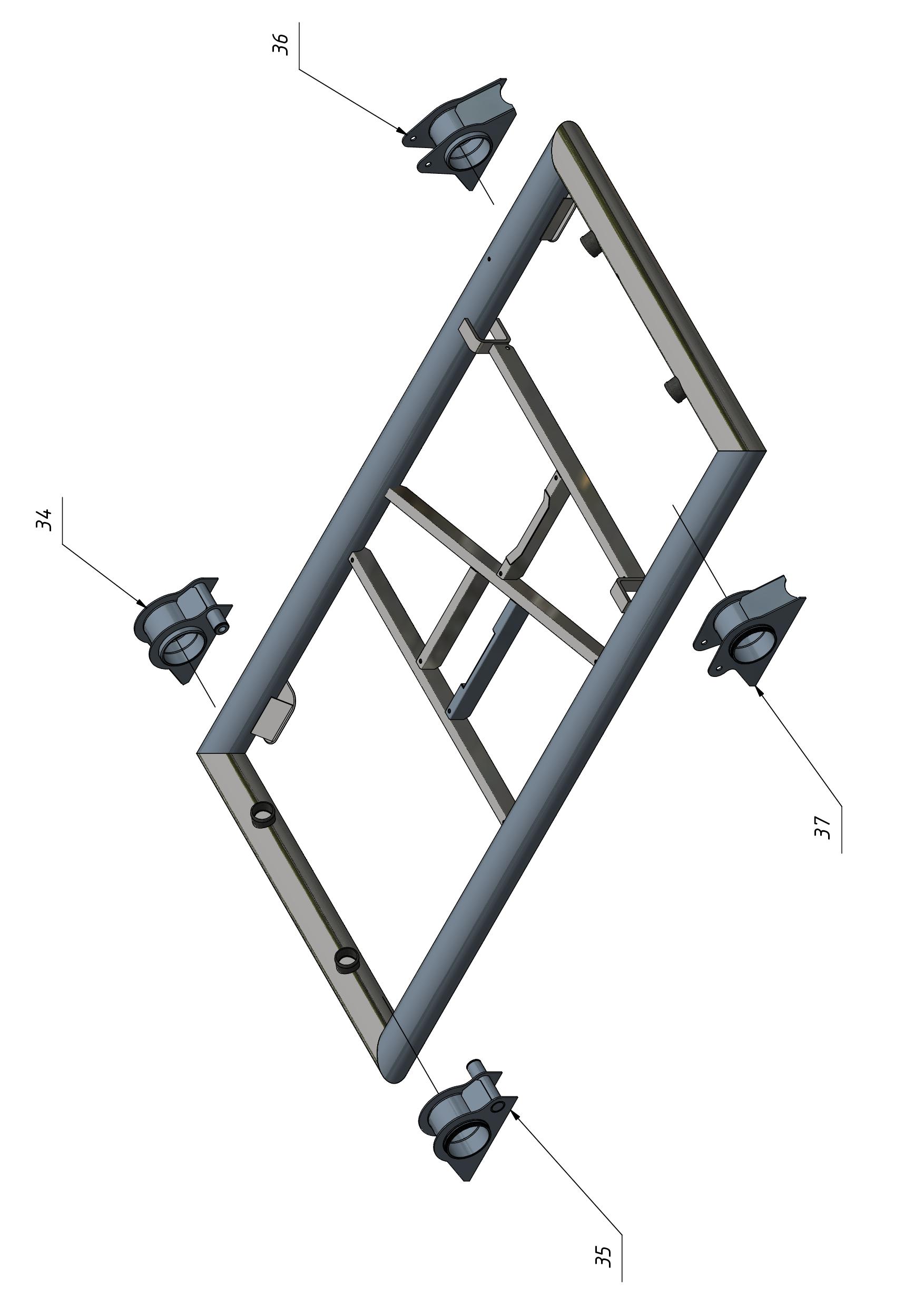

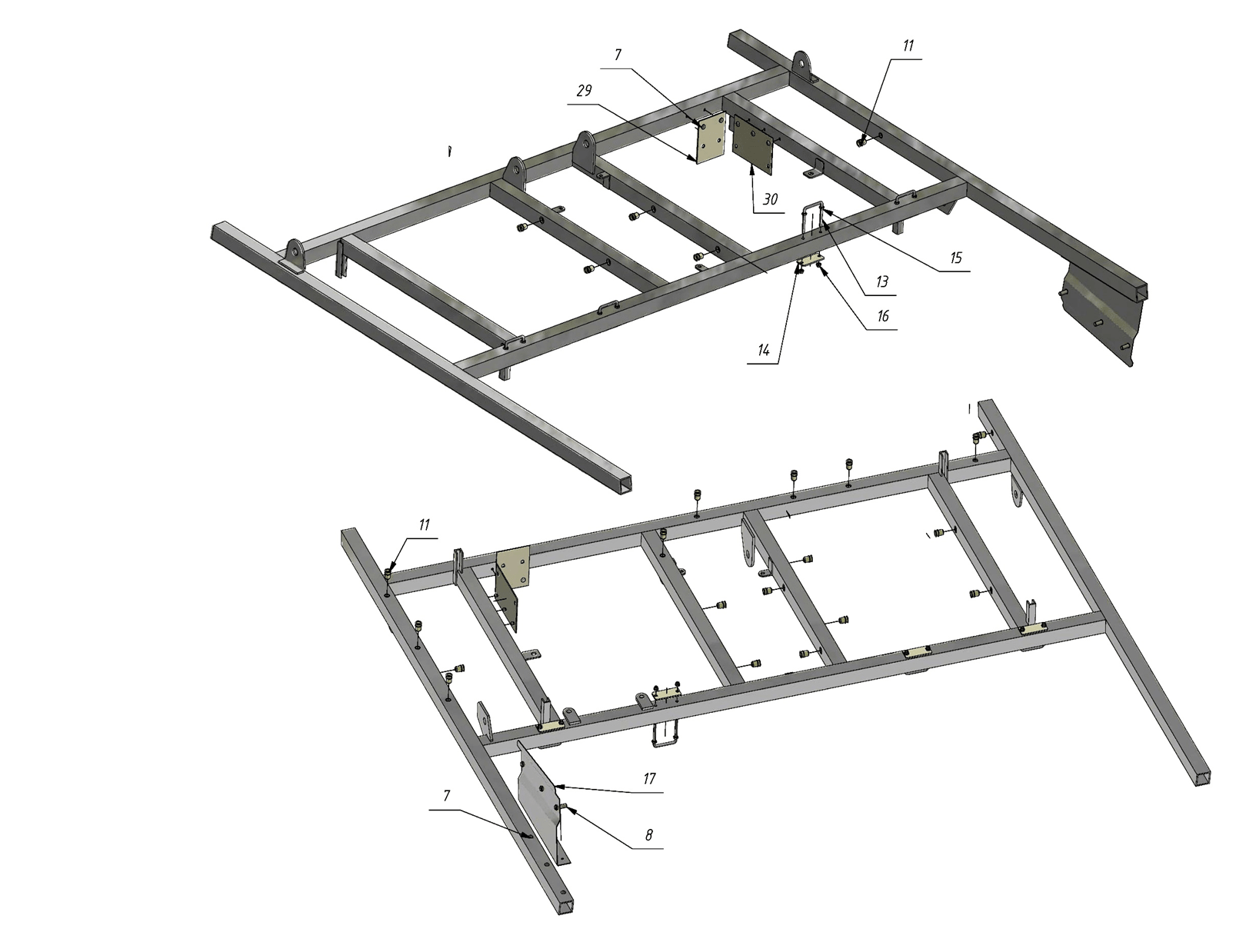

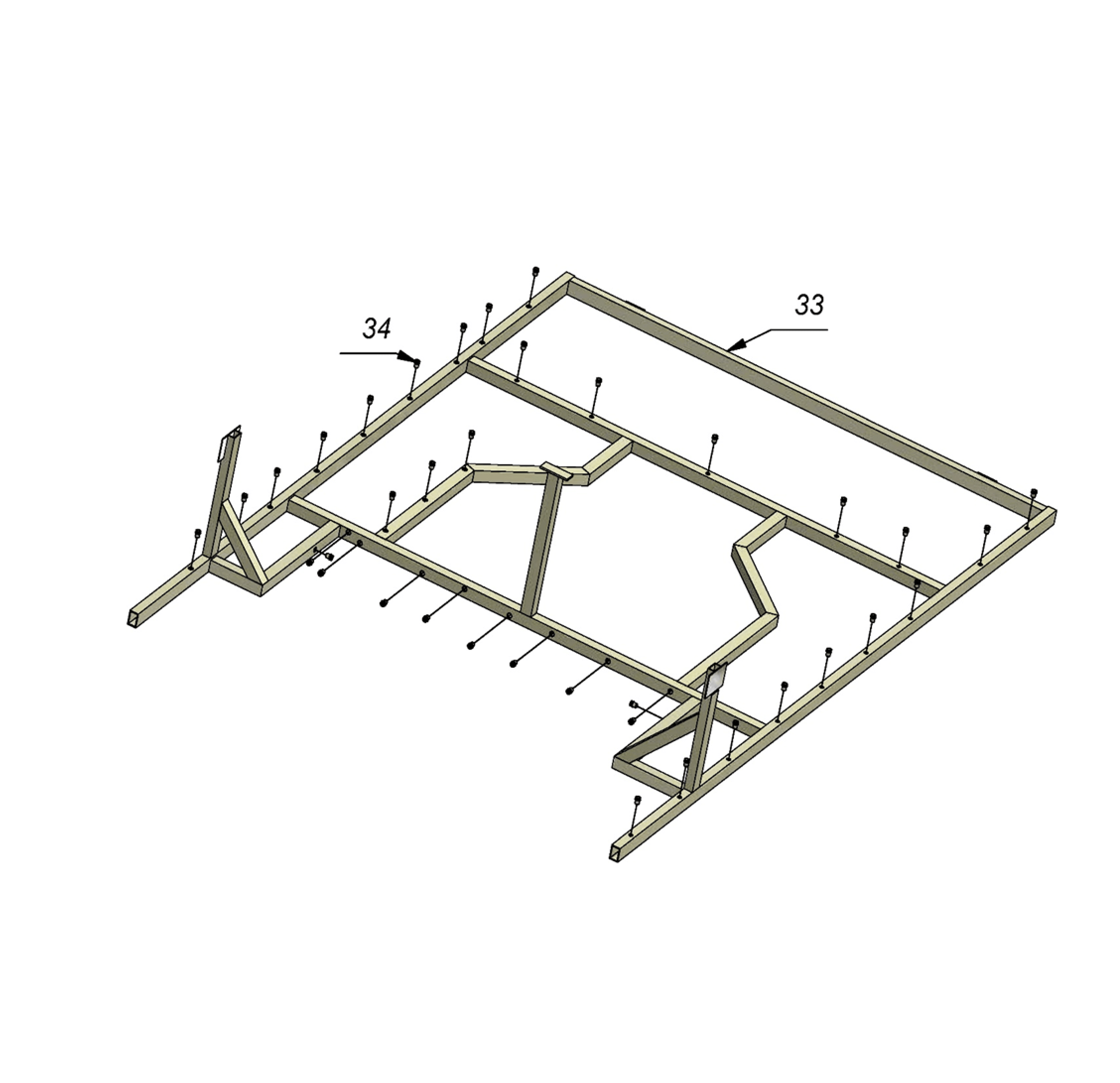

BODY ASSEMBLY (0200-01) — BODY (02), SHERP PRO. Includes 37 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 37 parts
| 1 | Support | 10200-00700-B0A | 02.0979 | 1 | Price on request | |
| 2 | Plate | 10200-00800-B0A | 02.0017 | 1 | Price on request | |
| 3 | Corner | 10200-00900-B0A | 02.0019 | 1 | Price on request | |
| 4 | Strap | 10200-01000-B0A | 02.0021 | 1 | Price on request | |
| 5 | Strap | 10200-01100-B0A | 02.0023 | 1 | Price on request | |
| 6 | Corner | 10200-01200-B0A | 02.0025 | 1 | Price on request | |
| 7 | Rivet | 11507-01200-XXA | 02.0027 | 23 | Price on request | |
| 8 | Rivet pin | 11501-07600-XXA | 02.0184 | 3 | Price on request | |
| 9 | Frame tailgate | 10203-00300-XXA | 02.0897, 090-0112 | 1 | $420 CAD | |
| 10 | Rivet countersunk | 11507-01600-XXA | 02.0224 | 3 | Price on request | |
| 11 | Riveting nut | 11503-08100-XXA | 02.0225 | 19 | Price on request | |
| 12 | Seat frame | 10200-01500-B0A | 02.0668 | 1 | Price on request | |
| 13 | Bracket | 10200-01600-B0A | 02.0701 | 4 | Price on request | |
| 14 | Lining | 10200-01700-B0A | 02.0704 | 4 | Price on request | |
| 15 | Nut | 11503-02000-XXA | 02.0706 | 8 | Price on request | |
| 16 | Nut | 11503-01000-XXA | 02.0707 | 8 | Price on request | |
| 17 | Bracket | 10200-01400-B0A | 02.0709 | 1 | Price on request | |
| 18 | Housing | 10200-00100-B0A | 02.0919 | 1 | Price on request | |
| 19 | Wall | 10200-00200-B0A-2 | 1 | |||
| 20 | Wall | 10200-00300-B0A-1 | 02.0715 | 1 | Price on request | |
| 21 | Radiator bracket | 10200-00400-B0A | 02.0723 | 1 | Price on request | |
| 22 | Screw | 11502-00400-XXA | 02.0775 | 8 | Price on request | |
| 23 | Rivet | 11507-00300-XXA | 02.0778 | 46 | Price on request | |
| 24 | The frame of the front side | 10202-89210-B0A | 02.0920 / 02.0892, 090-0110 | 1 | $920 CAD | |
| 25 | Radiator bracket | 10202-89610-XXA | 02.0925 | 1 | Price on request | |
| 26 | Frame bottom ceiling | 10200-02300-C0A | 1 | |||
| 27 | Rivet | 11507-00400-XXA | 02.0906 | 50 | Price on request | |
| 28 | Hood frame | 10200-98400-XXA | 02.0907 | 1 | Price on request | |
| 29 | Bracket | 10200-92610-XXA | 1 | |||
| 30 | Bracket | 10200-98500-XXA | 02.0927 | 1 | Price on request | |
| 31 | Heater bracket | 11200-00101-B0A | 1 | |||
| 32 | Frame | 10207-00200-B0A | 02.0286 | 1 | Price on request | |
| 33 | Riveting nut | 11503-08100-XXA | 02.0225 | 37 | Price on request | |
| 34 | Support left rear | 10200-43300-B0A | 1 | |||
| 35 | Support right rear | 10200-43400-B0A | 1 | |||
| 36 | Support left front | 10200-43900-B0A | 1 | |||
| 37 | Support right front | 10200-43600-B0A | 1 |
