BODY ASSEMBLY (0200) | 02-0200-02

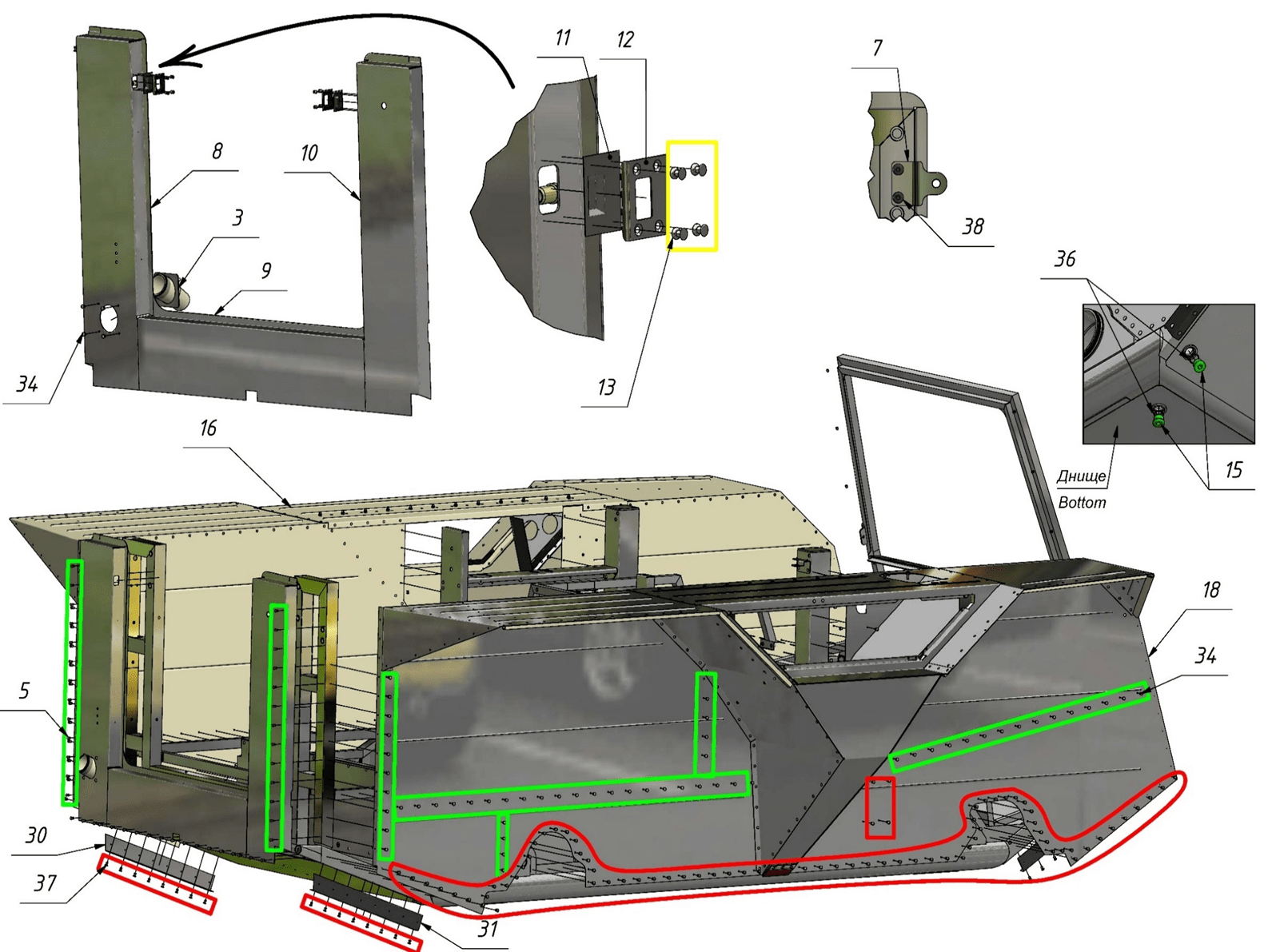

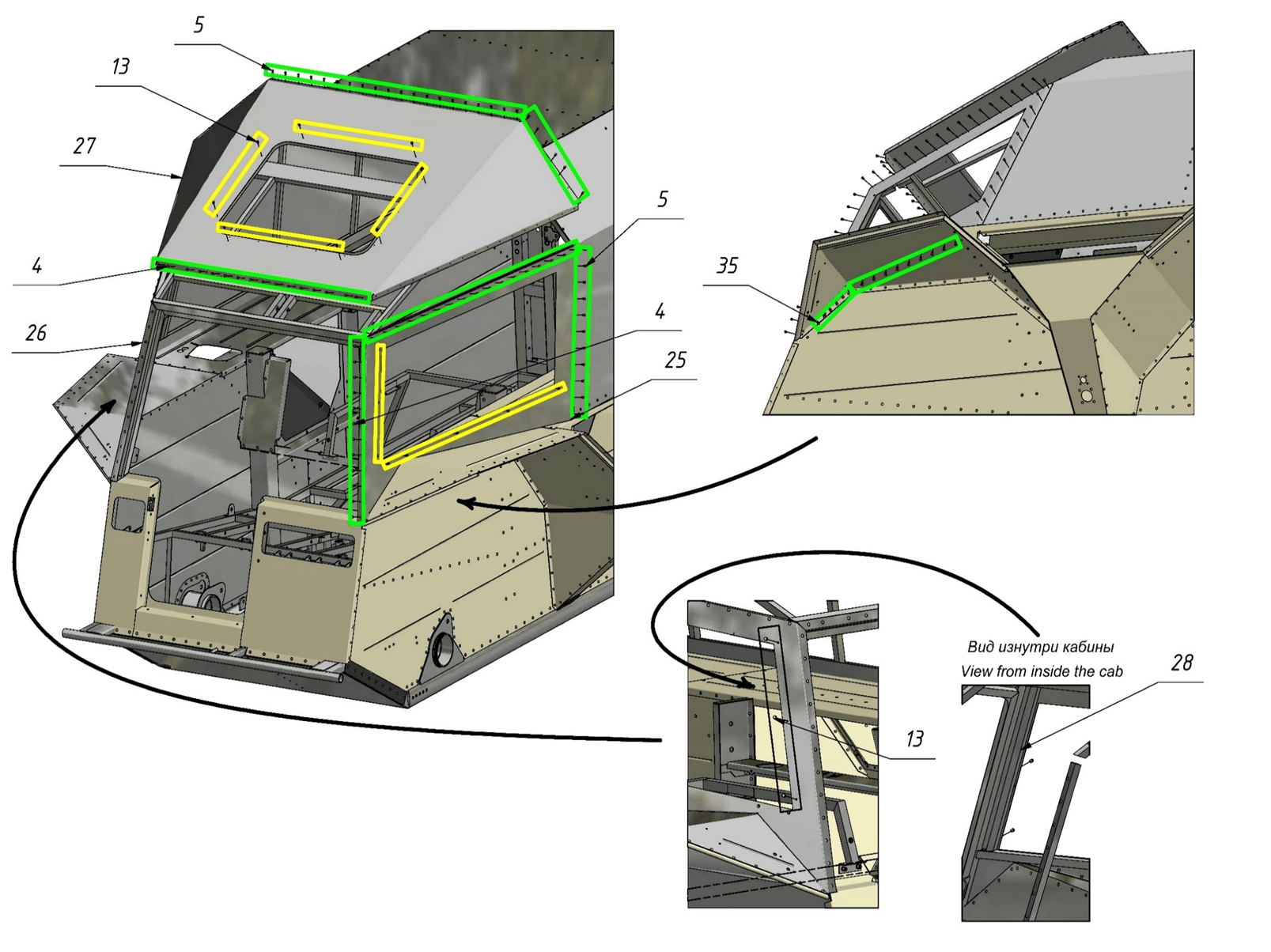

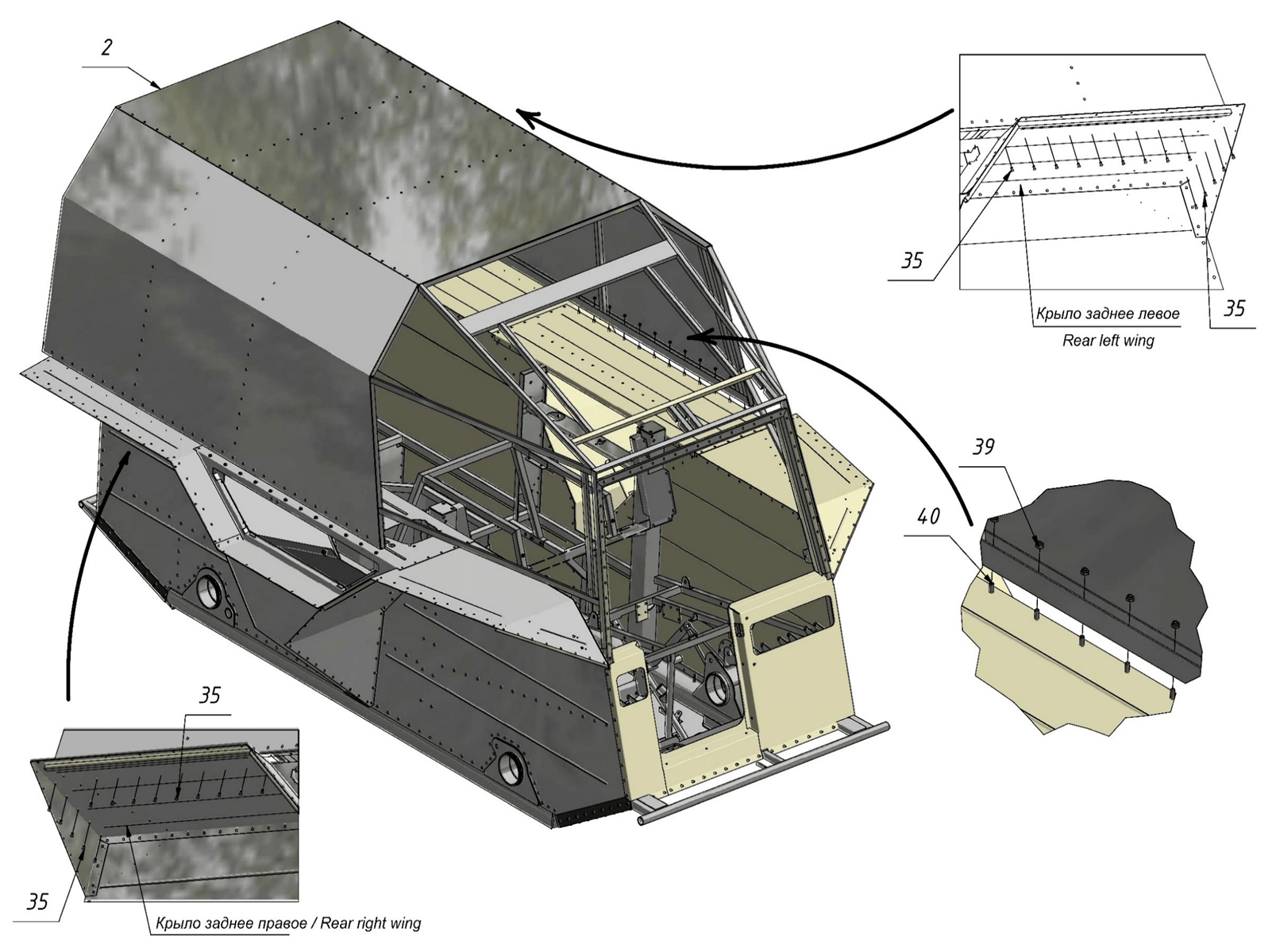

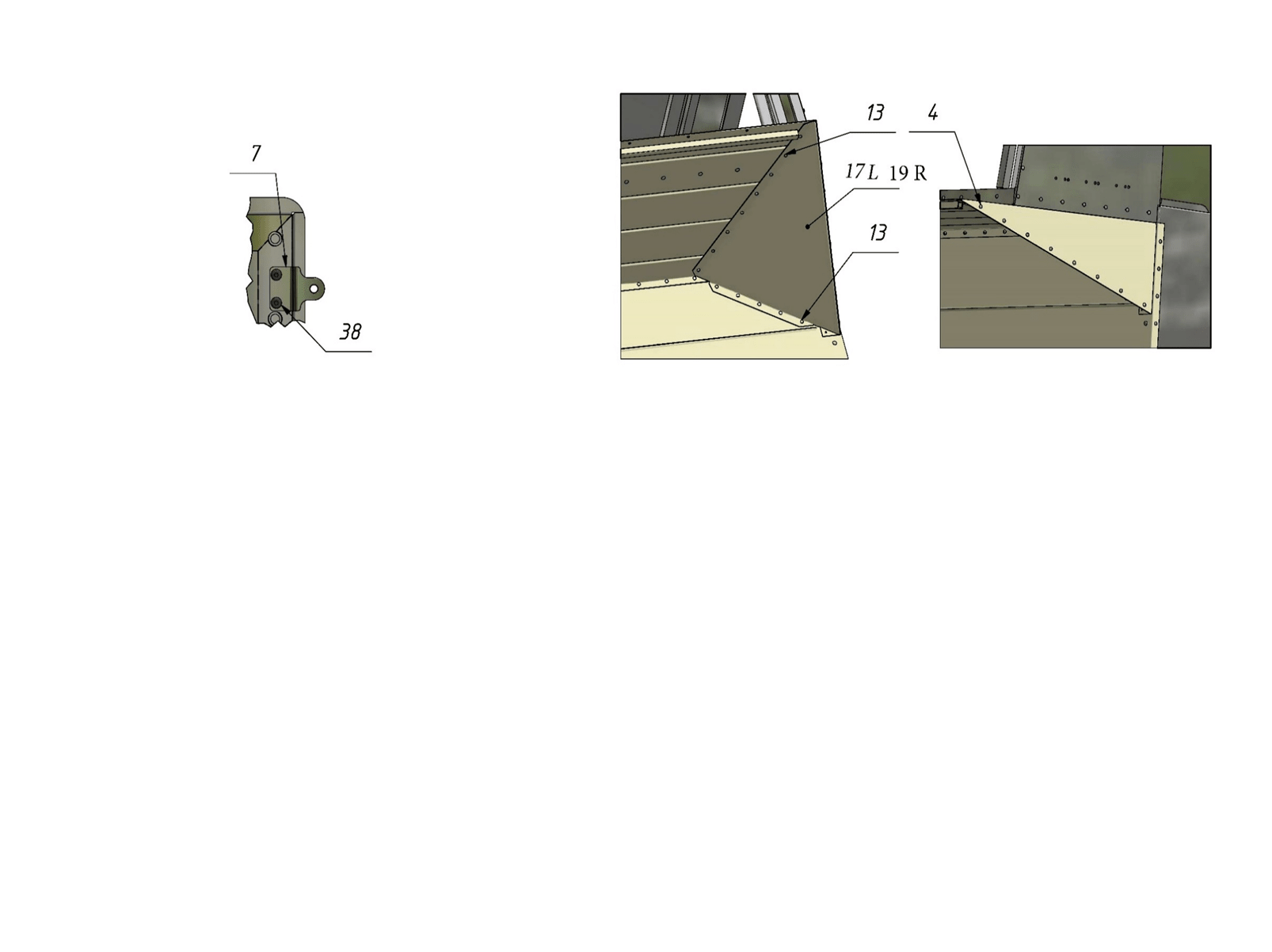

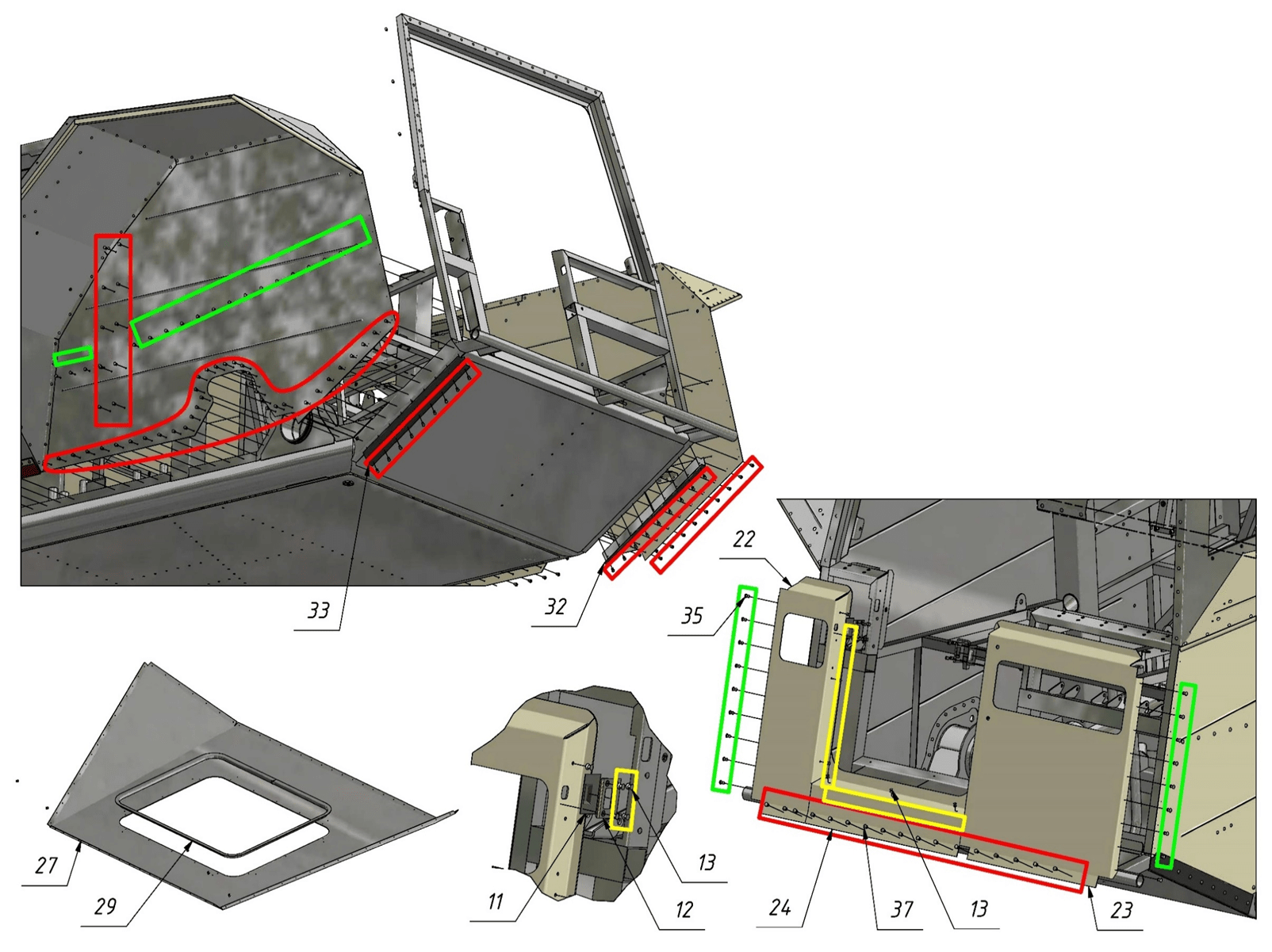

BODY ASSEMBLY (0200) | 02-0200-02 — BODY (02), SHERP PRO. Includes 41 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 41 parts
| 1 | 1 | |||||
| 2 | Cabin | 10206-00100-B0A | 1 | |||
| 3 | Tank filler neck | 10200-01300-XXА | 02.0028, 090-0010 | 1 | $52.5 CAD | |
| 4 | Rivet | 11507-01300-XXА | 02.0121 | 56 | Price on request | |
| 5 | Rivet | 11507-01400-XXА | 02.0122 | 116 | Price on request | |
| 6 | Riveting nut | 11503-08000-XXА | 02.0205 | 4 | Price on request | |
| 7 | Bracket | 10200-98600-XXА | 02.0207 | 2 | Price on request | |
| 8 | Pillar | 10200-98700-XXА | 02.0212 | 1 | Price on request | |
| 9 | Housing | 10200-98800-B0А | 02.0214 | 1 | Price on request | |
| 10 | Pillar | 10200-98900-B0А | 02.0216 | 1 | Price on request | |
| 11 | Lining | 10200-03500-XXА | 02.0218 | 4 | Price on request | |
| 12 | Lining | 10200-03400-XXА | 02.0220 | 4 | Price on request | |
| 13 | Rivet countersunk | 11507-01600-XXА | 02.0224 | 83 | Price on request | |
| 14 | Riveting nut | 11503-08100-XXА | 02.0225 | 1 | Price on request | |
| 15 | Drain plug assembly | 11503-10000-XXA | 02.0452, 090-1235, 02.0452-S | 3 | $49 CAD | |
| 15 | Drain plug (screw-in piece) | 11503-10000-XXA-S | 02.0452, 090-1235, 02.0452-S | 3 | $9 CAD | |
| 16 | Board left | 10204-00100-B0А-1 | 02.0590 | 1 | Price on request | |
| 17 | Triangular stiffener | 10204-00200-B0А-1 | 02.0623 | 1 | Price on request | |
| 18 | Board right | 10205-00100-B0А-2 | 02.0635 | 1 | Price on request | |
| 19 | Triangular stiffener | 10205-00200-B0А-2 | 02.0642 | 1 | Price on request | |
| 20 | Housing | 10200-99000-XXА | 02.0719 | 1 | Price on request | |
| 21 | Housing | 10200-99100-B0А | 02.0721 | 1 | Price on request | |
| 22 | Panel | 10200-99200-B0А | 02.0735 | 1 | Price on request | |
| 23 | Panel | 10200-74110-B0А | 02.0983 | 1 | Price on request | |
| 24 | Panel | 10200-99300-B0А | 02.0743 | 1 | Price on request | |
| 25 | Front faceplate | 10201-00100-B0А-1 | 02.0753, 090-0103 | 1 | Price on request | |
| 26 | Front faceplate | 10201-00900-B0А-2 | 02.0755 | 1 | Price on request | |
| 27 | Roof panel front | 10201-00600-B0А, 10201-00300-B0A | 1 | |||
| 28 | Bracket | 10201-00400-B0А | 02.0759 | 2 | Price on request | |
| 29 | Manhole flange | 10201-00500-B0А | 02.0984 | 1 | Price on request | |
| 30 | Lining | 10200-03200-B0А-1 | 02.0763 | 1 | Price on request | |
| 31 | Lining | 10200-03700-B0А-2 | 02.0765 | 1 | Price on request | |
| 32 | Lining | 10200-03300-B0А-1 | 02.0767 | 1 | Price on request | |
| 33 | Lining | 10200-03800-B0А-2 | 02.0769 | 1 | Price on request | |
| 34 | Rivet | 11507-00300-XXА | 02.0778 | 114 | Price on request | |
| 35 | Rivet | 11507-00600-XXА | 02.0780 | 98 | Price on request | |
| 36 | Ring | 11505-00100-XXА | 02.0810 | 3 | Price on request | |
| 37 | Rivet | 11507-00400-XXА | 02.0906 | 259 | Price on request | |
| 38 | Screw | 11502-05100-XXА | 04.0281 | 4 | Price on request | |
| 39 | Nut | 11503-06300-XXА | 05.0044 | 24 | Price on request | |
| 40 | Bolt | 11501-01600-XXА | 09.0170 | 24 | Price on request | |
| 41 | Plate | 10502-05100-B0А | 11.0301 | 1 | Price on request |
