BODY ASSEMBLY (0200-03)

BODY ASSEMBLY (0200-03) — BODY (02), SHERP PRO. Includes 30 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 30 parts

#TitlePart numberCross part numberQtyPrice
1Board10204-00300-B0A02.09691Price on request
2Front wing10204-00400-B0A-102.09701Price on request
3Rear wing10204-00500-B0A-402.09711Price on request
4Front wall of the body10204-00600-B0A-302.09721Price on request
5Rear wall of the body10204-00700-B0A-402.09731Price on request
6Rivet11507-01300-XXA02.012161Price on request
7Rivet countersunk11507-01600-XXA02.0224171Price on request
8Riveting nut11503-08100-XXA02.02254Price on request
9Insert10204-00800-B0A02.06011Price on request
10Tube10204-00900-B0A02.06032Price on request
11Tube10204-01000-B0A02.06051Price on request
12Corner10204-01100-B0A02.06091Price on request
13Plate10204-01200-B0A02.06151Price on request
14Plate10204-01300-B0A02.06171Price on request
15Pipe10204-01400-B0A02.06191Price on request
16Tube10204-01500-B0A02.06211Price on request
17Rivet11507-01700-XXA02.06323Price on request
18Bracket10205-00400-B0A02.06581Price on request
19Bracket10200-99400-B0A02.07251Price on request
20Bracket10200-99500-B0A02.07271Price on request
21Rivet countersunk11507-01800-XXA02.077410Price on request
22Rivet11507-00300-XXA02.07782Price on request
23Cap10204-01600-B0A02.07931Price on request
24Cap10204-01700-B0A02.07941Price on request
25Cap10204-01800-B0A02.07951Price on request
26Cap10204-01900-B0A02.07961Price on request
27Corner10204-02000-C0A1
28Panel10204-02100-C0A1
29Screw11502-05800-XXA05.02674Price on request
30Bracket11502-07500-XXA05.03811Price on request

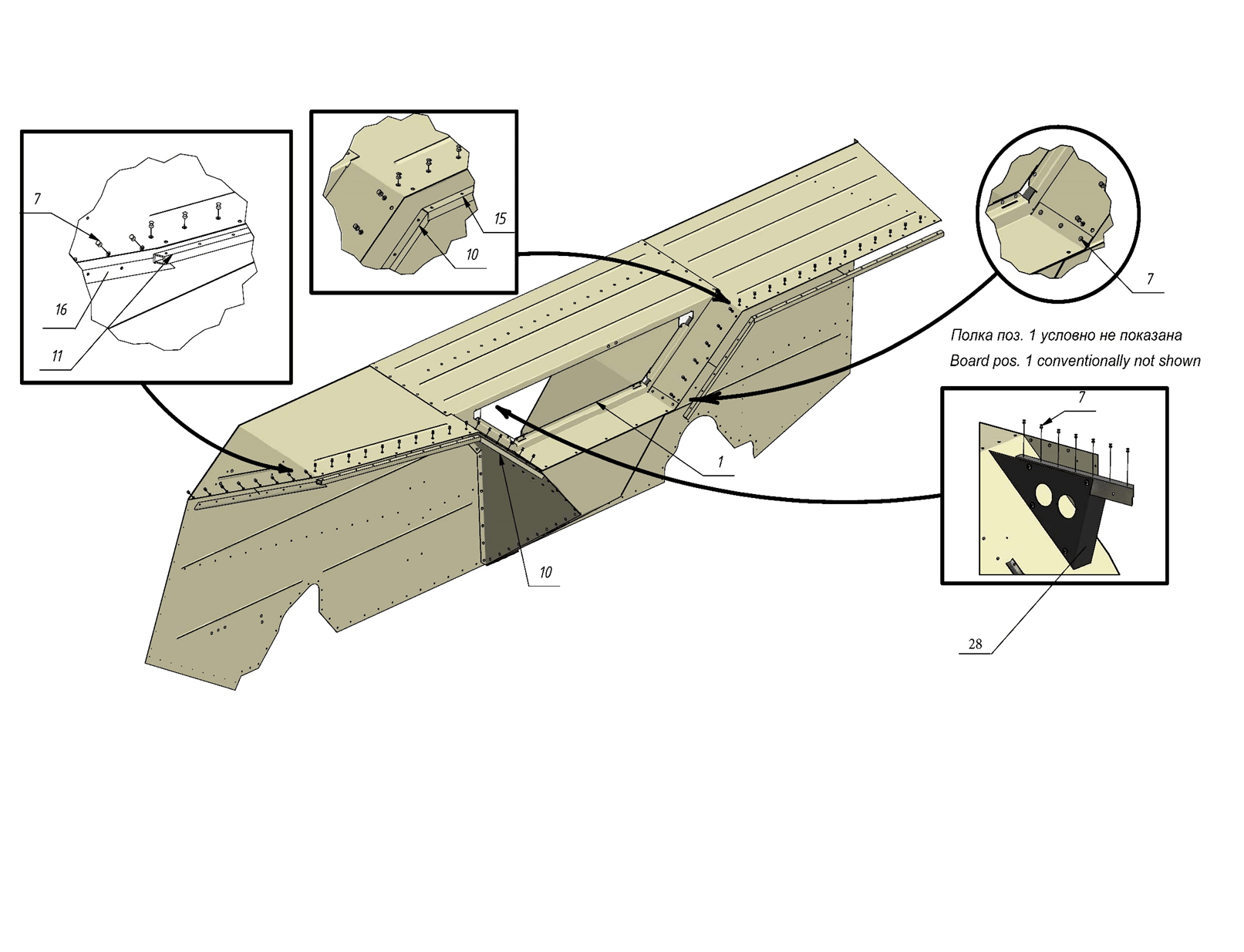

Manual sheet 11Viewing

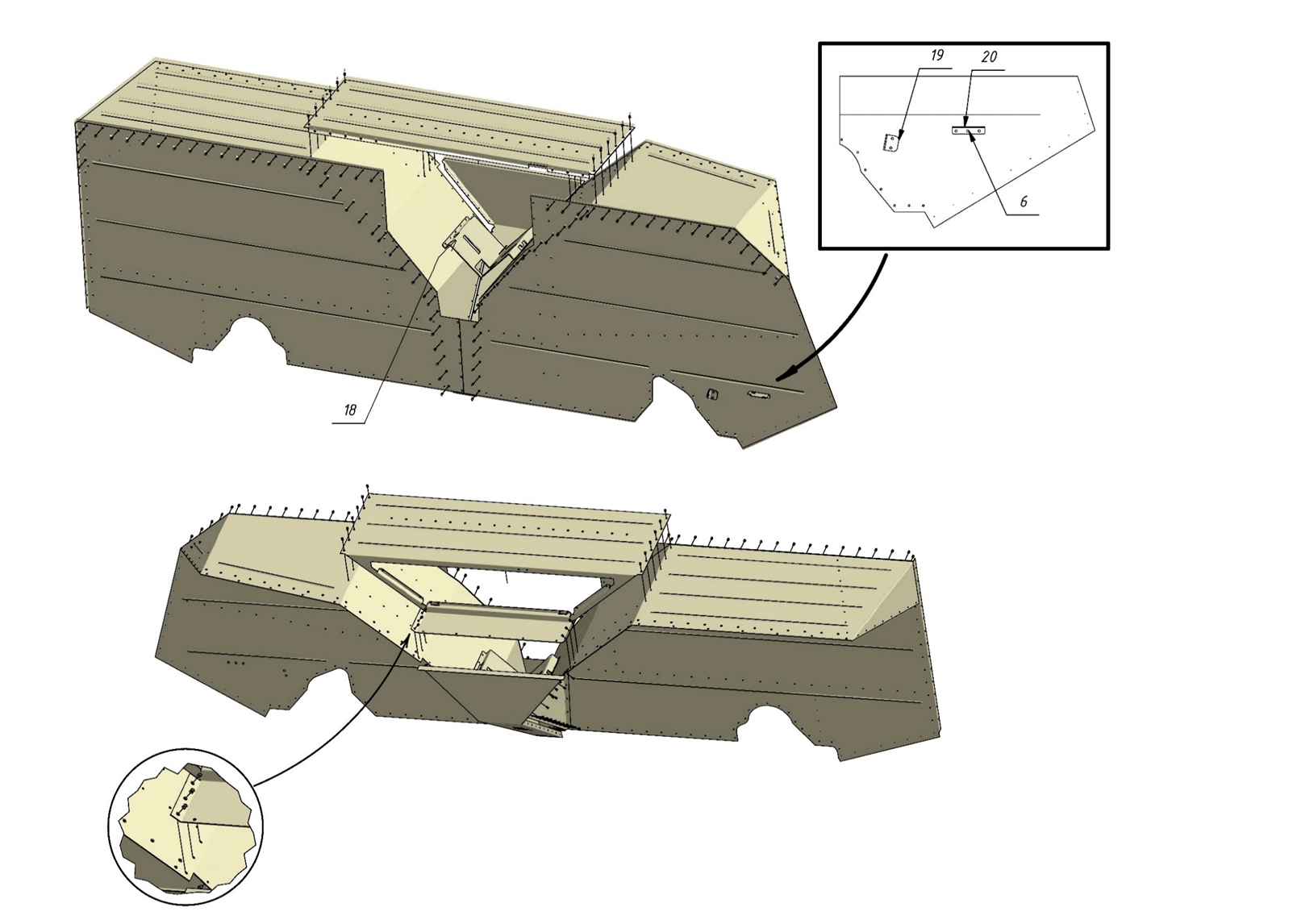

Manual sheet 22
Manual sheet 33
