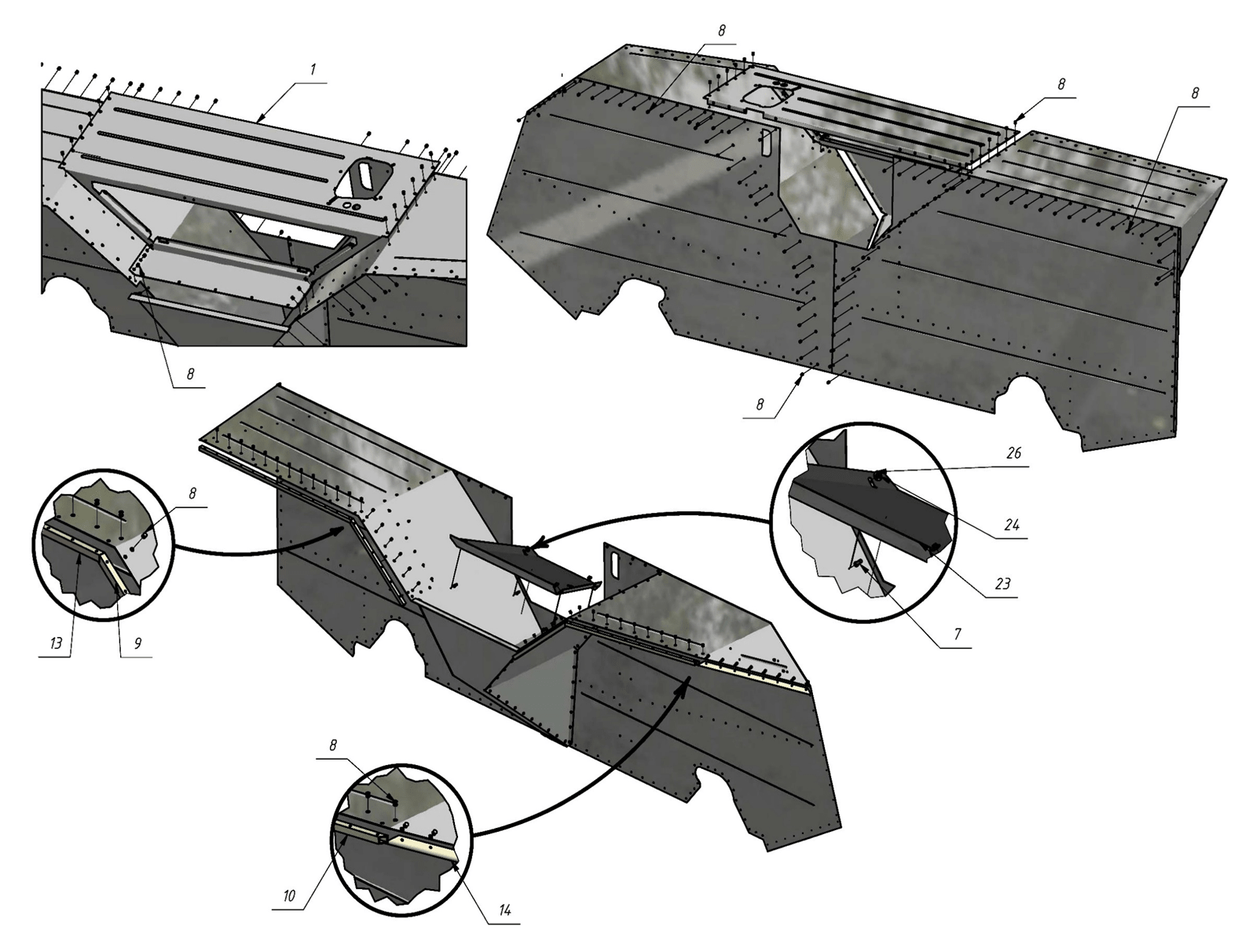

BODY ASSEMBLY (0200) | 02-0200-04
BODY ASSEMBLY (0200) | 02-0200-04 — BODY (02), SHERP PRO. Includes 26 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 26 parts
| 1 | Board | 10205-00500-B0А | 02.0974 | 1 | Price on request | |
| 2 | Front wing | 10205-00600-B0А-2 | 02.0975 | 1 | Price on request | |
| 3 | Rear wing | 10200-99600-B0А-4 | 02.0976 | 1 | Price on request | |
| 4 | Front wall of the body | 10205-00700-B0А | 1 | |||
| 5 | Rear wall of the body | 10205-00800-B0А-4 | 1 | |||
| 6 | Rivet | 11507-01300-XXА | 02.0121 | 42 | Price on request | |
| 7 | Rivet pin | 11501-07600-XXА | 02.0184 | 4 | Price on request | |
| 8 | Rivet countersunk | 11507-01600-XXА | 02.0224 | 150 | Price on request | |
| 9 | Tube | 10204-00900-B0А | 02.0603 | 2 | Price on request | |
| 10 | Tube | 10204-01000-B0А | 02.0605 | 1 | Price on request | |
| 11 | Plate | 10204-01200-B0А | 02.0615 | 1 | Price on request | |
| 12 | Plate | 10204-01300-B0А | 02.0617 | 1 | Price on request | |
| 13 | Pipe | 10204-01400-B0А | 02.0619 | 1 | Price on request | |
| 14 | Tube | 10204-01500-B0А | 02.0621 | 1 | Price on request | |
| 15 | Rivet | 11507-01700-XXА | 02.0632 | 3 | Price on request | |
| 16 | Insert | 10205-00900-B0А-2 | 02.0664 | 1 | Price on request | |
| 17 | Rivet countersunk | 11507-01800-XXА | 02.0774 | 10 | Price on request | |
| 18 | Rivet | 11507-00300-XXА | 02.0778 | 2 | Price on request | |
| 19 | Cap | 10204-01600-B0А | 02.0793 | 1 | Price on request | |
| 20 | Cap | 10204-01700-B0А | 02.0794 | 1 | Price on request | |
| 21 | Cap | 10204-01800-B0А | 02.0795 | 1 | Price on request | |
| 22 | Cap | 10204-01900-B0А | 02.0796 | 1 | Price on request | |
| 23 | Diffuser | 10205-00300-С0А | 1 | |||
| 24 | Nut | 11503-00600-XXА | 03.0447, 090-1194 | 4 | $0.5 CAD | |
| 25 | Bracket | 11502-07500-XXА | 05.0381 | 1 | Price on request | |
| 26 | Washer | 11504-06600-XXА | 11.0153 | 4 | Price on request |
