GENERAL BODY ELEMENTS (0500) | 05-0500-01

GENERAL BODY ELEMENTS (0500) | 05-0500-01 — BODY ELEMENTS (05), SHERP PRO. Includes 14 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 14 parts

#TitlePart numberCross part numberQtyPrice
1Reflector10500-03100-XXA-105.0895, 090-04271$79 CAD
2Strip10500-03200-XXA05.08962$12.5 CAD
3Reflector10500-03300-XXA-205.0897, 090-04291$79 CAD
4Screw11502-05700-XXA05.0043, 090-116956$1.9 CAD
5Nut11503-06300-XXA05.004456Price on request
6Washer11504-04700-XXA05.004556Price on request
7Arch extensions10500-03400-XXA05.0046, 090-04301Price on request
8Arch extensions10500-03400-XXA05.0046, 090-04301Price on request
9Arch extensions10500-03400-XXA05.0046, 090-04301Price on request
10Arch extensions10500-03400-XXA05.0046, 090-04301Price on request
11Strip10500-00100-XXA05.00482Price on request
12Headlight glass right10407-00100-B0A05.0050, 090-04061$43 CAD
13Headlight glass left10407-00200-B0A05.0052, 090-04071$63.5 CAD
14Screw11502-01800-XXA05.078712Price on request
Manual sheet 11Viewing

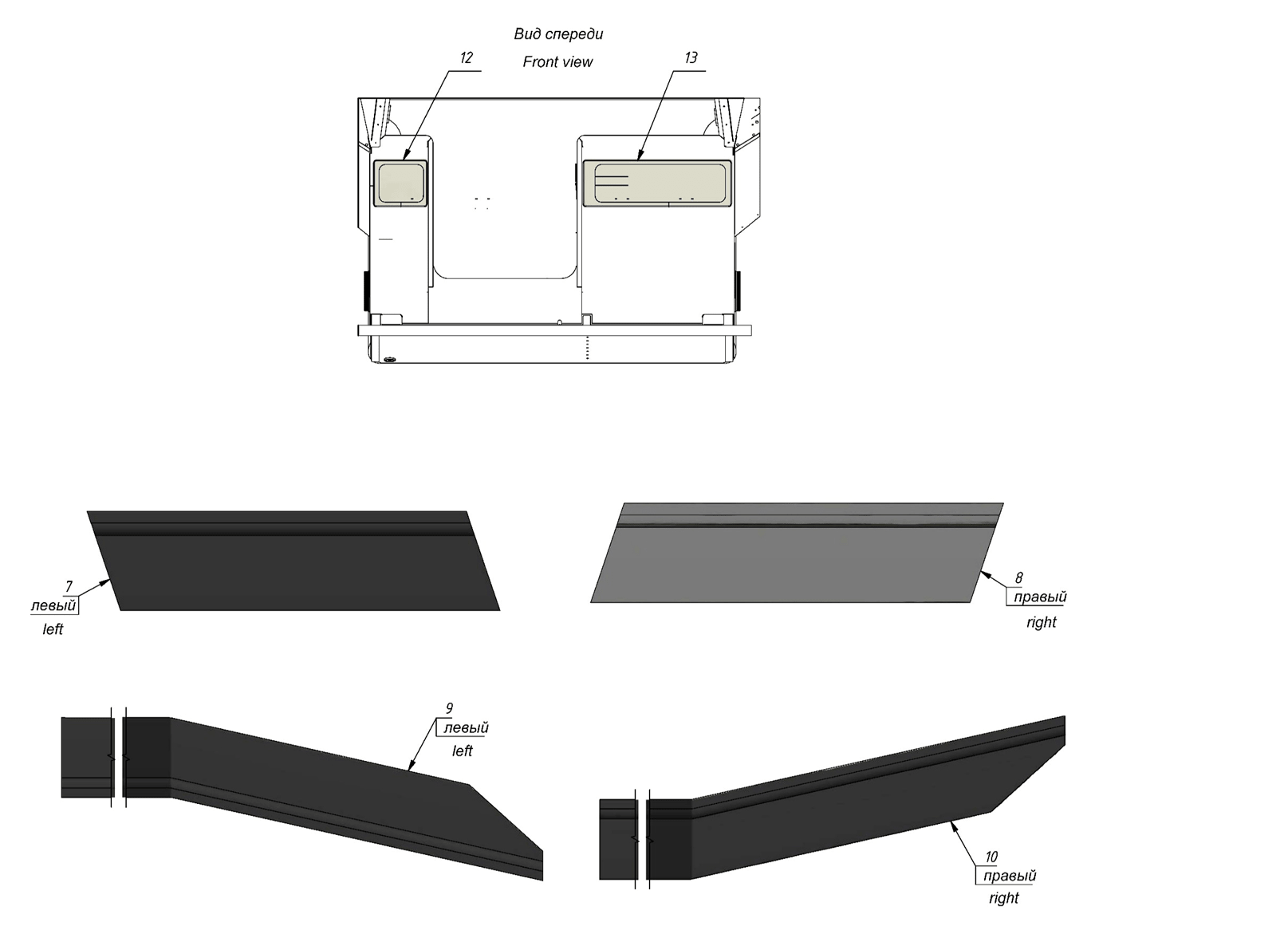

Manual sheet 22

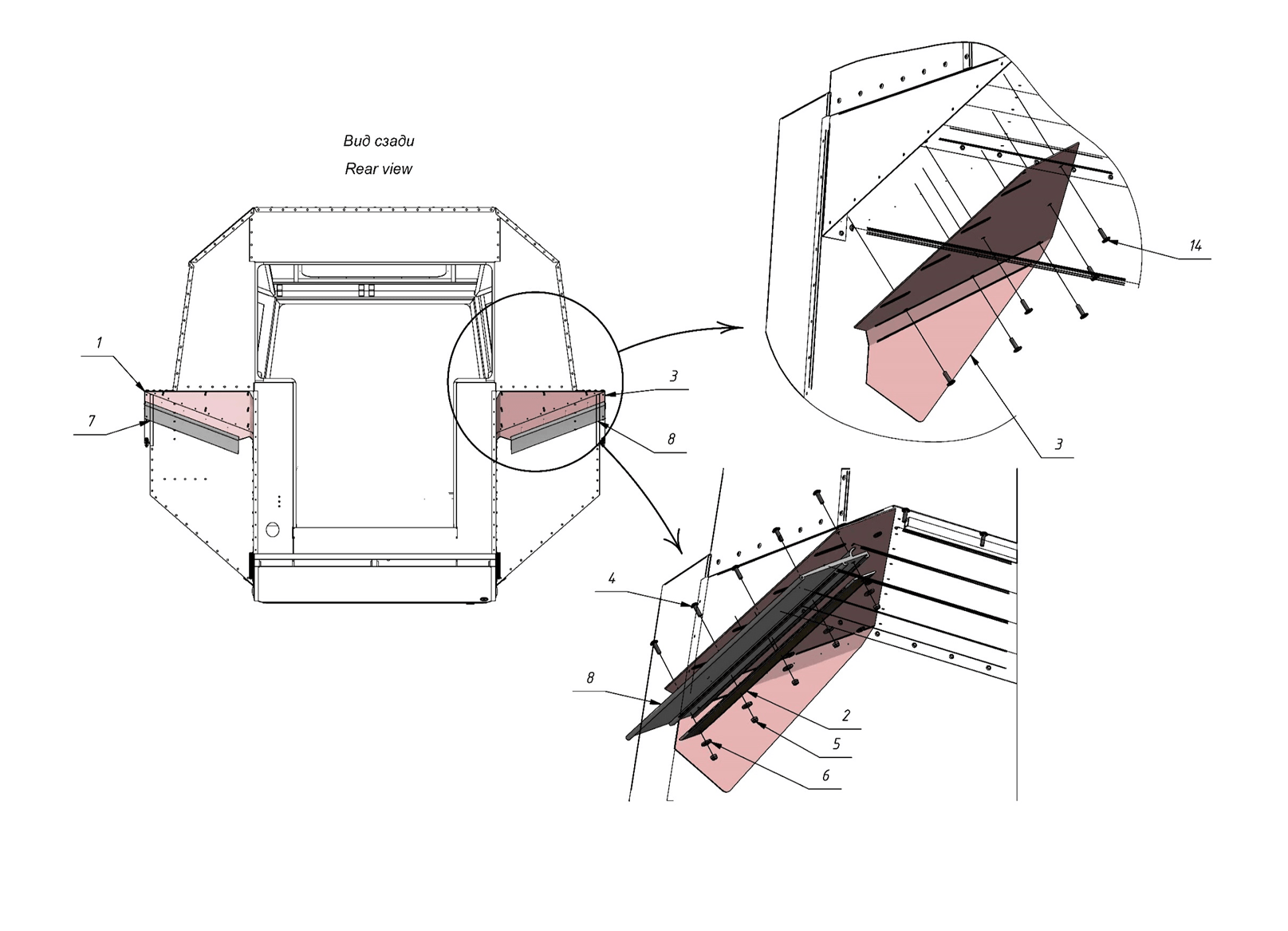

Manual sheet 33

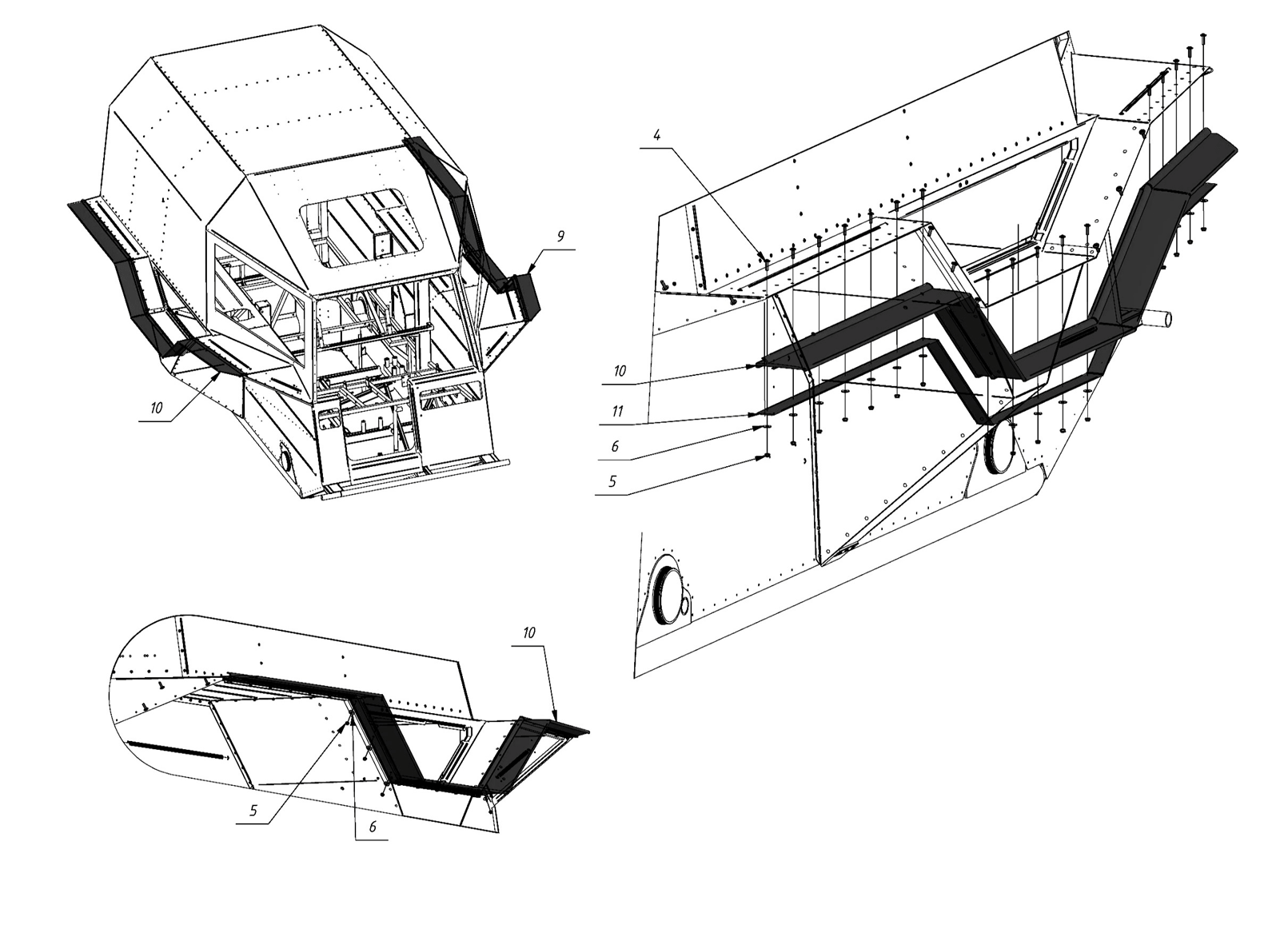

Manual sheet 44
