FUSE BOX (1101) | 11-1101-01

FUSE BOX (1101) | 11-1101-01 — ELECTRIC EQUIPMENT (11), SHERP PRO. Includes 30 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 30 parts

#TitlePart numberCross part numberQtyPrice
1Candles glow timer11101-00300-B0A11.0037, 090-09421$354.5 CAD
2Cover mounting block11101-01300-XXА11.02811Price on request
3Nut11503-02000-XXA02.070611Price on request
4Bolt11501-03000-XXA04.012616Price on request
5Washer11504-04400-XXA04.013116Price on request
6Riveting nut11507-00900-XXA04.01466Price on request
7Washer11504-04600-XXA05.00249Price on request
8Screw11502-01400-XXA05.04648Price on request
9Washer11504-04900-XXA05.06629Price on request
10Plate10505-02700-XXA05.07631Price on request
11Block11101-00400-XXA11.0067, 090-09431Price on request
12Solenoid starter switch11101-00500-XXA11.0068, 090-09441$22 CAD
13Relay11101-00600-XXA11.00726Price on request
14Pumping relay11101-00700-XXA11.00731Price on request
15Screw11502-02500-XXA11.00799Price on request
16Socket11100-39600-XXA11.00834Price on request
17Bush11100-39700-XXA11.00897Price on request
18Fuse mounting block11101-00800-XXA11.00962Price on request
19Relay Connector11101-00900-XXA11.00691Price on request
20Relay Connector11101-01000-XXA11.00717Price on request
21Bush11100-39200-XXA11.01731Price on request
22Bracket11101-01100-XXA11.02562Price on request
23Socket11101-01200-XXA11.00741Price on request
24Relay11101-01400-XXA11.02821Price on request

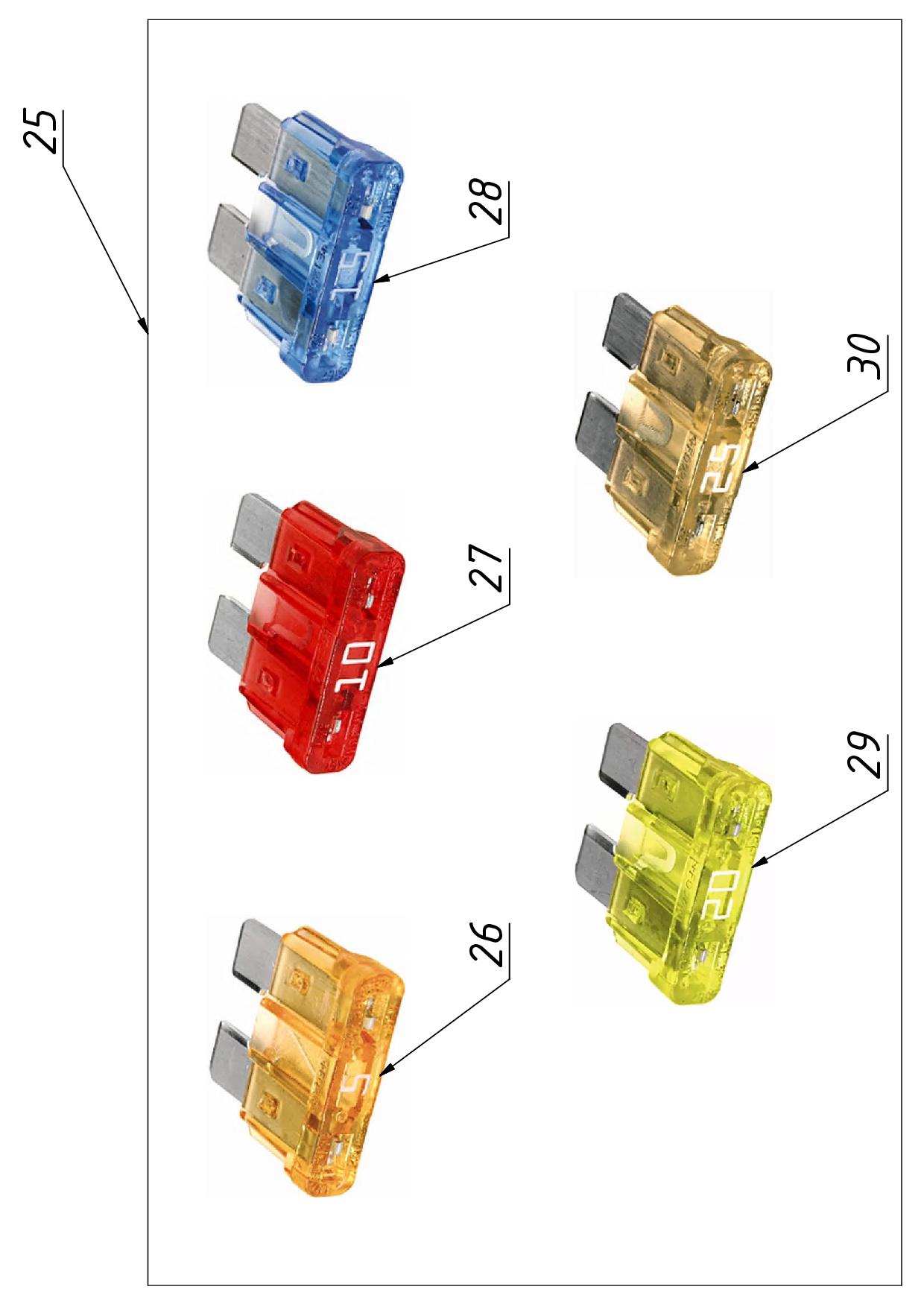

25Fuse set11101-00100-B0A1
26Fuse 5 A11101-01500-XXA1
27Fuse 10 A11101-01600-XXA1
28Fuse 15 A11101-01700-XXA1
29Fuse 20 A11101-01800-XXA1
30Fuse 25 A11101-01900-XXA1

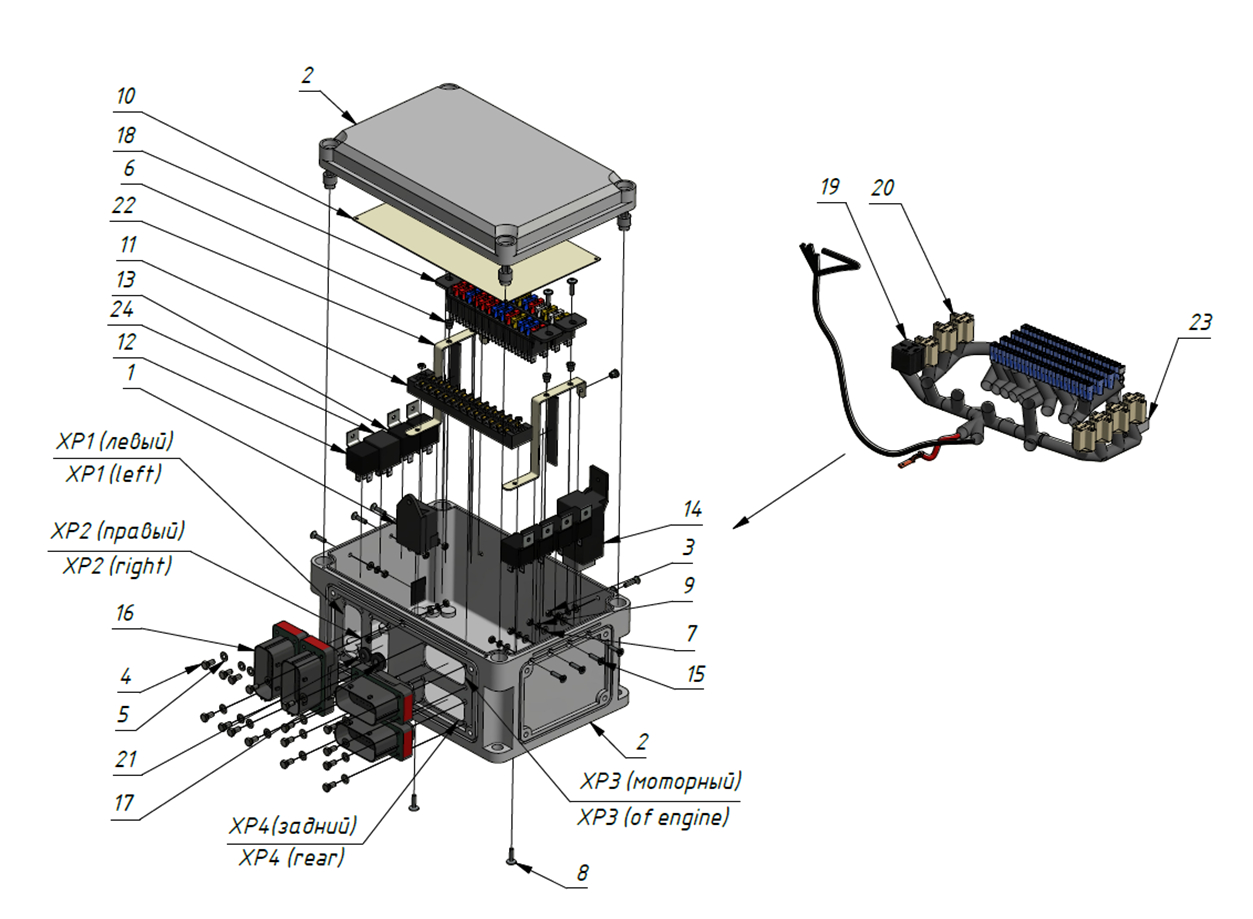

Manual sheet 11Viewing

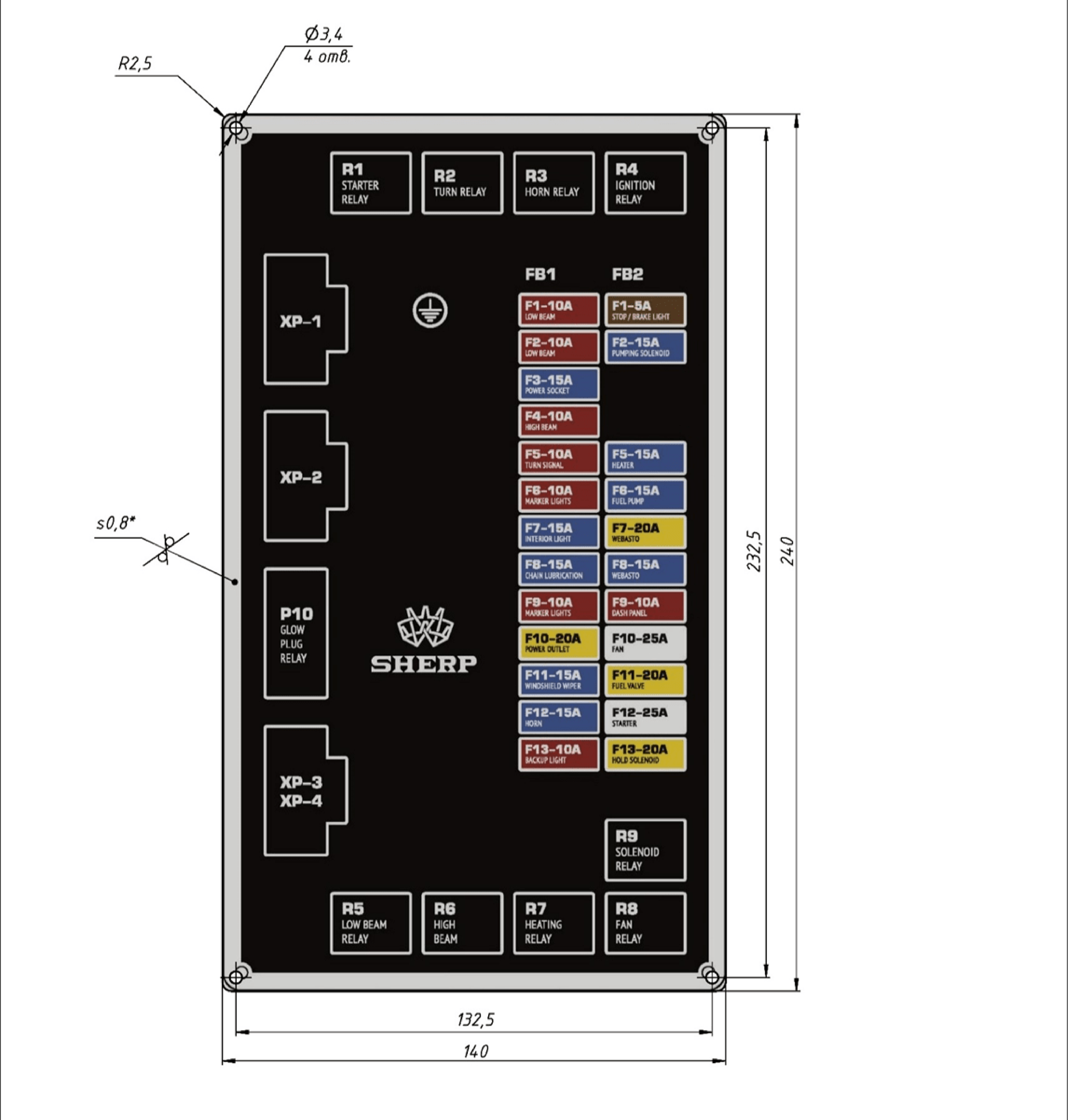

Manual sheet 22
Manual sheet 33
