LIGHTING (1104) | 11-1104-01
LIGHTING (1104) | 11-1104-01 — ELECTRIC EQUIPMENT (11), SHERP PRO. Includes 8 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 8 parts

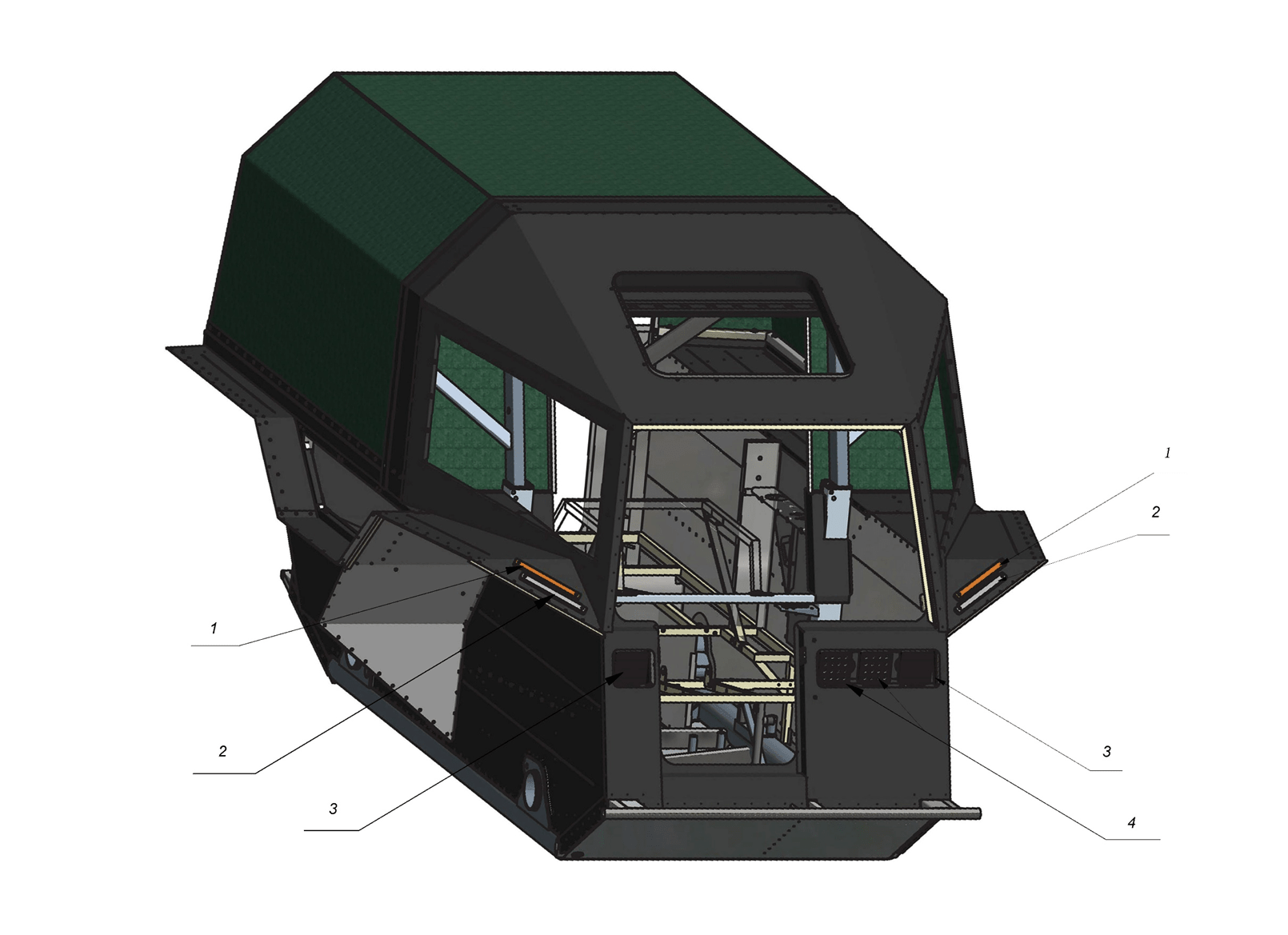

| 1 | Direction indicator front | 11104-00600-XXA | 11.0259, 090-0979 | 2 | $44.5 CAD | |
| 2 | Parking light | 11104-00700-XXA | 11.0260, 090-0980 | 2 | $41 CAD | |
| 3 | Low beam headlight (old style) | 11104-00100-XXA | 11.0338, 090-0975, 11.0338-N | 2 | $118.5 CAD | |
| 3 | Low beam headlight (new style) | 11104-00100-XXA-N | 11.0338, 090-0975, 11.0338-N | 2 | $118.5 CAD | |
| 4 | High beam headlight (old style) | 11104-00200-XXA | 11.0345, 090-0976, 11.0345-N | 2 | $67.5 CAD | |
| 4 | High beam headlight (new style) | 11104-00200-XXA-N | 11.0345, 090-0976, 11.0345-N | 2 | $67.5 CAD | |

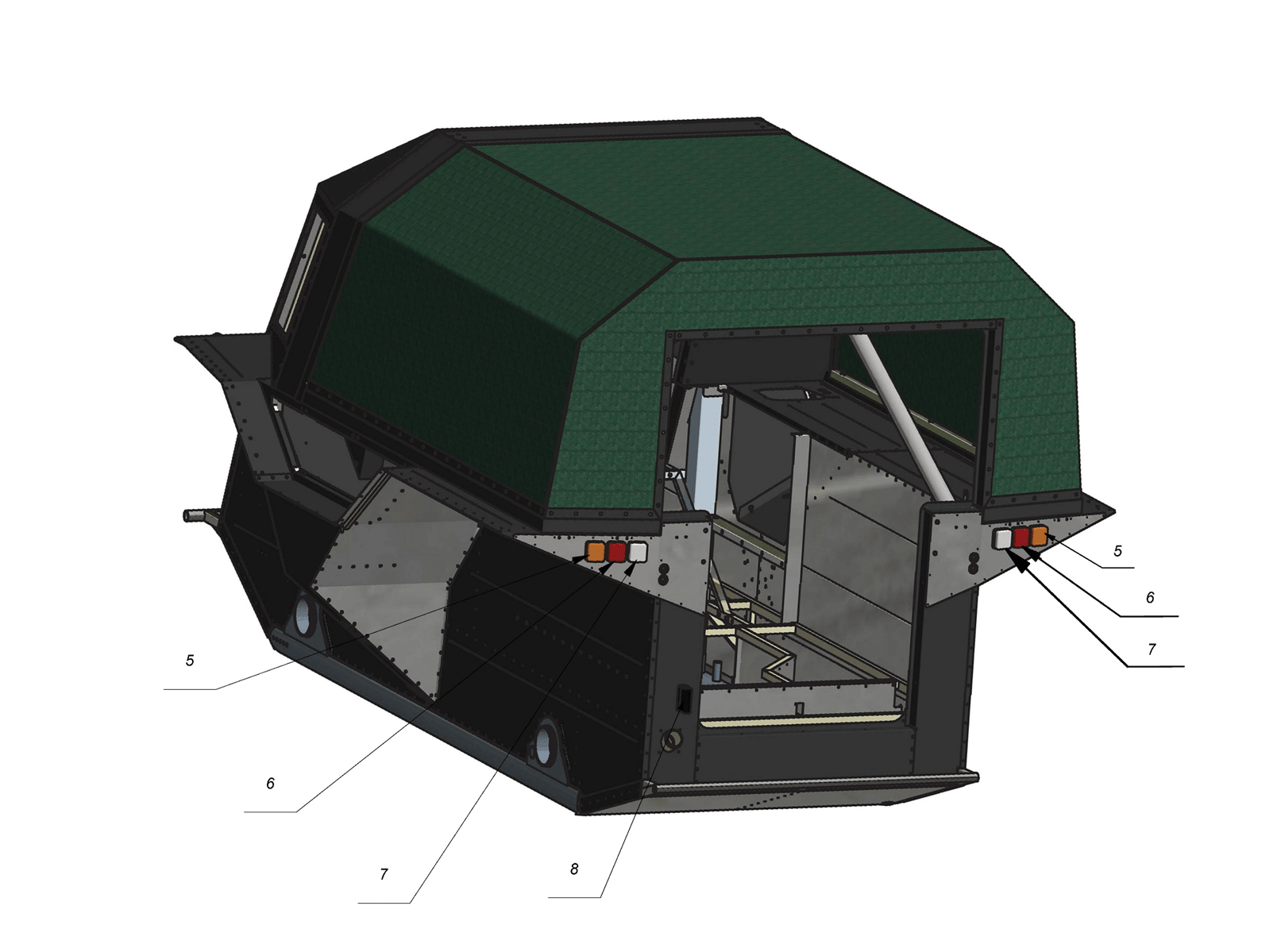

| 5 | Rear direction indicator | 11104-00900-XXA | 11.0190, 090-0981 | 2 | $23.5 CAD | |
| 6 | Brake light | 11104-01000-XXA | 11.0191, 090-0982 | 2 | $22 CAD | |
| 7 | Reversing light | 11104-01100-XXA | 11.0189, 090-0983 | 2 | $23.5 CAD | |
| 8 | License plate light casing | 11104-01200-XXA | 11.0192, 090-0984, 11104-01200-XXA-L | 1 | $7.5 CAD | |
| 8 | License plate LED lamp | 11.0192-L | 11.0192, 090-0984, 11104-01200-XXA-L | 1 | $6.5 CAD |
