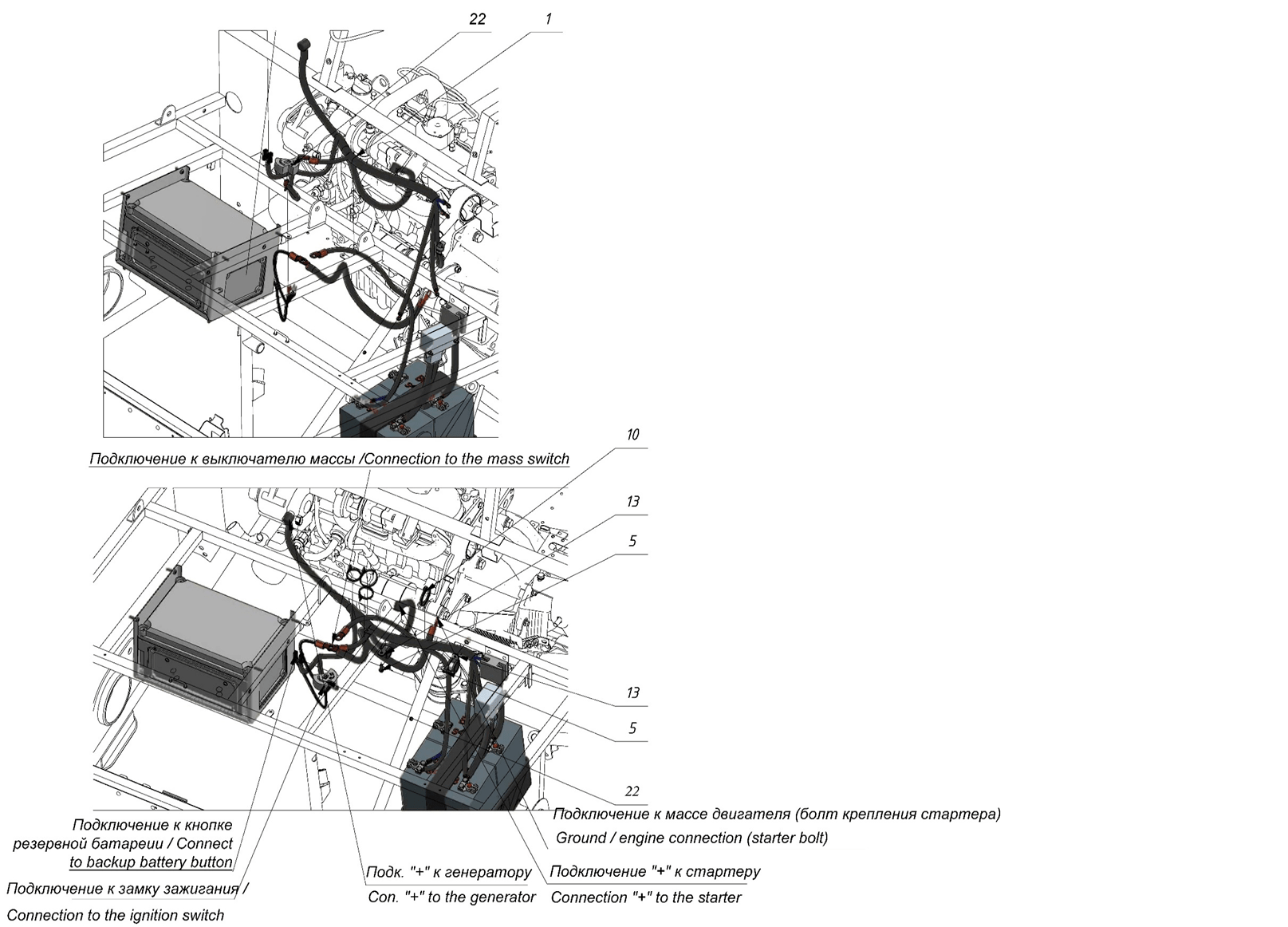

WIRING HARNESSES (1106) | 11-1106-02
WIRING HARNESSES (1106) | 11-1106-02 — ELECTRIC EQUIPMENT (11), SHERP PRO. Includes 22 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 22 parts
| 1 | Power harness | 11106-00500-B0А | 11.0205, 090-1042 | 1 | Price on request | |
| 2 | Electrical box (old style) | 11101-00100-XXA-1 | 11.0280-1, 090-0940, 11.0280-2 | 1 | Price on request | |
| 2 | Electrical box (new style) | 11101-00100-XXA-2 | 11.0280-1, 090-0940, 11.0280-2 | 1 | $4068 CAD | |
| 3 | Riveting nut | 11503-08100-XXА | 02.0225 | 1 | Price on request | |
| 4 | Nut | 11503-01300-XXА | 02.0630 | 4 | Price on request | |
| 5 | Screw | 11502-00400-XXА | 02.0775 | 2 | Price on request | |
| 6 | Washer | 11504-02500-XXА | 03.0450 | 4 | Price on request | |
| 7 | Screw | 11502-00900-XXА | 04.0075 | 4 | Price on request | |
| 8 | Washer | 11504-04400-XXА | 04.0131 | 6 | Price on request | |
| 9 | Screw | 11502-05500-XXА | 04.0306 | 4 | Price on request | |
| 10 | Strainer | 11506-04700-XXА | 05.0709 | 2 | Price on request | |
| 11 | Belt | 10501-00100-XXА | 11.0178, 090-0438 | 2 | Price on request | |
| 12 | Nut | 11503-05400-XXА | 07.0018 | 4 | Price on request | |
| 13 | Clamp | 11506-00700-XXА | 09.0199 | 2 | Price on request | |
| 14 | Housing | 11100-39400-B0А | 11.0065 | 1 | Price on request | |
| 15 | Bolt | 11501-07100-XXА | 11.0139 | 4 | Price on request | |
| 16 | Washer | 11504-06600-XXА | 11.0153 | 4 | Price on request | |
| 17 | Accumulator battery | 11103-00100-XXА | 11.0169 | 2 | Price on request | |
| 18 | Set of terminals | 11103-00200-XXА | 11.0171, 090-0974 | 4 | $16.5 CAD | |
| 19 | Switch fuse 40-60 Amp. | 11100-00600-XXА | 11.0172, 090-0929 | 1 | $57.5 CAD | |
| 20 | Pan | 11100-00500-B0А | 11.0174 | 1 | Price on request | |
| 21 | Relay | 11101-00200-XXА | 11.0176, 090-0941 | 1 | $168.5 CAD | |
| 22 | Connector | 11100-01100-XXА | 11.0177 | 1 | Price on request |
1Viewing
2
