COOLING SYSTEM (1004) | 10-1004-02

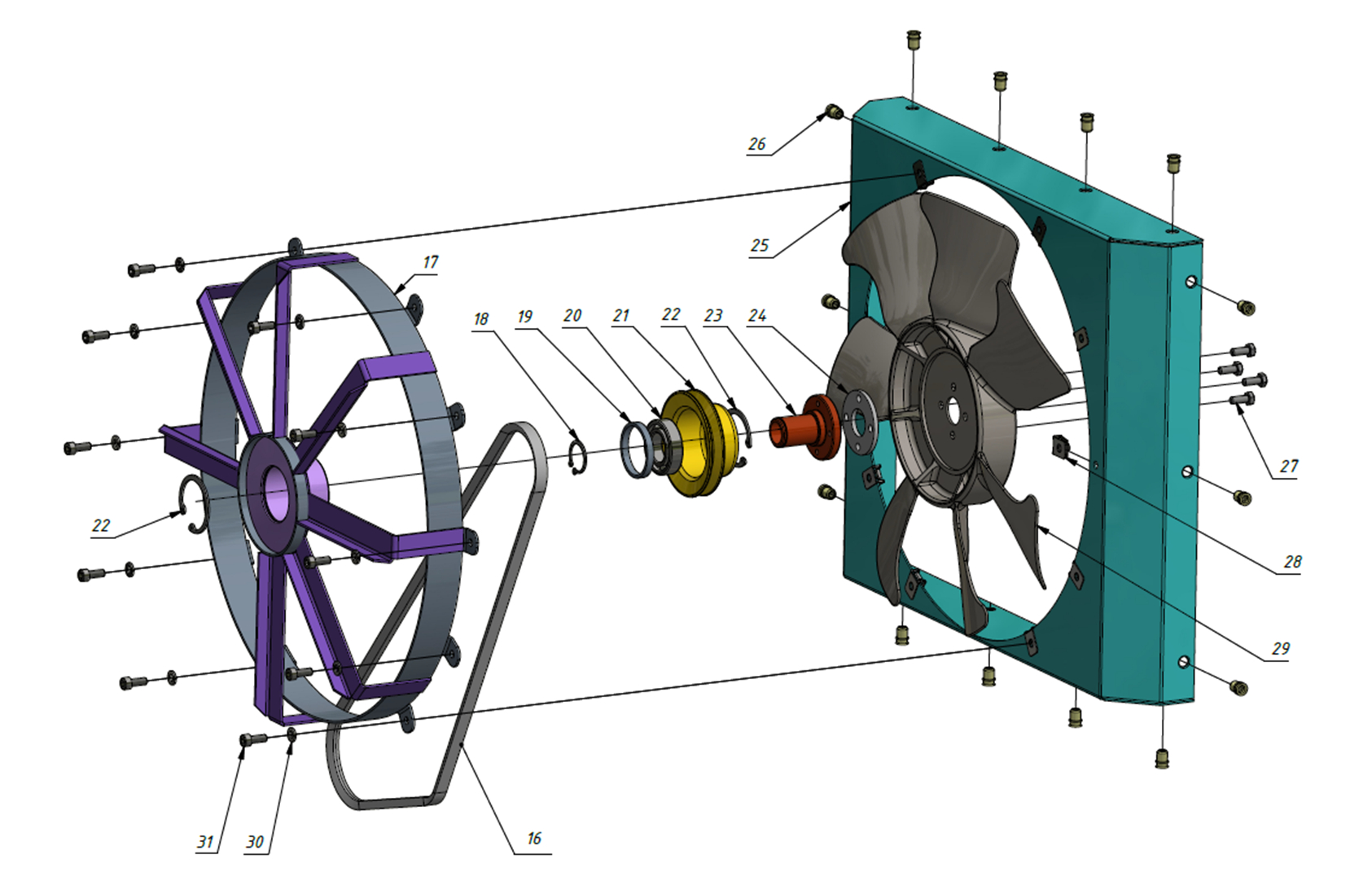

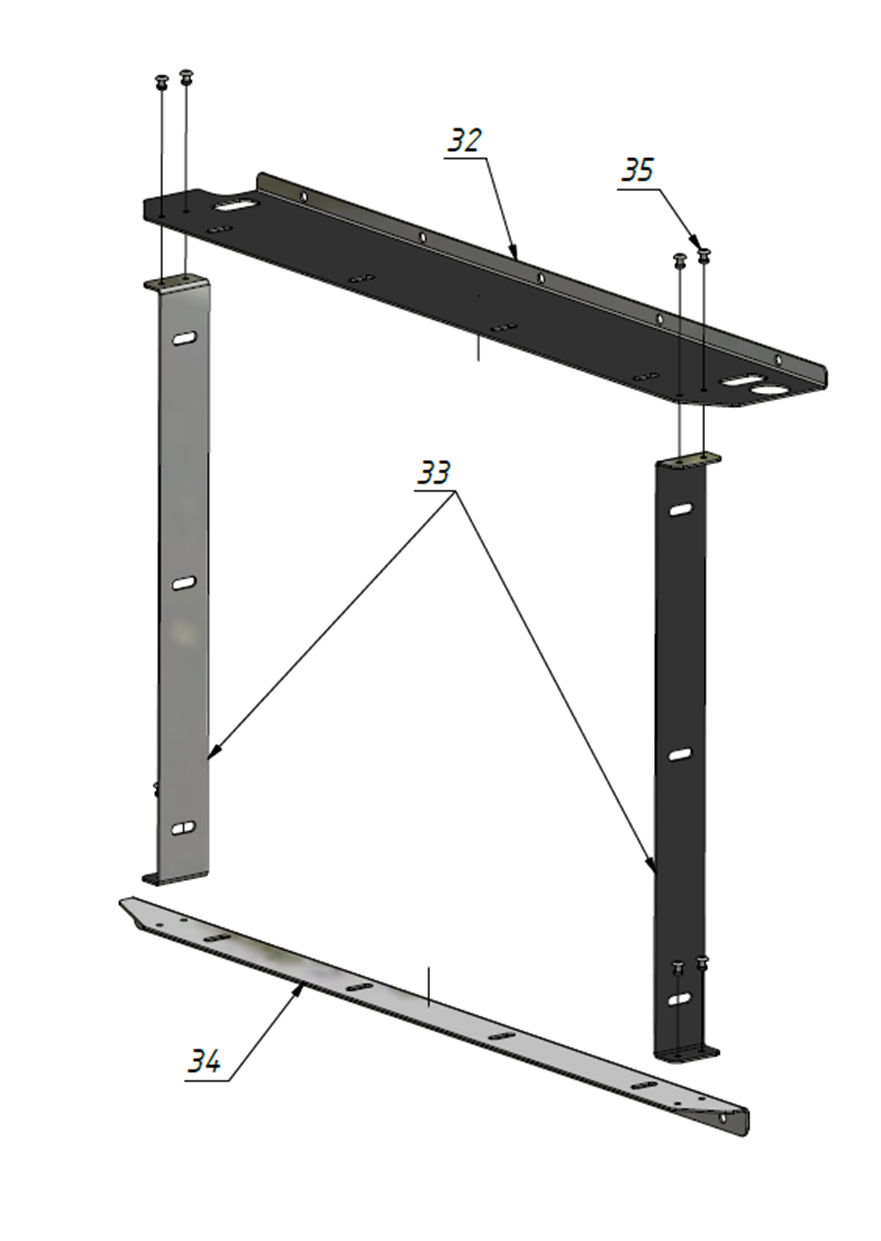

COOLING SYSTEM (1004) | 10-1004-02 — POWER UNIT (10), SHERP PRO. Includes 35 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 35 parts
| 1 | Bolt | 11501-04700-XXA | 02.0006 | 2 | Price on request | |
| 2 | Bracket | 11004-02200-XXA | 10.0576 | 1 | Price on request | |
| 3 | Washer | 11504-06900-XXA | 12.0042 | 4 | Price on request | |
| 4 | Screw | 11502-06600-B0A | 10.0581 | 2 | Price on request | |
| 5 | Nut | 11503-00800-XXA | 09.0417 | 4 | Price on request | |
| 6 | Bush | 11004-02300-XXA | 10.0582 | 2 | Price on request | |
| 7 | Spring | 10301-00900-XXA | 03.0464, 090-0211 | 1 | $49.5 CAD | |
| 8 | Grease fitting | 10300-64500-XXA | 03.0096 | 1 | Price on request | |
| 9 | Retaining ring | 11505-00700-XXA | 03.0317, 090-1313 | 2 | $4 CAD | |
| 10 | Bearing | 10300-01200-XXA | 03.0315, 090-0155 | 1 | $7 CAD | |
| 11 | Pulley | 11004-02400-XXA | 10.0578 | 1 | Price on request | |
| 12 | Ring | 11505-00600-XXA | 03.0316, 090-1312 | 1 | $2.8 CAD | |
| 13 | Lever arm | 11004-02500-XXA | 10.0570 | 1 | Price on request | |
| 14 | Bracket | 11004-02600-XXA | 10.0566 | 1 | Price on request | |
| 15 | Retaining ring | 11505-02900-XXA | 10.0580 | 1 | Price on request | |
| 16 | Belt | 11004-03500-XXA | 12.0227, 090-0866 | 1 | $17.5 CAD | |
| 17 | Diffuser | 11004-03400-XXA | 10.0501, 10.0607 | 1 | $209.5 CAD | |
| 18 | Retaining ring | 11505-00600-XXA | 10.0502, 03.0316, 090-1312 | 1 | $2.8 CAD | |
| 19 | Ring | 11505-02100-B0A | 10.0503, 10.0588 | 1 | Price on request | |
| 20 | Bearing | 10300-82900-XXA | 10.0510 | 2 | ||
| 21 | Pulley | 11004-03300-XXA | 10.0513, 10.0598 | 1 | Price on request | |
| 22 | Retaining ring | 11505-00700-XXA | 11.0153, 03.0317, 090-1313 | 2 | $4 CAD | |
| 23 | Axis | 11004-03100-XXA | 12.0042, 10.0589 | 1 | Price on request | |
| 24 | Spacer | 11004-03000-XXA | 10.0504, 10.0587 | 1 | Price on request | |
| 25 | Panel | 11004-03200-XXA | 10.0146, 10.0590 | 1 | Price on request | |
| 26 | Nut | 11503-09200-B0A | 10.0565 | 14 | ||
| 27 | Bolt | 11501-01600-XXA | 10.0509, 09.0170 | 4 | Price on request | |
| 28 | Washer | 11504-06400-XXA | 10.0595, 10.0602 | 10 | Price on request | |
| 29 | Radiator fan (winter) | 11004-02900-XXA | 10.0143, 10.0585, 090-0171, 10.0585-S, 10.0585-U | 1 | $244 CAD | |
| 29 | Radiator fan (summer) | 11004-02900-XXA-S | 10.0143, 10.0585, 090-0171, 10.0585-S, 10.0585-U | 1 | $225 CAD | |
| 29 | Radiator fan (winter) - used | 11004-02900-XXA-U | 10.0143, 10.0585, 090-0171, 10.0585-S, 10.0585-U | 1 | $142 CAD | |
| 30 | Washer | 11504-04300-XXA | 10.0146, 04.0043 | 10 | Price on request | |
| 31 | Screw | 11502-04300-XXA | 05.0041, 04.0127 | 10 | Price on request | |
| 32 | Strap | 11004-00100-B0A | 10.0505 | 1 | Price on request | |
| 33 | Frame | 11004-02700-XXA | 10.0507 | 2 | Price on request | |
| 34 | Strap | 11004-02801-XXA | 10.0508, 11004-02800-XXА | 1 | ||
| 35 | Rivet | 11507-01300-XXA | 02.0121 | 8 | Price on request |
