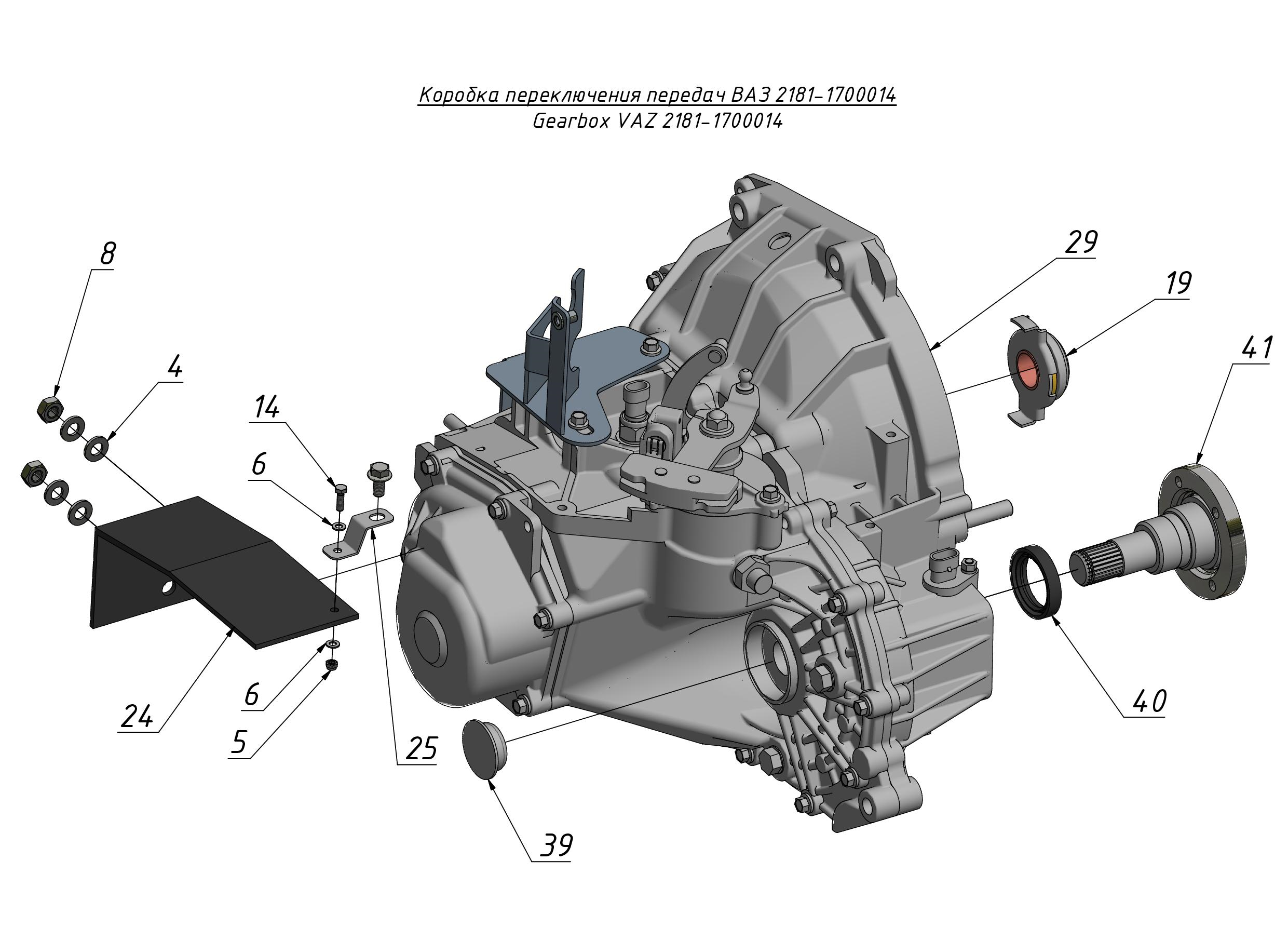

GEARBOX (1002) | 10-1002
GEARBOX (1002) | 10-1002 — POWER UNIT (10), SHERP PRO. Includes 42 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 42 parts
| 1 | Reverse sensor (Gen II cable gearbox) | 11002-00100-XXA | 090-0794 | 1 | $31.5 CAD | |
| 1 | Reverse sensor (Gen I shaft gearbox) | 11002-00100-XXA-I | 090-0794 | 1 | $32 CAD | |
| 2 | Bolt | 11501-04700-XXA | 02.0006 | 1 | Price on request | |
| 3 | Washer | 11504-02400-XXA | 03.0284 | 4 | Price on request | |
| 4 | Washer | 11504-04200-XXA | 03.0515 | 4 | $0.5 CAD | |
| 5 | Nut | 11503-01200-XXA | 04.0076 | 1 | Price on request | |
| 6 | Washer | 11504-04400-XXA | 04.0131 | 1 | Price on request | |
| 7 | Nut | 11503-03400-XXA | 09.0101 | 6 | Price on request | |
| 8 | Nut | 11503-04600-XXA | 09.0102 | 3 | Price on request | |
| 9 | Washer | 11504-05400-XXA | 09.0105 | 10 | Price on request | |
| 10 | Clutch master cylinder | 10903-01300-XXA | 09.0252, 090-0743 | 1 | $119.5 CAD | |
| 11 | Nut | 10903-01400-XXA | 09.0273 | 1 | Price on request | |
| 12 | Bolt | 11501-00200-XXA | 09.0286 | 5 | Price on request | |
| 13 | Spring | 10903-01000-XXA | 09.0295, 090-0740 | 1 | $5.6 CAD | |
| 14 | Bolt | 11501-01700-XXA | 09.0345 | 1 | Price on request | |
| 15 | Plug | 11002-00200-XXA | 10.0089 | 1 | Price on request | |
| 16 | Standard cable transmission | 11002-01000-XXA | 10.0533, 10.0533-RN, 090-0803 | 1 | $0.01 CAD | |

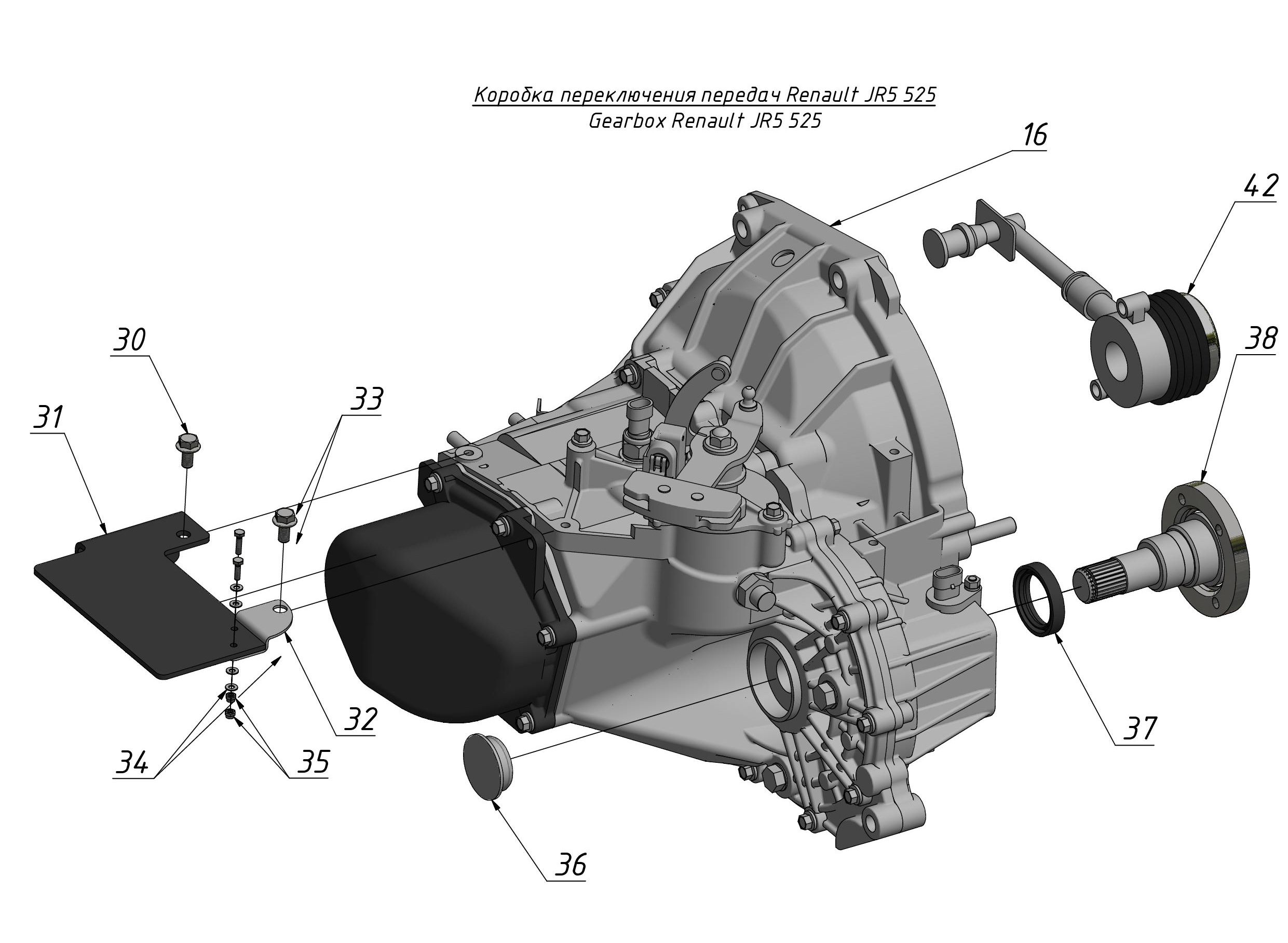

| 16 | Renault cable transmission | 11002-01000-XXA-RN | 10.0533, 10.0533-RN, 090-0803 | 1 | $9835 CAD | |
| 17 | Gearbox bracket (for 2nd generation) | 11002-00300-XXA | 10.0535, 10.0535-R, 090-0796 | 1 | $76.5 CAD | |
| 17 | Gearbox bracket (for Renault) | 11002-00300-XXA-R | 10.0535, 10.0535-R, 090-0796 | 1 | Price on request | |
| 18 | Bolt | 11501-03100-XXA | 10.0541 | 1 | Price on request | |
| 19 | Release bearing | 11000-63200-XXA | 10.0544, 090-0771 | 1 | $42 CAD | |
| 20 | Clutch rod | 11002-00400-XXA | 10.0547 | 1 | $21.5 CAD | |
| 21 | Anther | 11002-00500-XXA | 10.0548 | 1 | Price on request | |
| 22 | Bracket | 11002-00600-XXA | 10.0549, 090-0799 | 1 | $28 CAD | |
| 23 | Bracket | 11002-00700-XXA | 10.0555 | 1 | $49 CAD | |
| 24 | Protection | 11002-00800-XXA | 10.0563, 090-0801 | 1 | $25 CAD | |
| 25 | Bracket | 11002-00900-XXA | 10.0564 | 1 | Price on request | |
| 26 | stud | 11501-08400-XXA | 10.0610 | 4 | Price on request | |
| 27 | Male connector | 11100-39100-XXA | 11.0004 | 1 | Price on request | |
| 28 | Washer | 11504-06900-XXA | 12.0042 | 6 | Price on request | |
| 29 | Standard cable transmission | 11002-01500-B0A | 10.0533-S, 10.0533-RF, 090-0803 | 1 | $13450 CAD | |
| 29 | Reinforced cable transmission | 11002-01500-B0A-RF | 10.0533-S, 10.0533-RF, 090-0803 | 1 | $15650 CAD | |
| 30 | Bolt | 11501-09000-XXA | 1 | |||
| 31 | Protection | 11002-02800-B0A | 1 | |||
| 32 | Bracket | 11002-02900-B0A | 1 | |||
| 33 | Bolt | 11501-14300-XXA | 2 | |||
| 34 | Washer | 11504-04600-XXA | 05.0024 | 2 | Price on request | |
| 35 | Nut | 11503-01000-XXA | 02.0707 | 2 | Price on request | |
| 36 | Plug | 11002-03100-B0A | 1 | |||
| 37 | Cuff | 11505-00100-B0A | 1 | $64.5 CAD | ||
| 38 | Shaft | 10302-00600-B0A | 03.0270-R, 090-0261 | 1 | $455 CAD | |
| 39 | Plug | 11002-00200-XXA | 10.0089 | 1 | Price on request | |
| 40 | Cuff | 11505-03900-B0A | 1 | |||
| 41 | Shaft | 10302-00500-B0A | 03.0270, 090-0261 | 1 | $96 CAD | |
| 42 | Release bearing | 10902-01900-N0A | 1 | $336 CAD |
