CONTROL DRIVES (0901) | 09-0901-02

CONTROL DRIVES (0901) | 09-0901-02 — STEERING CLUTCH MECHANISM CONTROL DRIVE (09), SHERP PRO. Includes 42 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 42 parts

#TitlePart numberCross part numberQtyPrice
1Cam left10901-04300-XXA-109.0448, 090-06571$25.5 CAD
2Lever arm10901-04400-XXA-2090-06581$598 CAD
3Roller10901-04500-XXA09.04602Price on request
4Cap10901-04600-XXA09.00612$41.5 CAD
5Gasket10901-04700-XXA2
6Right cam10901-04800-XXA-209.0445, 090-06621$24.5 CAD
7Ring11505-01600-XXA09.04622Price on request
8Fitting10301-00200-XXA03.01272$8 CAD
9Washer11504-09800-XXA04.02582Price on request
10Here10901-04900-XXA09.00102Price on request
11Bush10901-05000-XXA09.00132Price on request
12Here10901-05100-XXA09.00162Price on request
13Bush10901-05200-XXA09.00192Price on request
14Screw11502-02100-XXA09.00212Price on request
15Handle10901-05300-XXA09.00222Price on request
16Bracket10901-05400-XXA09.00401Price on request
17Proportional valve10901-04200-XXA09.00742$74.5 CAD
18Ring11504-05200-XXA09.00752Price on request
19Ring11505-01300-XXA09.00762Price on request
20Lug10901-05500-XXA09.00772Price on request
21Duster10901-05600-XXA09.00902$4.8 CAD
22Pusher10901-05700-XXA09.00922$16 CAD
23Washer11504-05300-B0A09.00942Price on request
24Here10901-05800-XXA09.00961Price on request
25Bolt11501-08700-XXA09.00991Price on request
26Nut11503-03400-XXA09.01014Price on request
27Nut11503-04600-XXA09.01022Price on request
28Bearing10901-05900-XXA09.01042Price on request
29Washer11504-05400-XXA09.01056Price on request
30Washer11504-05600-XXA09.01132Price on request
31Clutch master cylinder10901-06000-XXA09.0114, 090-06742$43.5 CAD
32Lever arm10901-06100-XXA09.0371, 090-06751Price on request
33Pusher10901-06200-XXA09.03742Price on request
34Nut11503-04900-XXA09.03874Price on request
35Valve body10901-00100-B0A09.03942
36Nut11503-00700-XXA09.0416, 090-11951$0.9 CAD
37Nut11503-00800-XXA09.04172Price on request
38Bolt11501-01000-XXA10.01004Price on request
39Washer11504-06300-XXA10.01312Price on request
40Washer11504-06500-XXA10.06092Price on request
41Washer11504-06900-XXA12.00422Price on request
42Lewers of steering clutch mechanism10901-00500-XXA09.0409, 090-06251$2252 CAD
Manual sheet 11Viewing

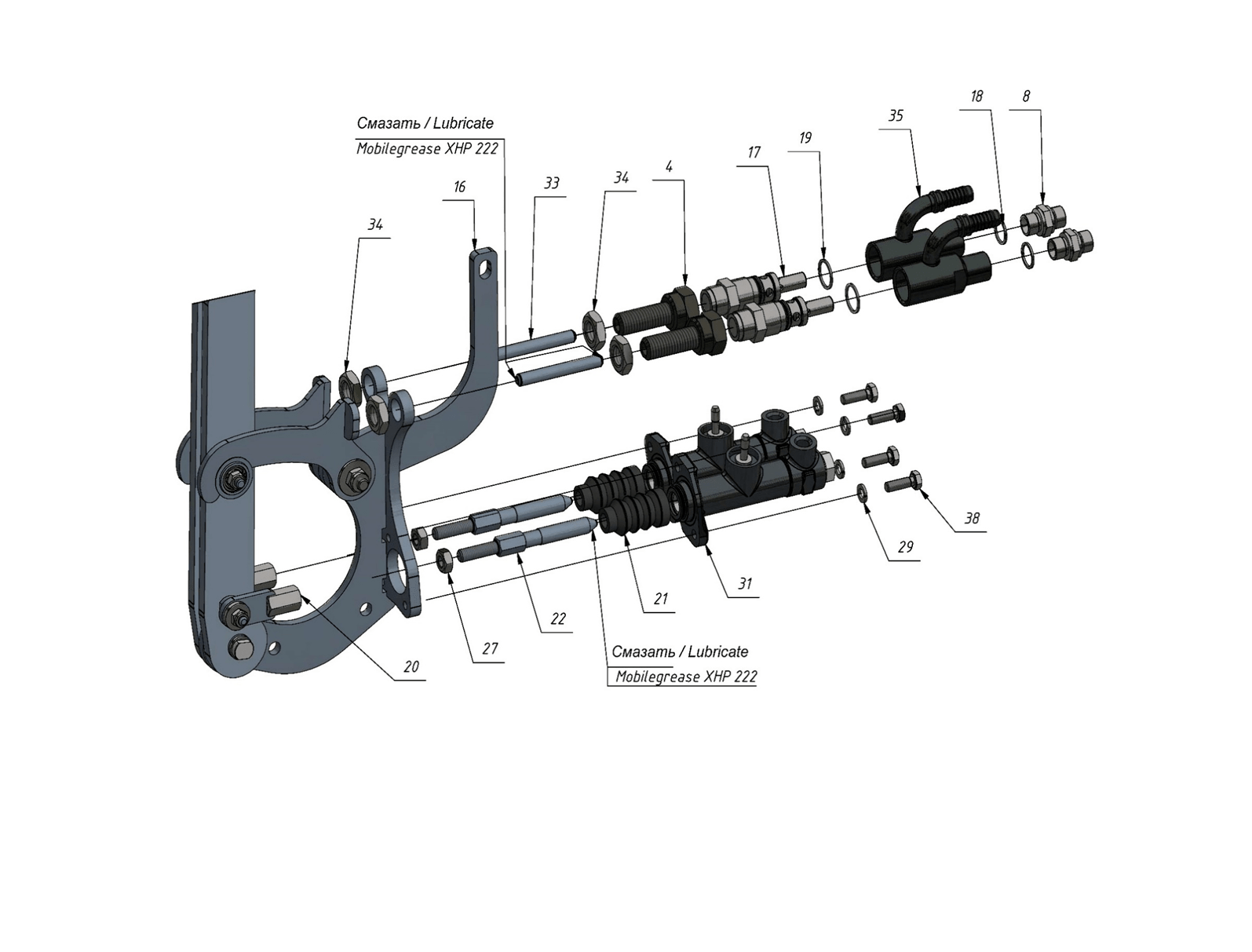

Manual sheet 22

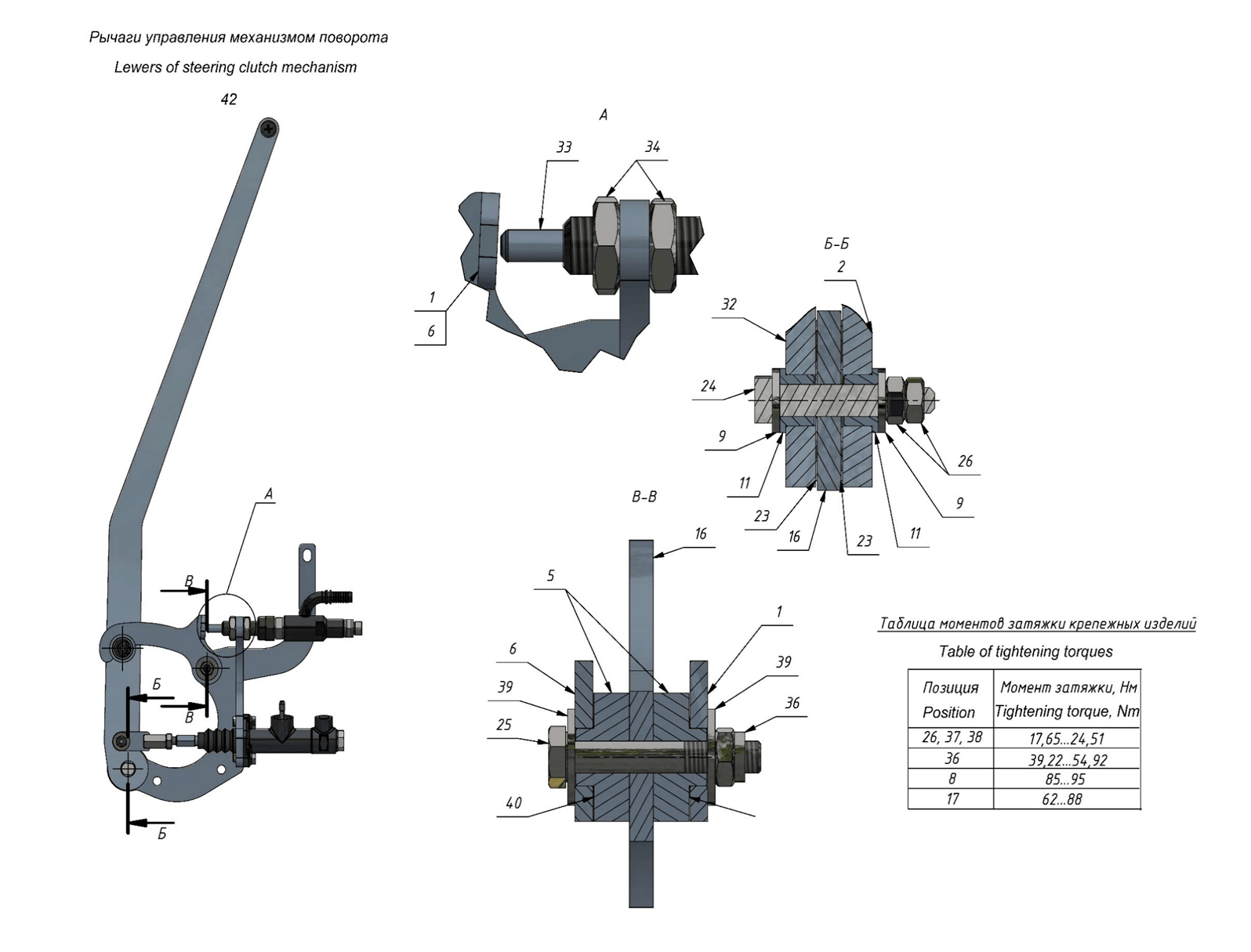

Manual sheet 33
