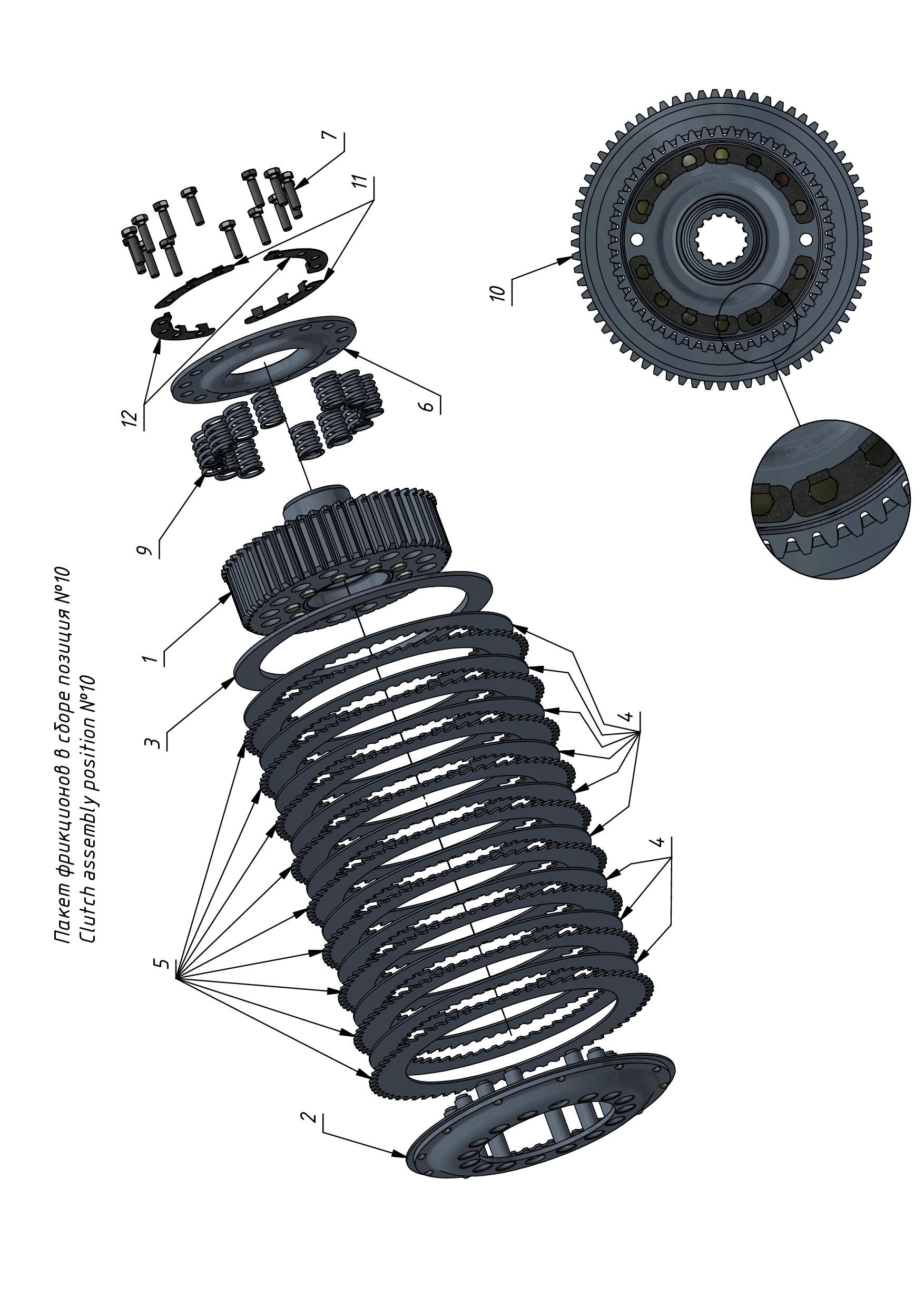

STEERING FRICTION MECHANISM (0301) - CLUTCH ASSEMBLY | 03-0301-03
STEERING FRICTION MECHANISM (0301) - CLUTCH ASSEMBLY | 03-0301-03 — TRANSMISSION (03), SHERP PRO. Includes 14 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 14 parts
| 1 | Holder 10 splines | 10301-02300-XXA | 03.0043, 090-0225 | 1 | $786 CAD | |
| 1 | Holder 15 splines | 10301-06200-XXA | 1 | |||
| 2 | Cap | 10301-02400-XXA | 03.0212 | 1 | Price on request | |
| 2 | Steering clutch cap | 03.0050 | 03.0212 | 1 | $332.5 CAD | |
| 3 | Disk | 10301-02500-XXA | 03.0576 | 1 | $76 CAD | |
| 4 | Friction driving disk | 10301-02600-XXA | 03.0060, 090-0228 | 10 | $54.5 CAD | |
| 5 | Friction driven disk | 10300-63300-XXA | 03.0062, 090-0159 | 9 | $59 CAD | |
| 6 | Pressure plate | 10301-02700-A0A | 03.1977, 03.0064, 090-0229 | 1 | $62.5 CAD | |
| 7 | Bolt | 11501-08500-XXA | 03.0068, 090-1131 | 14 | $1 CAD | |
| 8 | Safety-wire | 11505-03700-XXA | 03.0069 | 1 | Price on request | |
| 9 | Spring | 10301-02800-XXA | 03.0481, 090-0230 | 14 | $19 CAD | |
| 10 | Clutch assembly 10 splines | 10300-63400-XXA | 03.0042, 090-0160 | 1 | $2675 CAD | |
| 10 | Clutch assembly 15 splines | 10301-06200-XXA | 1 | |||
| 11 | Safety-washer | 11504-07000-B0A | 2 | |||
| 12 | Safety-washer | 11504-07100-B0A | 2 | $2 CAD |
