FRONT SECTION BODY ASSEMBLY (0200) | 02-0200-01

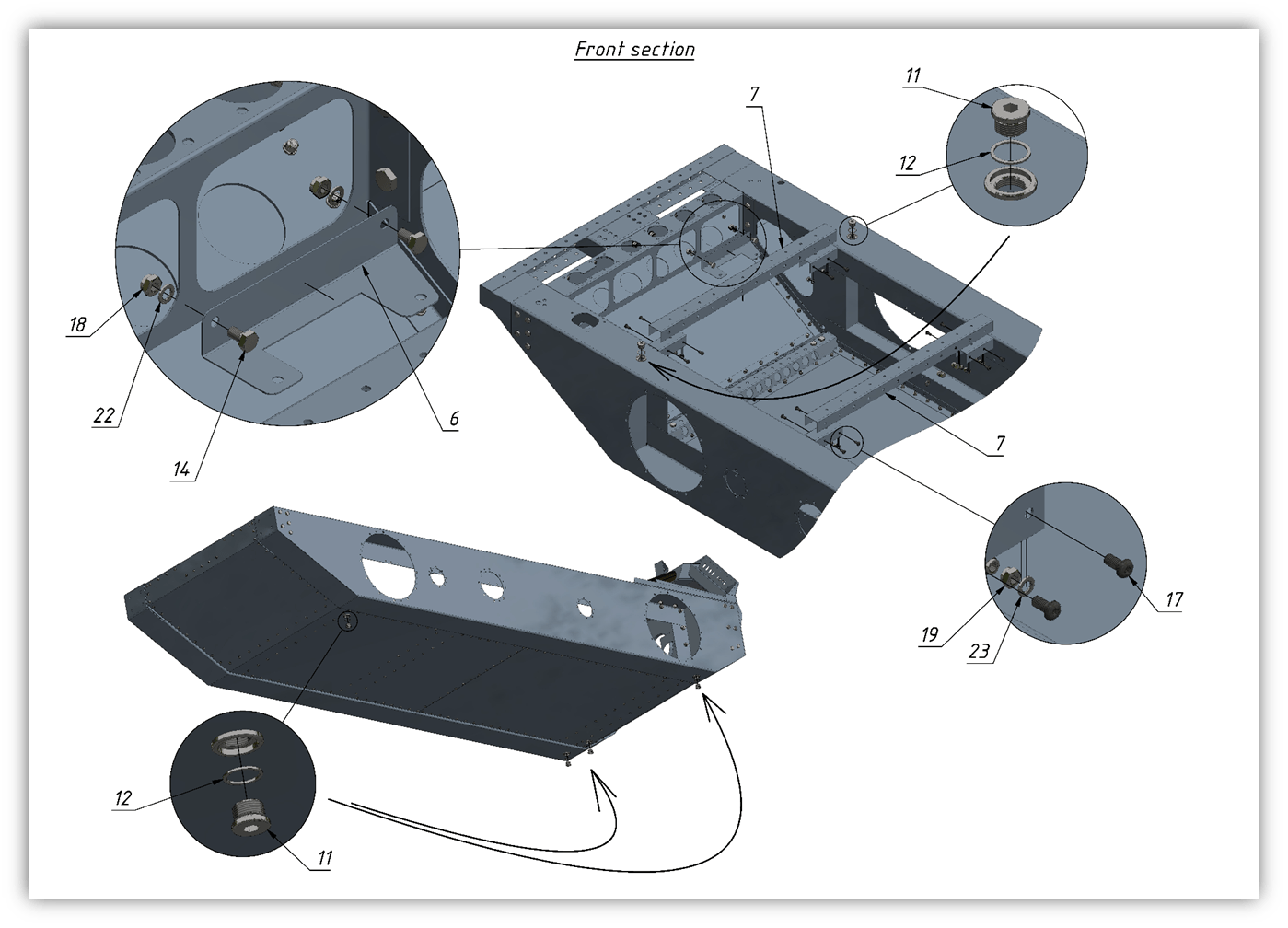

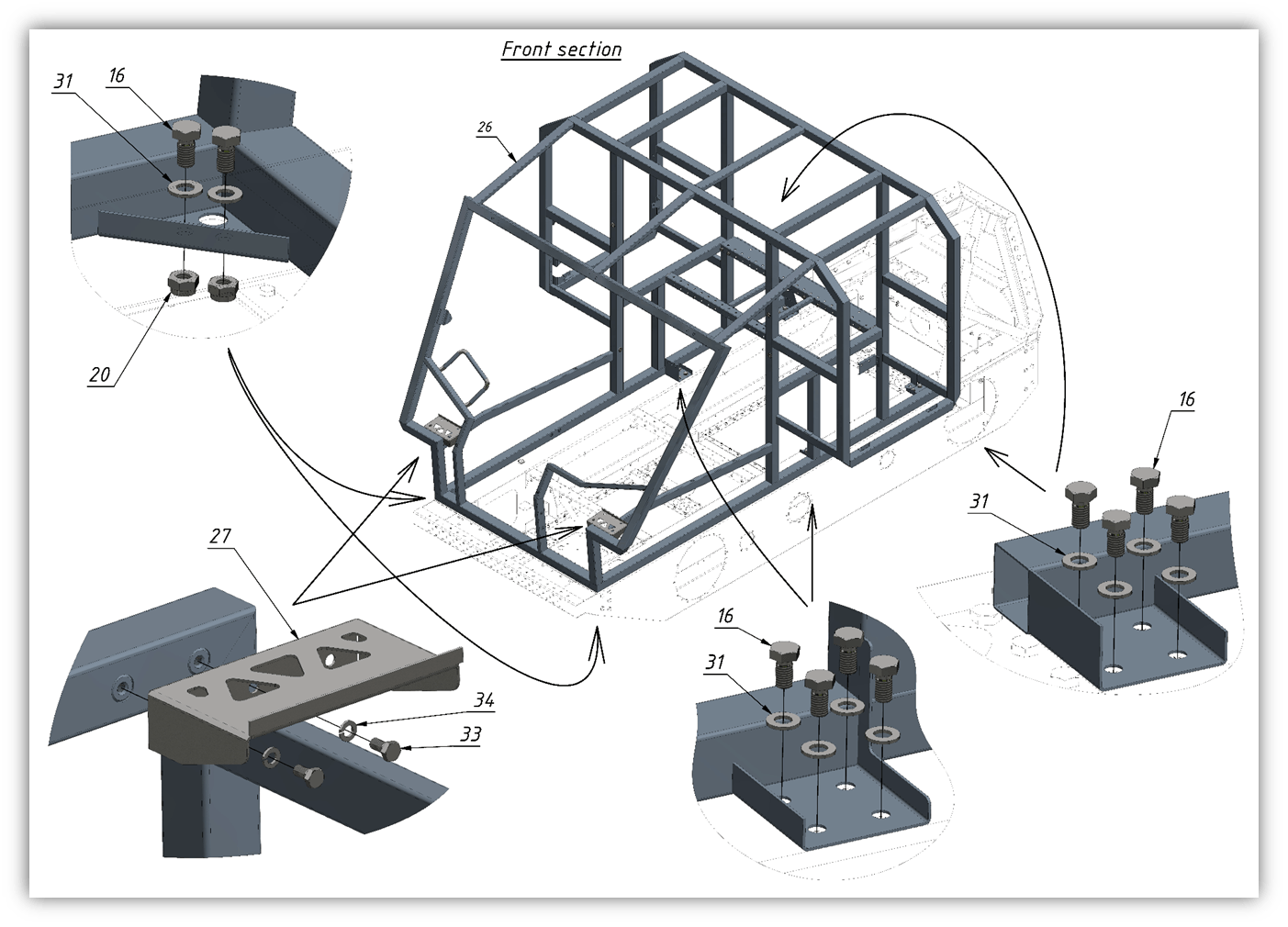

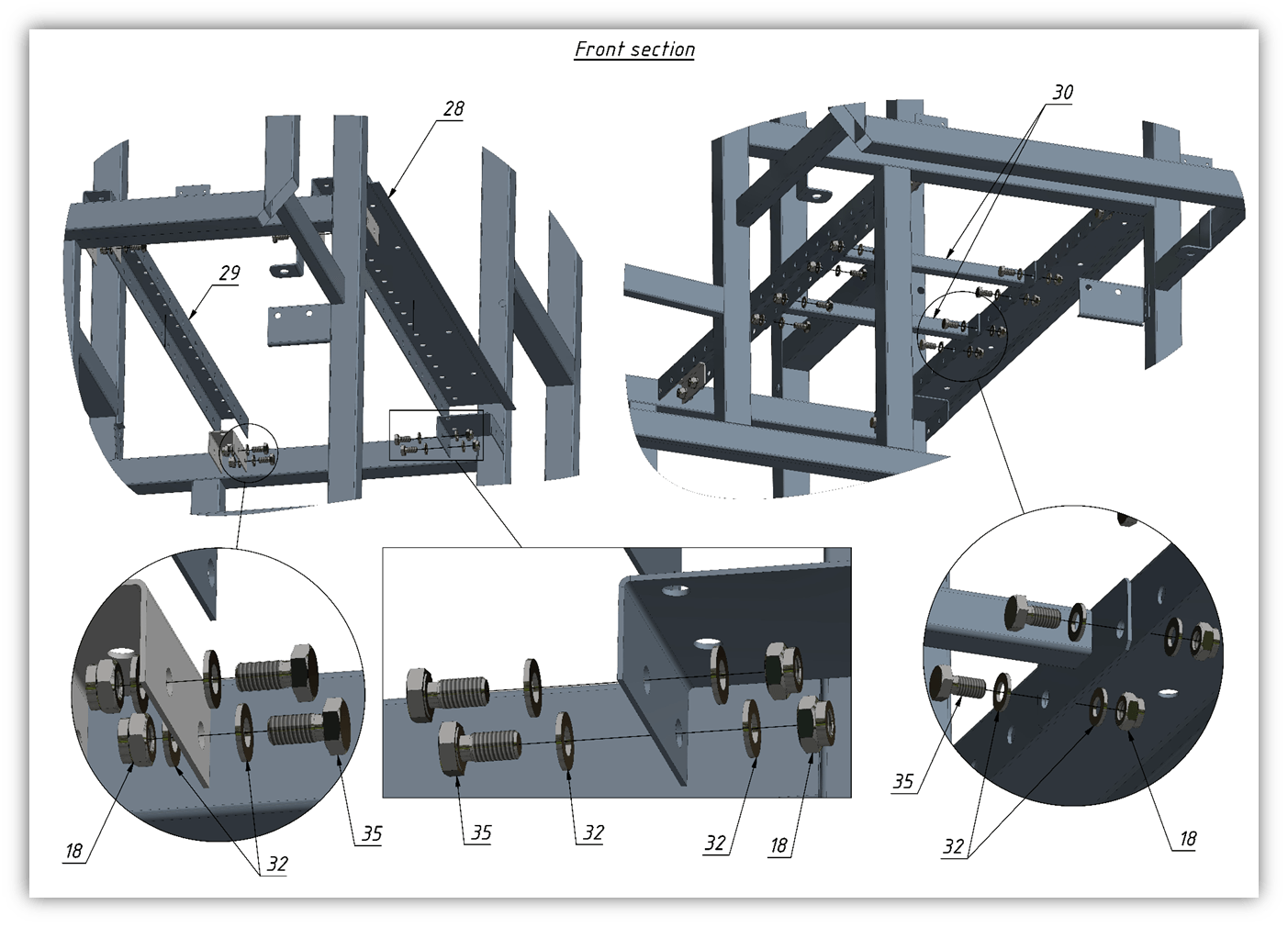

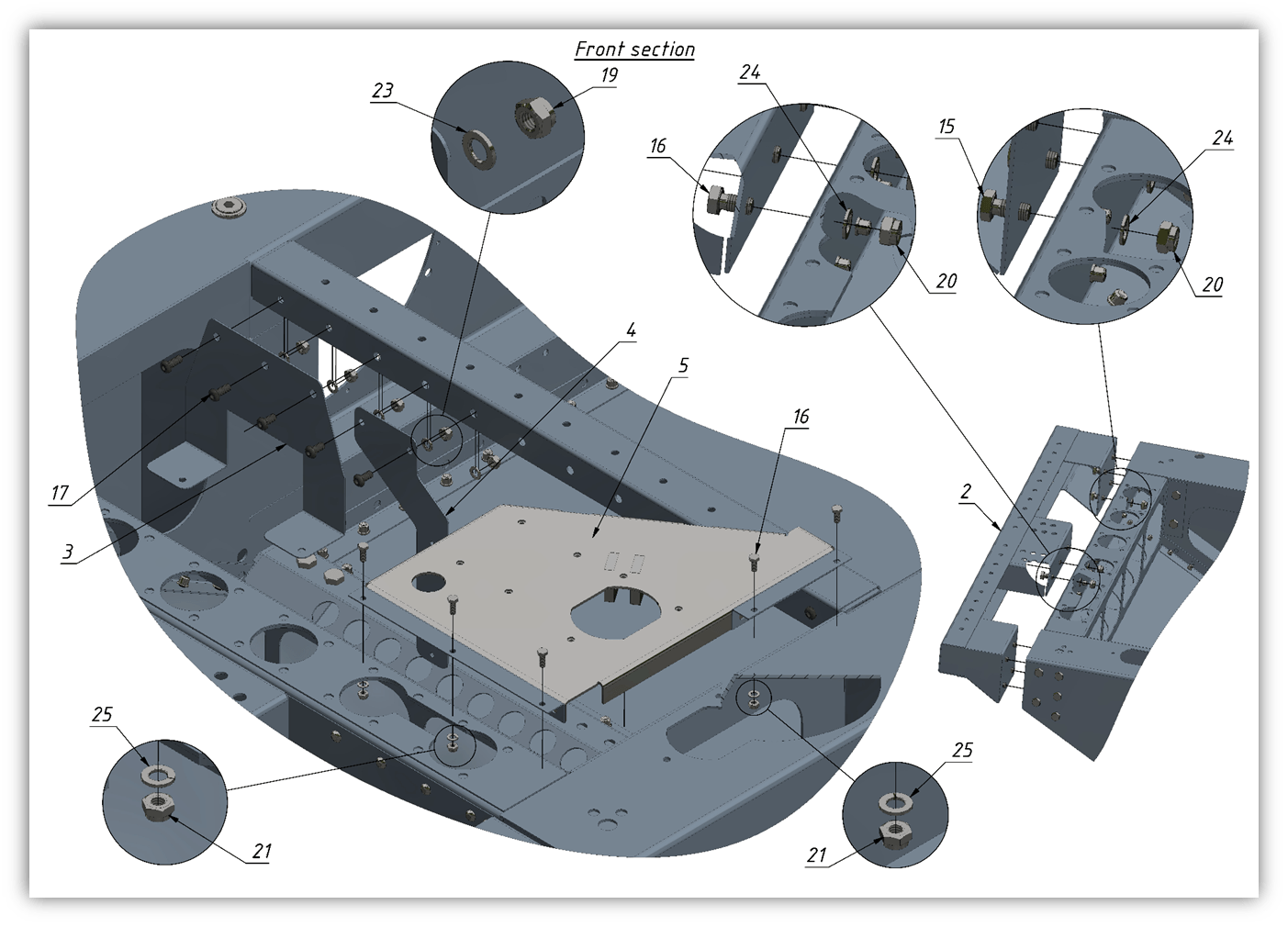

FRONT SECTION BODY ASSEMBLY (0200) | 02-0200-01 — BODY (02), SHERP THE ARK. Includes 35 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 35 parts

#	Title	Part number	Cross part number	Qty	Price

#	Title	Part number	Cross part number	Qty	Price
1	Front section	10200-31500-E0A-3		1
2	Front bumper	10200-31600-E0A-3		1
3	Bracket	10200-31700-E0A		1
4	Bracket	10200-31900-E0A		1
5	Bracket	10200-32000-E0A		1
6	Bracket	10200-40000-E0A		1
7	Jumper	10200-40100-E0A		2
8	Bracket	10200-40300-E0A		1
9	Bracket	10200-40200-E0A		1
10	Insert plate	10200-89900-E0A		4
11	Drain plug assembly	11503-10000-XXA	02.0452, 090-1235, 02.0452-S	6	$49 CAD
11	Drain plug (screw-in piece)	11503-10000-XXA-S	02.0452, 090-1235, 02.0452-S	6	$9 CAD
12	Washer	11504-08400-XXA	09.0392	6	Price on request
13	Screw	11502-10200-XXA		8
14	Bolt	11501-11300-E0A		10
15	Bolt	11501-00300-XXA		8
16	Bolt	11501-10800-N0A		23
17	Screw	11502-10800-E0A		19
18	Nut	11503-00700-XXA	09.0416, 090-1195	26	$0.9 CAD
19	Nut	11503-00800-XXA	09.0417	19	Price on request
20	Nut	11503-10700-XXA		15
21	Nut	11503-00600-XXA	03.0447, 090-1194	5	$0.5 CAD
22	Washer	11504-11000-E0A		10
23	Washer	11504-10700-XXA		19
24	Washer	11504-11100-E0A		11
25	Washer	11504-10000-N0A		5
26	Frame	10200-90100-E0A		1
27	Bracket	10200-90300-E0A		2
28	Jumper	10200-90400-E0A		1
29	Jumper	10200-90500-E0A		1
30	Jumper	10200-90600-E0A		2
31	Washer	11504-05800-XXA	09.0292	20	Price on request
32	Washer	11504-04200-XXA	03.0515	32	$0.5 CAD
33	Bolt	11501-05900-XXA		4
34	Washer	11504-05400-XXA	09.0105	4	Price on request
35	Bolt	N/A		16
