FRONT SECTION BODY CLADDING (0200) | 02-0200-02

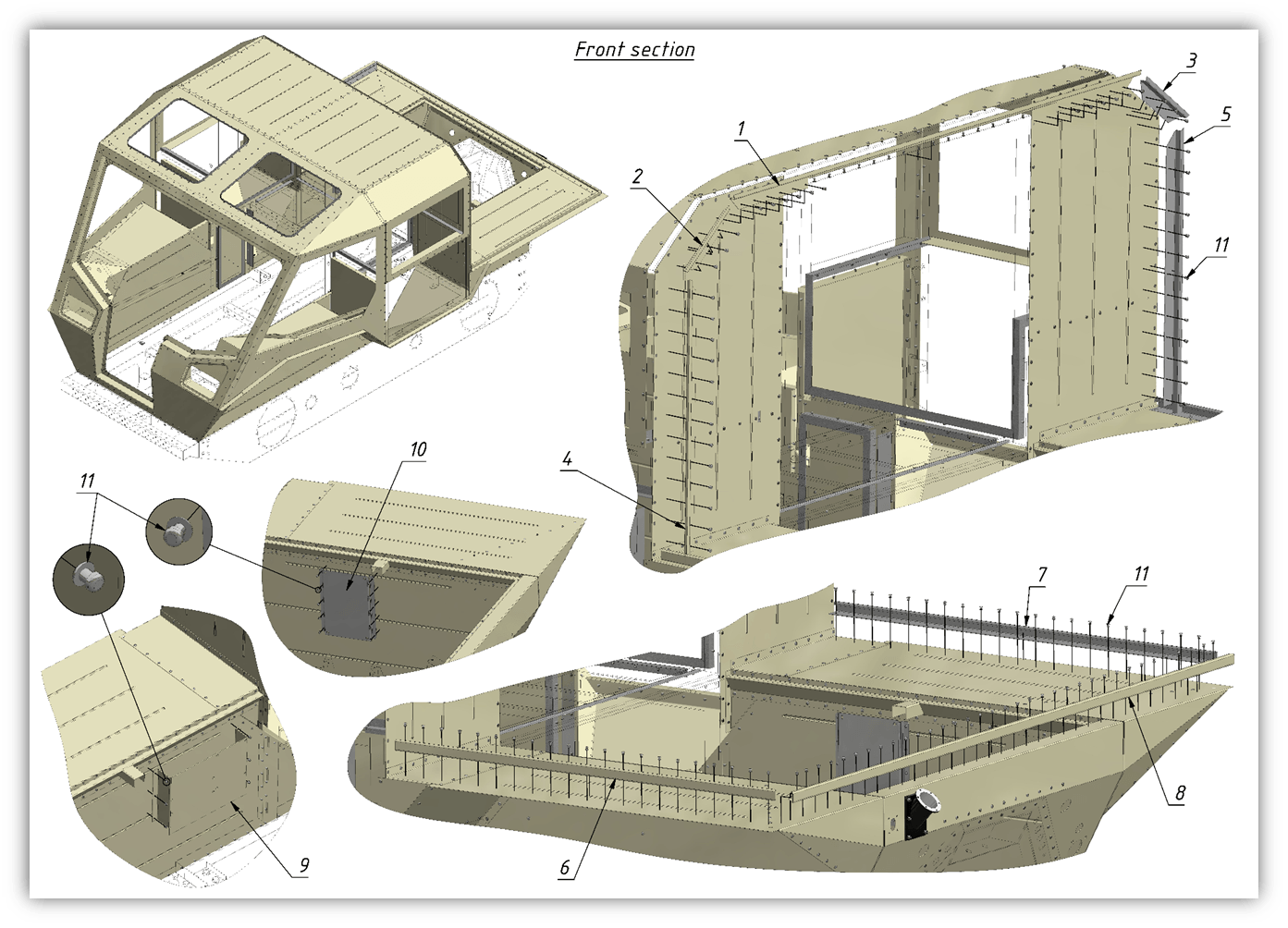

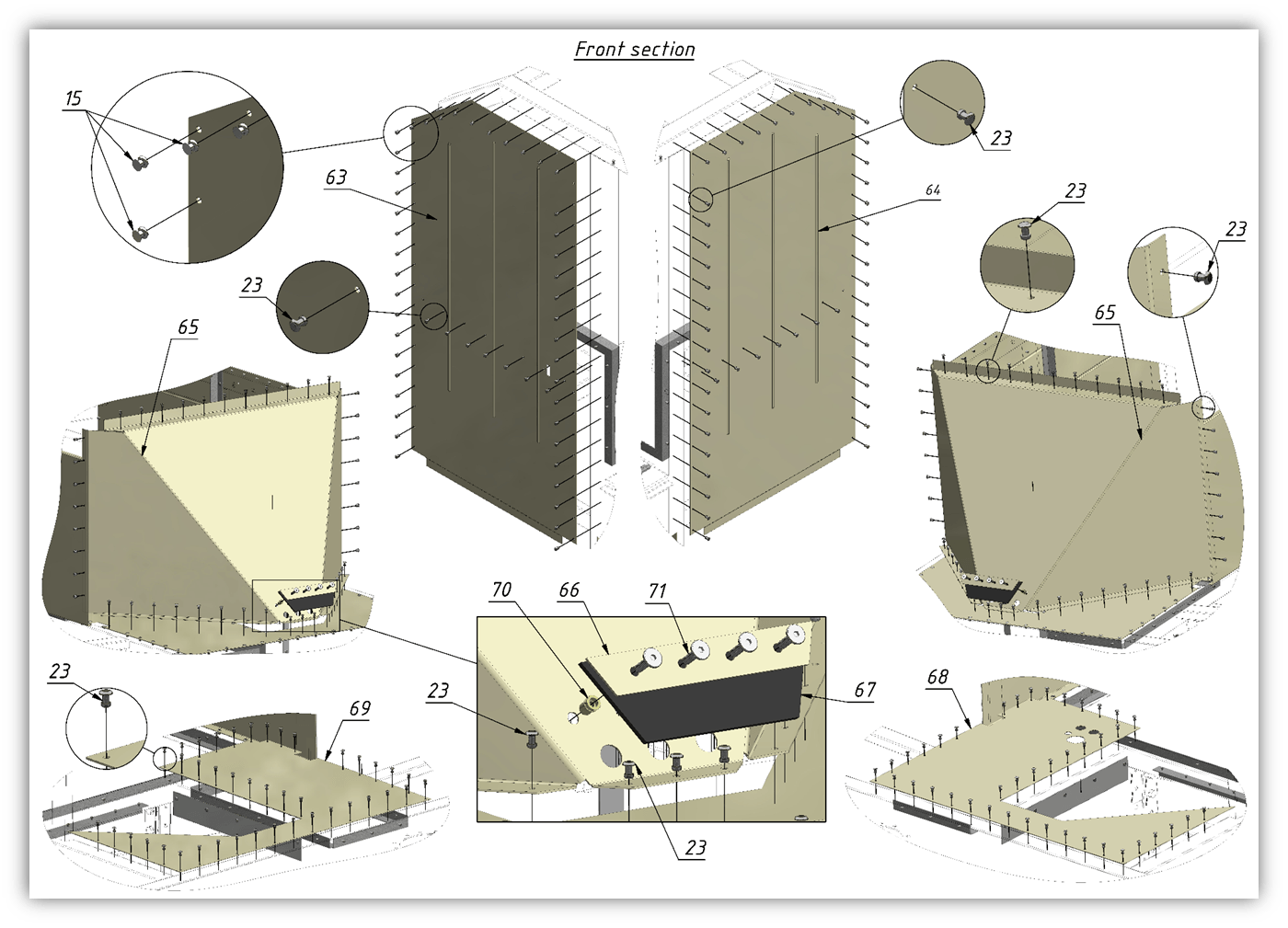

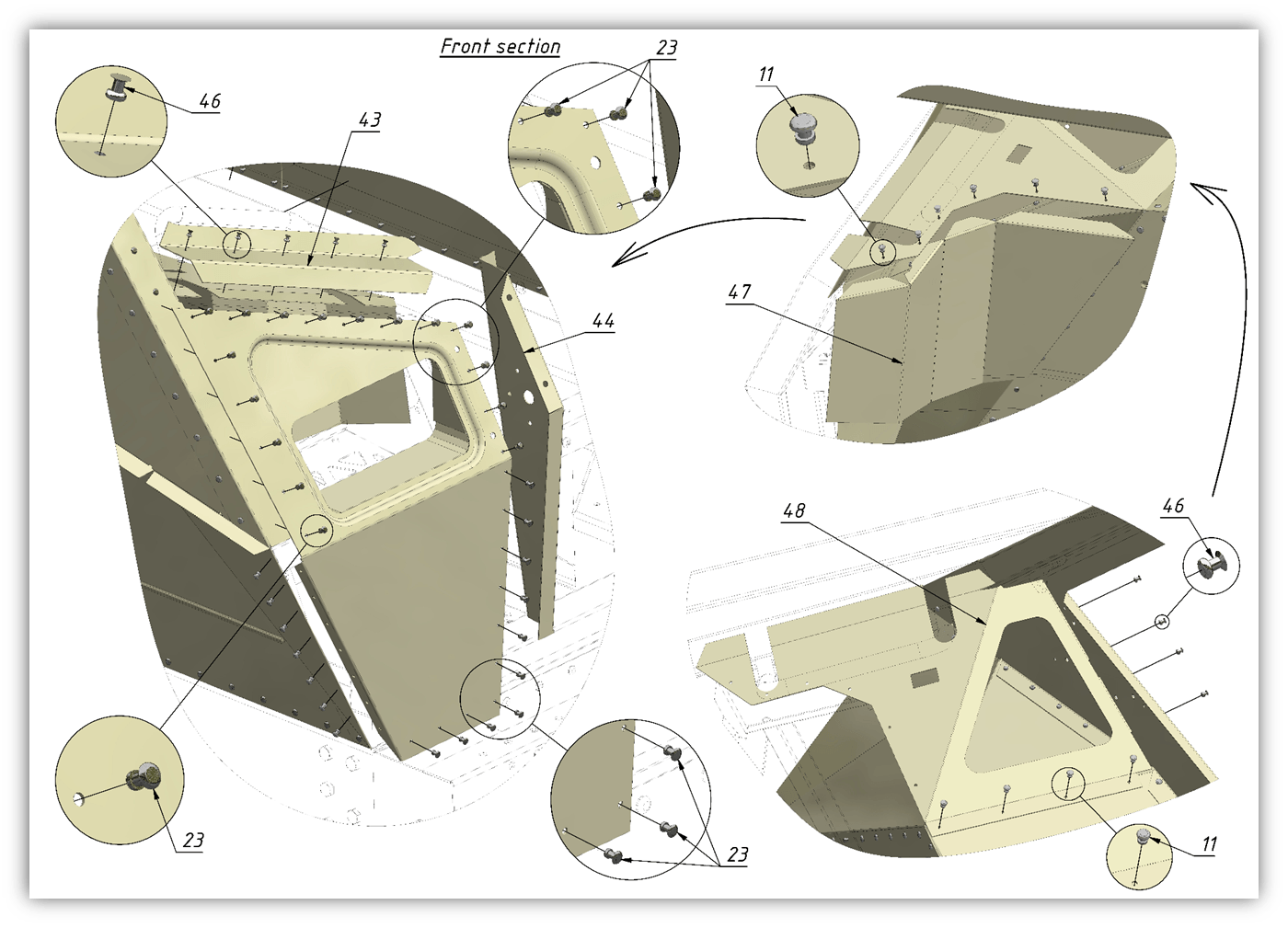

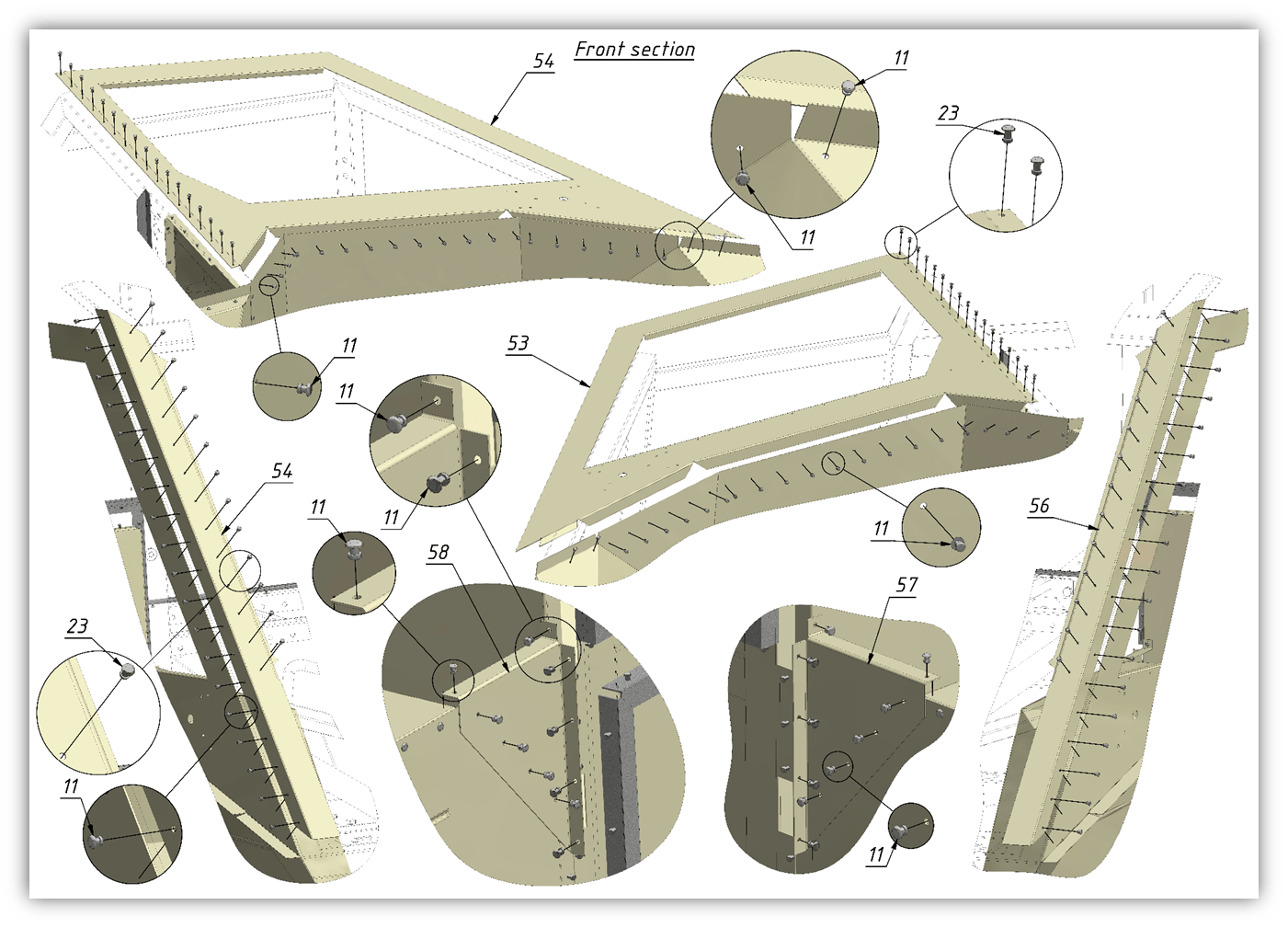

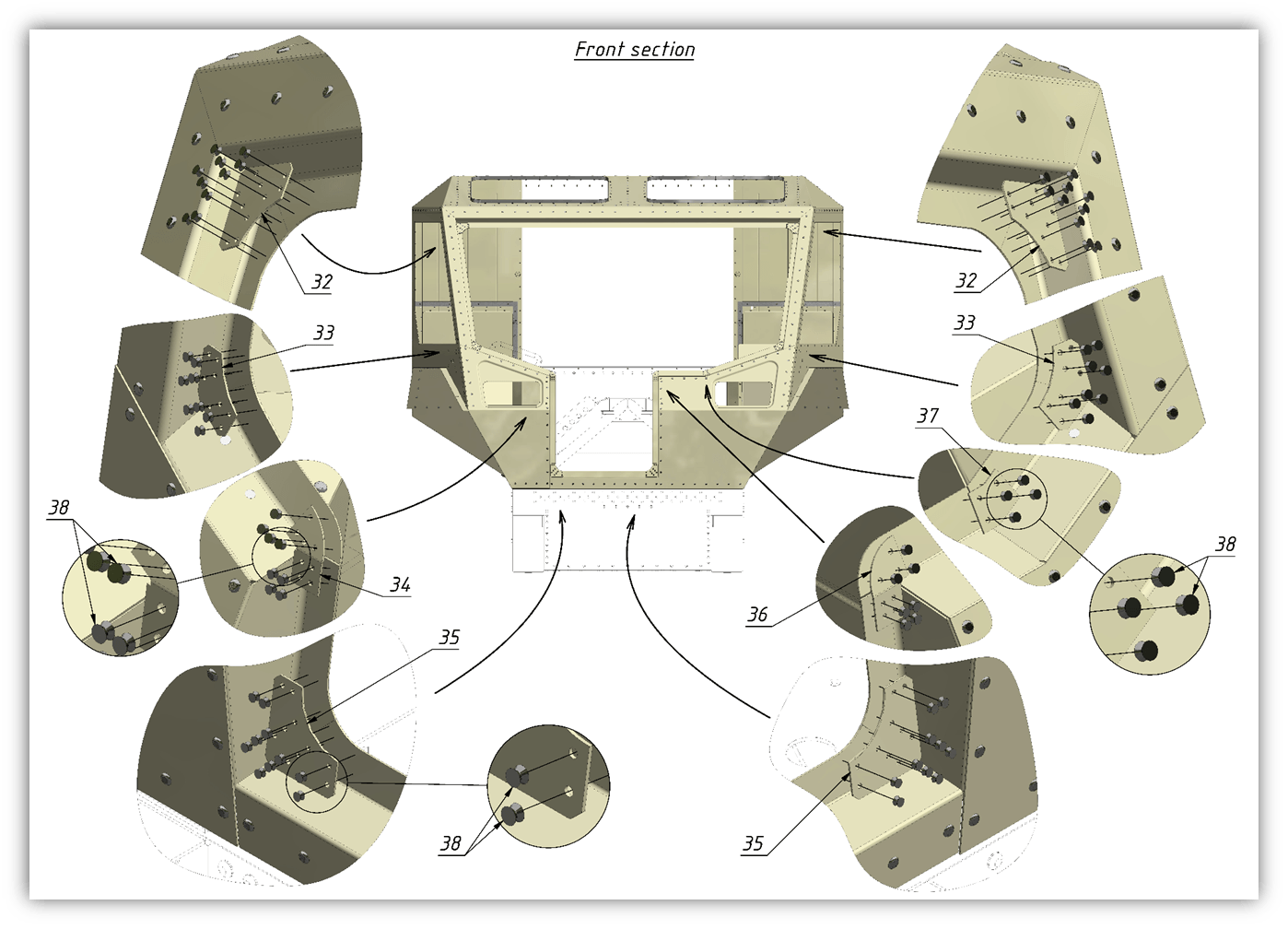

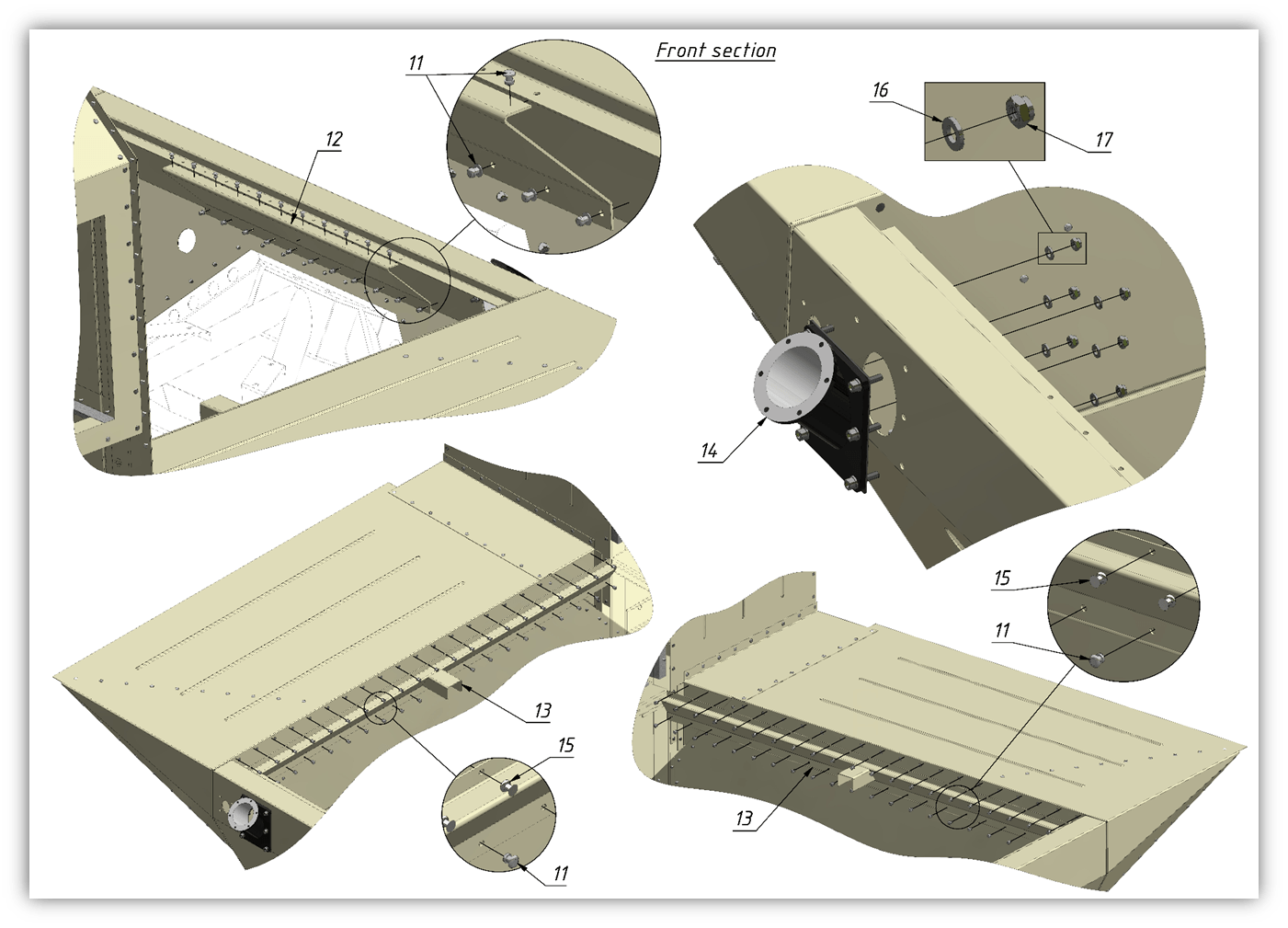

FRONT SECTION BODY CLADDING (0200) | 02-0200-02 — BODY (02), SHERP THE ARK. Includes 84 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 84 parts

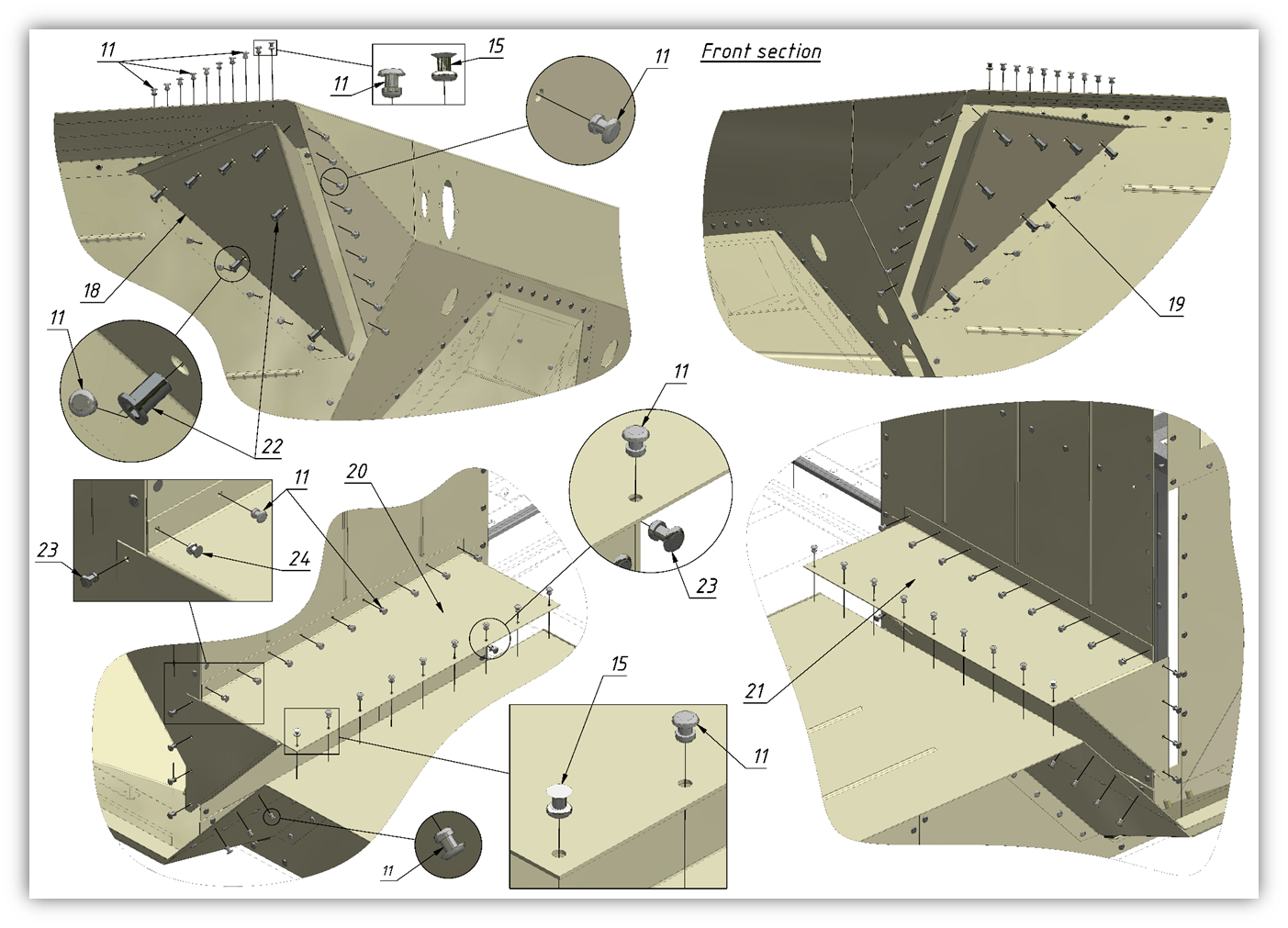

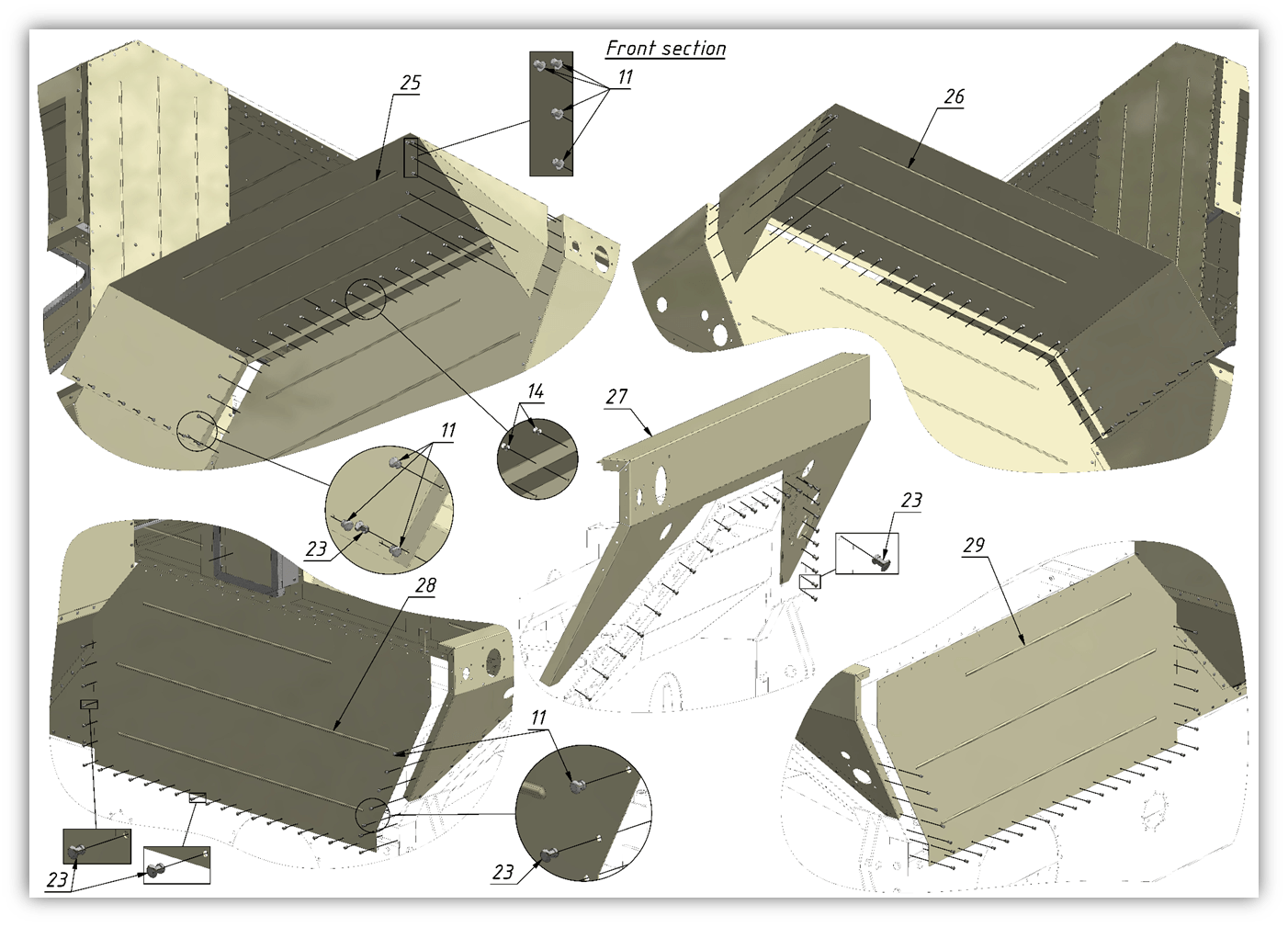

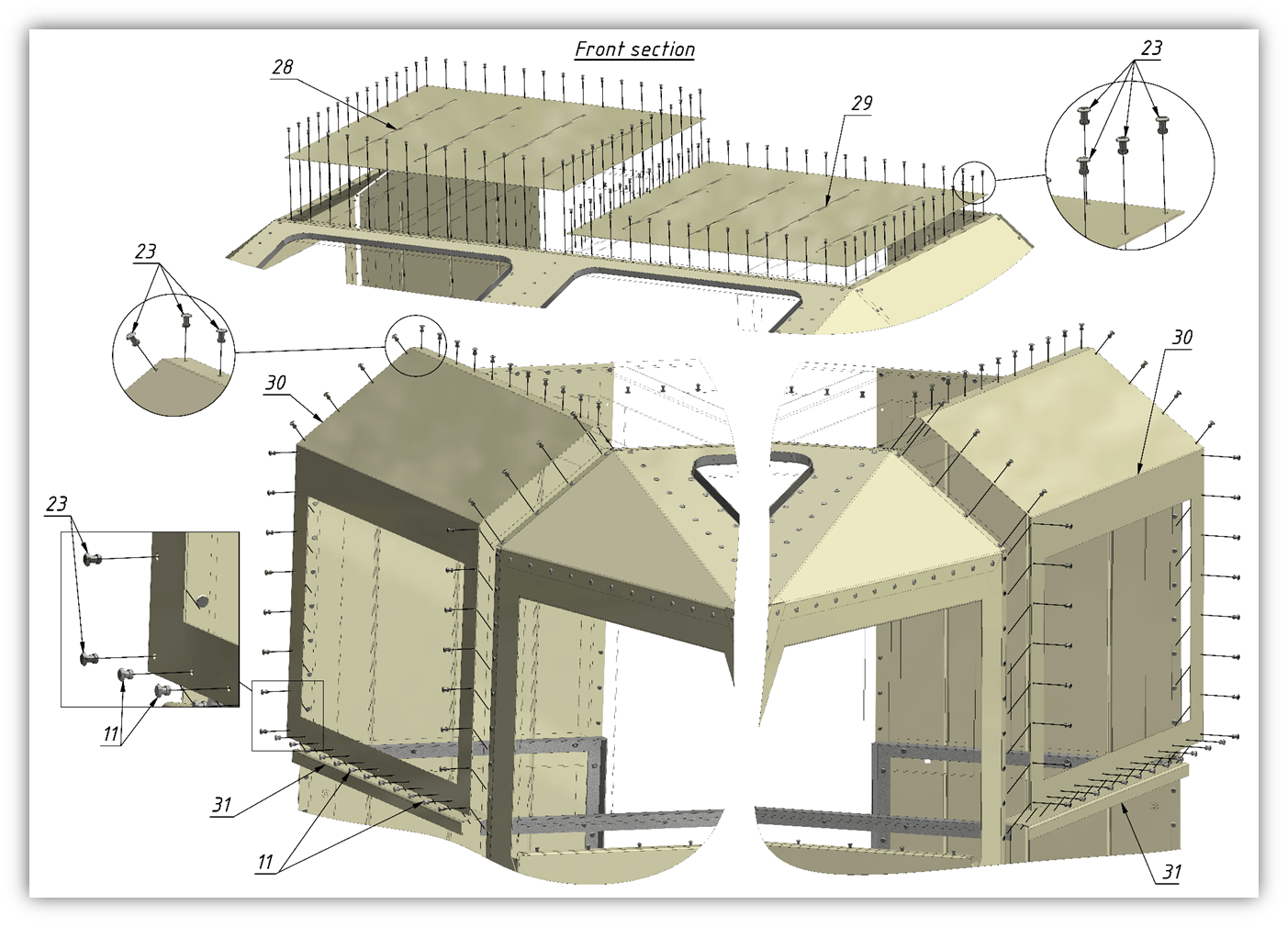

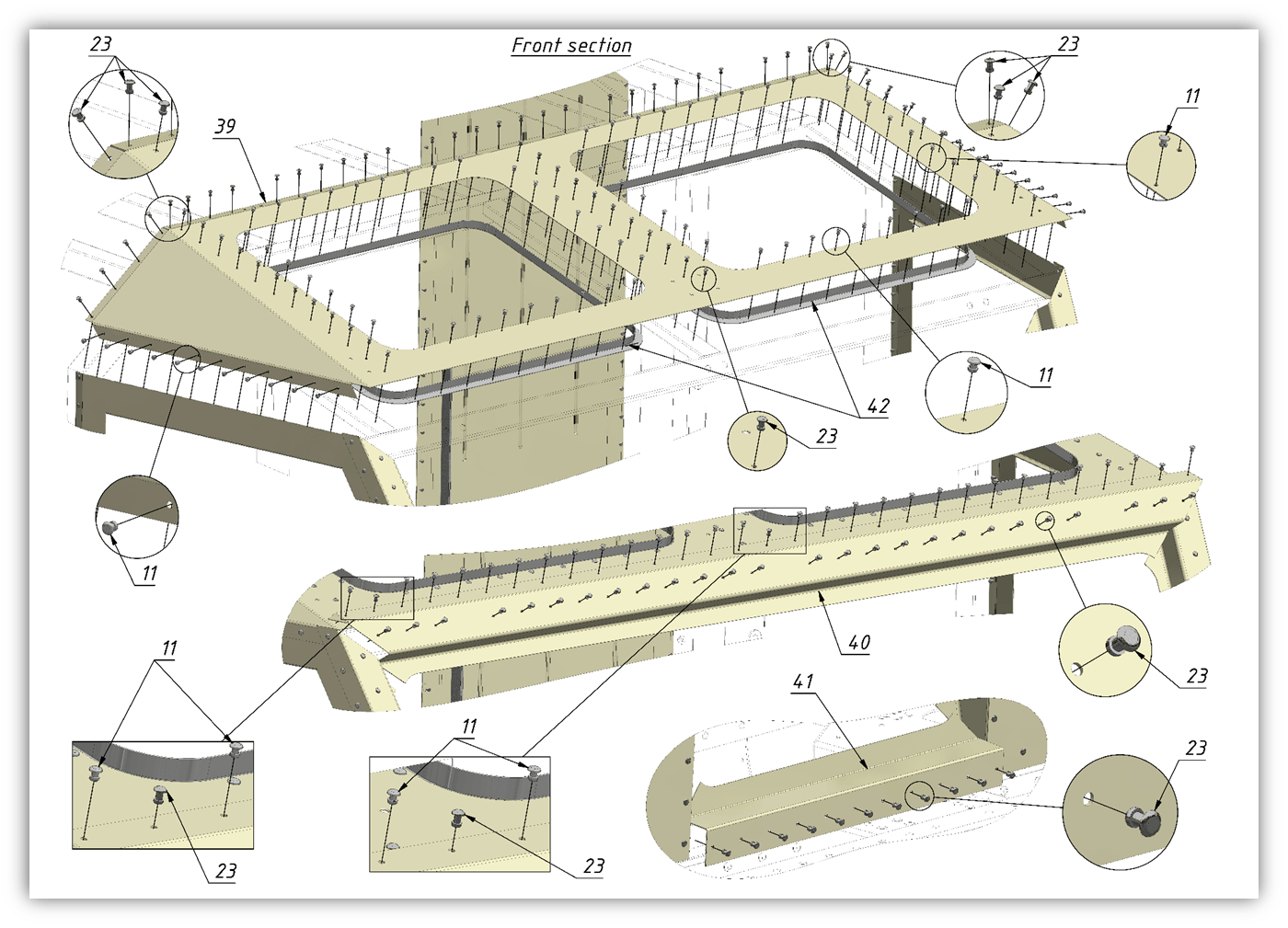

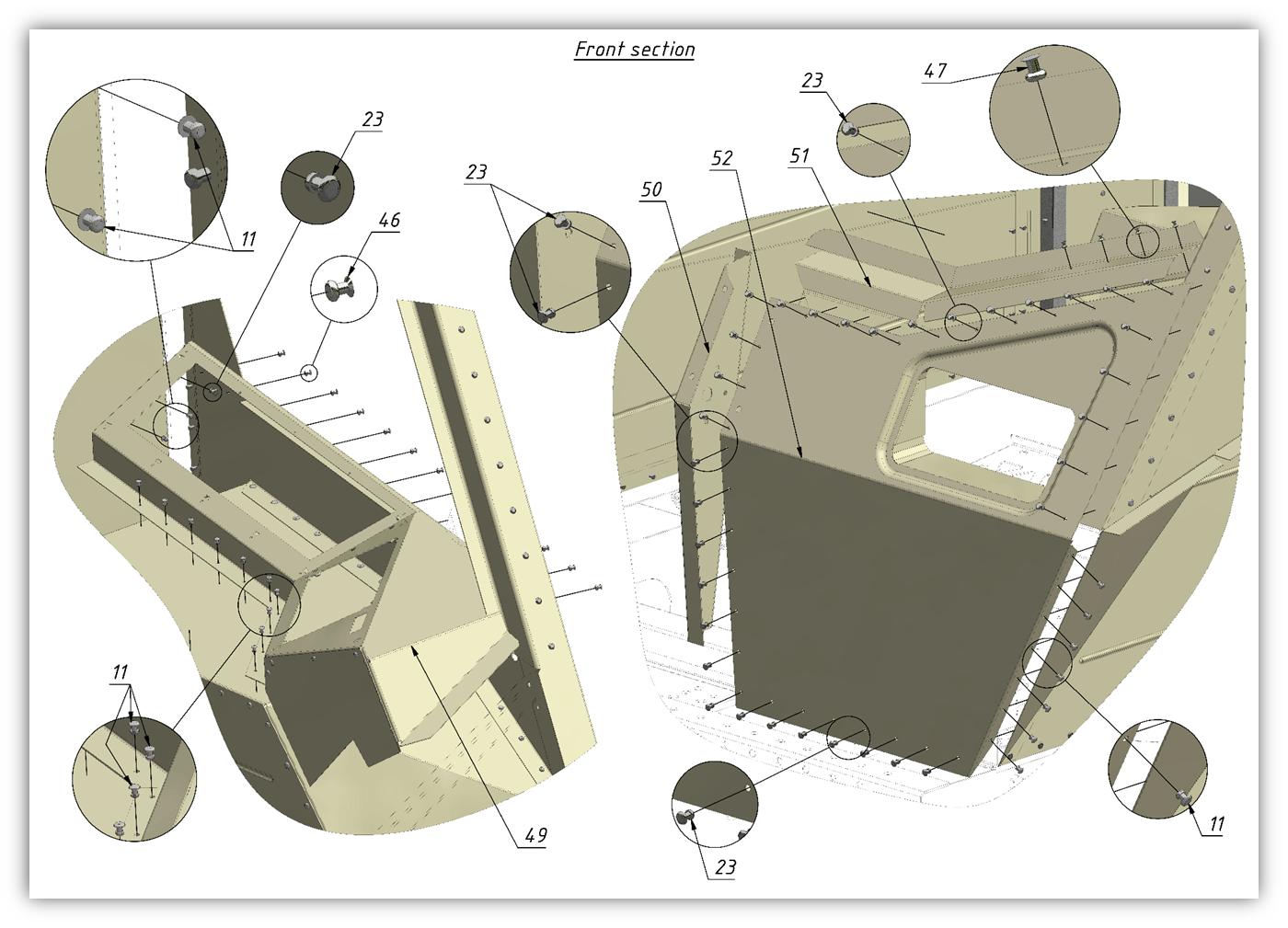

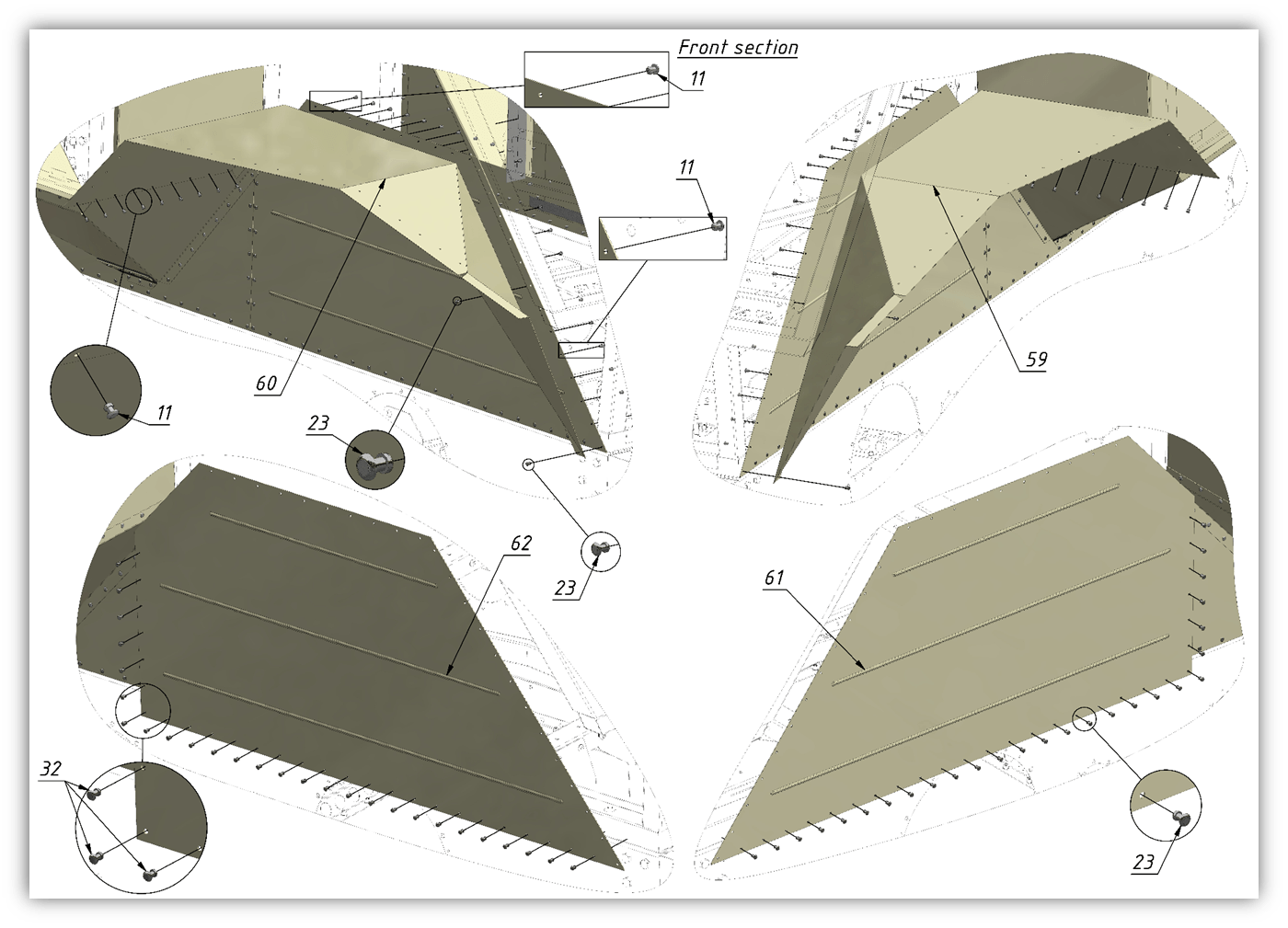

| 1 | Profile | 10200-90700-E0A | 1 | |||
| 2 | Profile | 10200-90800-E0A | 1 | |||
| 3 | Profile | 10200-90900-E0A | 1 | |||
| 4 | Profile | 10200-91000-E0A | 1 | |||
| 5 | Profile | 10200-91100-E0A | 1 | |||
| 6 | Profile | 10200-91200-E0A | 1 | |||
| 7 | Profile | 10200-91300-E0A | 1 | |||
| 8 | Profile | 10200-91500-E0A | 1 | |||
| 9 | Bracket | 10200-91600-E0A | 1 | |||
| 10 | Bracket | 10200-91700-E0A | 1 | |||
| 11 | Rivet | 11507-00300-XXA | 02.0778 | 713 | Price on request | |
| 12 | Profile | 10200-91800-E0A | 1 | |||
| 13 | Bracket | 10200-91900-E0A | 2 | |||
| 14 | Refinement of the neck | 10200-92000-E0A | 1 | |||
| 15 | Rivet | 11507-02000-XXA | 130 | |||
| 16 | Washer | 11504-02500-XXA | 03.0450 | 6 | Price on request | |
| 17 | Nut | 11503-00600-XXA | 03.0447, 090-1194 | 6 | $0.5 CAD | |
| 18 | Board | 10200-92100-E0A | 1 | |||
| 19 | Board | 10200-92200-E0A | 1 | |||
| 20 | Insert | 10200-92300-E0A | 1 | |||
| 21 | Insert | 10200-92400-E0A | 1 | |||
| 22 | Riveting nut | 11503-11100-E0A | 16 | |||
| 23 | Rivet | 11507-00400-XXA | 02.0906 | 870 | Price on request | |
| 24 | Rivet | 11507-00600-XXA | 02.0780 | 2 | Price on request | |
| 25 | Wall of the body | 10200-92500-E0A | 1 | |||
| 26 | Wall of the body | 10200-92700-E0A | 1 | |||
| 27 | Rear board | 10200-92800-E0A | 1 | |||
| 28 | Roof | 10200-92900-E0A | 1 | |||
| 29 | Roof | 10200-95800-E0A | 1 | |||
| 30 | Wall of the body | 10200-95900-E0A | 2 | |||
| 31 | Corner | 10200-02700-E0A | 2 | |||
| 32 | Lining | 10200-04200-E0A | 2 | |||
| 33 | Lining | 10200-04400-E0A | 2 | |||
| 34 | Lining | 10200-04600-E0A | 1 | |||
| 35 | Lining | 10200-05600-E0A | 2 | |||
| 36 | Lining | 10200-05400-E0A | 1 | |||
| 37 | Lining | 10200-05800-E0A | 1 | |||
| 38 | Rivet | 10200-06000-E0A | 75 | |||
| 39 | Wall of the body | 10200-06200-E0A | 1 | |||
| 40 | Wall of the body | 10200-06400-E0A | 1 | |||
| 41 | Wall of the body | 10200-06600-E0A | 1 | |||
| 42 | Manhole flange | 10200-06800-E0A | 2 | |||
| 43 | Wall of the body | 10200-07000-E0A | 1 | |||
| 44 | Wall of the body | 10200-07200-E0A | 1 | |||
| 45 | Sheathing | 10200-07400-E0A | 1 | |||
| 46 | Rivet | 11507-01600-XXA | 02.0224 | 35 | Price on request | |
| 47 | Panel | 10200-07600-E0A | 1 | |||
| 48 | Wall of the body | 10200-07800-E0A | 1 | |||
| 49 | Panel | 10200-08000-E0A | 1 | |||
| 50 | Wall of the body | 10200-09000-E0A | 1 | |||
| 51 | Wall of the body | 10200-09400-E0A | 1 | |||
| 52 | Sheathing | 10200-09600-E0A | 1 | |||
| 53 | Wall of the body | 10200-24500-E0A | 1 | |||
| 54 | Wall of the body | 10200-24700-E0A | 1 | |||
| 55 | Wall of the body | 10200-24900-E0A | 1 | |||
| 56 | Wall of the body | 10200-25100-E0A | 1 | |||
| 57 | Wall of the body | 10200-25200-E0A | 1 | |||
| 58 | Wall of the body | 10200-25300-E0A | 1 | |||
| 59 | Wall of the body | 10200-25600-E0A | 1 | |||
| 60 | Wall of the body | 10200-25700-E0A | 1 | |||
| 61 | Board | 10200-25800-E0A | 1 | |||
| 62 | Board | 10200-25900-E0A | 1 | |||
| 63 | Wall of the body | 10200-26100-E0A | 1 | |||
| 64 | Wall of the body | 10200-26500-E0A | 1 | |||
| 65 | Shell | 10200-26700-E0A | 2 | |||
| 66 | Plate | 10200-26900-E0A | 2 | |||
| 67 | Lining | 10200-27100-E0A | 2 | |||
| 68 | Wall of the body | 10200-27300-E0A | 1 | |||
| 69 | Wall of the body | 10200-27700-E0A | 1 | |||
| 70 | Riveting nut | 11503-11200-E0A | 8 | |||
| 71 | Screw | 11502-01800-XXA | 05.0787 | 8 | Price on request | |

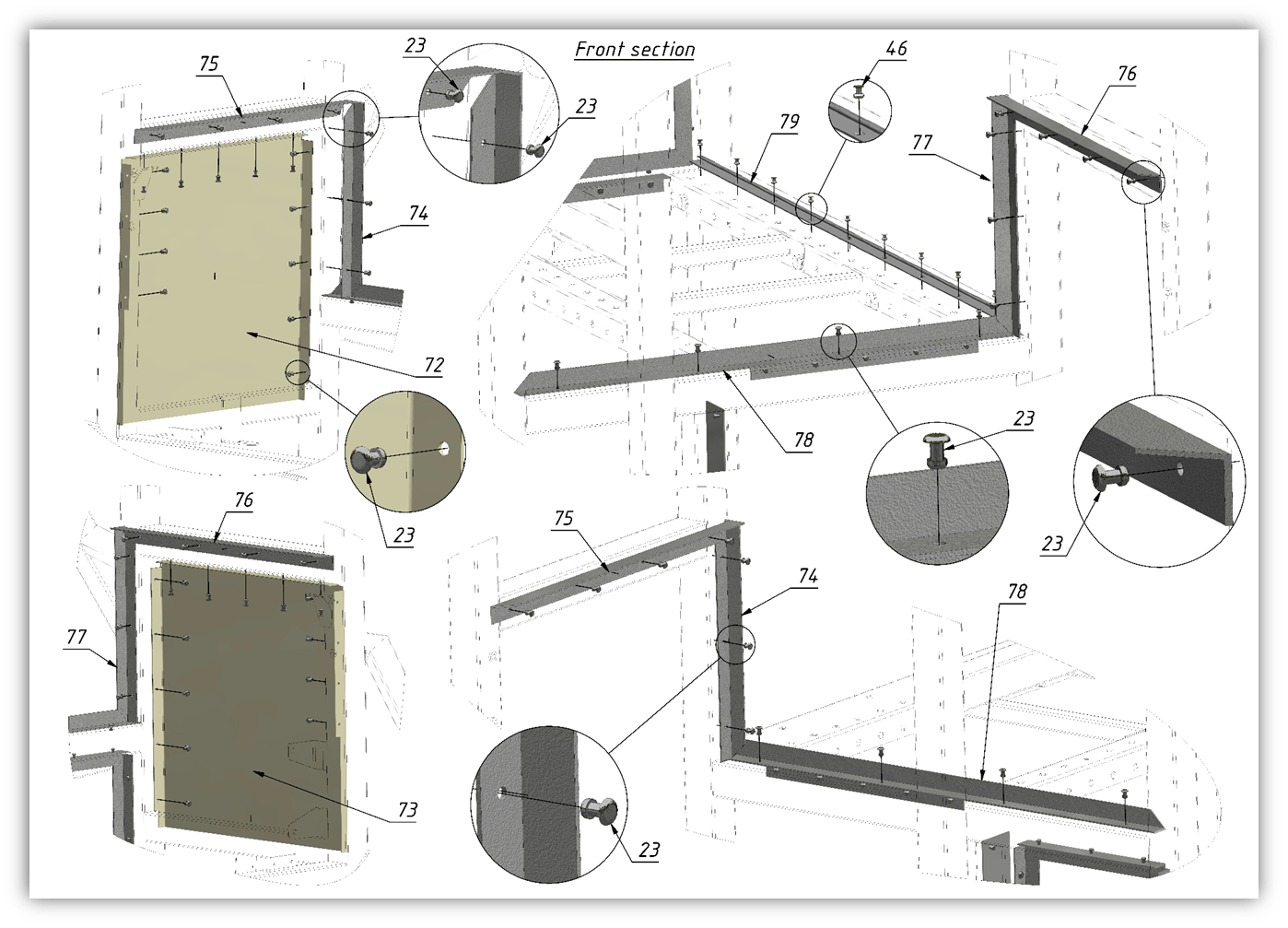

| 72 | Insert | 10200-93000-E0A | 1 | |||
| 73 | Insert | 10200-93700-E0A | 1 | |||
| 74 | Corner | 10200-93800-E0A | 2 | |||
| 75 | Corner | 10200-93800-E0A | 2 | |||
| 76 | Corner | 10200-93900-E0A | 2 | |||
| 77 | Corner | 10200-94000-E0A | 2 | |||
| 78 | Corner | 10200-94100-E0A | 2 | |||
| 79 | Strut | 10200-94200-E0A | 1 | |||

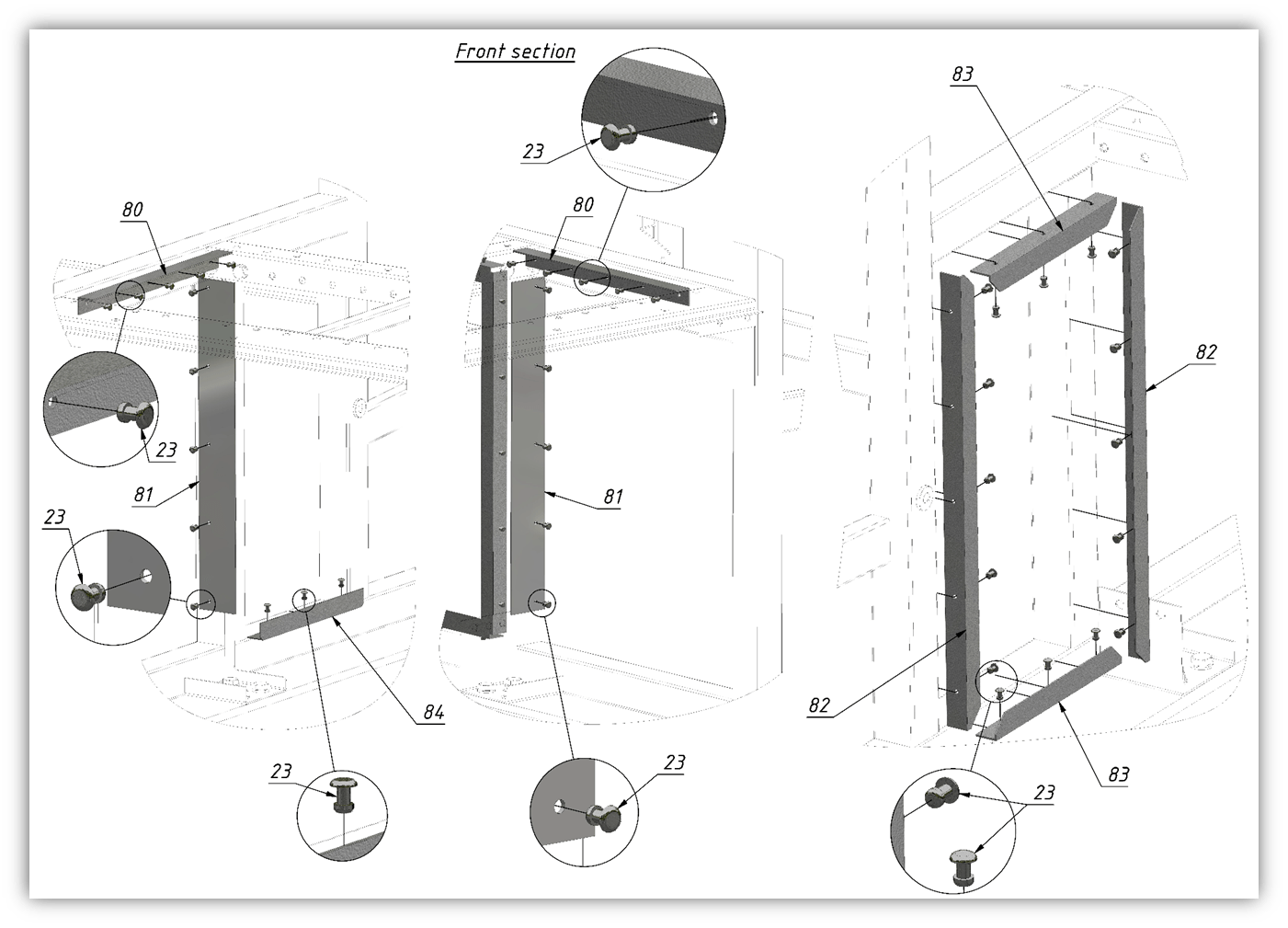

| 80 | Corner | 10200-94300-E0A | 1 | |||
| 81 | Strip | 10200-94400-E0A | 2 | |||
| 82 | Corner | 10200-94500-E0A | 2 | |||
| 83 | Corner | 10200-94600-E0A | 2 | |||
| 84 | Corner | 10200-94700-E0A | 1 |
