REAR SECTION BODY ASSEMBLY (0200) | 02-0200-04

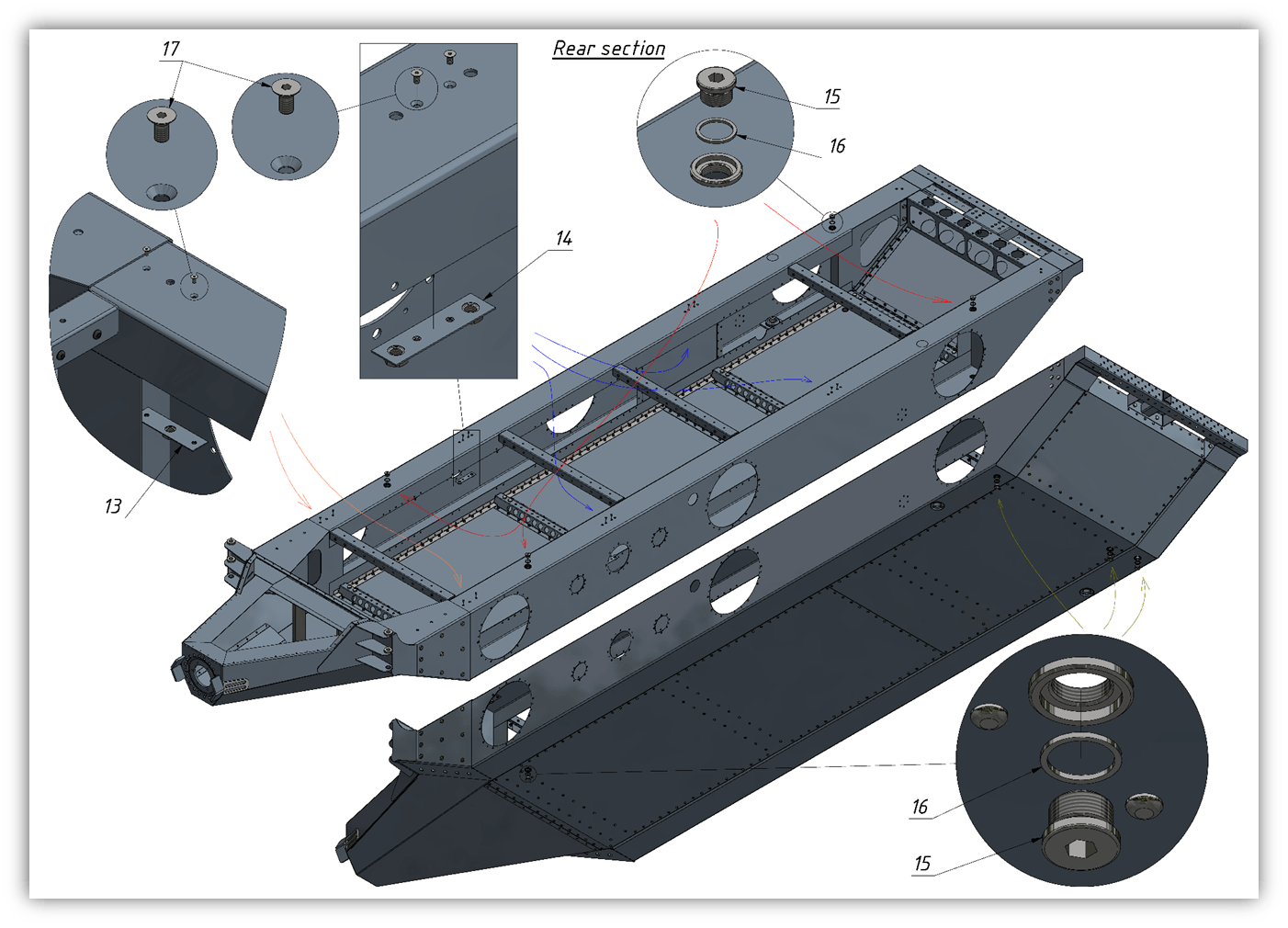

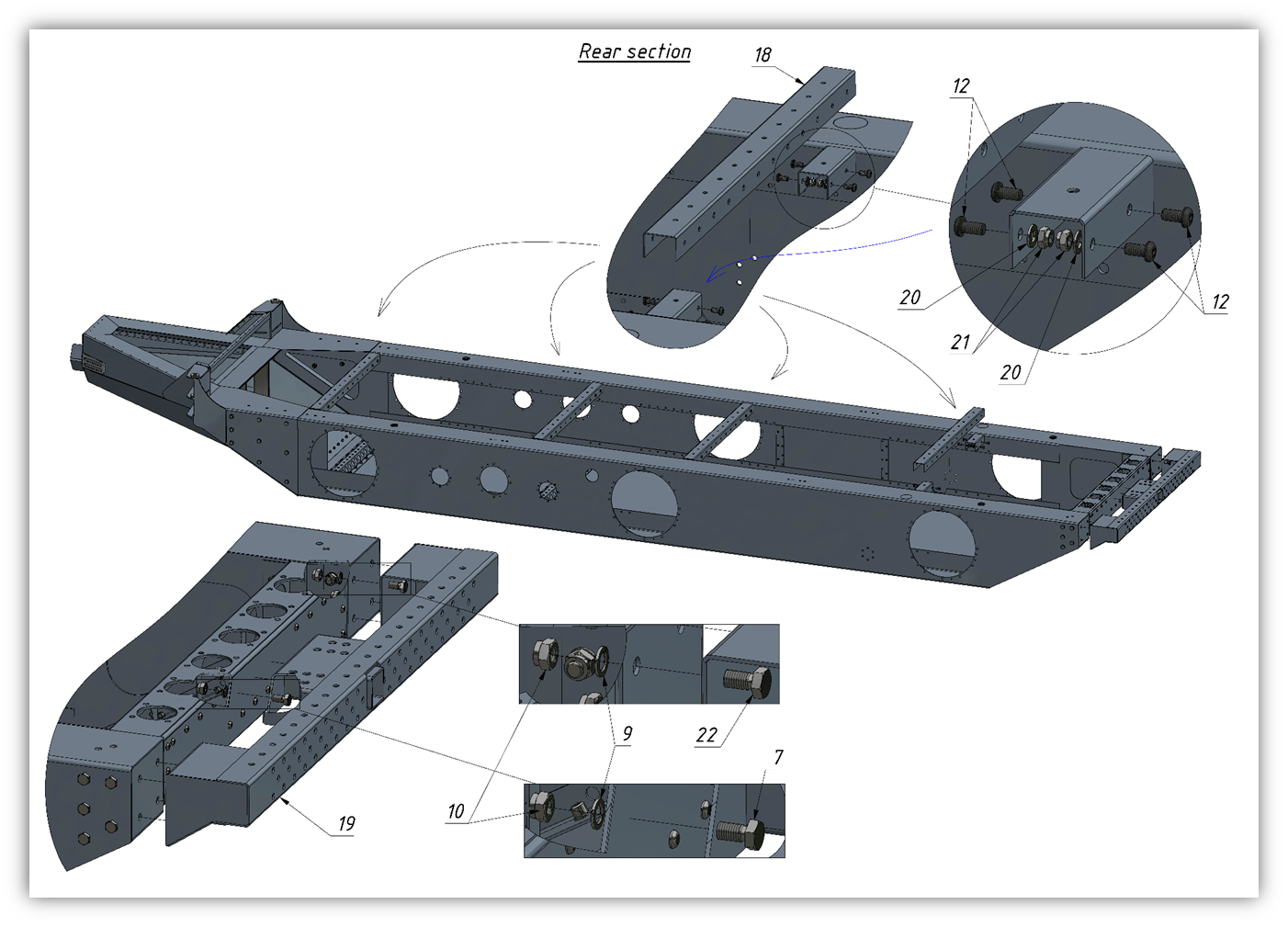

REAR SECTION BODY ASSEMBLY (0200) | 02-0200-04 — BODY (02), SHERP THE ARK. Includes 22 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 22 parts
| 1 | Rear section | 10200-95000-E0A | 1 | |||
| 2 | Cover | 10200-95100-E0A | 1 | |||
| 3 | Cover | 10200-95200-E0A | 1 | |||
| 4 | Pipe | 10200-95400-E0A | 1 | |||
| 5 | Bracket | 10200-95300-E0A | 1 | |||
| 6 | Bracket | 10200-95500-E0A | 1 | |||
| 7 | Bolt | 11501-00300-XXA | 11 | |||
| 8 | Washer | 11504-05800-XXA | 09.0292 | 8 | Price on request | |
| 9 | Washer | 11504-11100-E0A | 19 | |||
| 10 | Nut | 11503-10700-XXA | 19 | |||
| 11 | Screw | 11502-06200-XXA | 07.0017 | 48 | Price on request | |
| 12 | Screw | 11502-10800-E0A | 50 | |||
| 13 | Insert plate | 10200-95600-E0A | 2 | |||
| 14 | Insert plate | 10200-95700-E0A | 4 | |||
| 15 | Drain plug assembly | 11503-10000-XXA | 02.0452, 090-1235, 02.0452-S | 8 | $49 CAD | |
| 15 | Drain plug (screw-in piece) | 11503-10000-XXA-S | 02.0452, 090-1235, 02.0452-S | 8 | $9 CAD | |
| 16 | Washer | 11504-08400-XXA | 09.0392 | 8 | Price on request | |
| 17 | Screw | 11502-10200-XXA | 12 | |||
| 18 | Jumper | 10200-40100-E0A | 4 | |||
| 19 | Bumper | 10200-95800-E0A-4 | 1 | |||
| 20 | Washer | 11504-06900-XXA | 12.0042 | 32 | Price on request | |
| 21 | Nut | 11503-00800-XXA | 09.0417 | 32 | Price on request | |
| 22 | Bolt | N/A | 8 |
