INTERIOR FACING (CORDURA) (0506) | 05-0506
INTERIOR FACING (CORDURA) (0506) | 05-0506 — BODY ELEMENTS (05), SHERP THE ARK. Includes 18 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 18 parts
| 1 | Panel (cordura) | №1 | 1 | |||
| 2 | Panel (cordura) | №2 | 2 | |||
| 3 | Panel (cordura) | №3 | 1 | |||
| 4 | Panel (cordura) | №4 | 1 | |||
| 5 | Panel (cordura) | №5 | 1 | |||
| 6 | Panel (cordura) | №6 | 1 | |||
| 7 | Panel (cordura) | №7 | 1 | |||
| 8 | Panel (cordura) | №8 | 1 | |||
| 9 | Panel (cordura) | №9 | 1 | |||
| 10 | Panel (cordura) | №10 | 1 | |||
| 11 | Panel (cordura) | №11 | 1 | |||
| 12 | Panel (cordura) | №12 | 1 | |||
| 13 | Panel (cordura) | №13 | 1 | |||
| 14 | Panel (cordura) | №14 | 2 | |||
| 15 | Panel (cordura) | №15 | 2 | |||
| 16 | Cordur Set No. 1 | Cordur Set No. 1 | 1 | |||

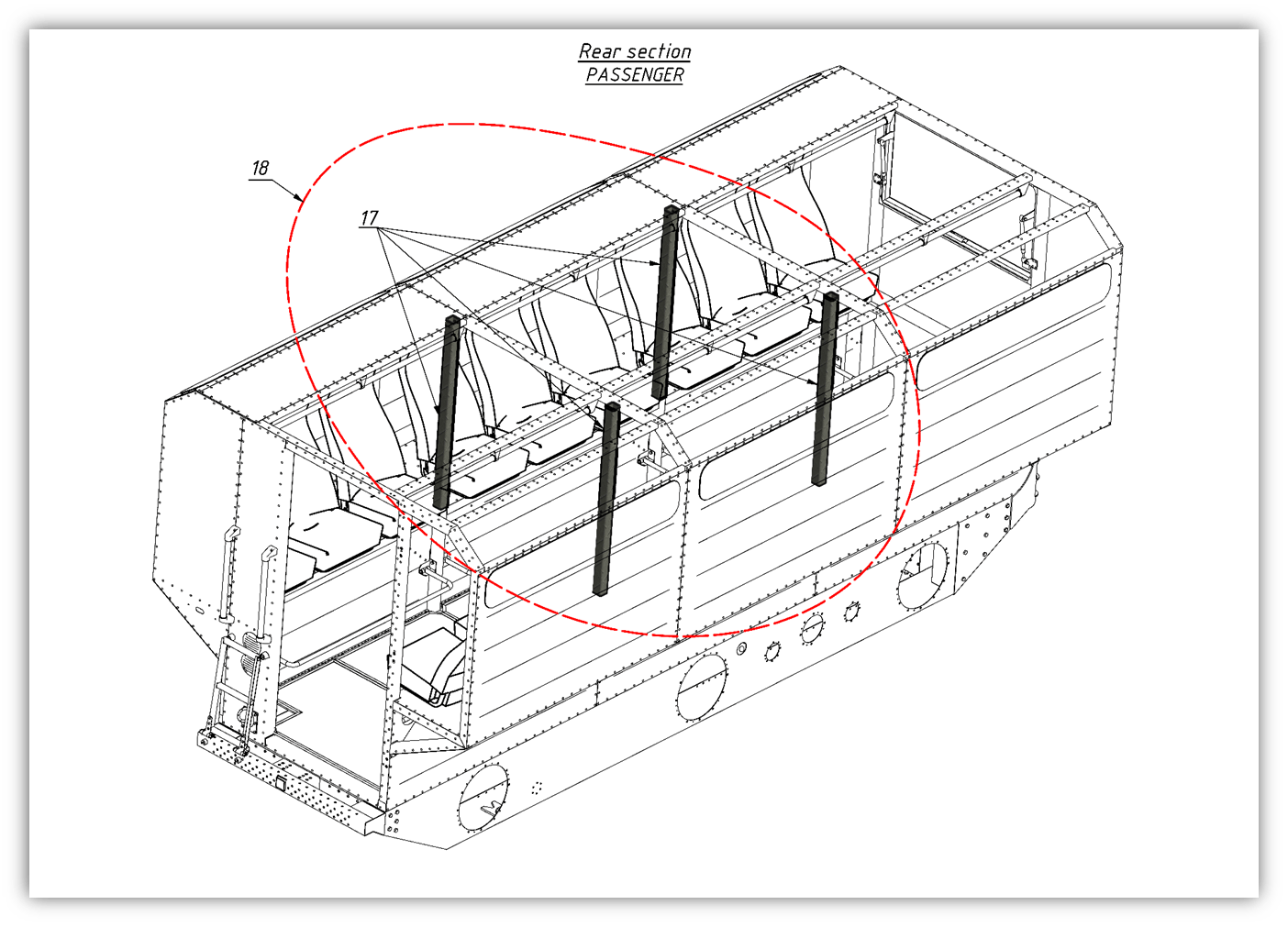

| 17 | Panel (cordura) | №16 | 4 | |||
| 18 | Cordur Set No. 2 | Cordur Set No. 1 | 1 |
