CIRUIT BREAKERS AND RELAY (1105) | 11-1105-01

CIRUIT BREAKERS AND RELAY (1105) | 11-1105-01 — ELECTRIC EQUIPMENT (11), SHERP THE ARK. Includes 38 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 38 parts

#	Title	Part number	Cross part number	Qty	Price

#	Title	Part number	Cross part number	Qty	Price
1	Mounting block	11103-00400-E0A		1
2	Case	11101-00300-E0A		1
3	Relay	11101-01400-XXA	11.0282	1	Price on request
4	Relay	11101-00500-XXA	11.0068, 090-0944	3	$22 CAD
5	Relay	11101-02900-XXA		7
6	Fuse holder	11100-01300-XXA		5
7	Fuse holder	11100-01300-XXA		1
8	Screw	11502-07900-XXA		4
9	Washer	11504-04600-XXA	05.0024	4	Price on request
10	Relay holder	11100-00800-XXA		11
11	Frame	11101-03400-N0A		1
12	Relay holder	11101-02200-XXA		1
13	Bracket	11101-00400-E0A		1
14	Bracket	11101-00500-E0A		1
15	Screw	11502-05500-XXA	04.0306	8	Price on request
16	Washer	11502-07200-XXA		16
17	Nut	11503-00600-XXA	03.0447, 090-1194	8	$0.5 CAD
18	Washer	11504-06800-XXA		4
19	Relay	11101-00200-XXA	11.0176, 090-0941	1	$168.5 CAD
20	Holder	11106-00300-XXA		1
21	Stud	11101-00600-E0A		2
22	Isolator	11101-03000-XXA		2
23	Washer	11504-06900-XXA	12.0042	2	Price on request
24	Screw	11502-08800-XXA		2

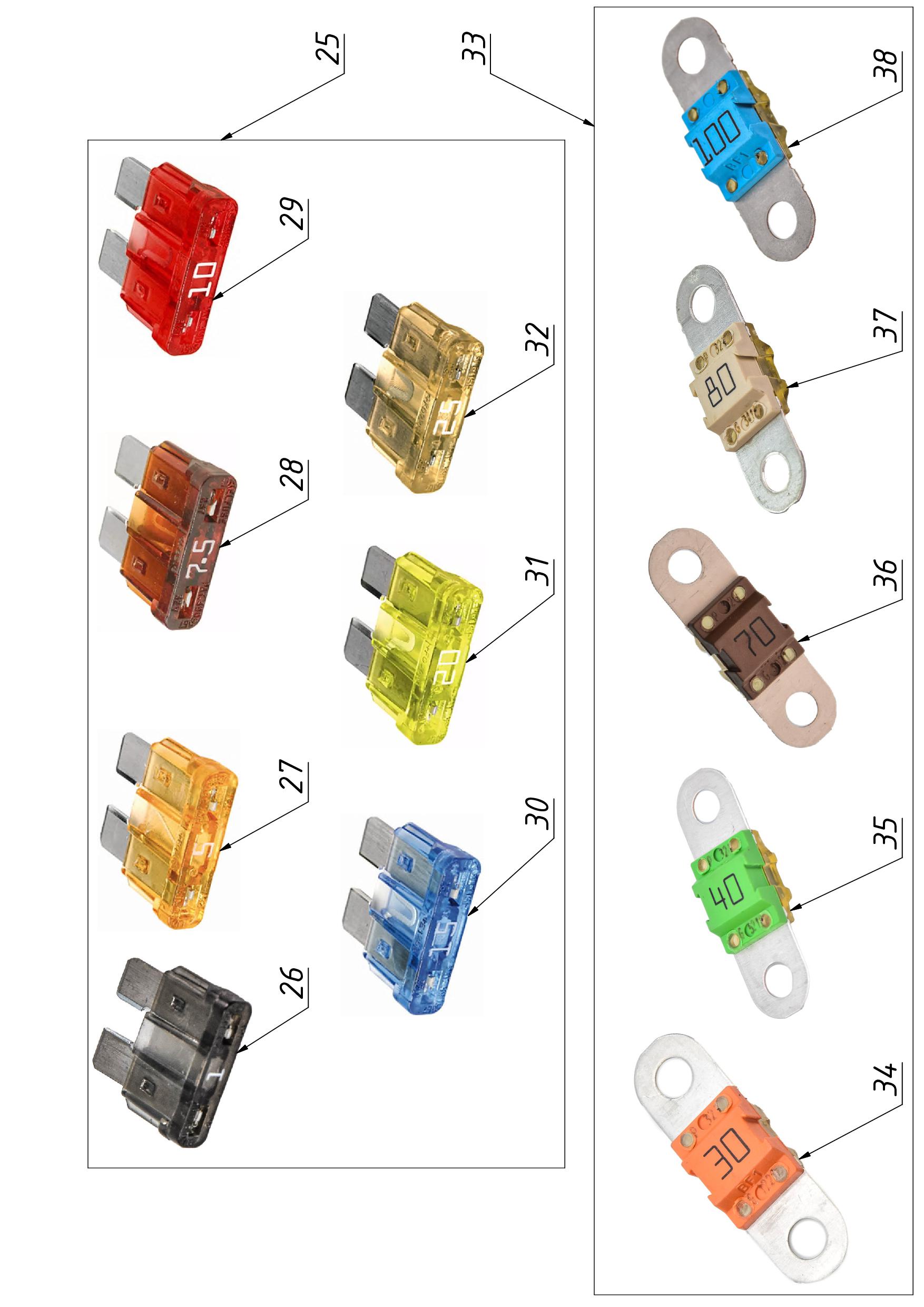

25	Fuse set	11101-00100-E0A		1
26	Fuse 1 A	11100-40000-XXA		2
27	Fuse 5 A	11101-01500-XXA		9
28	Fuse 7,5 A	11101-04200-XXA		2
29	Fuse 10 A	11101-01600-XXA		11
30	Fuse 15 A	11101-01700-XXA		13
31	Fuse 20 A	11101-01800-XXA		1
32	Fuse 25 A	11101-01900-XXA		4
33	Fuse set	11101-00200-E0A		1
34	Fuse 30 A	11101-02700-XXA		2
35	Fuse 40 A	11101-02400-XXA		2	$2 CAD
36	Fuse 70 A	11101-02800-XXA		1
37	Fuse 80 A	11101-02500-XXA		1
38	Fuse 100 A	11101-02600-XXA		1
