FRONT SECTION PIPING (0100) | 01-0100-01

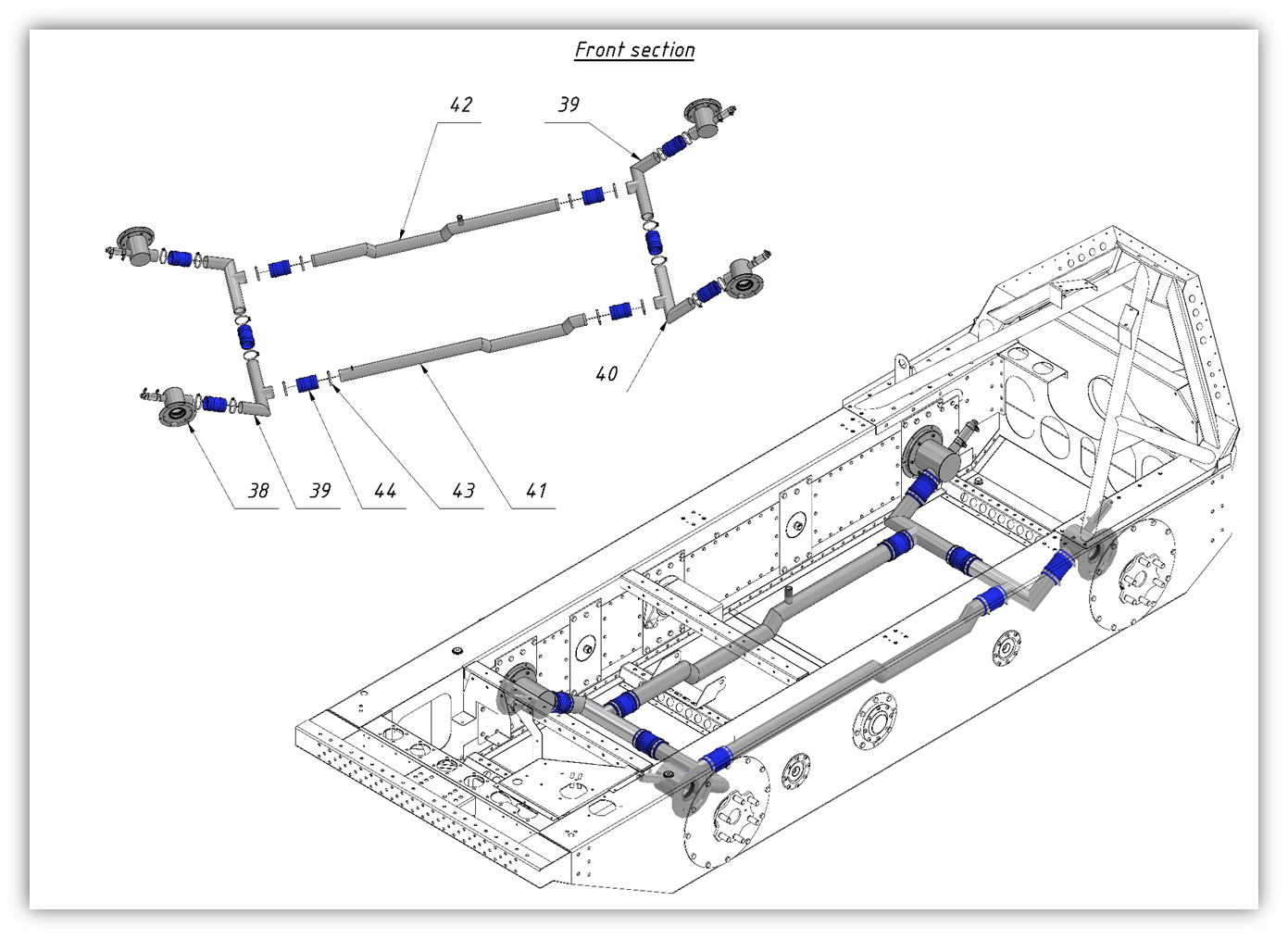

FRONT SECTION PIPING (0100) | 01-0100-01 — PNEUMATIC ASSEMBLY (01), SHERP THE ARK. Includes 44 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 44 parts

#	Title	Part number	Cross part number	Qty	Price

#	Title	Part number	Cross part number	Qty	Price
1	Receiver complete with compressor	10100-00500-E0A		1
2	Pipeline	10100-00600-E0A		1
3	Pipeline	10100-00600-E0A		1
4	Pipeline	10100-00600-E0A		1
5	Pipeline	10100-00600-E0A		1
6	Pipeline	10100-00600-E0A		1
7	Pipeline	10100-00600-E0A		1
8	Pipeline	10100-00600-E0A		1
9	Pipeline	10100-00600-E0A		1
10	Pipeline	10100-00600-E0A		1
11	Pipeline	10100-00600-E0A		1
12	Pipeline	10100-00600-E0A		1
13	Pipeline	10100-00600-E0A		1
14	Pipeline	10100-00600-E0A		1
15	Pipeline	10100-00600-E0A		1
16	Pipeline	10100-00600-E0A		1
17	Pipeline	10100-00600-E0A		1
18	Pipeline	10100-00600-E0A		1
19	Pipeline	10100-00600-E0A		1
20	Pipeline	10100-00600-E0A		1
21	Pipeline	10100-00600-E0A		1
22	Pipeline	10100-00600-E0A		1
23	Pipeline	10100-00600-E0A		1
24	Pipeline	10100-00600-E0A		1
25	Pipeline	10100-00600-E0A		1
26	Washer	11504-04200-XXA	03.0515	4	$0.5 CAD
27	Clamp	11000-65900-N0A		2
28	Clamp	11506-00800-XXA		2
29	Clamp	11506-02900-B0A		14
30	Fitting	10100-00700-E0A		2
31	Silencer	10100-00800-E0A		2
32	Pneumatic choke with check valve	10100-00900-E0A		2
33	Fitting	10100-01000-E0A		2
34	Fitting	10100-01100-E0A		2
35	Control Box	10100-01200-E0A		1
36	Fitting	10100-01300-E0A		2
37	Fitting	10100-01400-E0A		2
38	Swing control valve	10100-01500-E0A		4
39	Complete outlet	10100-01600-E0A		2
40	Branch pipe assembly	10100-01700-E0A		2
41	Port	10100-01800-E0A		1
42	Socket	10100-01900-E0A		1
43	Clamp	11506-00100-XXA	03.0458	10	Price on request
44	Hose	10100-02000-E0A		20
