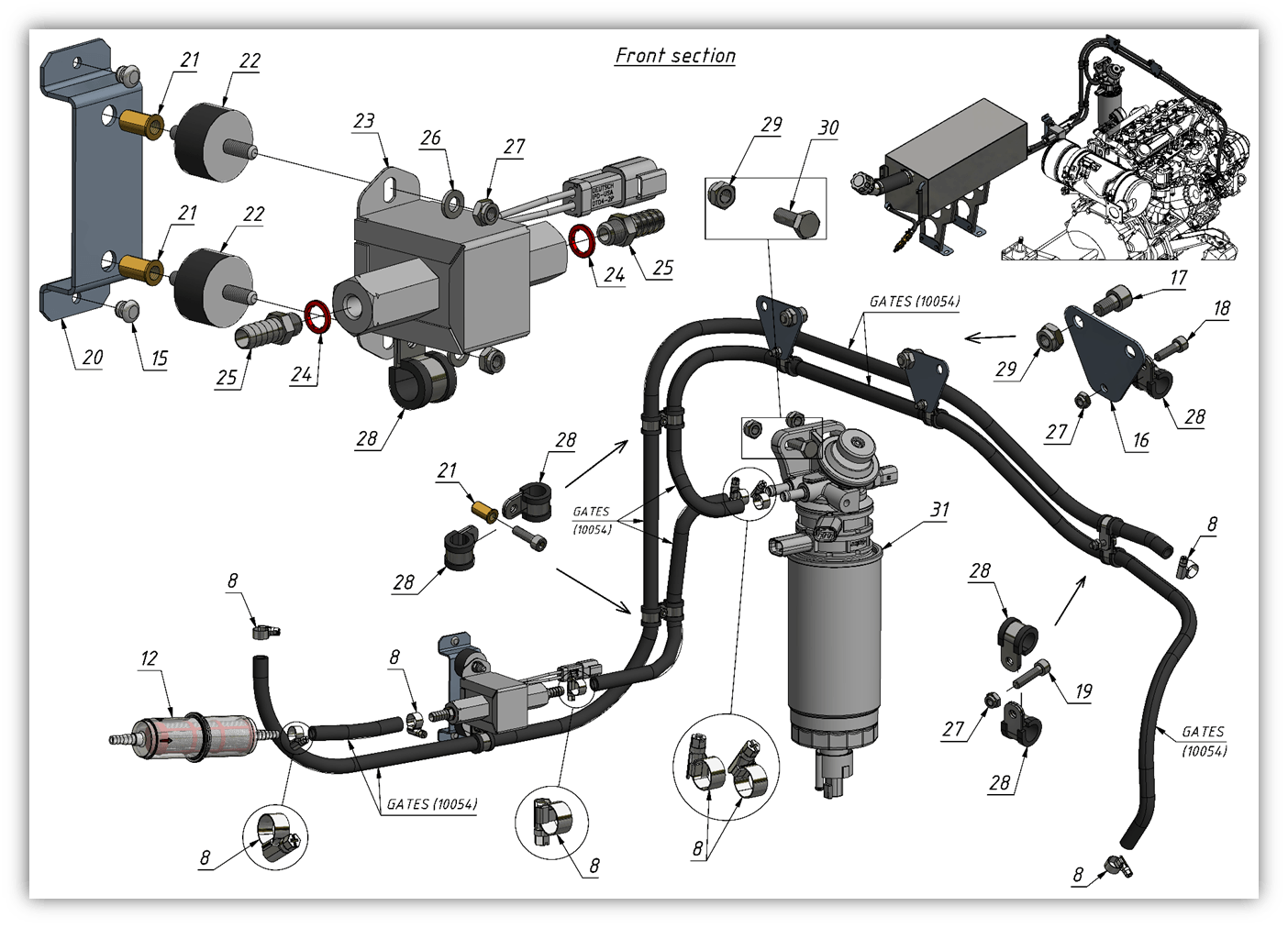

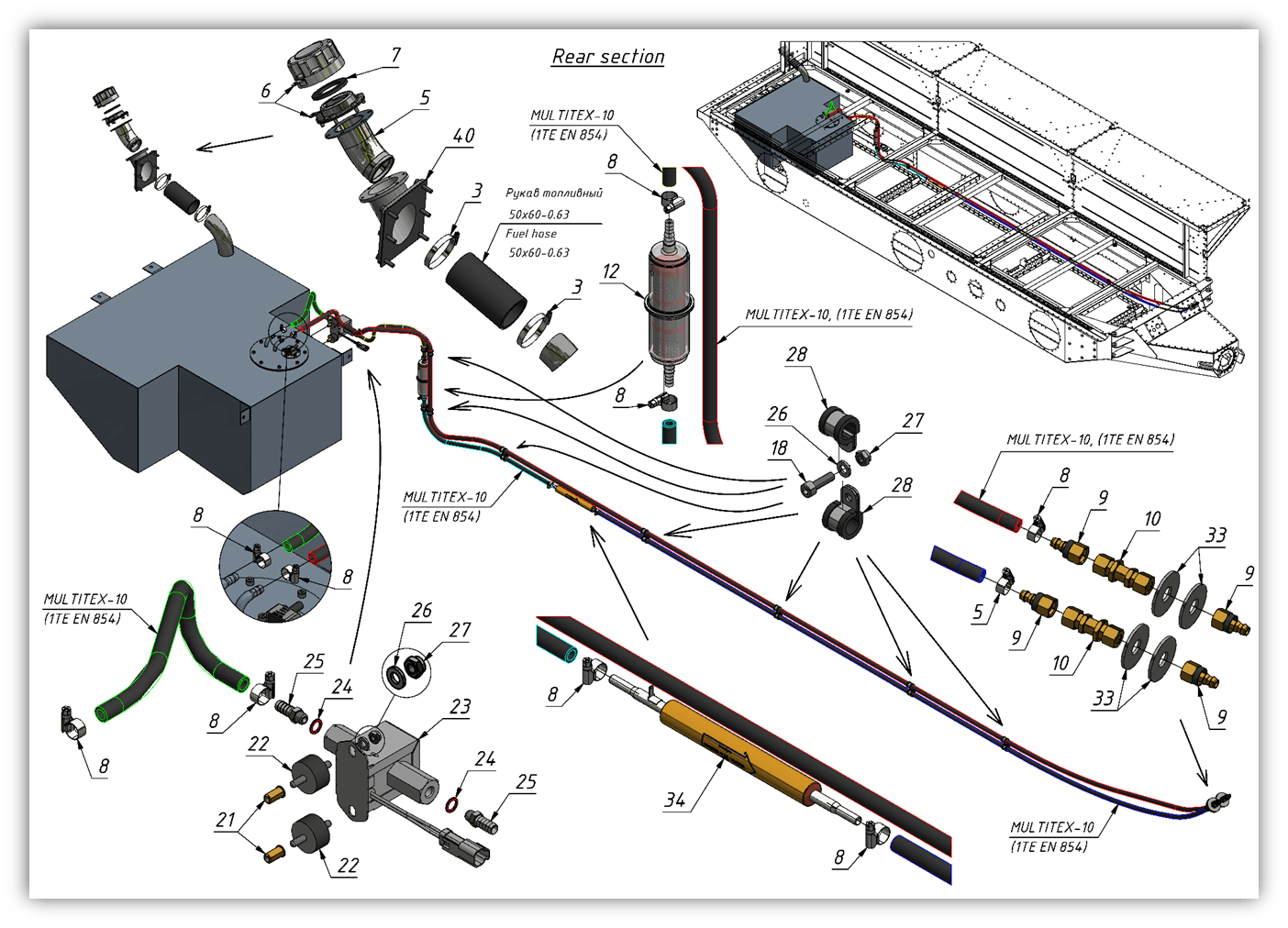

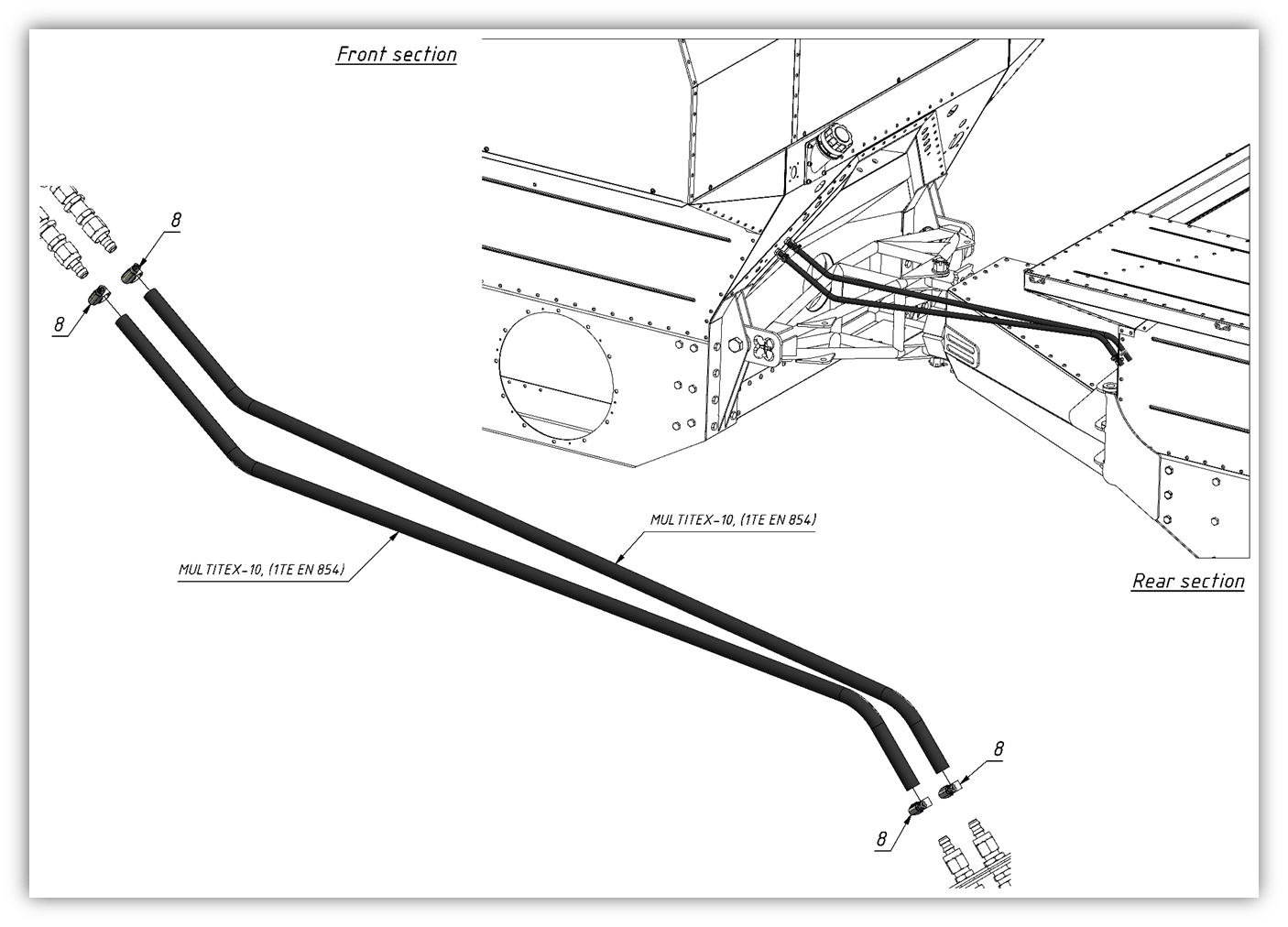

FUEL SUPPLY SYSTEM (1007) | 10-1007

FUEL SUPPLY SYSTEM (1007) | 10-1007 — POWER UNIT (10), SHERP THE ARK. Includes 38 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 38 parts

#	Title	Part number	Cross part number	Qty	Price

#	Title	Part number	Cross part number	Qty	Price
1	Housing	11007-00100-E0A		1
2	Corner	11007-00200-E0A		2
3	Clamp	11506-02600-XXA	10.0434	4	Price on request
4	Fuel hose	11007-00300-E0A		1
5	Corner	11007-00400-E0A		2
6	Hopper filter	11000-63400-E0A		2
7	Gasket	11400-00600-XXA		2
8	Gasket	11506-00500-XXA	09.0189	17	Price on request
9	Coring plug	11007-00500-E0A		8
10	Plug	11007-00600-E0A		4
11	GM-2015 Sealant	10402-38200-E0A		2
12	Filter	11400-01000-XXA	090-1679	2	$9.5 CAD
13	Screw	11501-11900-E0A		4
14	Hexagon nut	11503-00800-XXA	09.0417	4	Price on request
15	Rivet	11507-00300-XXA	02.0778	6	Price on request
16	Plate	11007-01000-E0A		2
17	Screw	11502-09300-XXA		2
18	Screw	11502-08500-N0A		9
19	Screw	11502-02300-XXA	09.0433	1	Price on request
20	Fuel pump bracket	11007-00700-E0A		1
21	Bracket	11503-10800-XXA		6
22	Vibration support	11200-02100-N0A		4
23	Fuel priming pump	11403-00500-XXA		2
24	O-ring	11007-00800-E0A		4
25	Socket	11007-00900-E0A		4
26	Washer	11504-02500-XXA	03.0450	11	Price on request
27	Hex nut	11503-00600-XXA	03.0447, 090-1194	14	$0.5 CAD
28	Clamp Norma	11506-02900-B0A		22
29	Hex nut	11503-00700-XXA	09.0416, 090-1195	4	$0.9 CAD
30	Bolt	11501-08800-N0A		2
31	Fuel filter	11400-00900-E0B		1
32	Flange	10200-17200-E0A		1
33	Sleeve	11504-13100-E0A		4
34	The heater flow	11400-01100-E0A		1

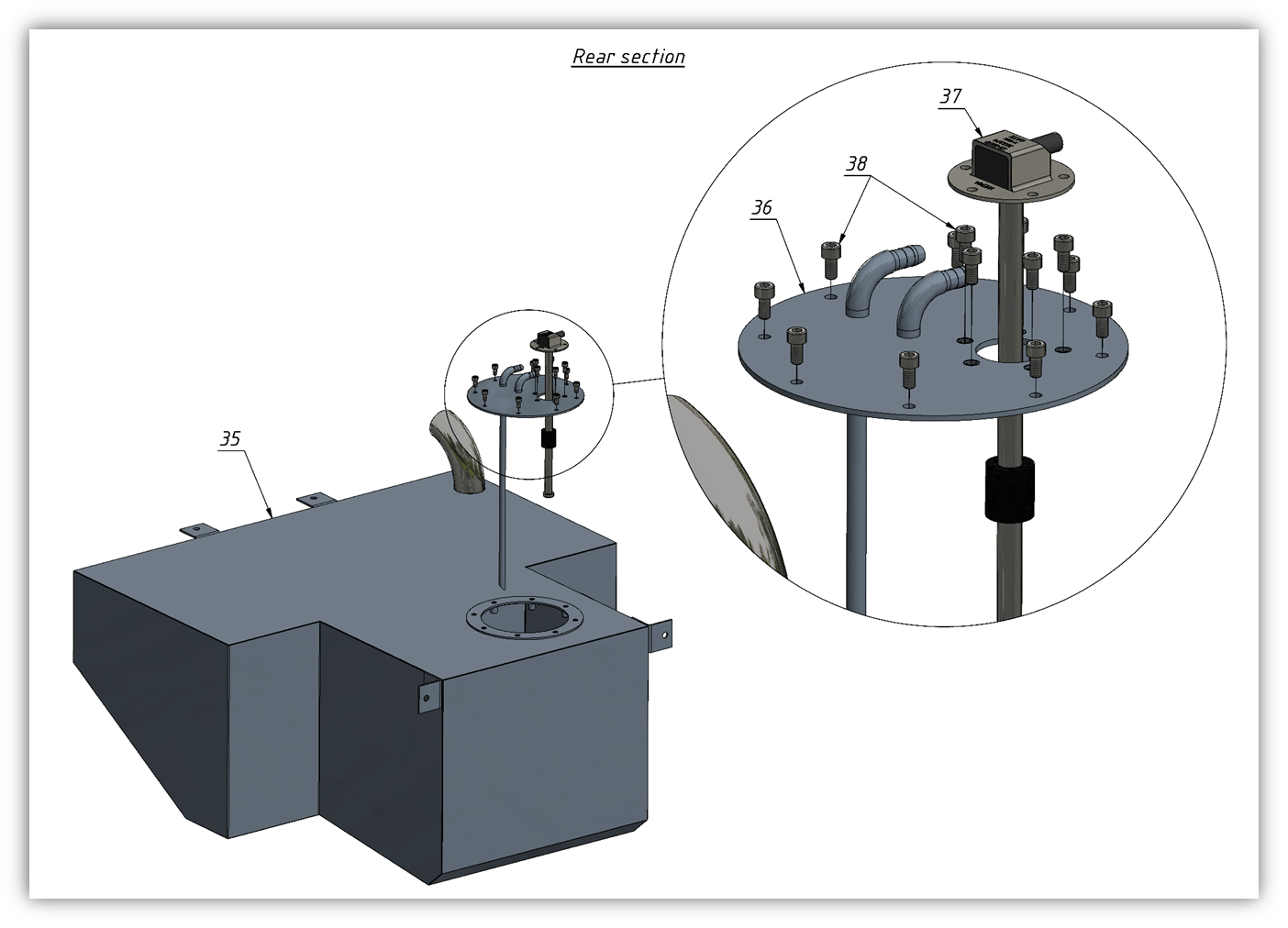

35	Fuel tank	11007-01200-E0A		1
36	Fuel tank flange	11007-01300-E0A		1
37	Fuel gauge	11007-01400-E0A		1
38	Screw	11502-10500-XXA		13
