CONTROL DRIVES (0901) | 09-0901-03

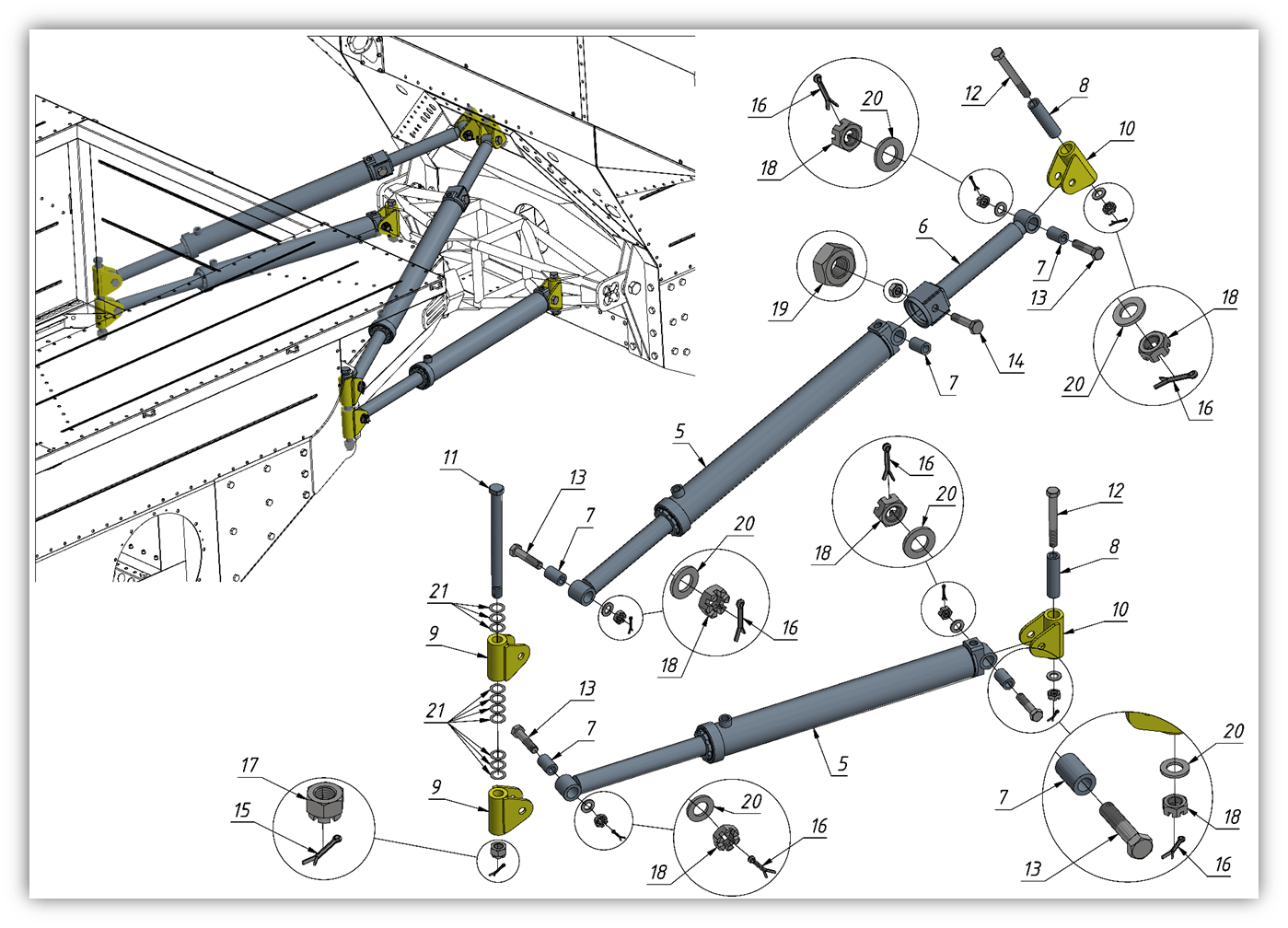

CONTROL DRIVES (0901) | 09-0901-03 — STEERING CLUTCH MECHANISM CONTROL DRIVE (09), SHERP THE ARK. Includes 21 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 21 parts
| 1 | Sleeve | 10901-06800-E0A | 8 | |||
| 2 | Banjo Bolt | 11501-13200-E0A | 16 | |||
| 3 | O-ring | 11505-01500-XXA | 09.0204 | 32 | $2.4 CAD | |
| 4 | Banjo nipple | 11501-00800-XXA | 09.0196 | 16 | $5.5 CAD | |
| 5 | Hydraulic Cylinder | 10901-16400-E0A | 4 | |||
| 6 | Extension | 10901-16500-E0A | 2 | |||
| 7 | Sleeve | 10901-16600-E0A | 10 | |||
| 8 | Sleeve | 10901-16700-E0A | 4 | |||
| 9 | Earring | 10901-16800-E0A | 4 | |||
| 10 | Track | 10901-16900-E0A | 4 | |||
| 11 | Axle | 10901-17000-E0A | 2 | |||
| 12 | Screw | 11502-12800-E0A | 4 | |||
| 13 | Screw | 11502-12900-E0A | 8 | |||
| 14 | Bolt | 11501-05000-XXA | 03.0442 | 2 | Price on request | |
| 15 | Cotter pin | 10901-17100-E0A | 2 | |||
| 16 | Cotter pin | 10901-17200-E0A | 12 | |||
| 17 | Nut | 11503-12300-E0A | 2 | |||
| 18 | Nut | 11503-11500-E0A | 12 | |||
| 19 | Nut | 11503-11500-E0A | 2 | |||
| 20 | Washer | 11504-11400-E0A | 12 | |||
| 21 | Washer | N/A | 20 |
