ASSEMBLY OF THE FRONT SECTION TRANSMISSION (0300) | 03-0300

ASSEMBLY OF THE FRONT SECTION TRANSMISSION (0300) | 03-0300 — TRANSMISSION (03), SHERP THE ARK. Includes 42 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 42 parts

#	Title	Part number	Cross part number	Qty	Price

#	Title	Part number	Cross part number	Qty	Price
1	Cardan shaft	10300-76800-E0A		1
2	Parking brake disc	10300-76900-E0A		1
3	Cardan bolt	11501-11800-E0A		4
4	Screw	11502-04400-XXA		4
5	Washer	11504-11000-E0A		4

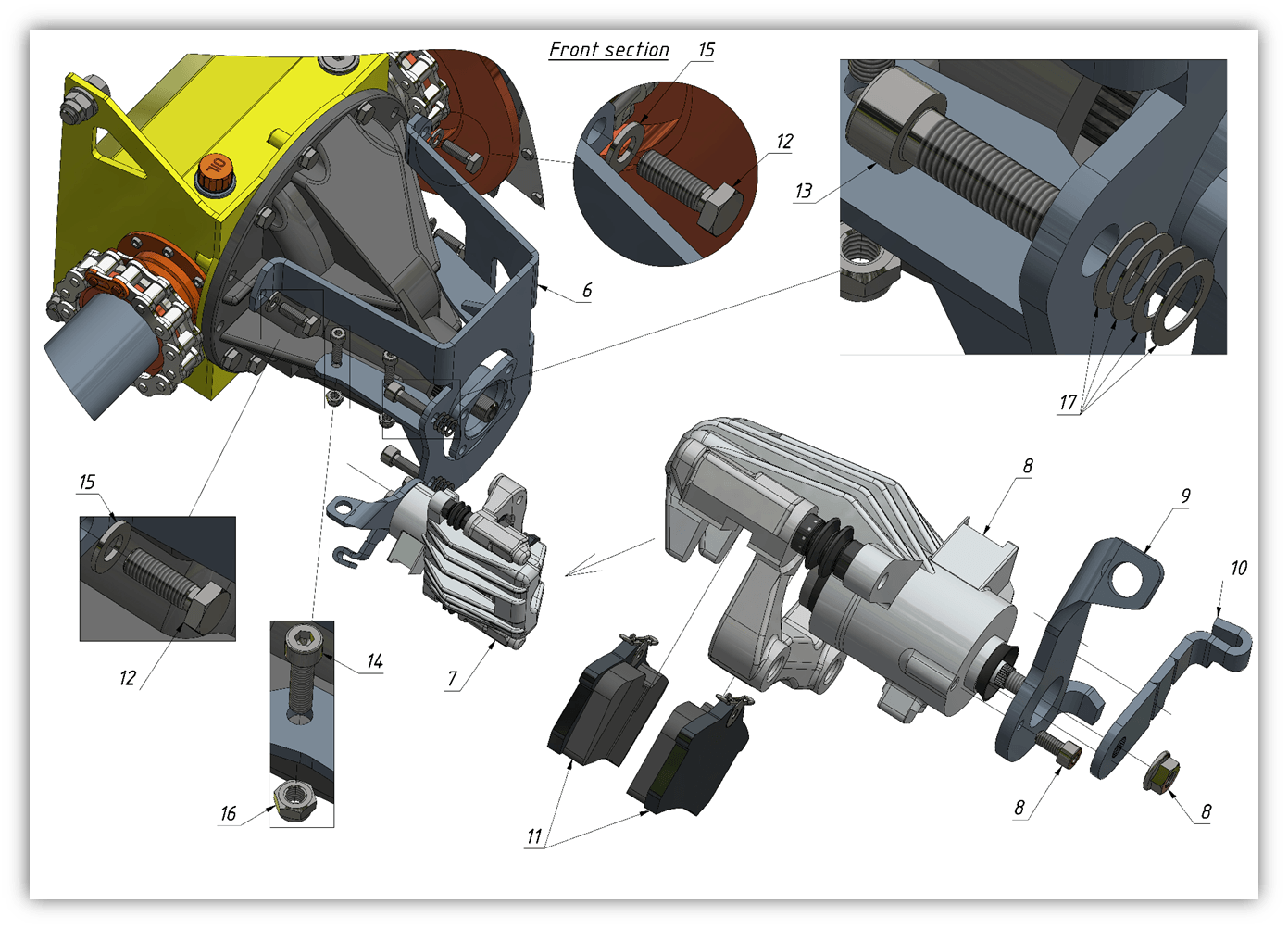

6	Bracket	10300-77000-E0A		1
7	Brake caliper (modification)	10300-76700-E0A		1
8	Brake caliper	10300-76600-E0A		1
9	Thrust	10300-76500-E0A		1
10	Thrust	10300-76400-E0A		1
11	Brake pad	10701-63200-XXA	03.0211, 090-0592	2	$52 CAD
12	Bolt	11501-00700-XXA	09.0173	3	Price on request
13	Screw	11502-00800-XXA	03.0489	2	Price on request
14	Screw	11502-03800-XXA		2
15	Washer	11504-04200-XXA	03.0515	3	$0.5 CAD
16	Nut	11503-00800-XXA	09.0417	2	Price on request
17	Washer	11504-01800-XXA	03.0227	8	Price on request

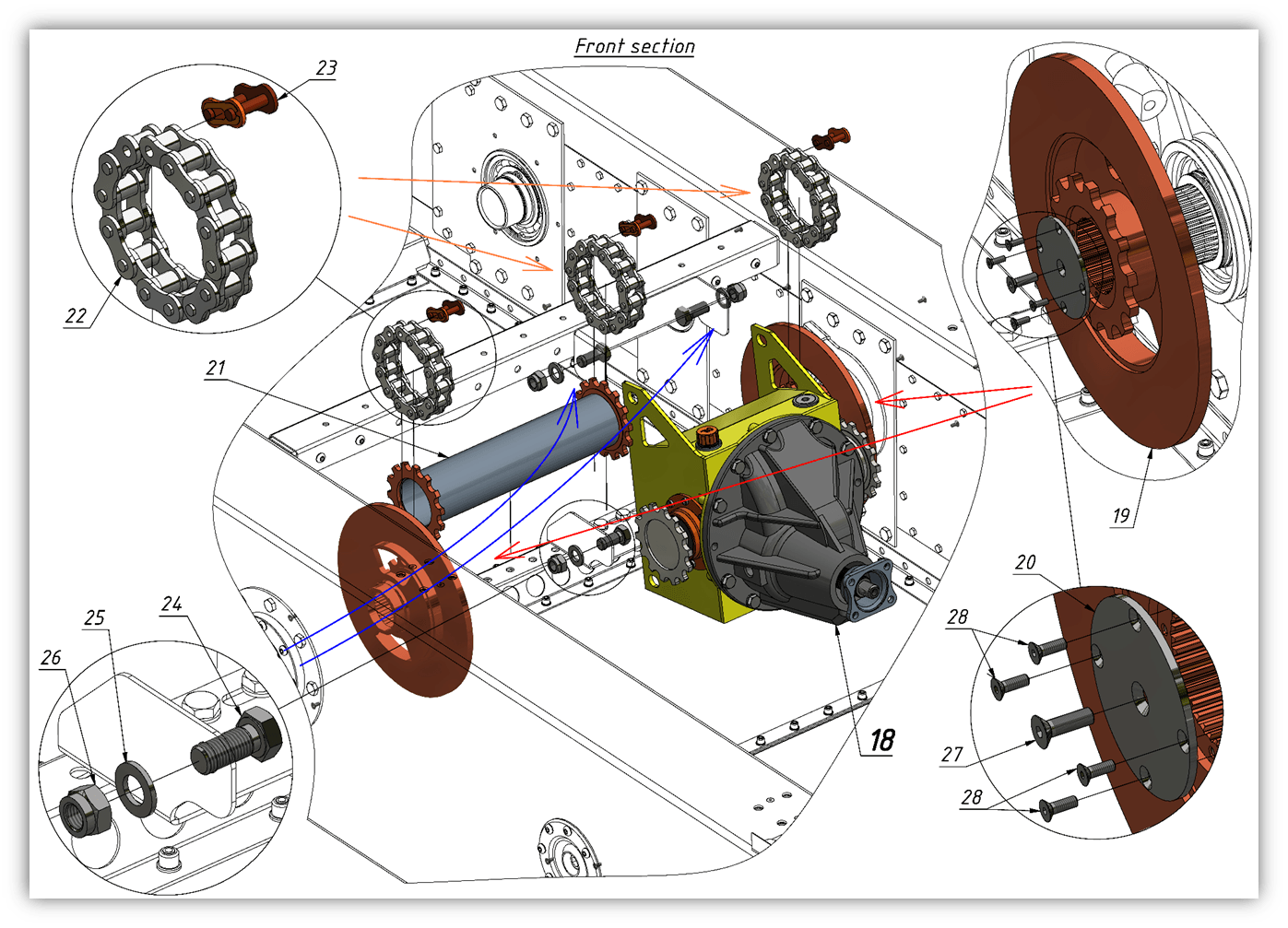

18	Gearbox	10300-76300-E0A		1
19	Brake plate	10300-76200-E0A		2
20	Plate	10300-68400-E0A		2
21	Clutch	10300-65500-E0A		1
22	Chain	10300-72600-N0A		3
23	Chain lock (for single-row chain)	10304-00100-XXA	03.0245, 090-0269, 03.0245-R	3	$8 CAD
23	Premium Chain Lock	10304-00100-XXA-R	03.0245, 090-0269, 03.0245-R	3	Price on request
24	Bolt	11501-04900-XXA	03.0441	4	Price on request
25	Washer	11504-11400-E0A		4
26	Nut	11503-11400-E0A		4
27	Screw	11502-03600-XXA		2
28	Screw	11502-09900-XXA		8

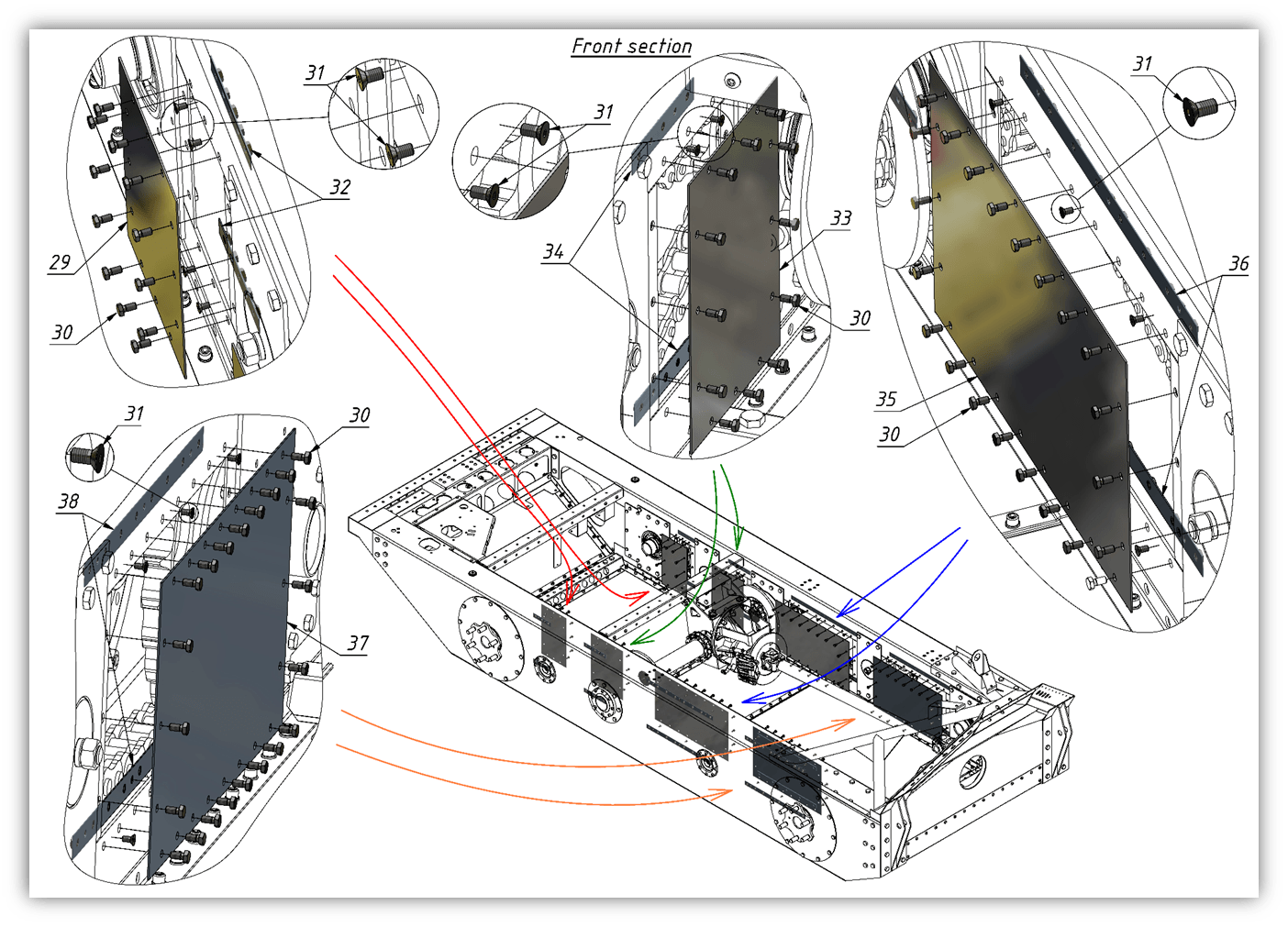

29	Plug	10300-69300-E0A		2
30	Screw	11501-01600-XXA	09.0170	135	Price on request
31	Screw	11502-10200-XXA		40
32	Retaining plate	10300-67700-E0A		4
33	Plug	10300-69200-E0A		2
34	Washer plate	10300-67600-E0A		4
35	Plug	10300-69100-E0A		2
36	Washer plate	10300-67500-E0A		4
37	Plug	10300-65300-E0A		2

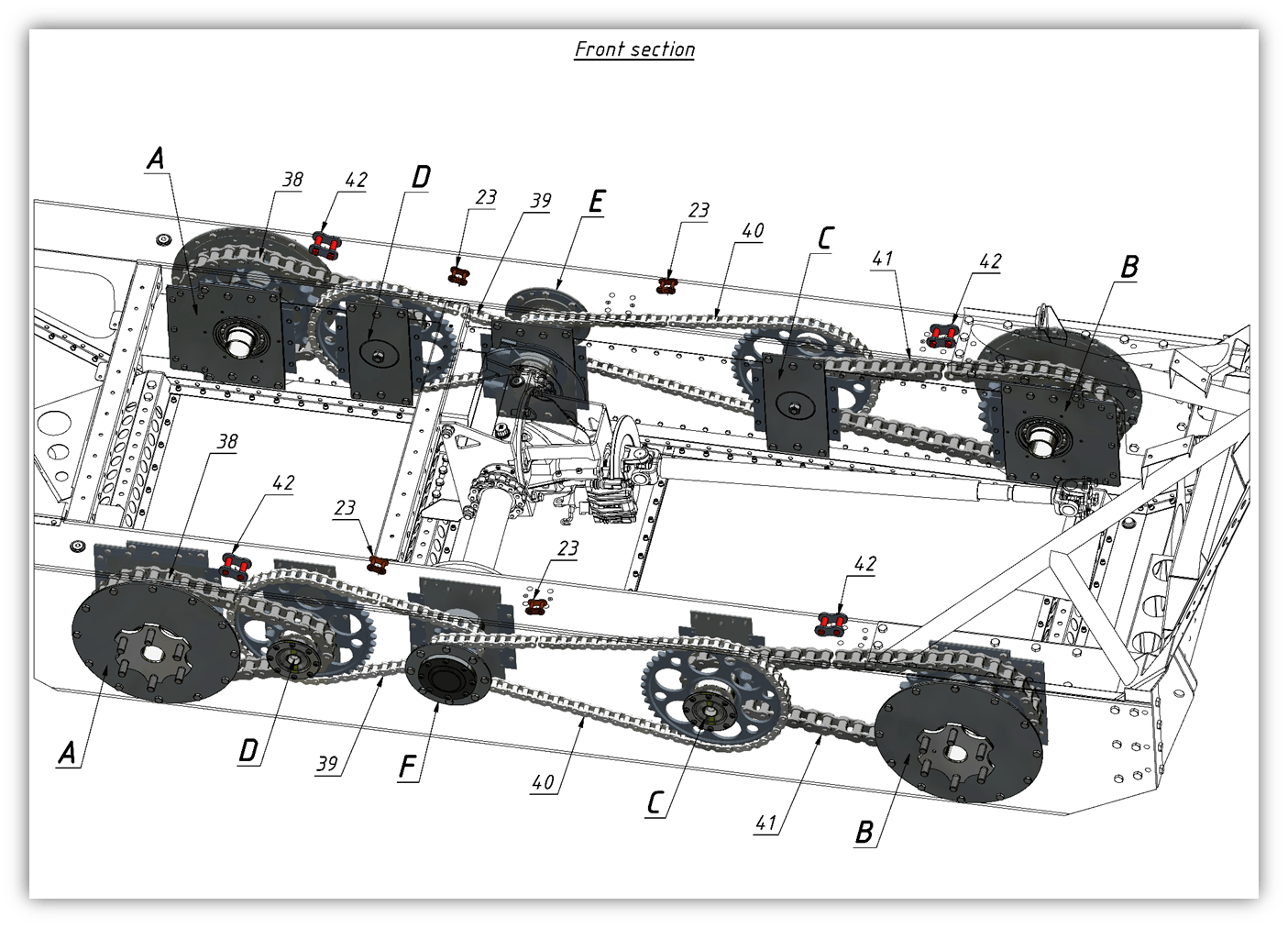

38	Chain	10300-77400-E0A		2
39	Chain	10300-77500-E0A		2
40	Chain	10300-77600-E0A		2
41	Chain	10300-77700-E0A		2
42	Connecting link	N/A		4
