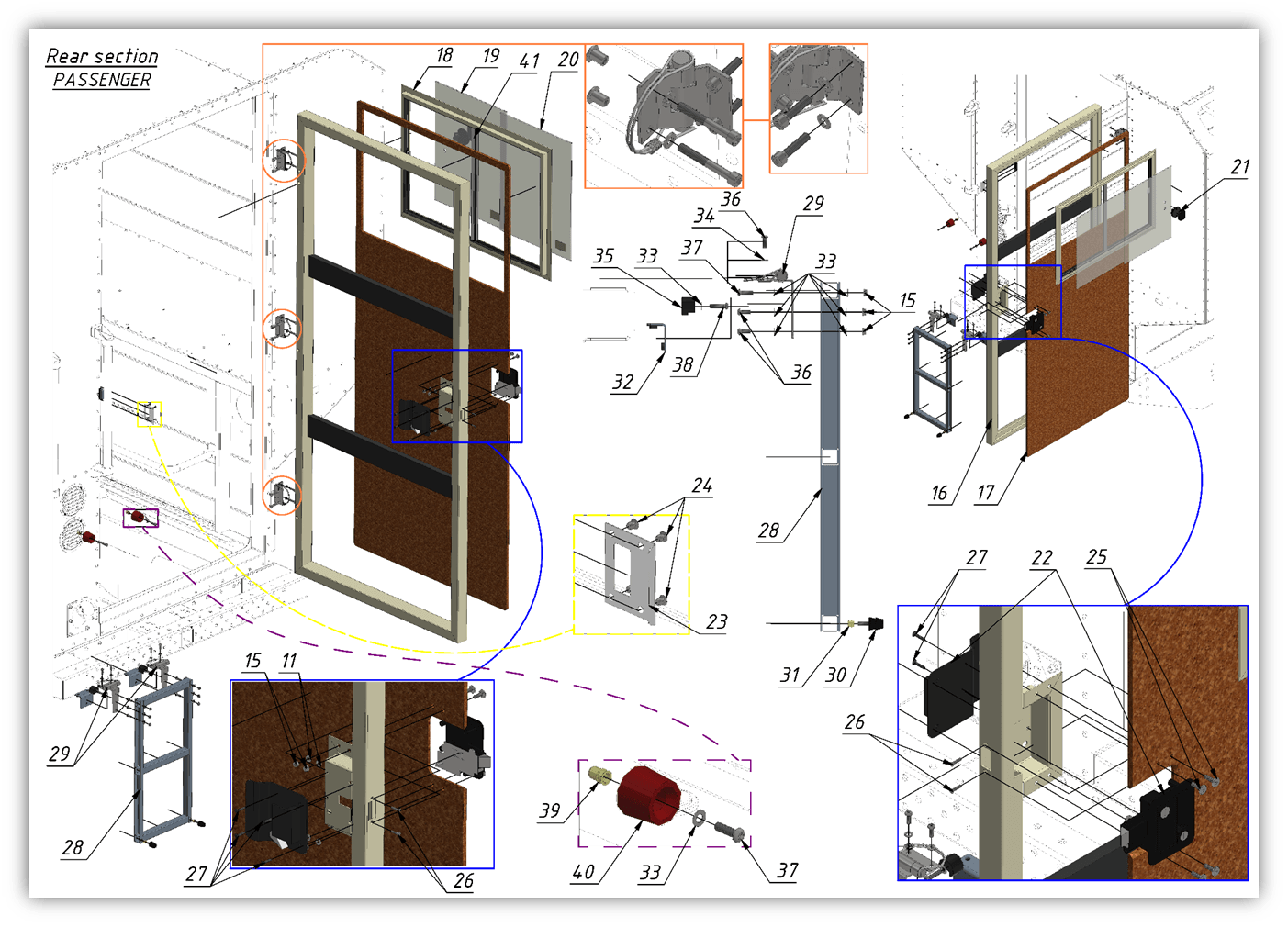

BACK DOOR (0401) | 04-0401-01
BACK DOOR (0401) | 04-0401-01 — WINDOWS AND DOORS, BLINDS (04), SHERP THE ARK. Includes 41 parts with OEM numbers and cross-references. Click hotspots on the manual to find the right SHERP part.· 41 parts
| 1 | Frame | 10401-01900-E0A | 1 | |||
| 2 | Cover | 10401-02000-E0A | 1 | |||
| 3 | Chain assembly | 10401-01000-N0A | 2 | |||
| 4 | Erickson nut M8 | 11503-06200-XXA | 16 | |||
| 5 | Screw M8 | 11502-04600-XXA | 02.0777 | 12 | Price on request | |
| 6 | Locking latch with guide plates | 10401-02100-E0A | 1 | |||
| 7 | Bracket | 10401-02200-E0A | 2 | |||
| 8 | Holder for lock | 10401-01800-N0A | 2 | |||
| 9 | Panhead screw | 11502-11900-E0A | 4 | |||
| 10 | Erikson flat head nut M6 | 11503-02400-XXA | 05.0291 | 4 | Price on request | |
| 11 | Washer | 11504-02500-XXA | 03.0450 | 16 | Price on request | |
| 12 | Cheese head screw | 11502-11000-N0A | 4 | |||
| 13 | Hexagon Nuts, Blank | 11503-00900-XXA | 04.0296 | 4 | Price on request | |
| 14 | Bolt | 10401-02300-E0A | 4 | |||
| 15 | Hexagon nut | 11503-00600-XXA | 03.0447, 090-1194 | 14 | $0.5 CAD | |
| 16 | Frame | 10401-02400-E0A | 1 | |||
| 17 | Cover | 10401-02500-E0A | 1 | |||
| 18 | Rear window frame | 10401-02600-E0A | 1 | |||
| 19 | Window | 10401-02700-E0A | 1 | |||
| 20 | Window | 10401-02800-E0A | 1 | |||
| 21 | Sliding glass lock | 10406-00700-XXA | 12.0300 | 1 | $7.5 CAD | |
| 22 | Door lock | 10401-02900-E0A | 1 | |||
| 23 | Cover | 10401-03000-E0A | 1 | |||
| 24 | Rivet | 11507-03100-XXA | 05.0647 | 4 | Price on request | |
| 25 | Furniture screw M6 | 11502-01800-XXA | 05.0787 | 4 | Price on request | |
| 26 | Screw | 11502-02500-XXA | 11.0079 | 2 | Price on request | |
| 27 | Screw | 11501-12300-E0A | 4 | |||
| 28 | Ladder | 10401-03100-E0A | 1 | |||
| 29 | Curtain board ZW-03.40 | 10400-01600-XXA | 04.0044 | 2 | $29.5 CAD | |
| 30 | Door locking bolt (included item 40) | 10400-01500-XXA | 090-0294 | 2 | $13.5 CAD | |
| 31 | Countersunk head screw M6 | 11503-07800-XXA | 2 | |||
| 32 | Corner | 10401-03200-E0A | 2 | |||
| 33 | Washer | 11504-10000-N0A | 16 | |||
| 34 | Washer | 11504-04300-XXA | 04.0043 | 4 | Price on request | |
| 35 | Stopper | 10401-03300-E0A | 2 | |||
| 36 | Screw | 11502-12000-E0A | 8 | |||
| 37 | Screw | 11502-00100-XXA | 04.0038 | 4 | Price on request | |
| 38 | Screw | 11502-02300-XXA | 09.0433 | 2 | Price on request | |
| 39 | Countersunk head screw M6 | 11503-07800-XXA | 2 | |||
| 40 | Door stop pin (included item 30) | 10400-01500-XXA | 090-0294 | 2 | $13.5 CAD | |
| 41 | Glass jumper | 10401-03400-E0A | 1 |
