ARGO CONQUEST PRO 950

Keywords:

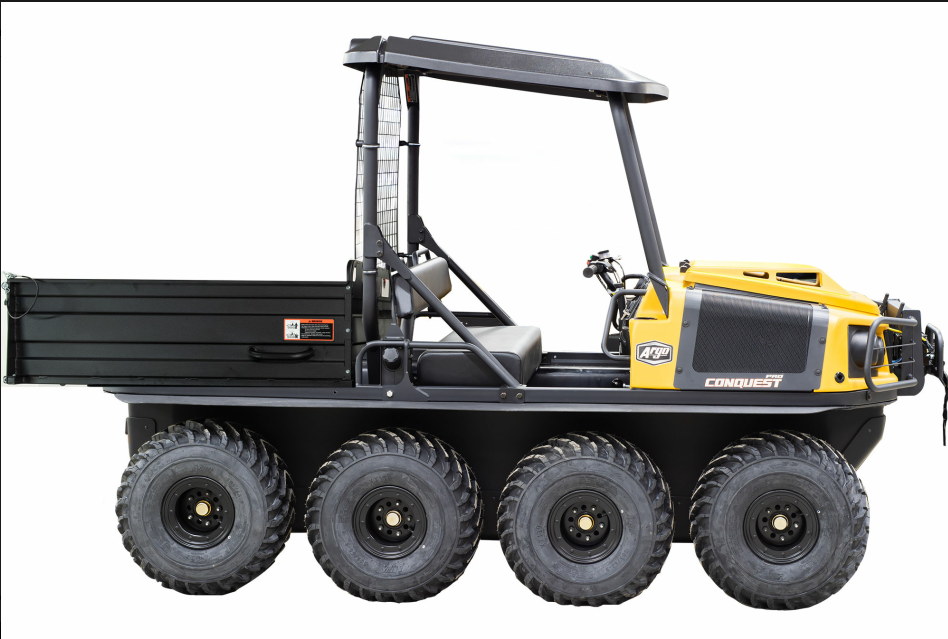

Designed for those who need a durable, robust, and dependable two-man rollover-protected gasoline-powered job site transporter, the 2022 Argo Conquest Pro 950 XTX 8x8 returns.

The 2022 model will come with a new ITC clutch package that improves torque, a new digital gauge display with fuel gauge, and aggressive XT119 tires as well as hood fans, dual projector-beam headlights, and an electric steel dump box as standard equipment. Conquest XTX is engineered for demanding commercial use, offering large payload capacity, tubular steel frame, sealed axles, and comfort for the occupants. This vehicle is ideal for transporting equipment through rough terrain due to its low operational weight and efficient Admiral steering transmission. It is the best-in-class vehicle for jobs that take you off the beaten path thanks to its 18" rubber or Adair Mud-Pro tracks. Available colors are industrial yellow or tundra green.

Featured on all 2022 Conquest models are off-set 9" steel AirLock rims and an updated axle design, which simplifies the transition from summer tires to track tires and eliminates the need for track spacers.

Conquest Pro 950 8x8 XTX 8x8 is powered by a Briggs & Stratton Vanguard gasoline engine measuring 993cc (60.59 cu. in.). It is equipped with a two-speed ADMIRAL transmission and produces 40 horsepower. It is capable of carrying up to 848 pounds. On land, 385 kg. The vehicle is capable of towing 2,000 pounds. The weight is 907 kilograms. Depending on the configuration, it can be tracked or untracked.

CLUTCH FOR INSTANT TORQUE

In 2022, Argo will introduce the Instant Torque Drive System (ITDS), which increases acceleration and low-end torque. This new Instant Torque Clutch (ITC) provides the optimal gear ratio, regardless of the terrain or conditions. On our standard ratio Admiral and Classic transmissions, torque and acceleration increase by 28% and 25%, respectively, compared to our previous HT (3.3 or 8.1) transmission ratios.

LUBE CHAIN OILERS

For reduced maintenance, Conquest Pro models include an underhood oil reservoir and electric chain oiler system.

BRUSHGUARD & WARN WINCH

As standard, the Conquest Pro models are equipped with a Warn 4500lb winch and a heavy-duty steel brushguard.

RIM AIRLOCKS

XT119 Argo mud tires mount on standard AirLock rims on the Conquest Pro models. Despite extreme terrain, AirLock rims provide a 30% smoother ride at lower air pressures, keeping the tire attached to the rim.

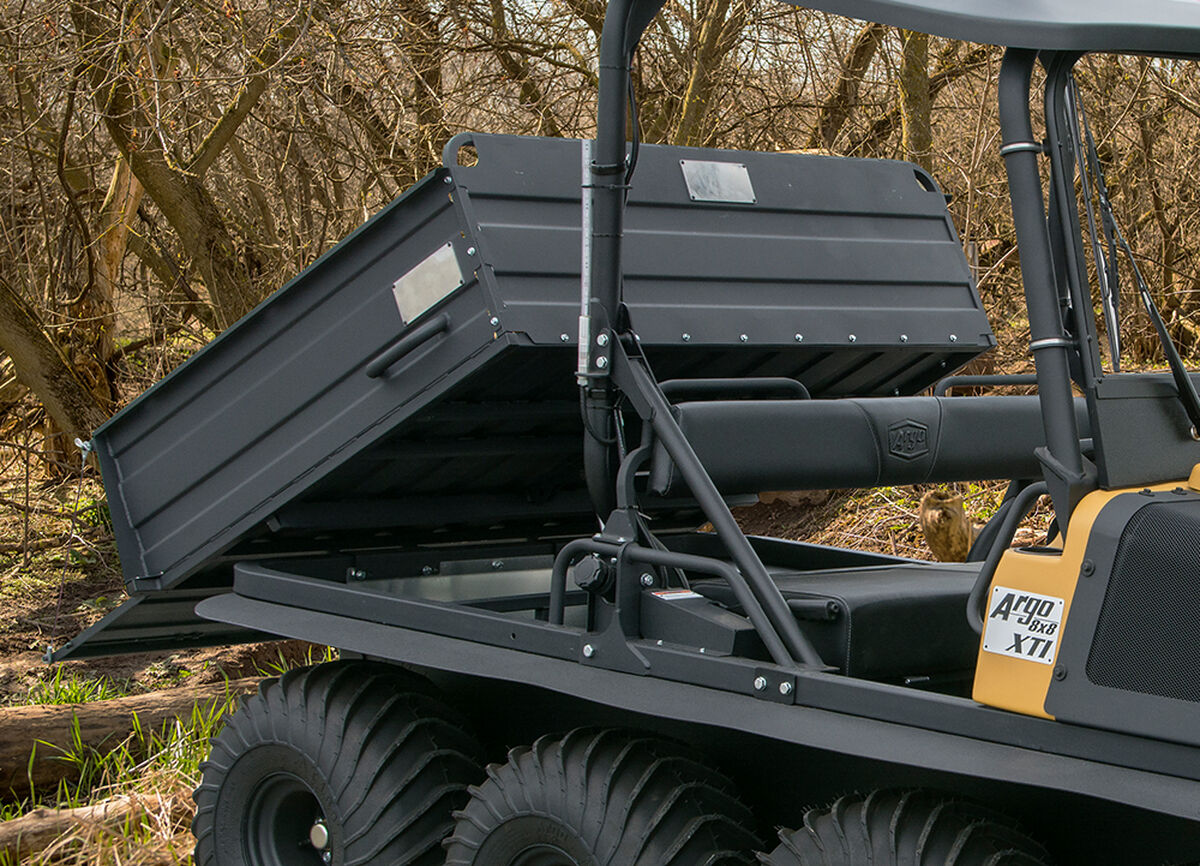

A 2-MAN ROLLOVER PROTECTION (ROPS) AND AN ELECTRIC DUMP BED

Rollover protection is provided by an ISO 5700-certified rollover system, a steel screen at the rear, a hard plastic roof, and steel dump boxes powered by an electric motor.

STANDARD EQUIPMENT:

• Briggs & Stratton 40hp Air Cooled Gas Engine
• 9 inch Offset Steel AirLock Rims on 25x12-9 XT119 Argo Tires
• Automatic Chain Lubrication System
• Full-Length Skid Plate
• Bilge Pump Kit
• Warn VRX 4500lb Winch
• Brushguard
• Rear Winch Receiver Wiring
• Heavy Duty Drive Belt
• 50 amp Alternator Kit
• Two Person ROPS w/ Hard Plastic Roof

• Rear Mesh Screen
• Power Dump Box
• Admiral Transmission

FEATURES:

• Innovative Admiral triple-differential transmission with independent steering brakes
• Increased steering efficiency for more and constant power to the wheels

Briggs & Stratton 40HP EFI Engine provides:
   • Increased fuel efficiency
   • Reliable cold-weather starting
   • Improved high elevation performance
   • Onboard diagnostics
   • Electronic ignition
   • Three-year limited engine warranty

• Large rear cargo capacity
• Electric powered dump box
• Large engine compartment with quick detach body panels
• Long wheelbase for increased ride comfort over rough terrain
• Wide 65” wheelbase for superior stability
• Oil-bath 1.5" drive axles supported by taper roller bearings
• 8-wheel traction with a low center of gravity for extra stability
• 25x12-9 (63.5 cm) XT119 ARGO tires with proprietary tread design
• Self-adjusting hydraulic brakes with vented discs
• Digital Speedometer and information display

STANDARD WARRANTY:

Engine: 3 Year Briggs and Stratton Limited Warranty
Chassis: 1 Year Argo Limited Warranty
Transmission: 1 Year Argo Limited Warranty
